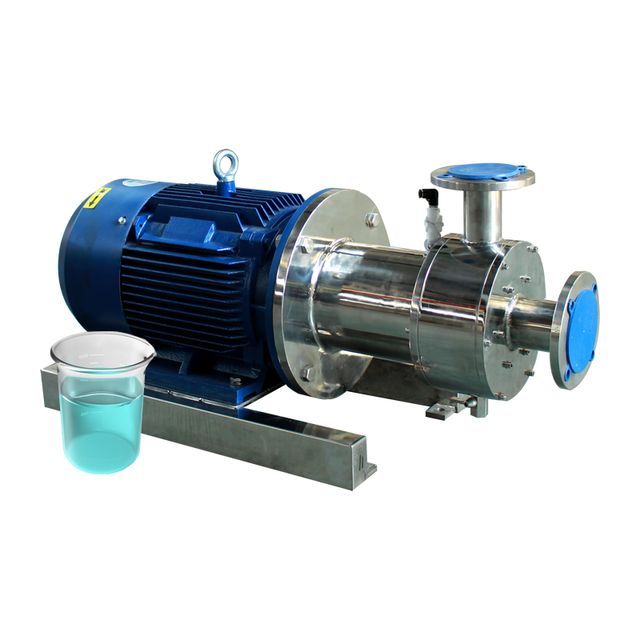

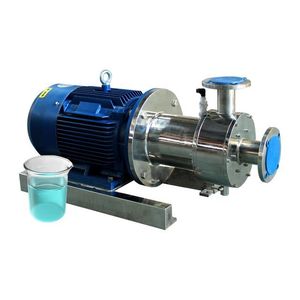

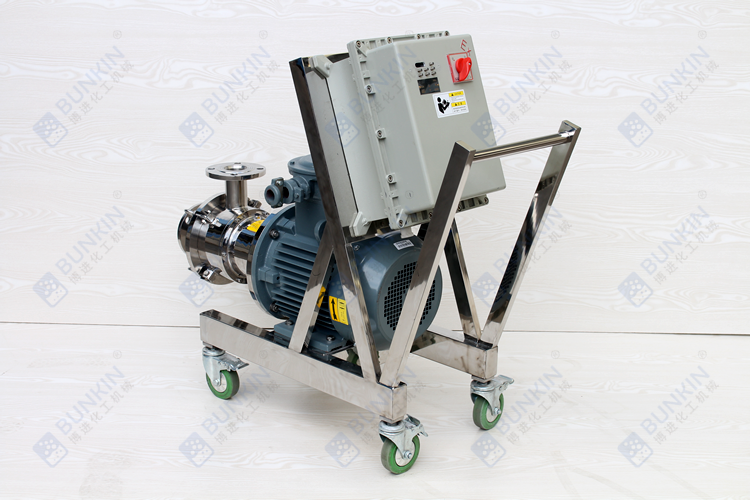

11 kW Inline Emulsification Pump Stainless Steel Powder and Liquid Mixer Unit for Food Grade Pre-Seed Treatment Coating
- $2430.00 / 1 - 4 sets
$2349.00 / 5 - 9 sets
$2268.00 / >=10 sets - 1 set
- Anhui Bunkin Chemical Machinery Co., Ltd.
- Anhui, China
- Mr Jack Zhang
PRODUCT DETAIL
| port: | Shanghai (or other seaport) | Warranty: | 1 year |
| Production capacity (kg/hour): | 9000 - 11000 | Supply capacity: | 30 sets per quarter |
| Work head: | Standard and Custom Designs | Showroom location: | Italy, Vietnam, Brazil, Pakistan, Ukraine, Uzbekistan |
| Core component warranty: | 1 year | optimization: | Control Panel/Governor |
| Main selling points: | high productivity | Import-export size: | DN 65 - DN 50 / customized |
| payment terms: | Western Union, T/T, MoneyGram, PayPal | weight: | 225 kg |
| speed: | 1500/1800/3000/3600 rpm | Material lift (water): | 10 meters high |
| type: | Emulsifier | Outlet pressure: | 0.3Mpa |
| Mechanical test report: | if | Dimensions (L*W*H): | 830mm*400mm*390mm |
| Inlet pressure: | 0.3MPa | Marketing Type: | New Products 2023 |
| strength: | 4-75kw | brand: | Wen Jin |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | engine: | Local/import/explosion-proof |
| pre-sale service: | Live product/factory via video call | Power (kW): | 11 |
| Package preview: | use: | do precision coating | |
| Applicable industries: | Coating production for manufacturing plants, food and beverage plants, farms, food stores, food and beverage stores, seeds and crops | Video shipment inspection: | if |
| Packaging Details: | Plywood boxes | Origin: | Anhui, China |
| Health status: | new |
Product Description

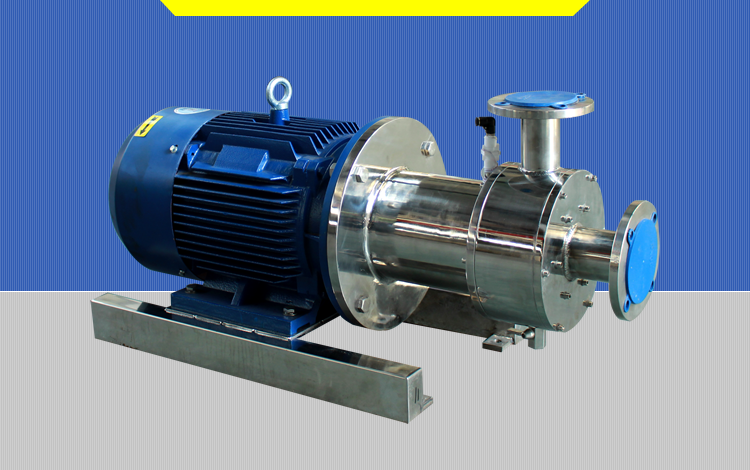

Single stage high shear emulsification pump
Single-stage high-shear emulsification pump is a homogeneous emulsification equipment used for continuous production or circulation processing of fine materials. The motor drives the rotor to run at high speed, and the particle size of liquid-liquid and solid-liquid materials is narrowed by the action of mechanical external force, so that one phase of material is evenly distributed into another phase or multiple phases to achieve refinement. Uniformity and dispersion emulsification, thus forming a stable emulsion state. The single-stage high-shear emulsification pump can be equipped with a feeding pump, which is suitable for medium and high-viscosity materials. The equipment has low noise, stable operation, no dead angle, and the material is forced to pass through, with dispersing and shearing functions. It has the function of short-distance and low-lift conveying.
Product Features

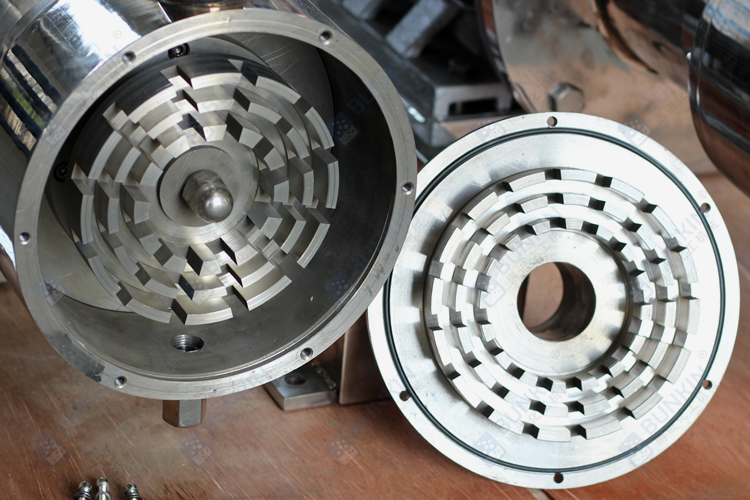

1. Good continuous dispersion and emulsification effect, clean CPI design. 2. The speed can reach 3000 rpm, and the speed can be adjusted by an energy-saving and environment-friendly frequency converter. 3. Design and manufacture of all stainless steel body. Additionally, an optional hygienic stainless steel motor cover can be added. 4. The rotor and stator are made of one piece of forging material by CNC machining center, with high precision and high line speed. 5. It adopts double-end mechanical seal design, no leakage, safe and reliable, and low maintenance cost. 6. The mechanical seal is designed for water shortage protection, and the additional jacket cooling function enables the machine to run for a long time. 7. Various connection methods such as flange, quick connection, SMS quick installation, special pressure, special temperature (high temperature resistance, low temperature resistance) requirements can be customized.
Technical Parameters
Model | strength | Rotating speed | Processing capacity | lift | import | exit | aspect (mm) | weight (Kilogram) | ||||||||
BZ1-4 | 4Kw | 3000 rpm | 2.5m3/H | 10 m | DN40 | DN32 | 710*300*360 | 125 | ||||||||
BZ1-7.5 | 7.5Kw | 3000 rpm | 6 meters3/H | 10 m | DN50 | DN40 | 800*350*390 | 170 | ||||||||
BZ1-11 | 11Kw | 3000 rpm | 11 meters3/H | 10 m | DN65 | DN50 | 830*400*390 | 225 | ||||||||
BZ1-15 | 15Kw | 3000 rpm | 16 meters3/H | 10 m | DN65 | DN50 | 950*400*460 | 260 | ||||||||
BZ1-18.5 | 18.5Kw | 3000 rpm | 20 meters3/H | 10 m | DN80 | DN65 | 950*400*460 | 295 | ||||||||
BZ1-22 | 22Kw | 3000 rpm | 25 meters3/H | 10 m | DN80 | DN65 | 1020*400*510 | 320 | ||||||||
BZ1-30 | 30Kw | 3000 rpm | 32 meters3/H | 10 m | DN100 | DN80 | 1160*450*550 | 380 | ||||||||
BZ1-37 | 37Kw | 3000 rpm | 40m3/H | 10 m | DN100 | DN80 | 1360*500*650 | 470 | ||||||||
BZ1-45 | 45Kw | 3000 rpm | 50 meters3/H | 10 m | DN125 | DN100 | 1570*600*770 | 560 | ||||||||
BZ1-75 | 75Kw | 3000 rpm | 60 meters3/H | 10 m | DN125 | DN100 | 1850*700*920 | 750 | ||||||||
* Special liquid contact material and power supply, voltage can be customized | ||||||||||||||||

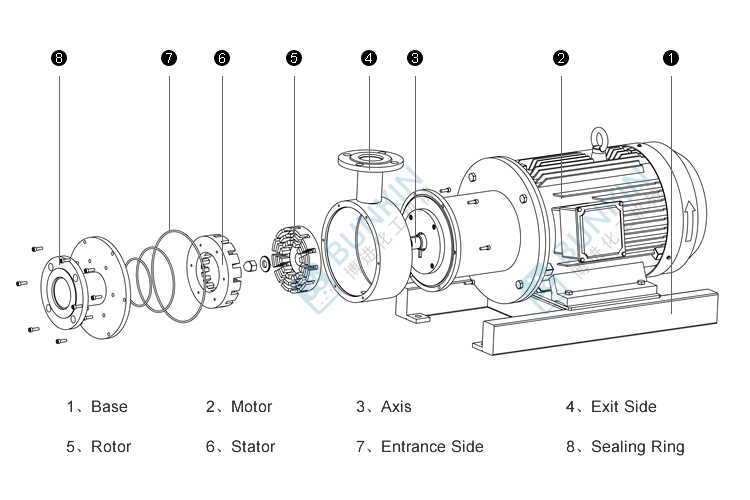

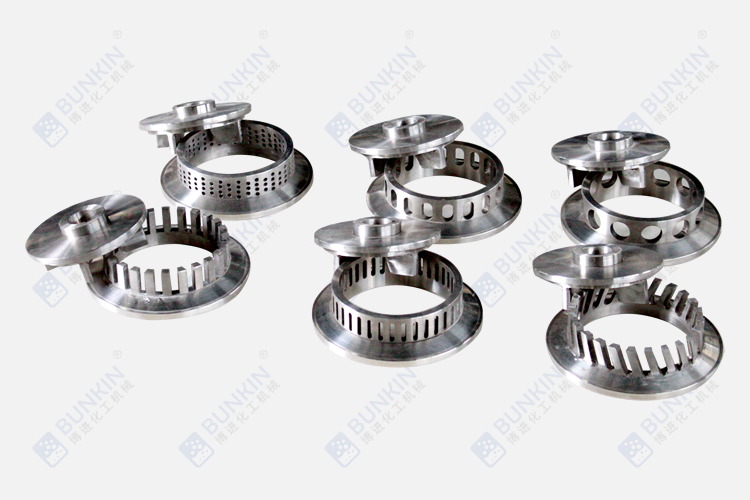

Components and Functions

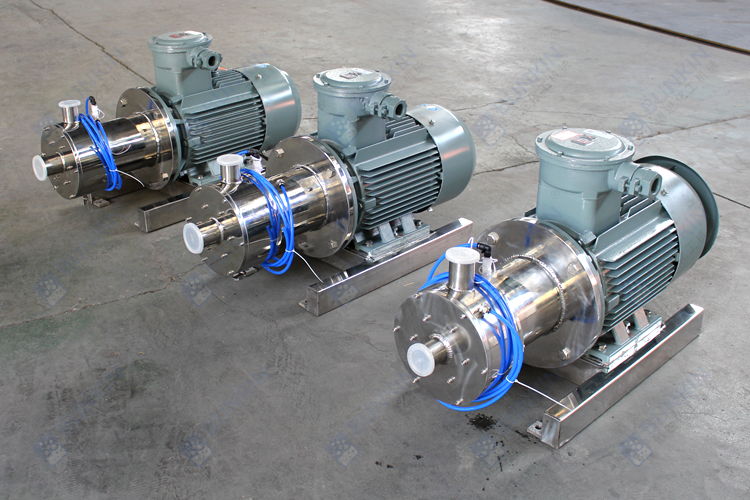

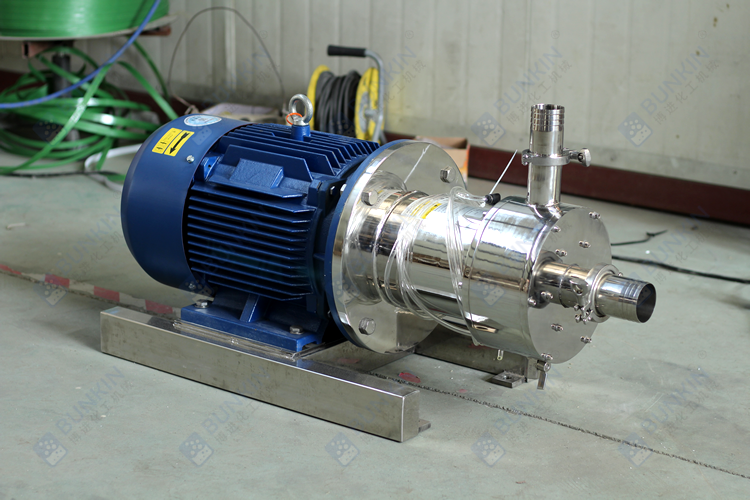

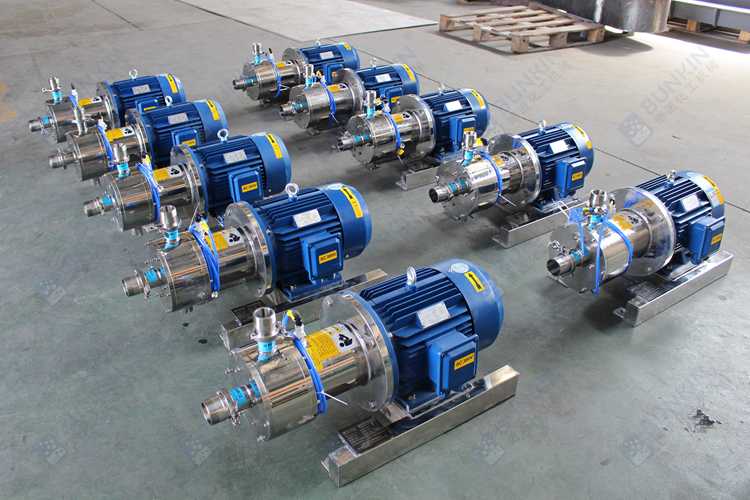

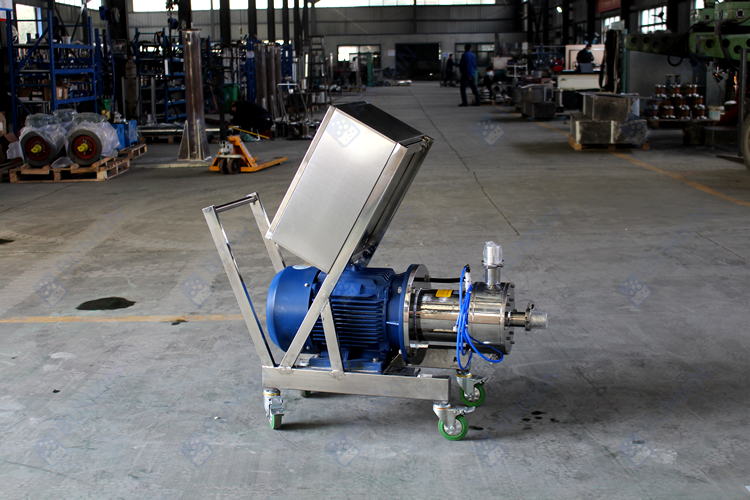

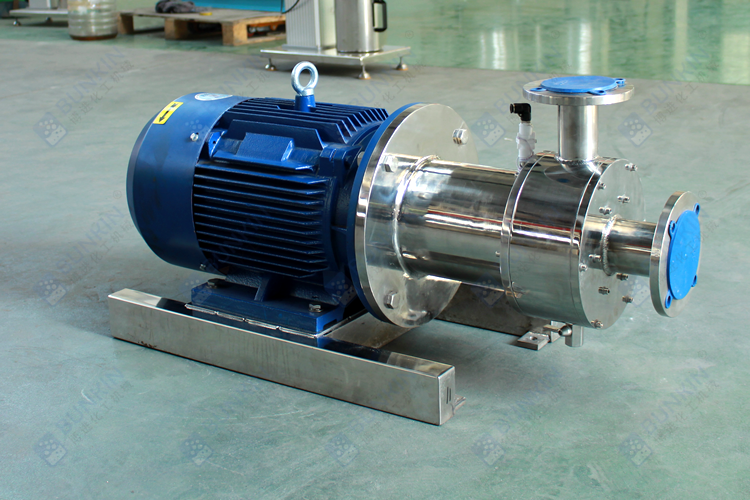

product display
Packaging and Shipping
