3P isolation switch 3-phase conversion 2-position switch rotary power cut-off cam switch YMD11-100A
- $9.70 / >=2 pieces
- 2 pieces
- Zhejiang Yaming Electric Co., Ltd.
- Zhejiang, China
- Ms Vicky Wong
| Terminal number: | 6 terminals | Certification: | Chief Executive |
| Installation size: | 48*48mm | Warranty: | 1 year |
| payment terms: | Western Union, wire transfer | Function: | circuit control |
| Install: | square plate | brand: | OEM |
| maximum. current: | 100A | application: | control motor |
| Panel size: | 64*64mm | place of origin; place of origin: | Zhejiang, China |
| model: | YMD11-100a isolating switch | Mechanical life: | 60000 times |
| color: | blue/blue/red | Is it smart: | Do not |
| maximum. Voltage: | 690V | Packaging Details: | 1 Piece 100a Disconnect Switch/Neutral Box NW: 0.42kg 50pcs/Carton |
| pole: | three phase | Location: | 2 positions (switch) |
| port: | Ningbo, Shanghai |

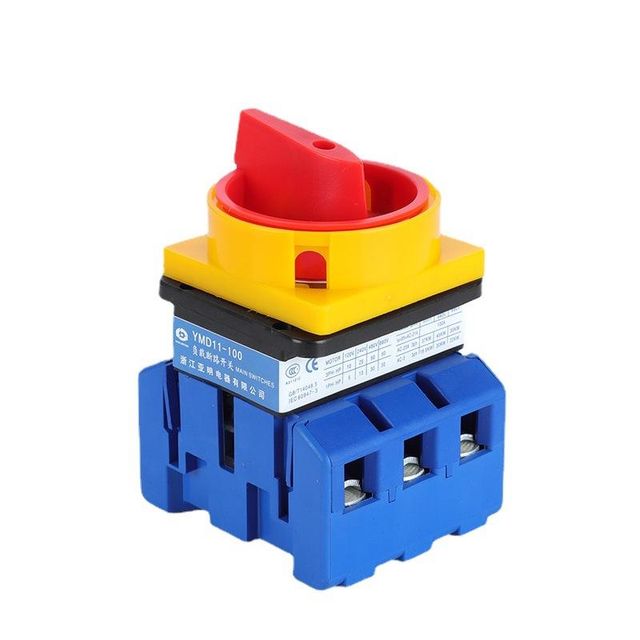

100a isolating switch 3-phase conversion 2-position switch rotary cam cut off main switch
What are the details of our switches?
YMD11 series isolating switch has good appearance and small volume. It is used in switchboards and switch cabinets. Widely used in air conditioning systems and pump systems as main switches for insulation and safety isolation.
YMD11 series isolation switch has finger protection function, which is safe and reliable, and can be used for ON/OFF control and emergency stop.
What are the specifications of our switches?

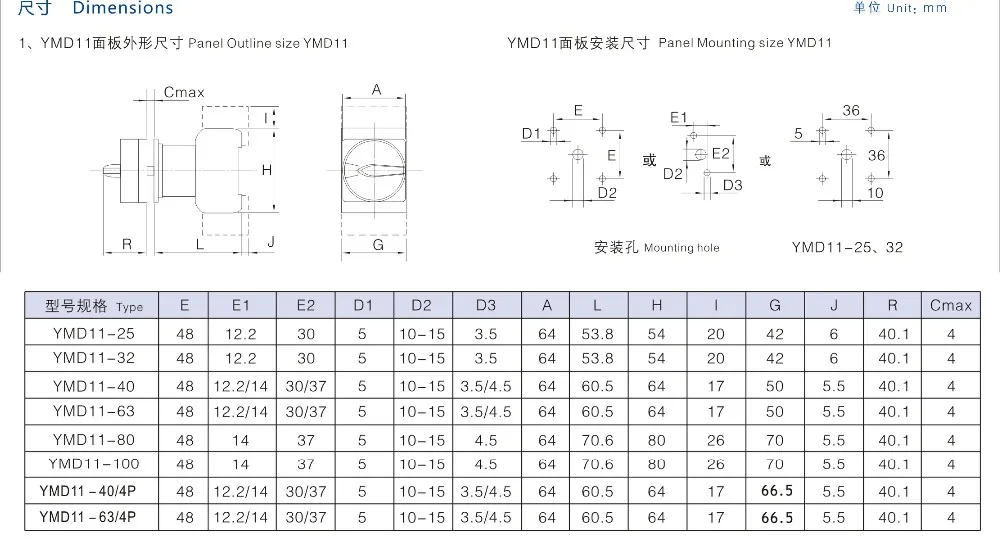

What is the detail drawing of our switch?
