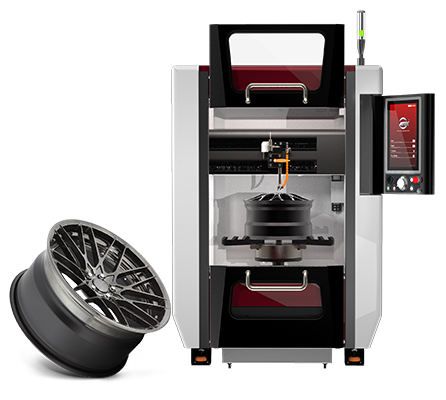

Diamond Cutting Expert Horizontal Elegance Wheel Lathe / Wheel Lathe / Alloy Wheels for Car Repair | TP-01H
- $43650.00 / 1 - 2 pieces
$39255.00 / 3 - 9 pieces
$34900.00 / 10 - 99 pieces
$28350.00 / >=100 pieces - 1 piece
- ATEK MAKINA SANAYI VE TICARET ANONIM SIRKETI
- Istanbul, Turkey
- Mr Keser Ilter
PRODUCT DETAIL
| Main selling point: | automatic | Showroom location: | turkey |
| Core Components Warranty: | 1 year | year: | 2021 |
| Spindle Bore (mm): | other | Stroke (X-axis) (mm): | 540 mm |
| payment terms: | T/T, Western Union | Bed width (mm): | 0 mm |
| place of origin; place of origin: | Istanbul, Turkey | Video external inspection: | if |
| maximum. Spindle speed (rpm): | 1500 rpm | After-sales service provided: | Online support, video technical support |
| Spindle motor power (kW): | 5.5 | Supply capacity: | 1 item per month |
| Applicable industries: | Mechanical Repair Shop, Manufacturing Plant, Retail, Automotive, Auto Service, Wheel Service, Paint Shop | Certification: | ISO9001 |
| port: | istanbul | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Marketing Type: | New Products 2020 | Tool station: | 2 |
| Packaging Preview: | Number of spindles: | single | |
| Core components: | Bearings, motors, PLCs, engines | Processing capacity: | heavy load |
| maximum. Workpiece length (mm): | 400 | Health status: | new |
| maximum. Swing Diameter (mm): | 720 | brand: | Artek |
| model: | TP-01H | Packaging Details: | Metal cage metal tray with plywood cover |
| Stroke (Z axis) (mm): | 500 mm | Positioning accuracy (mm): | ±0.001 |
| Mechanical test report: | Not available | Number of axes: | 2 |
| Voltage: | 380 | Local service location: | turkey |
| type: | vertical | Weight (kg): | 970 |
| Warranty: | 1 year |
"Every wheel
Right to update. "
grace

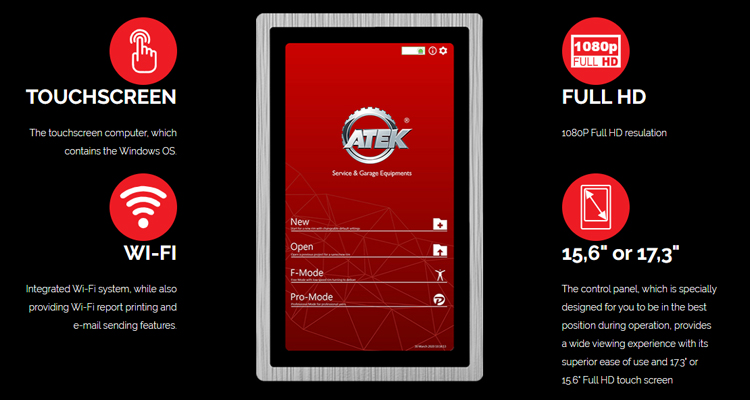

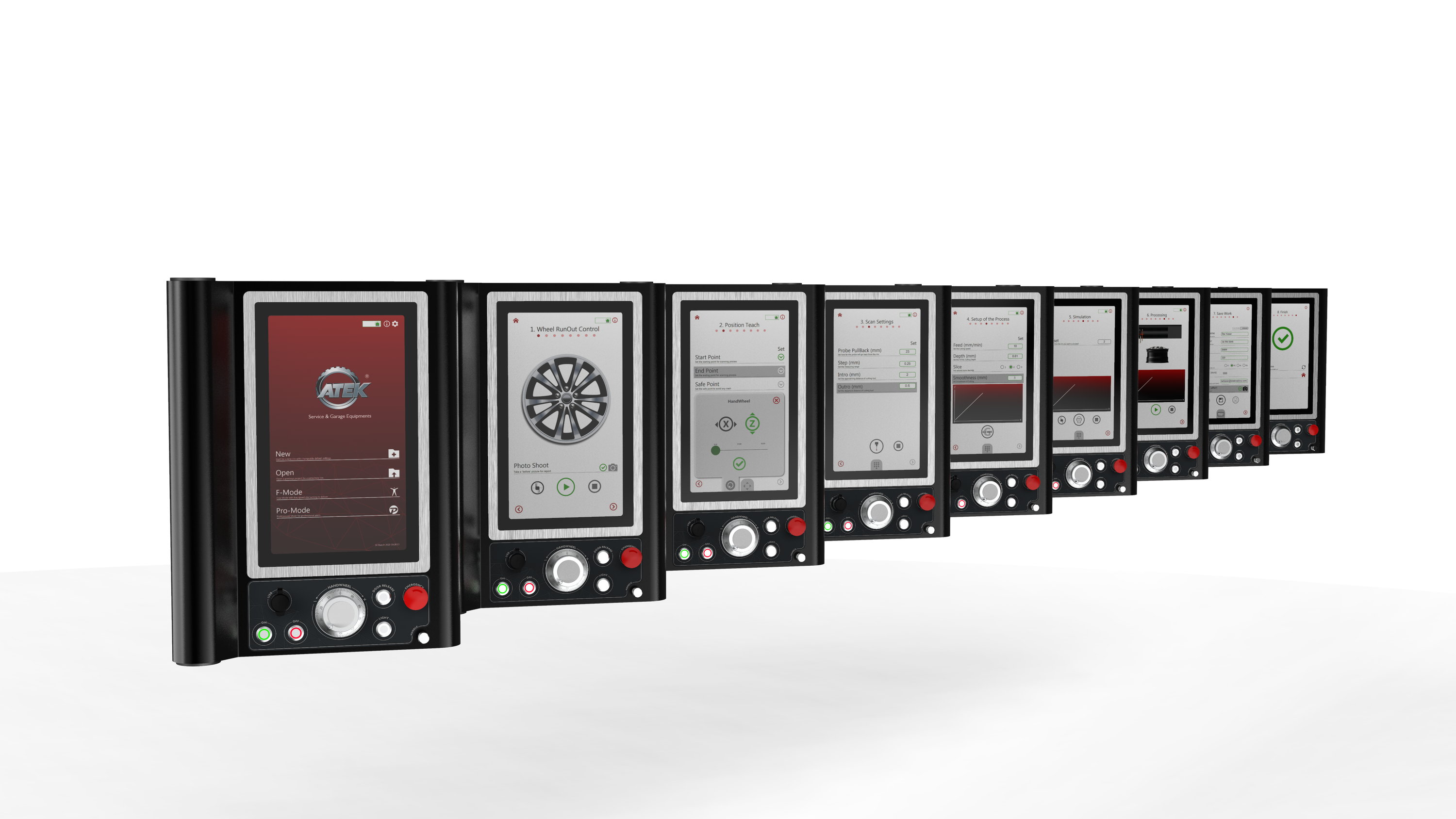

The long-awaited user experience With the full HD 17.3-inch touchscreen, you'll feel like you're using your phone. User-friendly interface, specially designed inArtek R&D.
We have developed for you the best solution for wheels that not only have scratches, but also need modification and are worth updating.

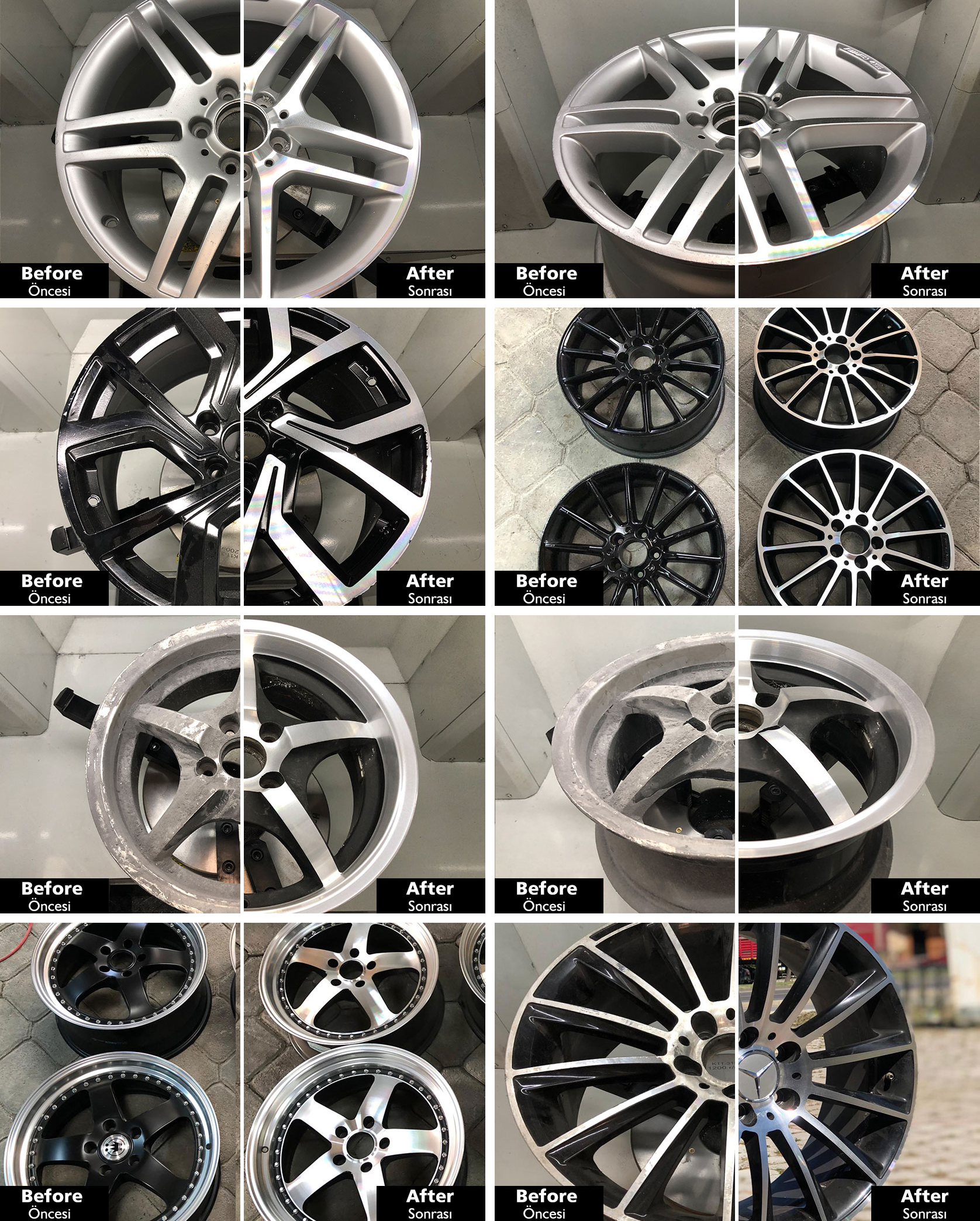

Brighter, Slicker Wheels Expert, Elegant Wheels Diamond Cut Expert offers you wheels that look like they just came out of the factory.

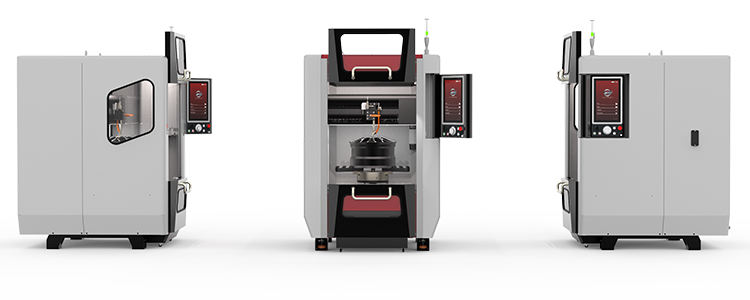

Strong, durable, agile and rigid. This is how we define the design of the Elegance CNC wheel diamond cutting experts. this is a real
Design marvels such as wide-view glass design, bright interior lighting, foldable control panels, combination door systems, and more.
We know there isn't any extra space. That's why we have prepared a sturdy cabinet design that can store all
Features within 2,14 m2. Let's see what we have done for you.

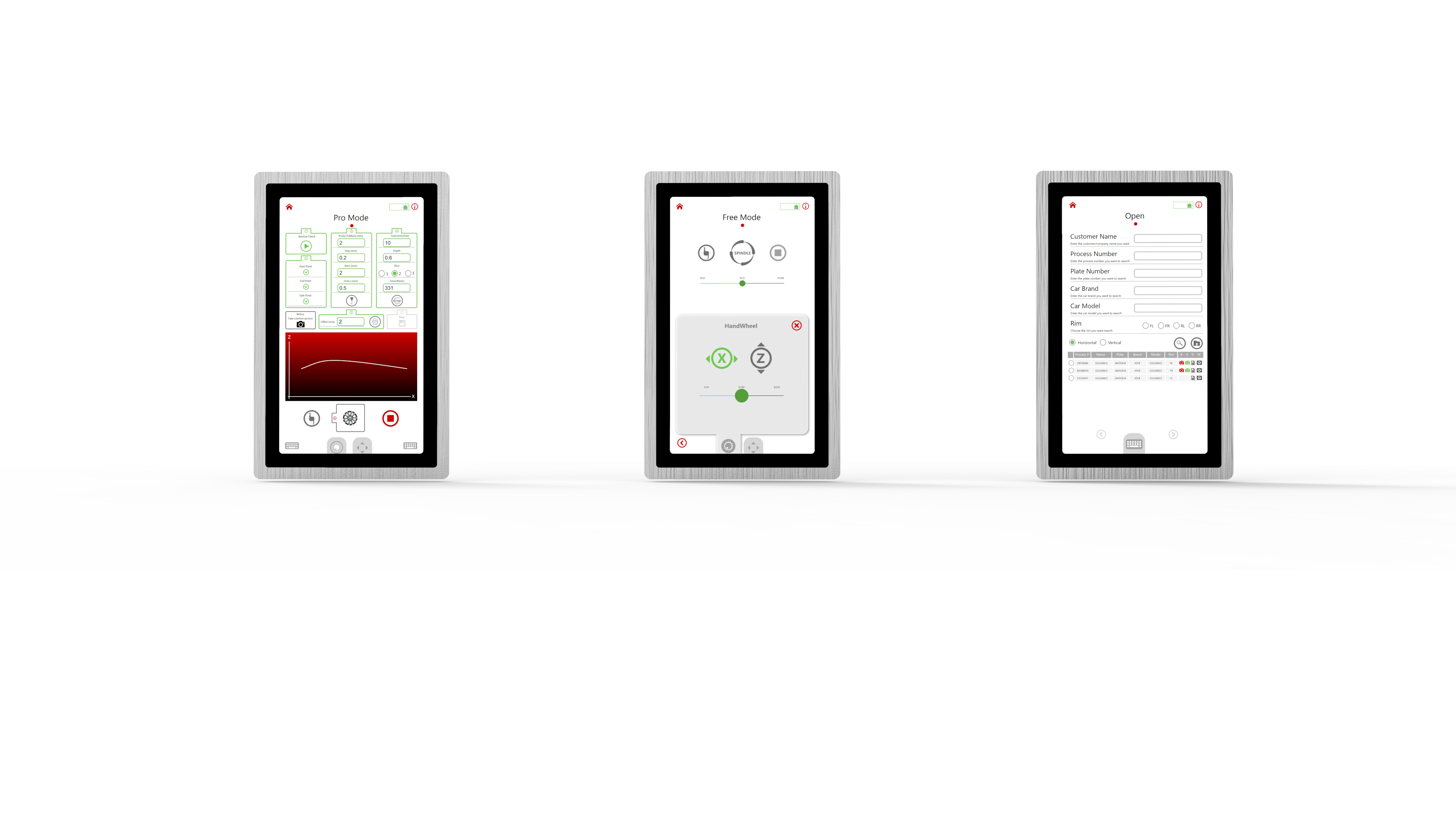

new mode
Follow me step by step...
Pro mode
We know that you are professional.
free mode
Beautify with both hands.
Open
Create your own archive.

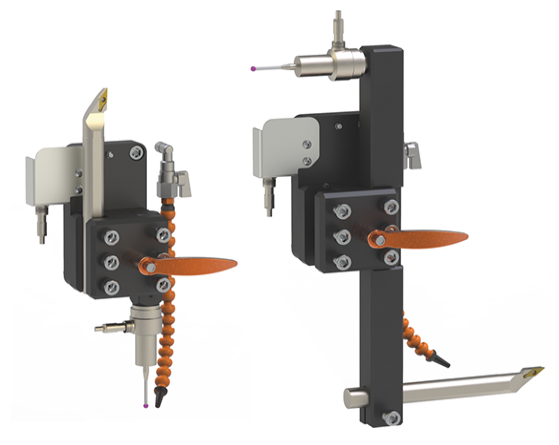

touch probe
Accurate measurements are made using a touch probe scanning system with a repeatability of 0.001 mm.
TouchProbe is standard TP-01HV, TP-01H, TPL-01HV and TPL-01H models
Advantage
• Step by step user friendly interface
• Handwheel simulation mode
• Deburring free mode
• Open mode of previous works
• save, email, print
• Handwheel simulation mode
• Deburring free mode
• Open mode of previous works
• save, email, print
• Up to 20.000 job storage
• Ergonomic removable control panel
• Totally enclosed body design
• Reinforced steel skid
• Rigid body design
• Ergonomic removable control panel
• Totally enclosed body design
• Reinforced steel skid
• Rigid body design
• Compact design to save space
• Durable electrostatic powder coating
• Rim protection in case of power failure
• Combination sliding doors
• Cornering without removing tires
• Free online training (20 hours)
• Durable electrostatic powder coating
• Rim protection in case of power failure
• Combination sliding doors
• Cornering without removing tires
• Free online training (20 hours)
Specification
• Laser measurement system
• Probe measurement system
• 0.001 mm iteration and positioning sensitivity
• Heavy duty linear guides (2 per axis)
• Heavy duty ball screw
• Probe measurement system
• 0.001 mm iteration and positioning sensitivity
• Heavy duty linear guides (2 per axis)
• Heavy duty ball screw
• Electronic safe door lock
• LED interior lighting
• Embedded internal camera for reporting
• Black chrome collet
• Anti-slip brush
• LED interior lighting
• Embedded internal camera for reporting
• Black chrome collet
• Anti-slip brush
• Ergonomic chip tray
• LED tower light with buzzer
• 4-point quick manual lubrication
• Process air cooling
• LED tower light with buzzer
• 4-point quick manual lubrication
• Process air cooling
Accessories
• Left cutting tool
• The right tool
• Ratchet handle
• Ratchet handle extension
• 10mm hex key
• Tool hex key
• 3mm hex key
• The right tool
• Ratchet handle
• Ratchet handle extension
• 10mm hex key
• Tool hex key
• 3mm hex key
craft
• Atek closed loop control system from Syntec Co.
• 1.1 kW X-axis motor
• 1.1 kW Z-axis motor/with brake
• 380V 5.5 kW spindle motor (1500 rpm)
• 28" horizontal cut
• 22" vertical cut
• Maximum 15" cutting height (381 mm)
• 12" collet with reinforcement clips
• 1.1 kW X-axis motor
• 1.1 kW Z-axis motor/with brake
• 380V 5.5 kW spindle motor (1500 rpm)
• 28" horizontal cut
• 22" vertical cut
• Maximum 15" cutting height (381 mm)
• 12" collet with reinforcement clips
aspect
• Width (mm) 1320
• Length (mm) 1620
• Height (mm) 2245
• Weight (kg) 970
• Length (mm) 1620
• Height (mm) 2245
• Weight (kg) 970
TP-01HV | TP-01H | L-01HV (coming soon) | L-01H (coming soon) | TPL-01HV (coming soon) | TPL-01H (coming soon | |
• 28" horizontal cut (381mm rim height) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• 22" vertical cut | ✓ | X | ✓ | X | ✓ | X |
• 12" Chuck /w Enhanced BlackChrome Clip | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• Save and email report modules (Direct printing module with external printer) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• Internal camera for before/after reporting | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• Standard 17.3" computer | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• 802.11ac wireless networking | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
• Probe measurement system | ✓ | ✓ | X | X | ✓ | ✓ |
• Laser measurement system | X | X | ✓ | ✓ | ✓ | ✓ |
| • Free online training (20 hours) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
