UFS test socket 11.5x13mm with USB adapter for fast write & read test, compatible BGA153, Controller SM3350
- $426.50 / 1 - 9 pieces
$372.60 / 10 - 49 pieces
$346.20 / >=50 pieces - 1 piece
- Sireda Technology Co., Ltd.
- Guangdong, China
- Ms Cherry Liu
PRODUCT DETAIL
| Supply Ability: | 20000 Pieces per Month; | Package: | BGA153; |
| Payment Terms: | T/T; | Structure: | Clamshell; |
| Place of Origin: | Guangdong, China; | Specification: | UFS BGA153; |
| Contact: | pogo pin; | Pitch: | 0.5mm; |
| IC Size: | 11.5X13mm; | Model Number: | 702-0001331; |
| Brand Name: | Sireda; | Port: | Shenzhen; |

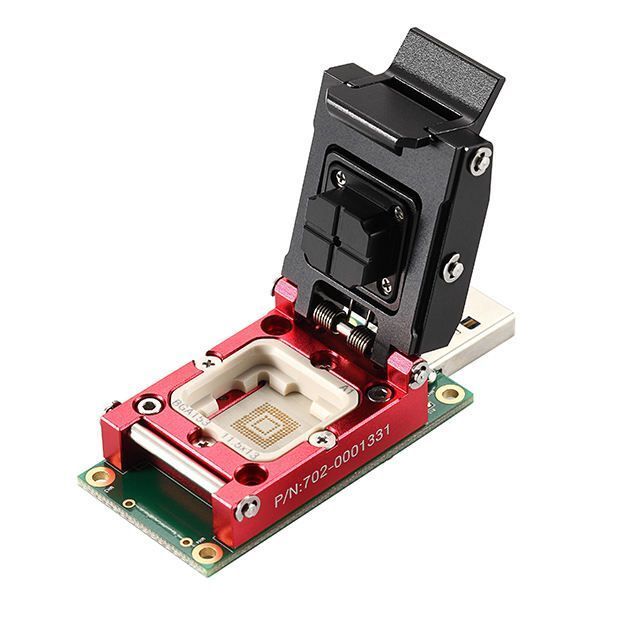

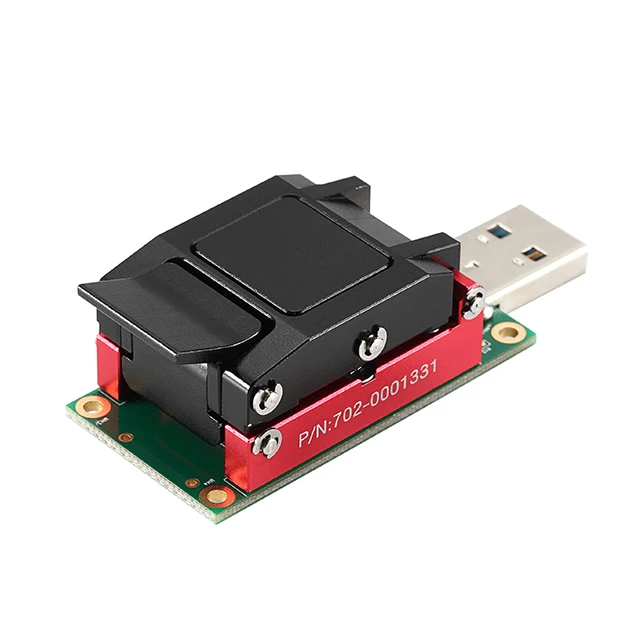

UFS BGA153 SM3350 USB Test Socket
1. Support for UFS BGA153 fast read and write.
2. Applicable for Samsung, Hynix, etc.
3. Suitable for different version of UFS
4. Support for hot plug, can be directly connected to PC with USB port.
2. Applicable for Samsung, Hynix, etc.
3. Suitable for different version of UFS
4. Support for hot plug, can be directly connected to PC with USB port.
P/N | Device | IC Size(mm) | Test Type | Controller | USB | Type of Socket |
702-0001331 | UFS BGA153 | 11.5*13 | UFS | SM3350 | 3.0 | CNS Machined |
Mechanical | ||
Material Socket Body | PEEK Ceramic/PPS | |
Material Socket Lid | AL, POM | |
Contact | Pogo Pin | |
Operation Temperature | -0 ~ 80 ℃ | |
Life Span | 50K Cycles | |
Spring Force | 20g ~ 30g per Pin | |
Electrical | ||
Current Rating | 1.5A | |
DC Resistance | <100mΩ | |
Specifications
P/N: 702-0001331
IC Size: 11.5X13mm
Test type: UFS
Controller: SM3350
IC Size: 11.5X13mm
Test type: UFS
Controller: SM3350
Relative Product
Please refer to below chart for more specifications of this series products.
For customized products or other products , please contact us or have a look at our website: www.sireda.com
For customized products or other products , please contact us or have a look at our website: www.sireda.com
Part Number | Description | Type | Controller |
702-0001327 | BGA153 0.5mm eMMC CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
702-0001328 | BGA162 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
702-0001329 | BGA221 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
702-0001330 | BGA254 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
702-0001331 | BGA153 0.5mm UFS CS100 11.5x13mm USB | UFS | SM3350 |
702-0001674 | BGA153 0.5mm UFS CS100 11.5x13mm USB | UFS | JMS901 |
701-0000091 | BGA162 0.5mm eMCP CS100 11.5x13mm HS200 USB | HS200 | RTS5309 |
701-0000092 | BGA153 0.5mm eMMC CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
701-0000093 | BGA162 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
701-0000094 | BGA221 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
701-0000095 | BGA254 0.5mm eMCP CS100 11.5x13mm HS400 USB | HS400 | GL3227E |
701-0000096 | BGA153 0.5mm UFS CS100 11.5x13mm USB | UFS | SM3350 |
701-0000097 | BGA221 0.5mm eMCP CS100 11.5x13mm HS200 USB | HS200 | RTS5309 |
701-0000098 | BGA153 0.5mm eMMC CS100 11.5x13mm HS200 USB | HS200 | RTS5309 |
701-0000150 | BGA153 0.5mm UFS CS100 11.5x13mm USB | UFS | JMS901 |
