usb connector female 6 16 24 pin dip usb-c type A B C socket 2.0 3.0 smt female male sunk plated usb c connector for PCB
- $0.015 / >=1000 pieces
- 1000 pieces
- Shenzhen Guozhi Electronic Co., Ltd.
- Guangdong, China
- Ms Amy su
PRODUCT DETAIL
| Material: | Gold plating of copper; | Brand: | SZGOZIE; |
| Application: | PCB; | DIELECTRIC WITHSTAND VOLTAGE: | 500V Contact; |

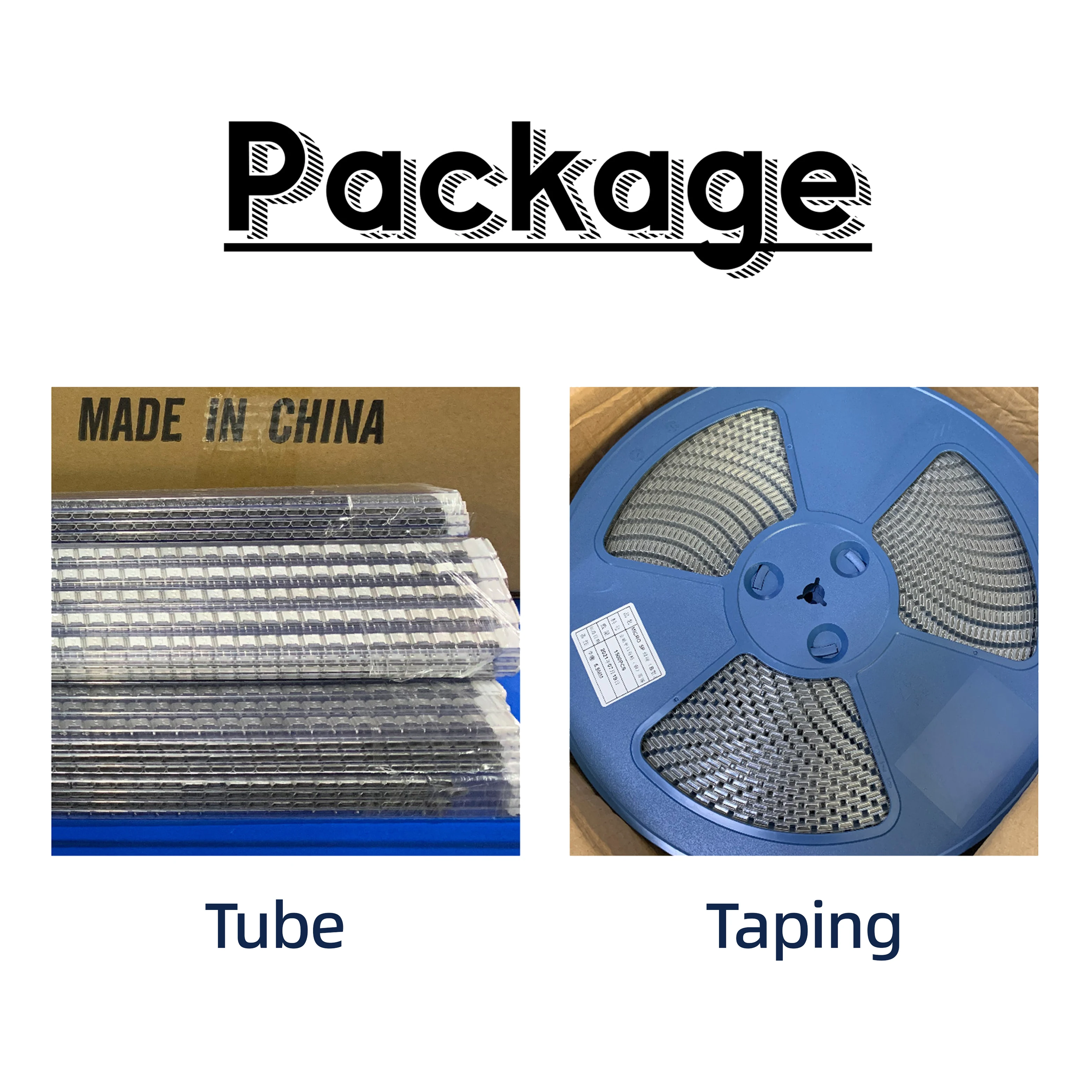

| Certificate: | ROHS; | Packaging: | reel; |
| Interface Type: | USB; | Color: | silvery; |
| Contact Reistance: | 30mΩ Max; | Type: | usb connector; |
| INSULATION RESISTANCE: | 100M MIN; | Product name: | USB connector; |
| Payment Terms: | T/T; | Model Number: | us female male connector; |
| Place of Origin: | Guangdong, China; | Temperature Range: | -30℃-+80℃; |
| Description: | usb connector; |
Specification
Model | usb connector | Operating Temperature | -20℃-+60℃ |
Type | TYPE-C/AF/BF USB connector | Withstanding Voltage | AC500V/1Min |
Material | Gold Plated Copper/LCP | Insulation Resistance | 1000MΩ、Min |
Shape | Type A/B/C interface | Contact Resistance | 30mΩ/Max |
Insulation Resistance | 100M MIN | Certificate | RoHS |
Insertion Force | 35N Max | Pull Out Force | 10N Min.Initial 8-20N After |
Product Description
Please contact us, we can do more for you！

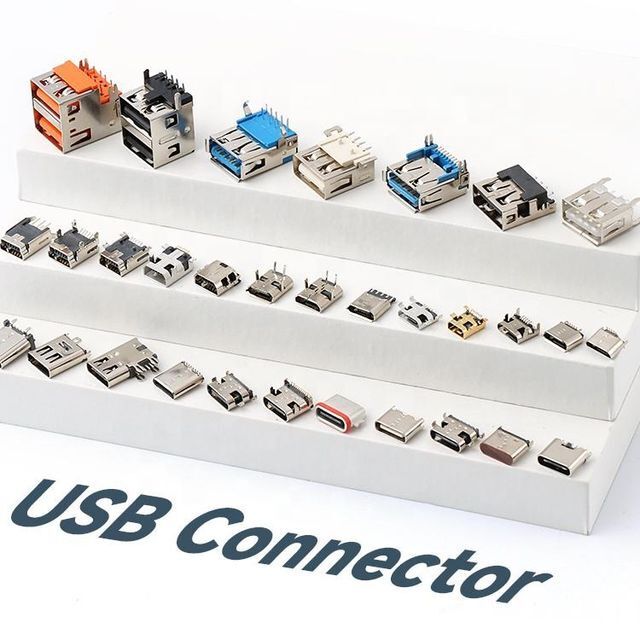

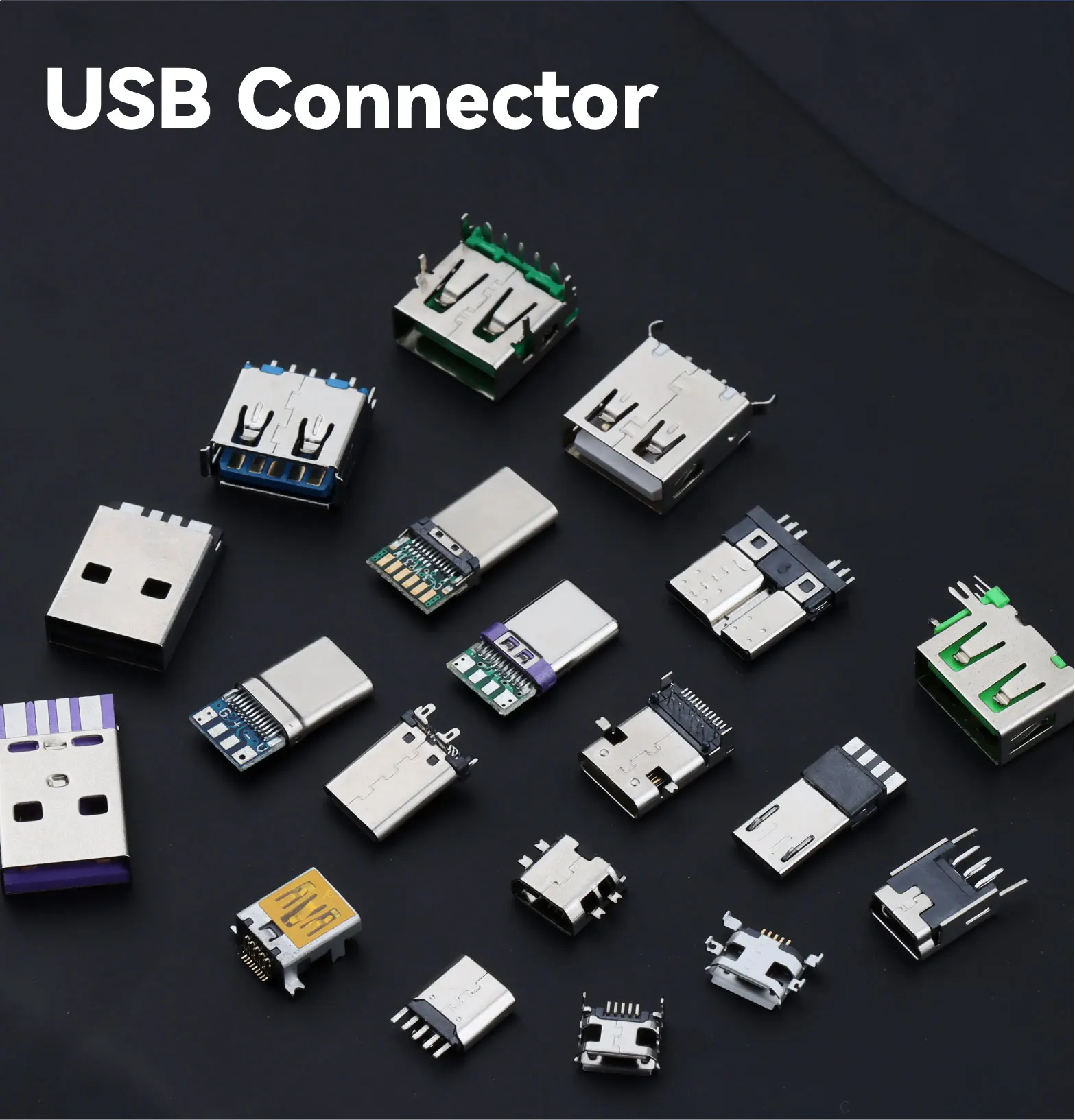

USB CONNECTOR is an accessory that can be used on a PCB board，there are four types, respectively:MICRO、TYPE-C、TYPE-A、TYPE-B
Please contact us, we can do more for you！

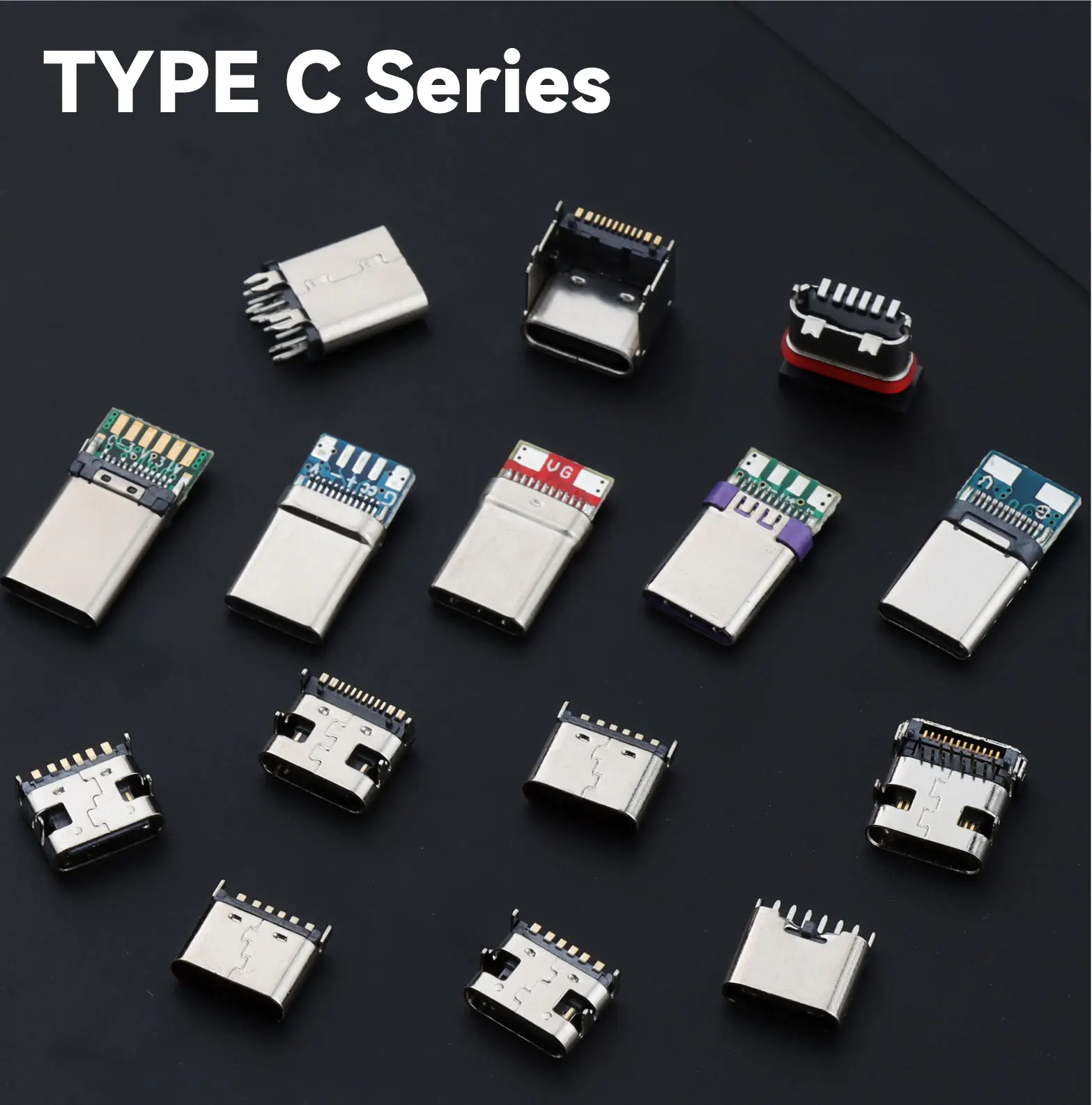

Type-C receptacle can either provide power as a “Source” or consume power as a “Sink”; this usually corresponds to whether the port is a USB host (Downstream Facing Port, or DFP) or USB device (Upstream Facing Port, or UFP). The Configuration Channel, pins are used to determine the role of a port when it is connected.
Please contact us, we can do more for you！

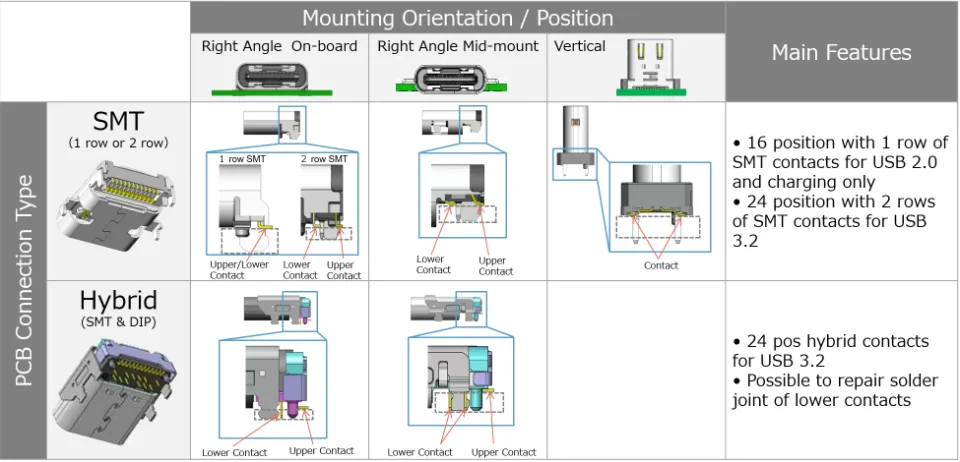

There are many possible variations of the receptacle connector depending on the specific requirements for each device. Below are the main connector mounting options to consider when selecting the ideal connector.
Please contact us, we can do more for you！
If you didn't find the suitable item here, Please CONTACT US to get the product you need! There are many Models for Options.
