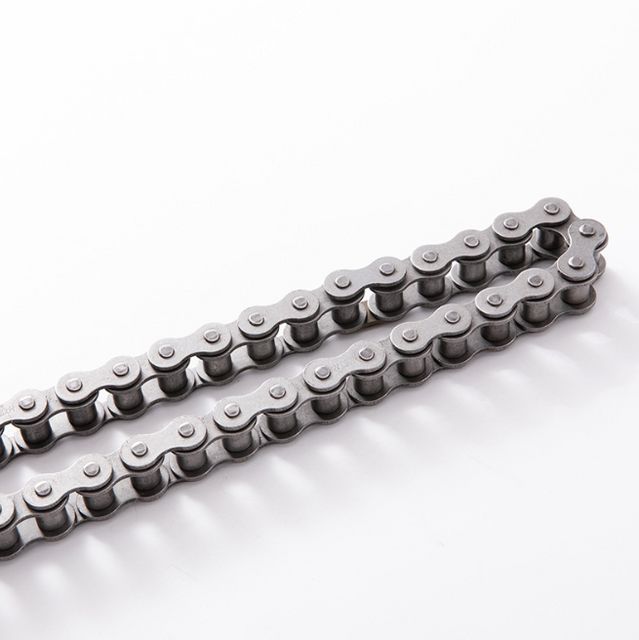

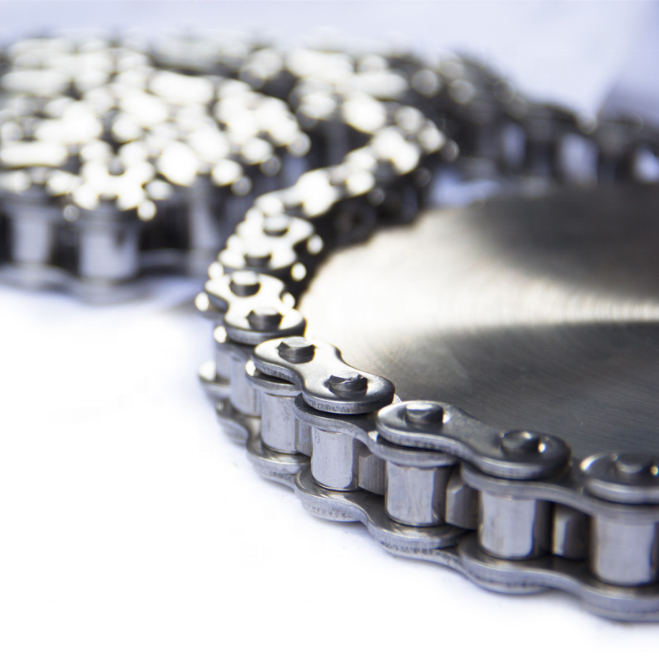

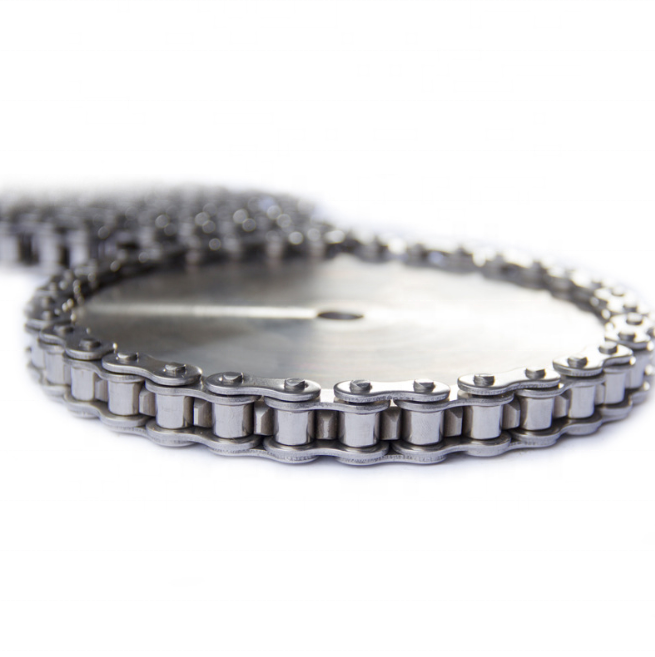

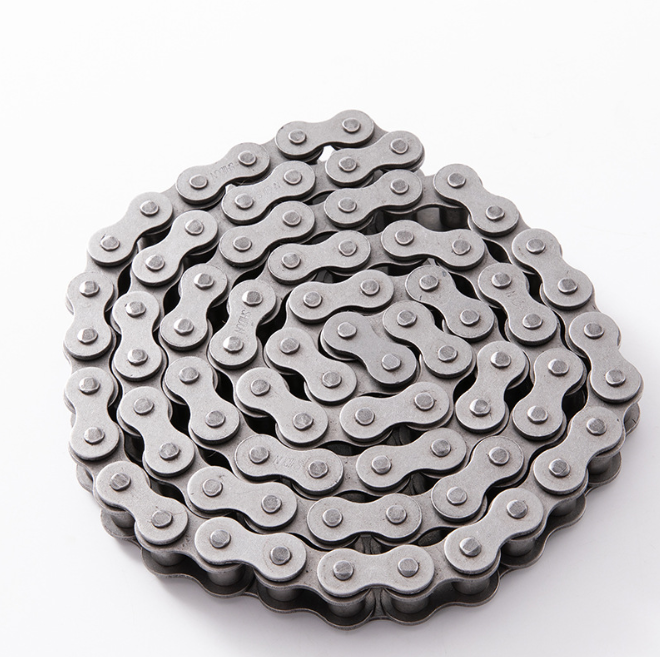

08B-1 12.7mm high quality short pitch precision single power transmission conveyor roller chain
- 1 piece
- Changsha Terry Machinery Co., Ltd.
- Hunan, China
- Ms Mery Zhou
PRODUCT DETAIL
Product Description
1. Material selection: carbon steel, 40Mn, C45 steel, 304 stainless steel, 316 stainless steel, 201 stainless steel.
2. We specialize in the production of various standard chains and special chains, such as A series chains, B series chains, roller chains,
Transmission chain, conveyor chain, lifting chain, agricultural chain, sprocket, gear, wheel, etc.;
3. Roller chain: A series (pitch 12.7-50.8mm), B series (pitch 9.525-50.8mm), heavy-duty series.
4. We supply various different models of stainless steel roller chains.
5. We also supply the following short pitch precision roller chains
2. We specialize in the production of various standard chains and special chains, such as A series chains, B series chains, roller chains,
Transmission chain, conveyor chain, lifting chain, agricultural chain, sprocket, gear, wheel, etc.;
3. Roller chain: A series (pitch 12.7-50.8mm), B series (pitch 9.525-50.8mm), heavy-duty series.
4. We supply various different models of stainless steel roller chains.
5. We also supply the following short pitch precision roller chains
Product name | 08B-1 12.7mm high quality short pitch precision single power transmission conveyor roller chain |
Model | 08B |
type | Bushing chain, transmission chain |
Certificate | ISO9001:2008 |
Chain links include standard chain links (without accessories) and non-standard chain links (with accessories).
A1: Single hole crank attachment on one side.
A2: One-sided, two-hole crank attachment.
K1: Single hole crank attachment on both sides.
K2: Double hole crank attachment on both sides.
D1: Single sided, with an extension pin on each outer link.
D3: One side, two extension pins on each outer link.
A2: One-sided, two-hole crank attachment.
K1: Single hole crank attachment on both sides.
K2: Double hole crank attachment on both sides.
D1: Single sided, with an extension pin on each outer link.
D3: One side, two extension pins on each outer link.
Specification:
1. Single unit: 04B-1, 05B-1, 06B-1, 08B-1, 10B-1, 12B-1, 16B-1, 20B-1, 24B-1, 28B-1, 32B-1, 40B - 1, 48B-1, 56B-1, 64B-1, 72B-1.

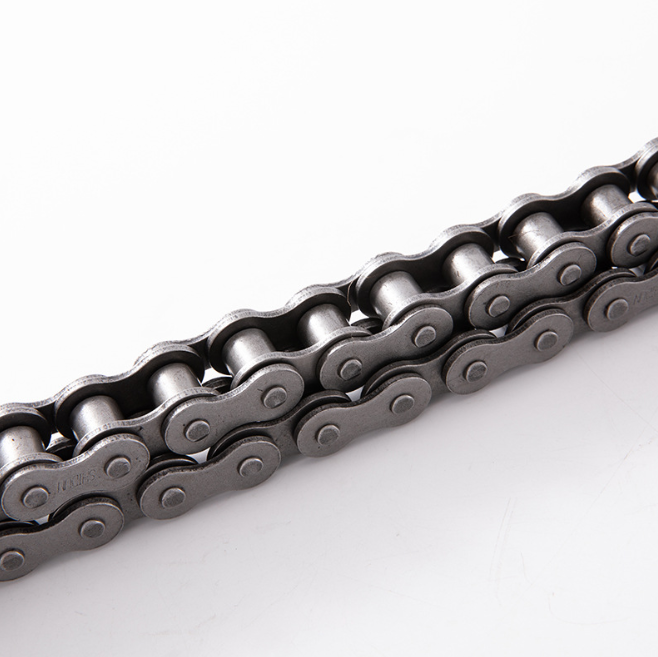

2. Duplex: 05B-2, 06B-2, 08B-2, 10B-2, 12B-2, 16B-2, 20B-2, 24B-2, 28B-2, 32B-2, 40B-2, 48B - 2, 56B-2, 64B-2, 72B-2.
3. Triple: 05B-3, 06B-3, 08B-3, 10B-3, 12B-3, 16B-3, 20B-3, 24B-3, 28B-3, 32B-3, 40B-3, 48B- 3. 56B-3, 64B-3
1. Single unit: 04B-1, 05B-1, 06B-1, 08B-1, 10B-1, 12B-1, 16B-1, 20B-1, 24B-1, 28B-1, 32B-1, 40B - 1, 48B-1, 56B-1, 64B-1, 72B-1.
2. Duplex: 05B-2, 06B-2, 08B-2, 10B-2, 12B-2, 16B-2, 20B-2, 24B-2, 28B-2, 32B-2, 40B-2, 48B - 2, 56B-2, 64B-2, 72B-2.
3. Triple: 05B-3, 06B-3, 08B-3, 10B-3, 12B-3, 16B-3, 20B-3, 24B-3, 28B-3, 32B-3, 40B-3, 48B- 3. 56B-3, 64B-3

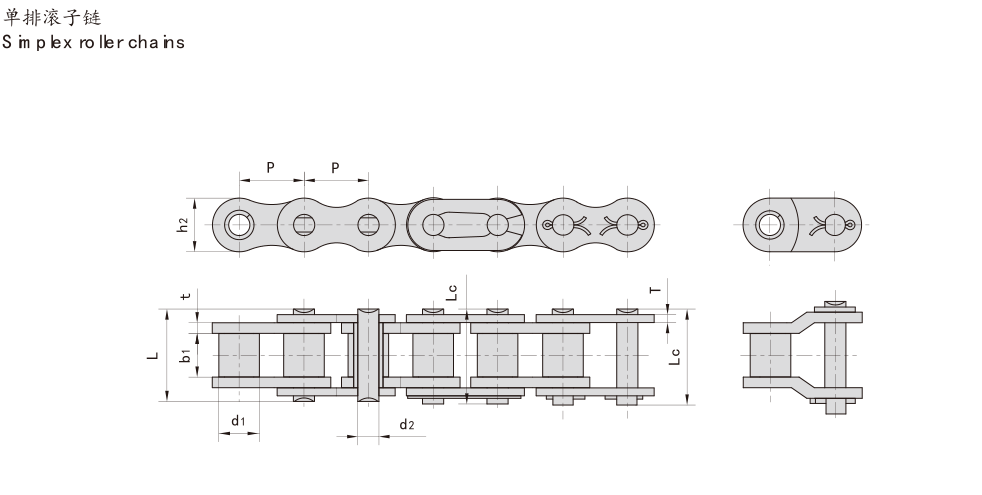

Product as a whole
Chain number | asphalt | roller | width | pin | pin | Inside | weight | ||||
Chain number | between | diameter | length | plate | Every | ||||||
Inner panel | depth | meter | |||||||||
phosphorus | d1 | b1 | d2 | L | LC | Hour 2 | q | ||||
maximum | minute | maximum | maximum | maximum | maximum | ||||||
mm | mm | mm | mm | mm | mm | mm | kg/m | ||||
04B-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 0.11 | |||
05B-1 | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.2 | |||
*06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 0.41 | |||
08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 0.69 | |||
10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 0.93 | |||
12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.15 | |||
16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | twenty one | 2.71 | |||
20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 3.7 | |||
24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 7.1 | |||
28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 8.5 | |||
32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 10.25 | |||
40B-1 | 63.5 | 38.1 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 16.35 | |||
48B-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 25 | |||
56B-1 | 88.9 | 53.98 | 53.34 | 34.32 | 114.6 | 123 | 77.8 | 35.78 | |||
64B-1 | 101.6 | 63.5 | 60.96 | 39.4 | 130 | 138.5 | 90.17 | 46 | |||
72B-1 | 114.3 | 72.39 | 68.58 | 44.48 | 147.4 | 156.4 | 103.6 | 60.8 | |||
