1,2,4 Access Control Cloud Server Access Control Terminal with SDK TCP/IP Network Server
- $20.00 / >=10 sets
- 10 sets
- Shenzhen Yistar Technology Co., Limited
- Guangdong, China
- Ms Vicky Chen
PRODUCT DETAIL
| Resolution: | 1920x1080 | power supply: | 12V 1.5A |
| Enter quantity: | 2/4/8 (exit device and door status) | model: | WG01/WG02/WG04 |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Packaging Details: | 1 piece per box, 50 pieces per carton. Carton weight: 18KGS. |
| Wiegand distance: | ≤80m | special function: | Attendance, access control |
| shell: | Powder Coated Aluminum | Warranty: | 2 years |
| Data storage options: | cloud | brand: | Easystar |
| software: | support | Certification: | ce, FCC |
| Record: | 100,000 | communicate: | TCP/IP, RS485 |
| application: | indoor | port: | Shenzhen |
| place of origin; place of origin: | Guangdong, China | size: | 160*106*16(mm) |
| Supported reader types: | 26-bit Wiegand, others on request | Supply capacity: | 10000 pieces per month |
| Card capacity: | 30,000 |
Product Description
illustrate
WG Access Systems is built on flexible, open technology to manage, monitor and control your access control system in real time from a browser without installing additional software. Our secure web hosting infrastructure and centralized online management reduce your IT costs and allow you to easily manage all access points from one location. LP's versatile design features easily and efficiently meet current and future needs. It is one of the toughest and most reliable controllers on the market with a variety of built-in features. The LP can communicate at 38.4 Kbps over an RS-485 configuration or an Ethernet TCP/IP network. It can store up to 30,000 cardholders. An SDK (Software Development Kit) is available for customers to integrate the controller into existing access control software or develop new software.
feature
*Multiple hardware protection measures
The power supply and all input and output terminals have overcurrent protection, overvoltage protection, and reverse polarity protection.
* Integration with other security systems
LP can be integrated with other security systems such as CCTV, fire alarm, BAS (building automation system) and other systems to configure the overall security system.
* Supports different Wiegand readers
wiegand format, can connect different card readers, including ID card reader and MF card reader
* Control gate input/output ports
Connect various sensors, alarms, exit buttons, electric locks and other equipment.
*Multiple communication functions
Using serial or TCP/IP communication, it provides a reliable network system
*B/S structure software
It is easy to manage the system from a client PC via a browser. There is no need to install software on each client.
*Can be set to always open after the first punch
* Real-time monitoring of door status
Using the management software, the door opening and closing of the entire system can be monitored in real time.
* Simple access control system configuration
*Interlock function
Connect the different gates with special logic, i.e. one door is open, the other should be closed.
* Multi-card operation
This feature is used to manage visitors or to manage some particularly high security venues. When the designated number registration card is read together, the door is opened.
*Anti-passback
*Coercion mode
System integrators can use the SDK to integrate hardware into their existing access control software systems or to develop new software.
The power supply and all input and output terminals have overcurrent protection, overvoltage protection, and reverse polarity protection.
* Integration with other security systems
LP can be integrated with other security systems such as CCTV, fire alarm, BAS (building automation system) and other systems to configure the overall security system.
* Supports different Wiegand readers
wiegand format, can connect different card readers, including ID card reader and MF card reader
* Control gate input/output ports
Connect various sensors, alarms, exit buttons, electric locks and other equipment.
*Multiple communication functions
Using serial or TCP/IP communication, it provides a reliable network system
*B/S structure software
It is easy to manage the system from a client PC via a browser. There is no need to install software on each client.
*Can be set to always open after the first punch
* Real-time monitoring of door status
Using the management software, the door opening and closing of the entire system can be monitored in real time.
* Simple access control system configuration
*Interlock function
Connect the different gates with special logic, i.e. one door is open, the other should be closed.
* Multi-card operation
This feature is used to manage visitors or to manage some particularly high security venues. When the designated number registration card is read together, the door is opened.
*Anti-passback
*Coercion mode
System integrators can use the SDK to integrate hardware into their existing access control software systems or to develop new software.

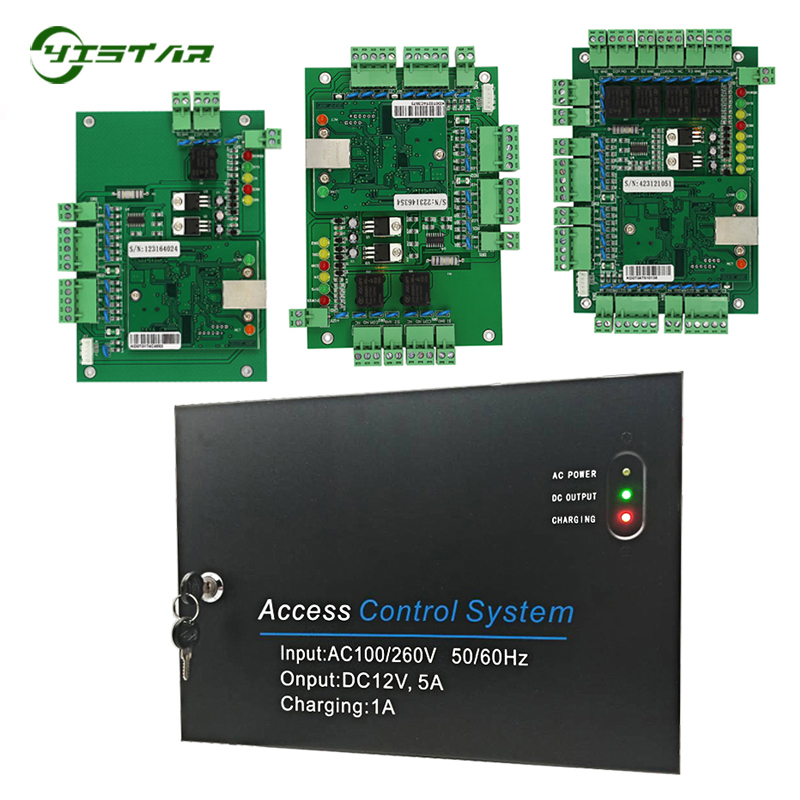

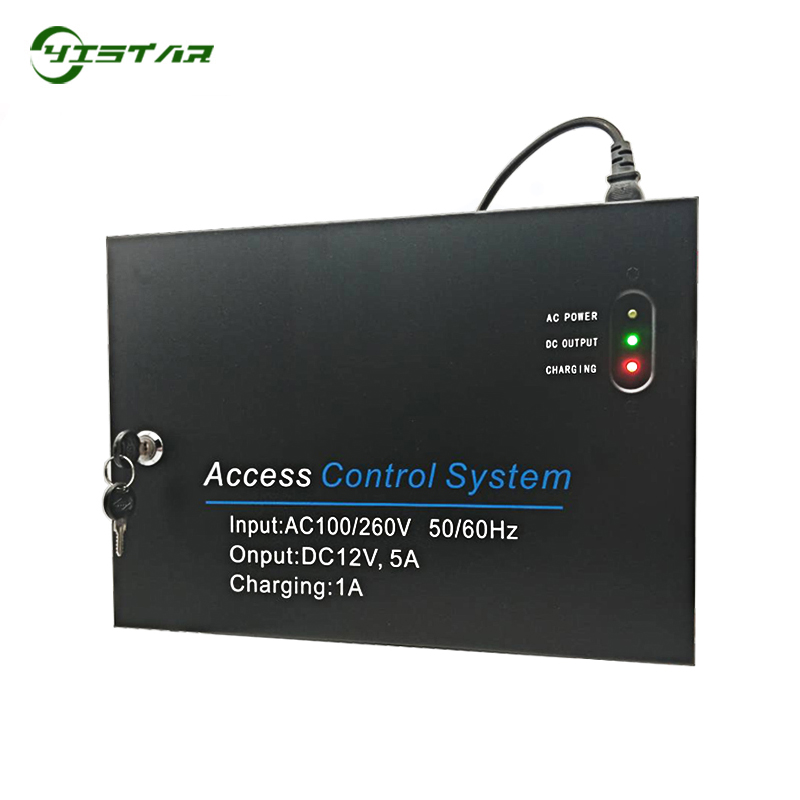

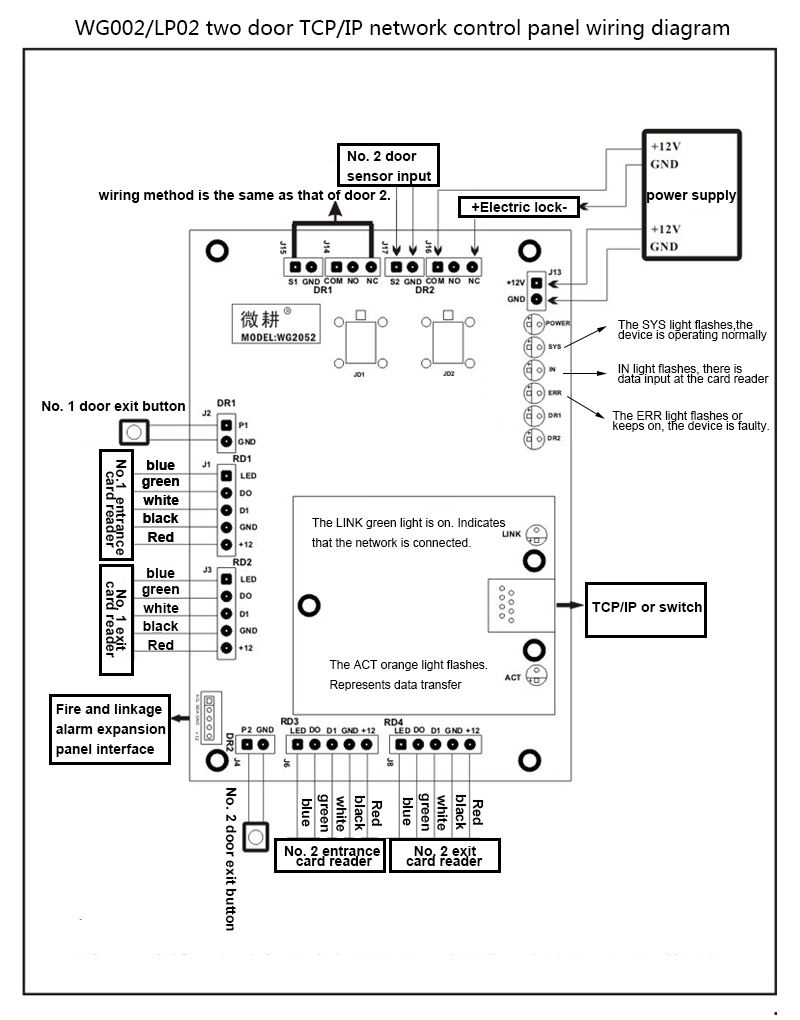

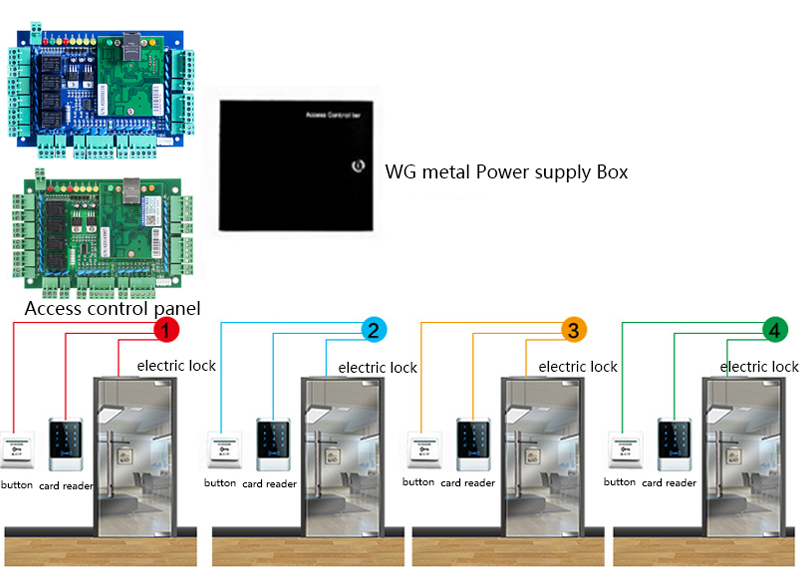

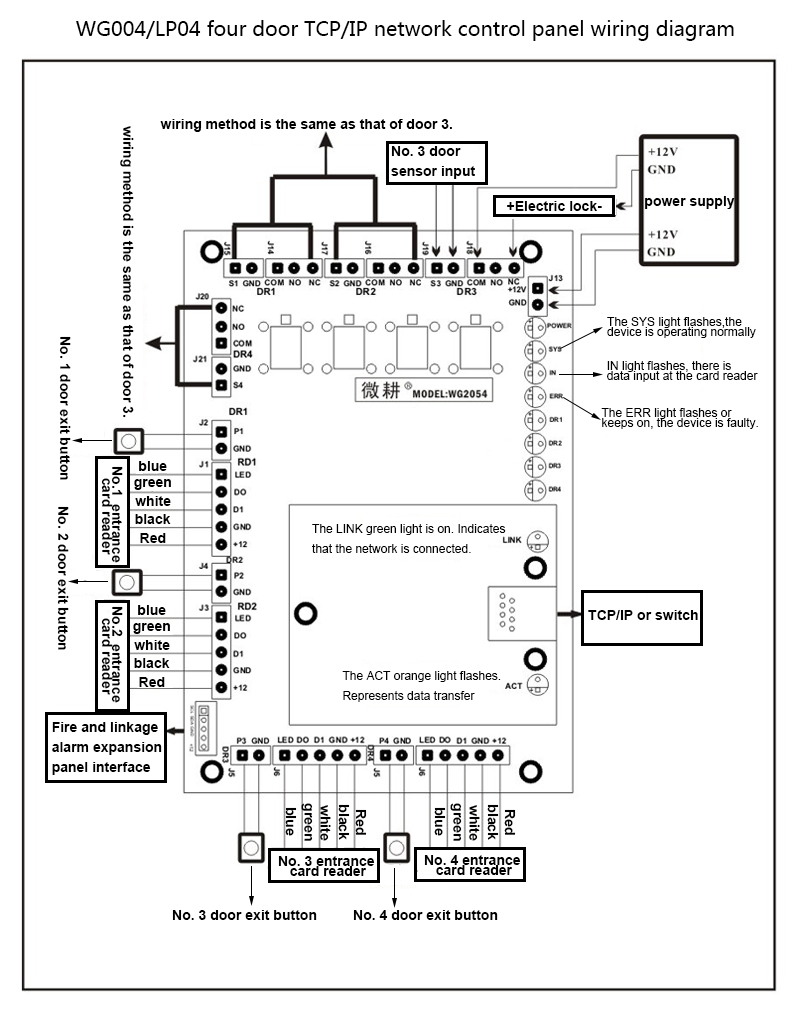

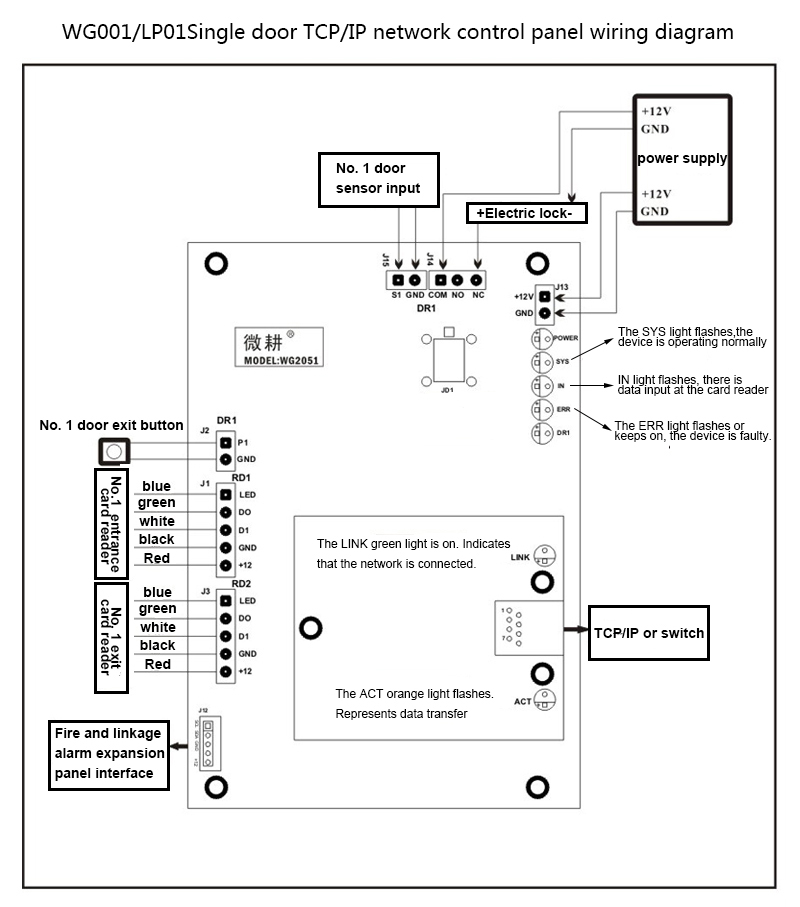

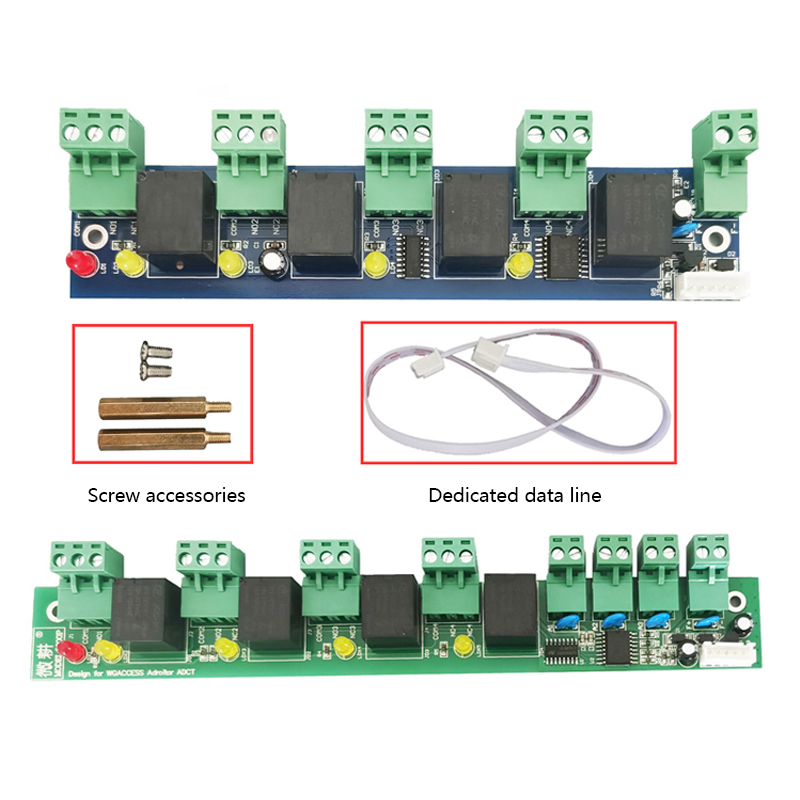

detailed picture

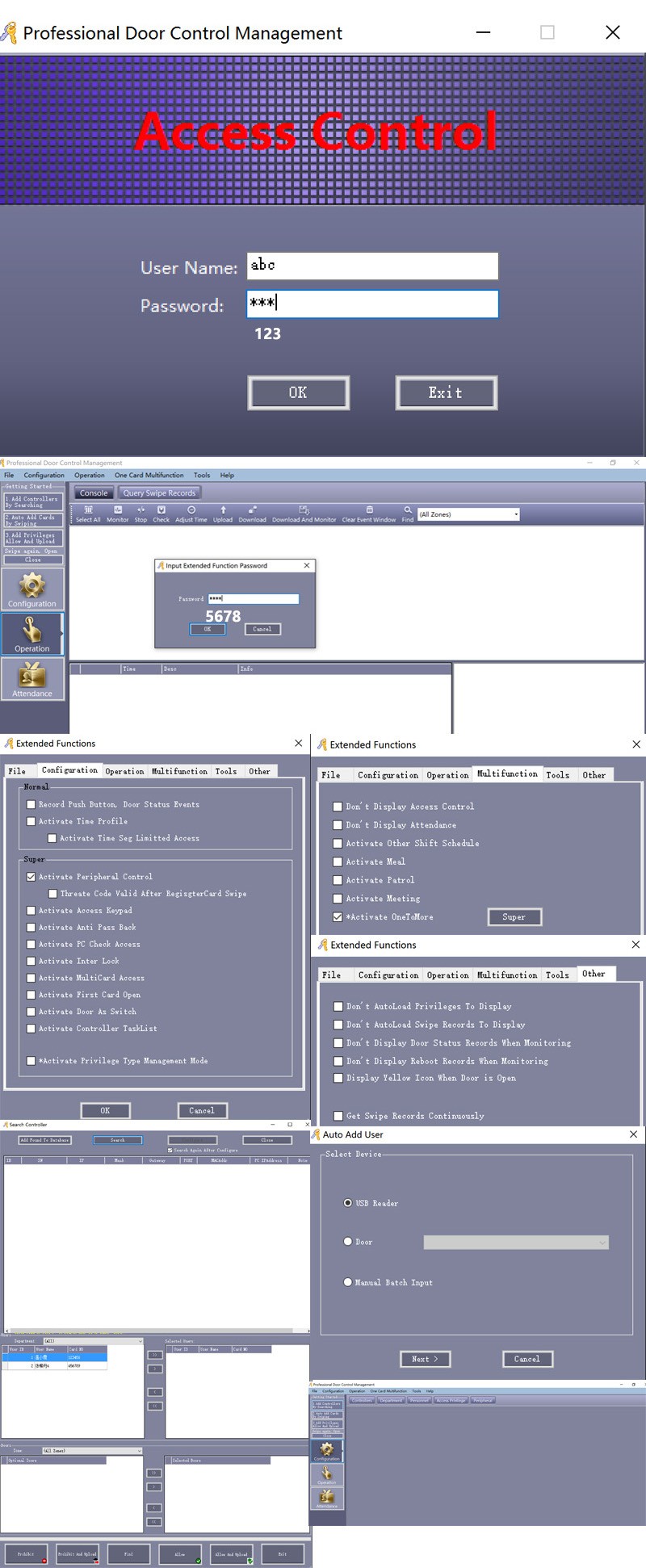

software project
After-sales service
Warranty period: 2 years.
Warranty method: direct replacement instead of repair.
