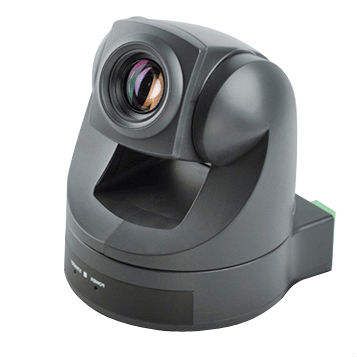

1/3-inch Super CCD 600TVL PTZ video conferencing camera

PRODUCT DETAIL
model:D27;Origin:Shenzhen;
simultaneous interpretation:Do not;type:video conferencing system;
Packaging Details:Neutral packing;Gross weight per piece:4.000 kg;
Single package size:30X24X27 cm;Sales unit:single item;

Main features:

1/3" Super HAD CCD, 600TVL,18X optical zoom lens

CVBS, S-Videooutput

360° pan / 120° tilt

Support RS232, 422, 485, infrared remote control

Supports VISCA and Pelco P/D protocols

Visca offers 9 preset positions, Pelco offers 200 preset positions

Supports tabletop tripod, pole and ceiling mounts

Specification:

Numbering.

D27

Image Sensor

1/3″ Super HAD CCD

Effective Pixels

960(H) x 576(V)

signal system

PAL/NTSC

Horizontal resolution

600TVL

Synchronize

INT

lens

18* Optical, F1.6(W)~3.0(T) f=5.0~90mm

Viewing angle (H)

52.5°~3.0°

minute. Object distance

250mm (wide angle) ~ 1000mm (remote)

Minimum illumination

Regular: 1Lux; Night: 0.1Lux

auto exposure

Automatic shutter, aperture or manual

Shutter speed

1/50~1/10000S, 16 layers

get

Auto/Manual (-3 ~ +28dB, 2 dB steps)

white balance

Auto/ATW/Indoor/Outdoor/One Push White Balance/Manual White Balance

signal to noise ratio

more than 48dB

Pan/Tilt

Pan: +/- 360° (Max Speed: 80°/s) Tilt: -30° to +90° (Max Speed: 60°/s)

Default position

9

picture effect

Freeze, Flip, Mirror

Analog output

VIDEO and S-VIDEO VBS: 1.0VP-P

camera control

RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)

baud rate

9600bps

strength

10.8V~13.2V

Operating temperature

0℃~50℃

Storage temperature

-20℃~+60℃

consume

12W

aspect

(L)153*(W)*134*(H)*153mm

weight

1200 grams

color

Black
