1.5MM/2.5MM 2/C Solid 100% Copper LLT BS6387 CAT CWZ IEC 60331-21 SHIELD Fire Resistant Cables (LPCB) Approval
- $0.19 / >=20000 meters
- 20000 meters
- Shenzhen Lilutong Technology Industry Co., Ltd.
- Guangdong, China
- Mr LLT Cable
PRODUCT DETAIL
| Model Number: | LLT LPCB PH30/PH120 CABLE; | Brand Name: | LLT or OEM; |
| Shield: | Al Foil 100% Shield; | Product Name: | Fire resistant alarm cable; |
| Package Preview: | ; | Application: | Construction; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T; | Port: | Shenzhen/Hongkong/Guangzhou/Shanghai; |
| Type: | fire alarm cable; | Certificate: | LPCB Certificate; |
| Standard: | BS7629-1:2008 BS6387:2013(category CWZ); | Conductor Material: | Copper; |
| Place of Origin: | Guangdong, China; | Sheath colour: | Red, White, Orange; |
| Insulation Material: | Silicone; | Supply Ability: | 100000 Meters per Day; |
| Voltage: | 300/500V; | Packaging Detail: | 100 Meter/Rool, 200 Meter/Wooden drum, 500 Meter/Wooden drum, Carton & Pallet; |
| Jacket: | Low smoke halogen free; |
Product Description
Product category: These cables are categorized as BS 7629-1, Electric cables - Specificaiton for 300/500 V fire resistant, screened, Fixed installation cables having low emission of smoke and corrosive gases when affected by fire, are primarily intended for use in emergency lighting, fire detection and fire alarm system circuits.
Conductor | Solid or Stranded Bare Copper |
Insulation | Special Silicon |
Sheath | Low Smoke and Halogen Free material |
Executive standard: | BS 7629-1:2015 BS EN50200 - 2015 BS 5839-1 CLAUSE 26.2 EN 60754 -1:2014 IEC 60288 |
Fire Resistant: | BS 6387-2013 C,W,Z. IEC 60331-21 |
Acid gas emission: | EN 50267-2-1 |
Smoke density: | EN 61034-2 |
The product Obtained the design paten, no.: 2160941

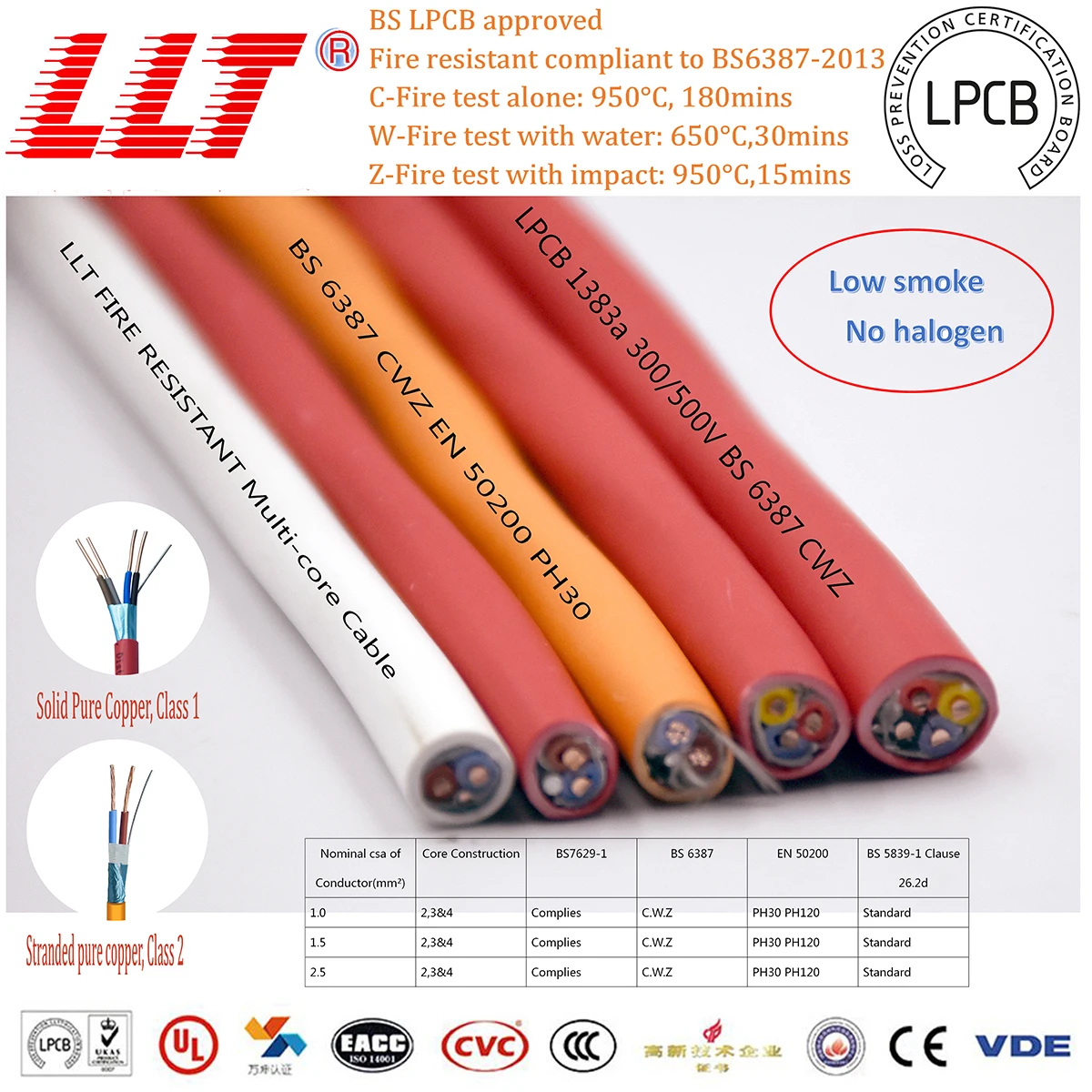

Advantage
BS LPCB approved， pass BS 6387 CWZ standard certification test, fire resistant, phycical shock resistance and waterproof performance
The cable can maintain circuit integrity for 180 minutes in case of fireThe cable complies with BS EN50200-2015 standard, and fire resistance time PH30, PH60, PH90, PH120
Ceramic silica insulation material, ceramic polyolefin sheath LSZHLow smoke in fire, zero halogen, which dicrease the damage to equipments and human
Covered with flame retardant Mylar tape or fireproof tape and fireproof aluminum foil High retardant to fire, self-extinguishing
Plain anealed solid copper conductorLong operational life span,equal to structures life span
Application
Apply to fire protection systems for fire elevators, fire pumps, fire alarm, somke exhaust systems,emergency lighting, fire hazard areas, high temperature applications and special requirements on power supply lines for safe facilites, etc.

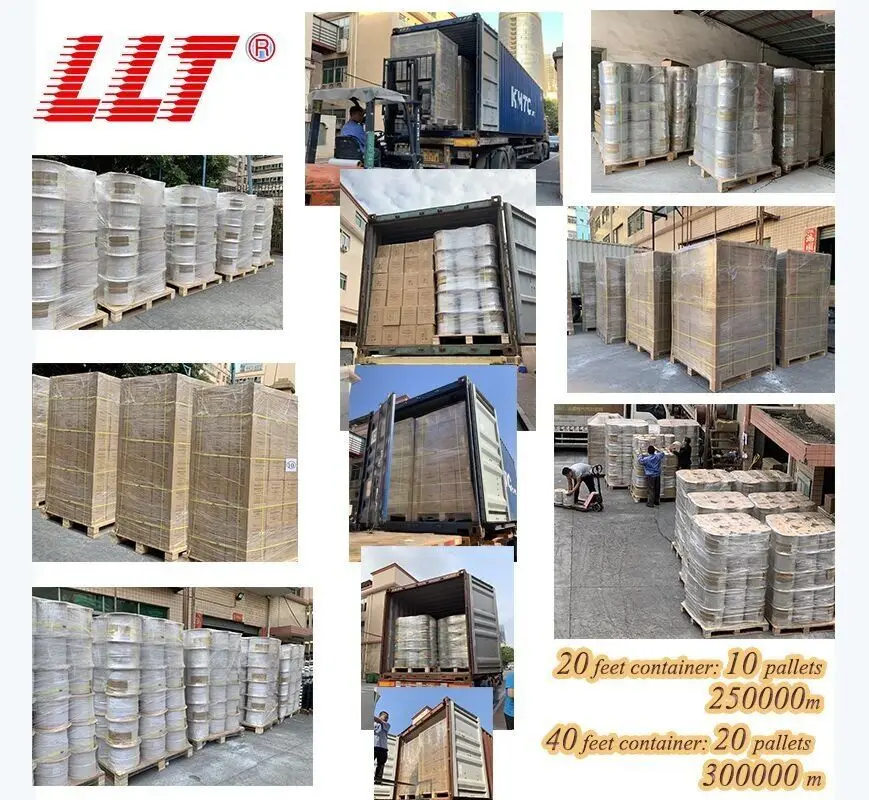

Packing & Delivery
100 Meter/Rool, 200 Meter/Wooden drum, 500 Meter/Wooden drum, Carton & Pallet
Company Profie
FAQ
Are you a manufacture or a trading company?
We are professional cable manufacturer with 21 years' production experience.
Does the factory have certification?
Yes, LLT's skilled production team follows the standardized manufacturing process which is ISO9001 Quality system strictly for making sure every procedure is out of mistakes.
Does your company's products have certification?
Yes, LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS, VDE, UL and commpliant with the RoHS standard.
When can I get the price and effectiveness?
We usually quote with in 6 hours. If you desperately need the price, please contact us or send us an EMAIL. We can handle the priority of your inquiry. Usually within a day. It's valid for 10 days.
What's your factory MOQ?
Our factory has MOQ requirement, but small quantity is also accepted.
I didn't find the product specifications I needed on this page.
Dear friends, you can contact us by email. In addition, we provide customized services. So please contact us!
