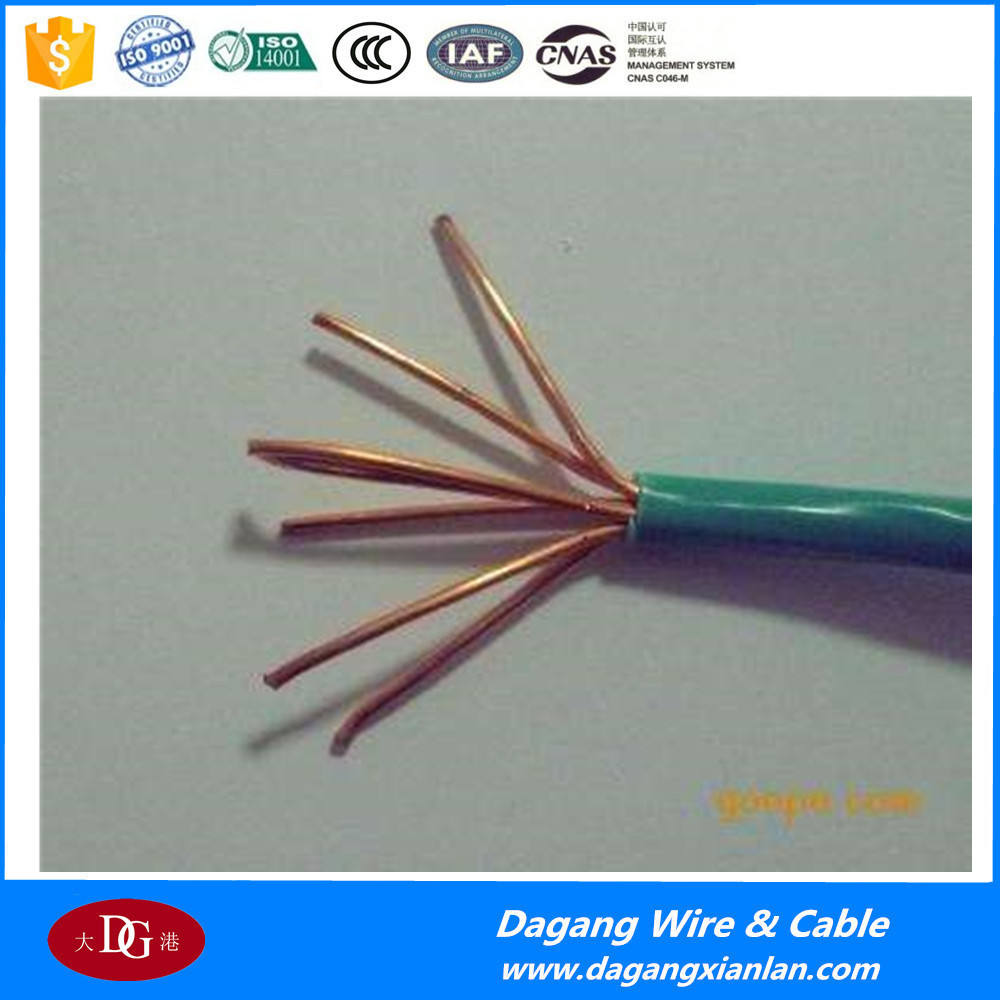

1.5mm 2.5mm 4mm 6mm 10mm indoor wiring cable copper wire
- $0.01 / >=500 meters
- 500 meters
- Hebei Dagang Cable Co., Ltd.
- Hebei, China
- Mr David Zhao
PRODUCT DETAIL
| Conductor material: | copper | Package: | 305/610m per roll |
| application: | Electrical appliances, LED lighting, etc. | product name: | Copper core PVC insulated wire |
| port: | Tianjin harbor | Packaging Details: | Plastic reel, paper reel, wooden barrel or 100m/roll. or custom |
| Insulation Materials: | pvc | Supply capacity: | 5,000,000 meters per month |
| conductor: | copper core | color: | White, black, red, yellow, etc. |
| place of origin; place of origin: | Hebei china | insulation: | PVC insulated cable |
| Types of: | Insulation | payment terms: | Letter of credit, wire transfer, bank transfer |
| model: | BVR,BV,BLV | Certification: | CCC/IEC/CNAS/ISO9001:2008 |
| Conductor Type: | stranded | brand: | Dagang |

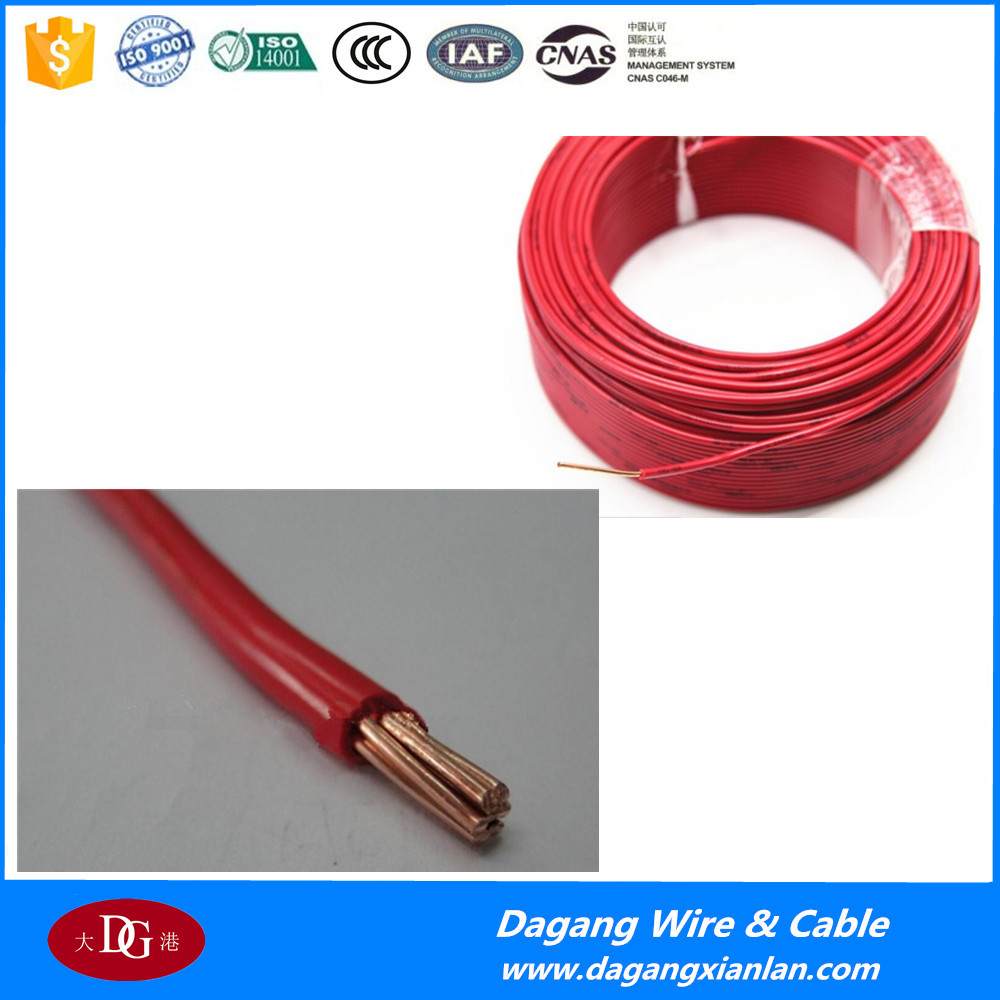

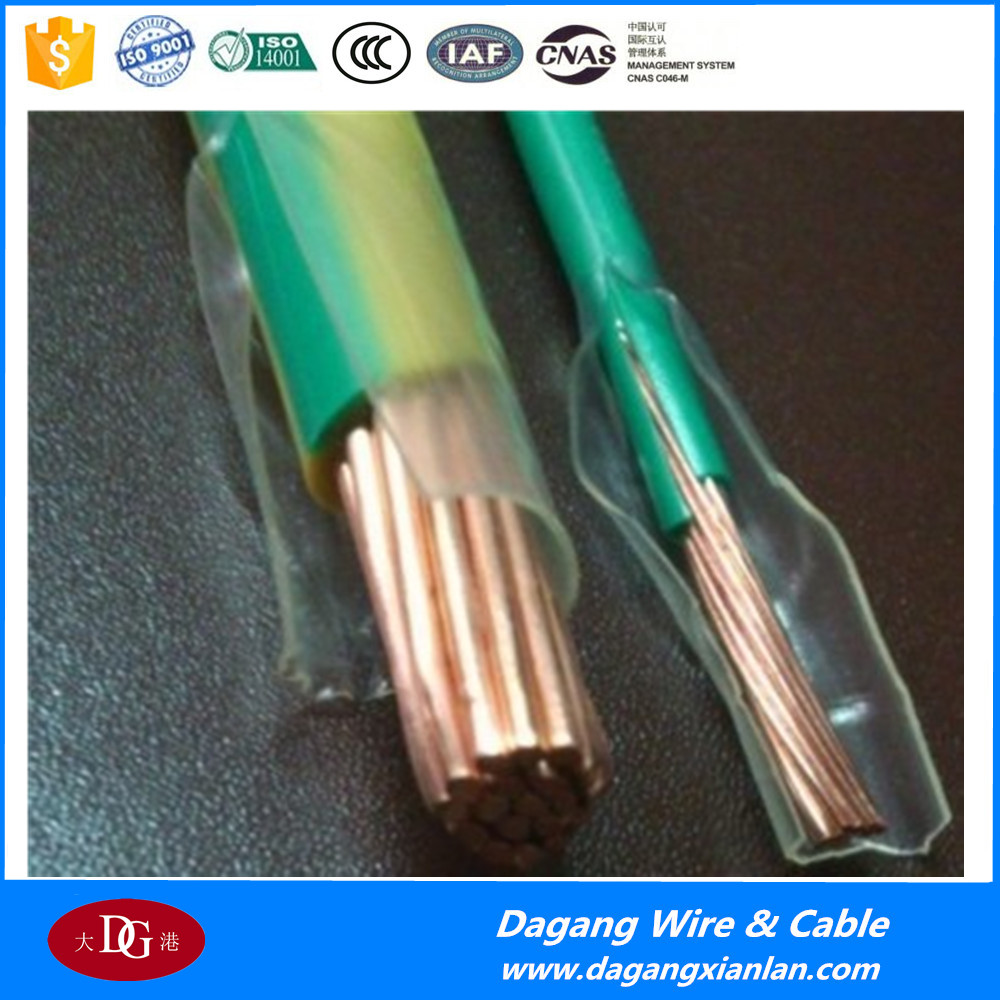

house wiring cables
Housing with power cord
application:
These cables are used to be pulled into raceways and conduits for electrical installations such as power, lighting, appliance and switchgear wiring
Coordination code:
- 0.75mm2& 1.0 mm2Solid conductor wire H05V-U
- 1.5 mm2& 2.5mm2Solid conductor wire H07V-U
- 1.5 mm2to 120 mm2Stranded conductor wire H07V-R
put up:
- Ref: 6491X or 6491X HR*
- Conductor: Class 1 or 2 solid/stranded pure copper per BS6360/IEC60228-1
- Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655
Standard color:
red, yellow, blue, black, green, yellow/green, brown, gray other colors on request
Pack:
- Size 0.75mm2to 35mm2In reels/coils of 100 yards and 100 meters
- All sizes are available in 500m and 1000m non-returnable wooden reels
- Custom lengths available upon request
Technical data:
- maximum. Working temperature: 70EuropeC/*105EuropeC
- Rated voltage: 450/750V (0.75mm is 300/500V2& 1.0mm2)
- Standard: generally BS6004

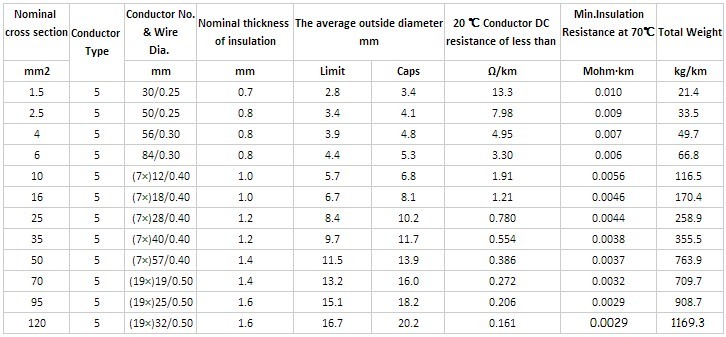

normal size

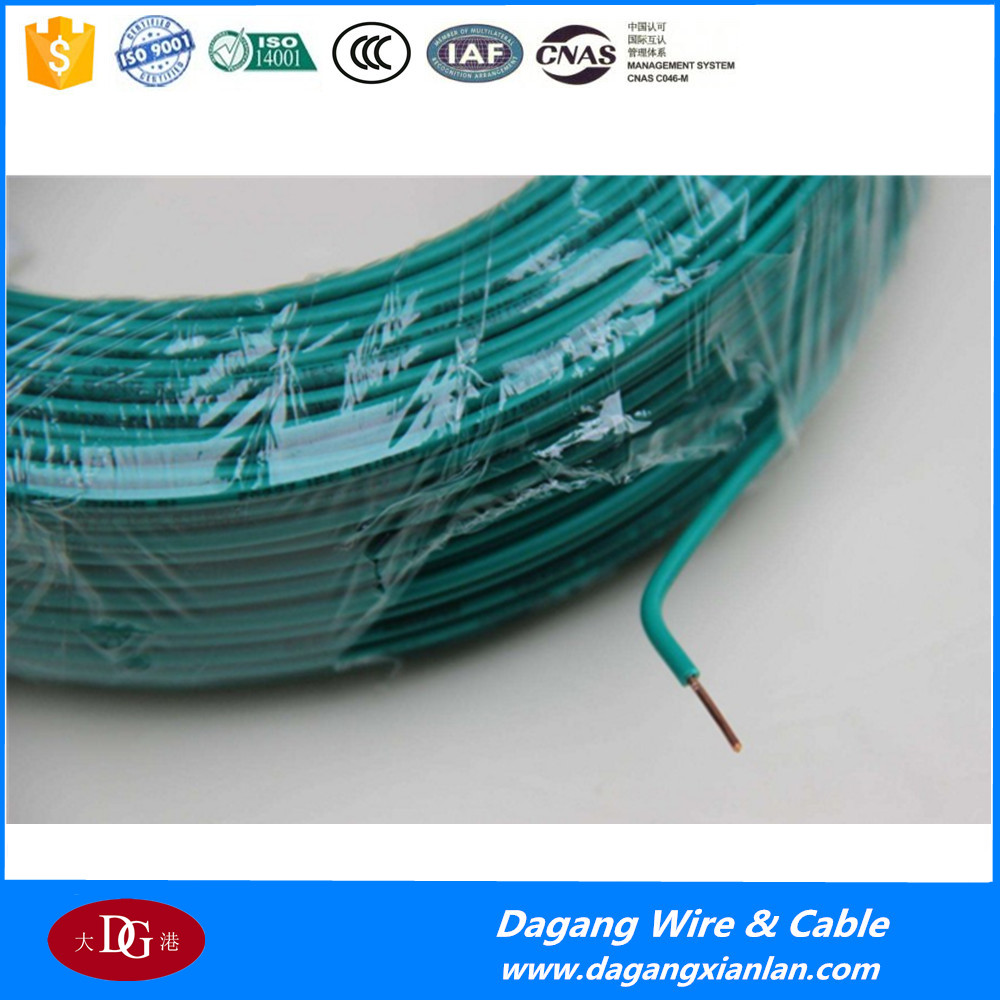

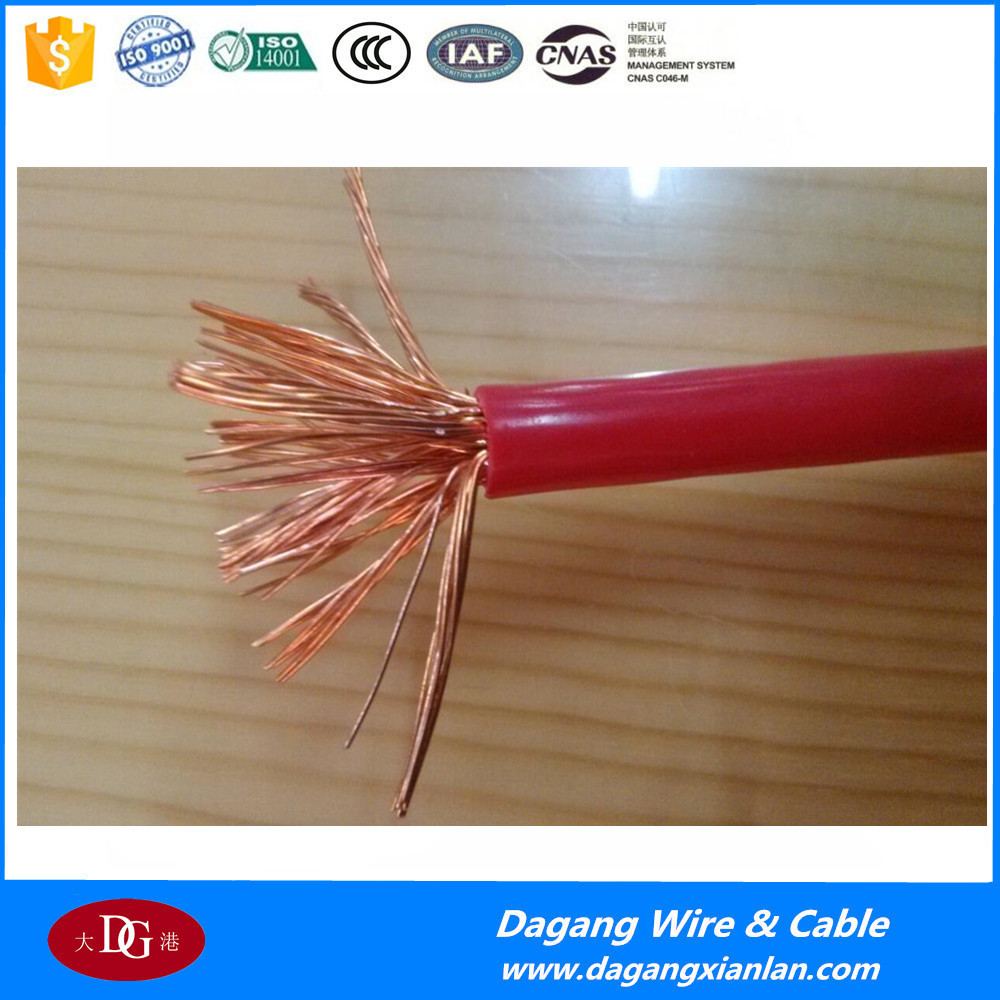

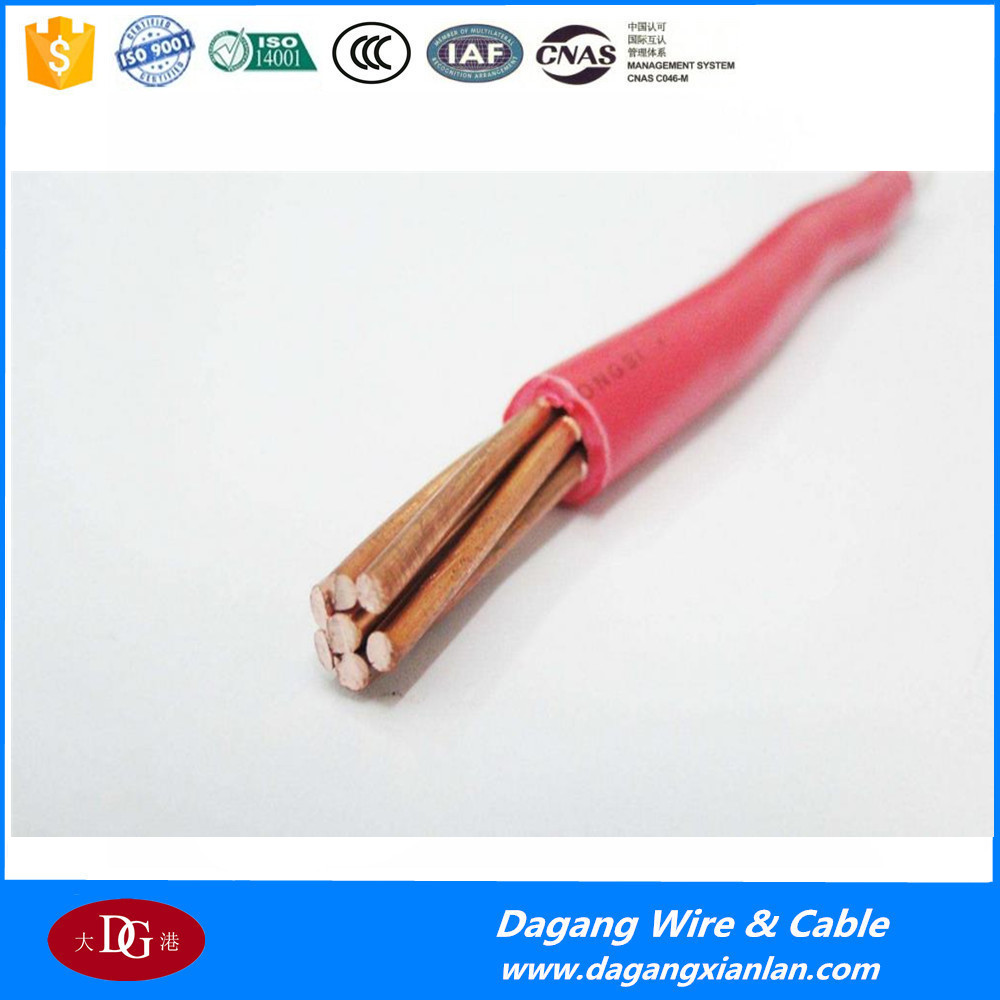

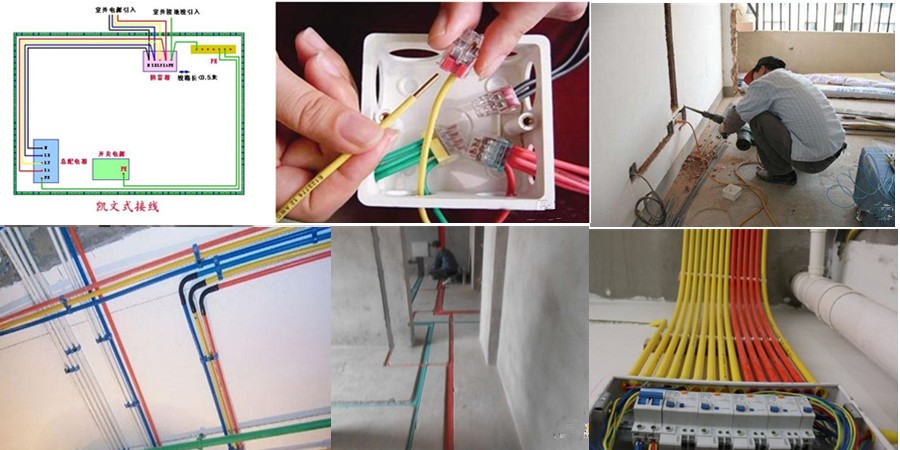

Some real pictures from the app
