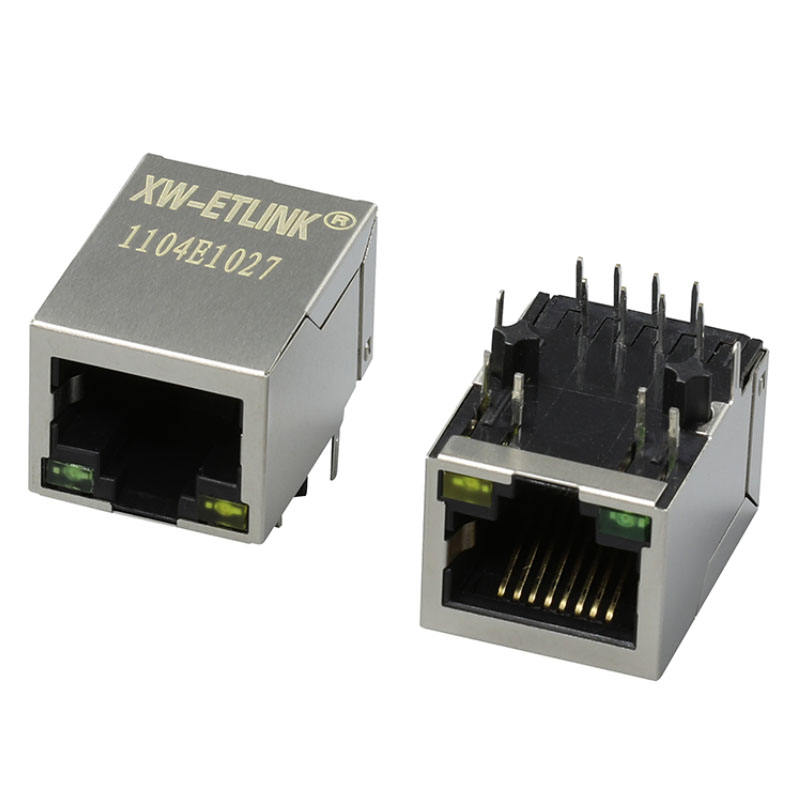

10/100 Base-T POE rj45 port connector label down LED connector ethernet rj45 connector rj45 modular jack pcb jack
- $0.30 / 2 - 299 pieces
$0.25 / 300 - 1999 pieces
$0.20 / >=2000 pieces - 2 pieces
- Dongguan Xunwang Electronic Technology Co., Ltd.
- Guangdong, China
- Ms An na
PRODUCT DETAIL
Packaging Preview: | place of origin; place of origin: | Guangdong, China | |
Durability: | At least 750 mating cycles | Hold Strength: | Minimum 7.7KG.F between jack and plug |
Bale: | tray | Insulation resistance: | 500 megohm min |
Supply capacity: | 7500 pieces per day | Contact resistance: | 30 megohm max |
Card: | XW-ETLINK | Pressure resistance: | AC 1000V RMS 50Hz or 60Hz for 1 minute |
payment terms: | wire transfer | OEM/ODM: | Yes |
Packaging Details: | Vacuum packaging, pallet packaging, can be specified packaging | Rated voltage: | 125VAC |
type: | RJ45 | model: | XWRJ-1104E1027 |
port: | Shenzhen | describe: | RJ45 connector |
Current rating: | 1.5 amps |
Note: All certificates are real and valid. For certificate details, please contact customer service

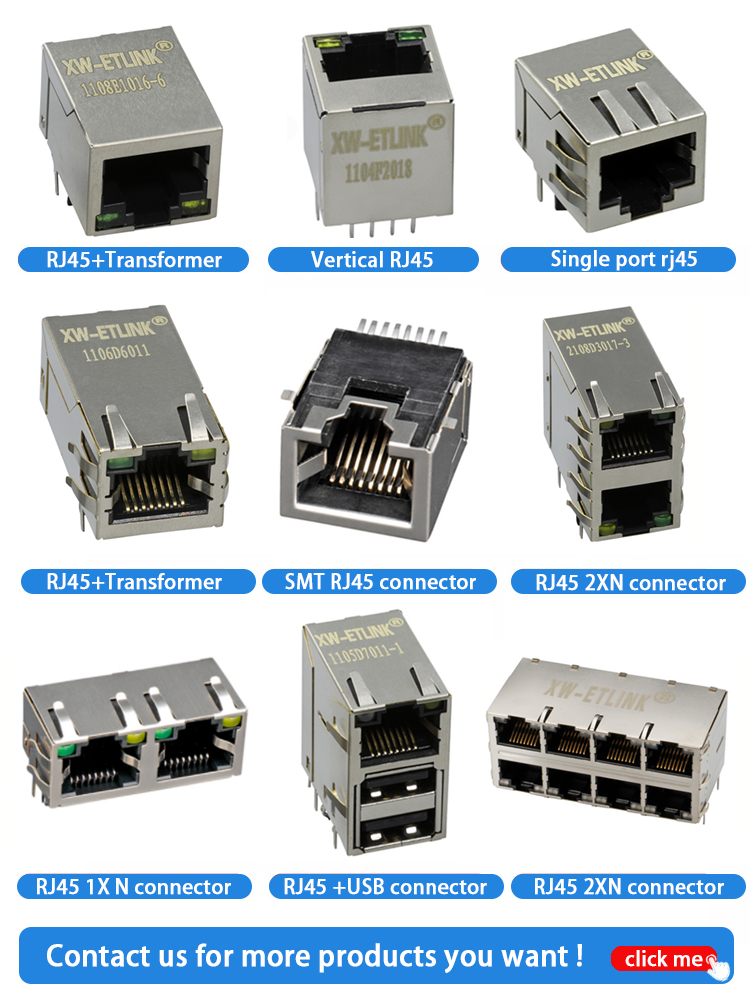

Product Description
describe | ||||||||
RJ45 with transformer (filter) | ||||||||
Dongguan Xunwang Electronics Co., Ltd. Our RJ45 integrated magnetic connectors are designed and manufactured in accordance with IEEE802.3 and ANSI X3.263 standards. They are widely used in PC card/notebook applications, switches, PCBAs, set-top boxes, medical equipment, communication equipment, etc. | ||||||||
electric | ||||||||
Internal magnetics are 100% electrically tested according to IEEE802.3 requirements | ||||||||
High performance with maximum EMI suppression | ||||||||
350uH Minimum OCL with 8mA Bias Current | ||||||||
current rating | 1.5 amps | |||||||
Rated voltage | 125VAC | |||||||
Insulation resistance | 500 megohm min | |||||||
Contact resistance | 30 megohm max | |||||||
Withstand voltage | AC 1500V | |||||||
Insertion Loss: | -1.0dB max@100KHz-60MHz | |||||||
Return Loss: | -18dB min@1MHz-30MHz | |||||||
-14dB min@30MHz-60MHz | ||||||||
-12dB min@60MHz-80MHz | ||||||||
-10dB min@80MHz-100MHz | ||||||||
Common Mode Rejection: | -30dB min@1MHz-100MHz | |||||||
crosstalk: | -30dB min@1MHz-100MHz | |||||||
Mechanical | ||||||||
maintain strength | Minimum 7.7KG.F between jack and plug | |||||||
Durability | At least 800 mating cycles | |||||||
Material | ||||||||
1. Housing | PBT(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) | |||||||
2. Contact wire | Phosphor bronze T=0.35, gold plated over nickel | |||||||
3. Shield | 0.20~0.25mm thick brass tinned | |||||||
4. Gold plating | 6u" 15u" 30u" 50u" . | |||||||
5. LED Specifications | Standard LED Colors | LED wavelength | Forward (VMAX) | Typical value (V TYP) | ||||
green | 560-580 nm | 2.5V | 2.1-2.2V | |||||
yellow | 580-610 nm | 2.5V | 2.1-2.2V | |||||
1. Measure LED Intensity/Wavelength with Photo Research PR-650 Colorimeter 2. Forward current is 20 mA, absolute maximum rating (Ta=25℃) | ||||||||
6. RoHS peak wave soldering | RoHS Wave Soldering Peak Temperature Rating 260℃±5℃ | |||||||
Operating and storage temperature | ||||||||
Operating temperature | -40°C to 85°C | |||||||
Storage temperature | -40°C to 85°C | |||||||
application | ||||||||
Network products: NIC, HUB, SWITCH, ROUTER, BRIDGE, WORK, STATION: PC/SYSTEM, PRINTER, SERVER, NB, IACABLE MODEN, XDSL APPLICATION, SET-TOP-BOX, PCBA, etc. |
