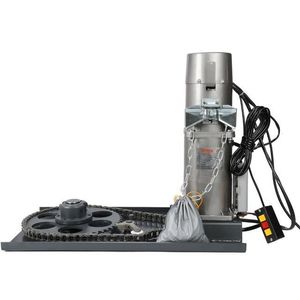

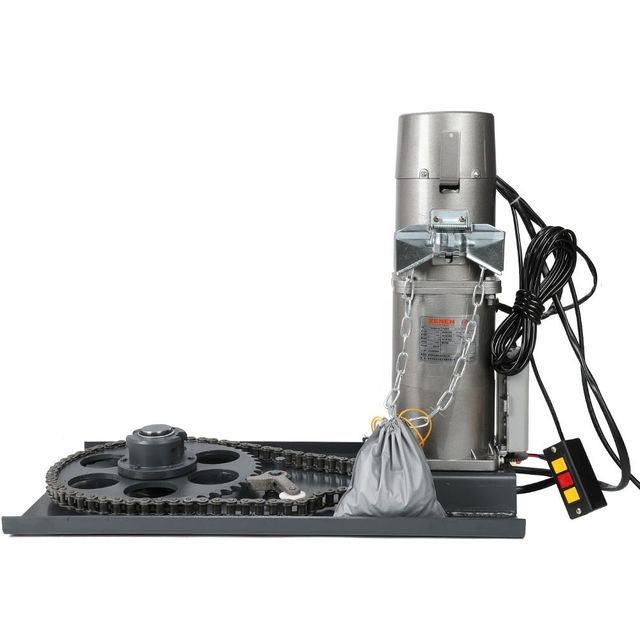

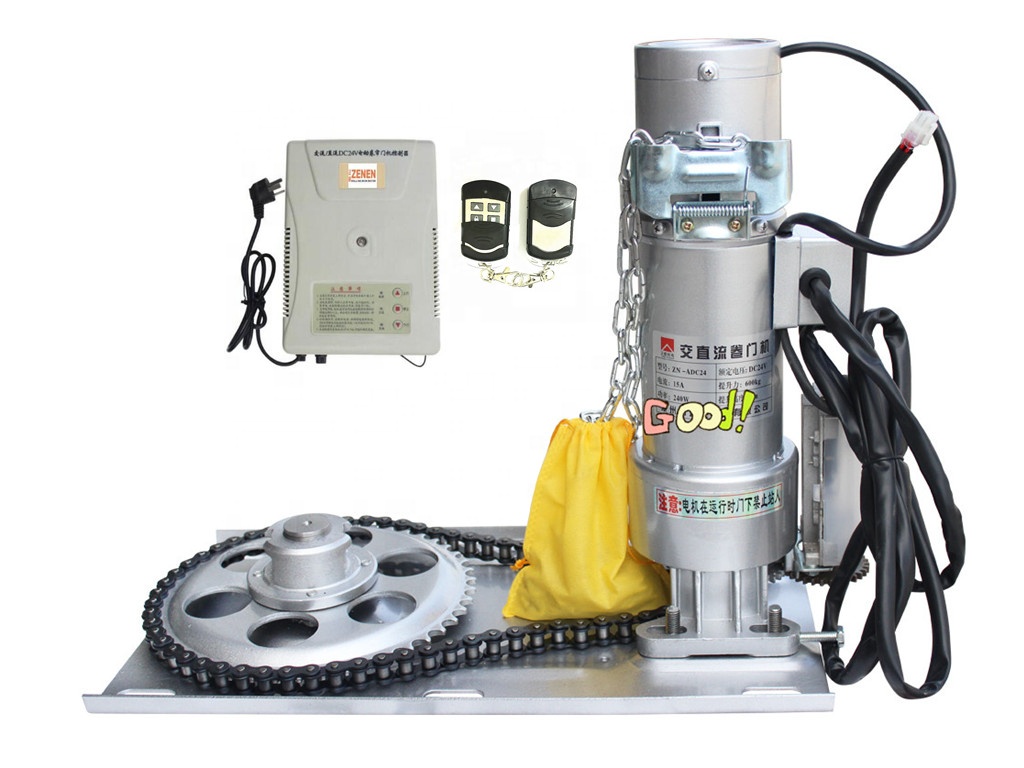

1000KG rolling door motor rolling door motor rolling door motor
- $29.00 /set
- 1 set
- Zhangzhou Zenen Motor Co., Ltd.
- Fujian, China
- Ms Helen Chen
PRODUCT DETAIL
| Warranty: | 1 year | type: | AC series |
| application: | Shopping malls, supermarkets, warehouses, factories, supermarkets | Project solution ability: | overall project solution |
| Function: | Roll-up door | brand: | ZENEN, ZENEN |
| frequency: | 50/60 Hz | payment terms: | L/C, Western Union, T/T |
| color: | According to your requests | After-sales service: | Online technical support, on-site training |
| model: | ZN-AC-1000 | design style: | modern |
| port: | Xiamen | External rated voltage: | AC220 |
| Packaging Details: | Packaging details: Two cartons for the host and accessories, filled with foam for protection | Lifting capacity: | 1000 kg |
| Certificate: | CCC、CE | Origin: | Fujian China |
| Supply capacity: | 40000 sets per month | Processing: | acceptable |
| Package preview: |
Product Description
Motor Features:
1. Easy installation and maintenance, long service life.
2. Strong power, low noise and low energy consumption.
3. When the power is off, the manual chain can be operated to open the door up and down.
4. Precise limit control of the shutter lift and stop position.
5.4 micro switches and 4 relays improve the safety of the motor in bad weather and environment.
6. Bracket with safety device.
7. Depends on different countries. Voltage from 110V -230V and frequency from 50Hz-60Hz.
2. Strong power, low noise and low energy consumption.
3. When the power is off, the manual chain can be operated to open the door up and down.
4. Precise limit control of the shutter lift and stop position.
5.4 micro switches and 4 relays improve the safety of the motor in bad weather and environment.
6. Bracket with safety device.
7. Depends on different countries. Voltage from 110V -230V and frequency from 50Hz-60Hz.
Specification
Model | Lifting capacity | rated power | rated current | Lifting height (M) | Caliper | Output torque Nm | Output speed (RPM) | |||||||
220V 50-60HZ | ||||||||||||||
AC-200KG | 200KG | 200W | 2.5A | 6 | 4 inches | 112 | 5.2 | |||||||
AC-300KG | 300KG | 250W | 2.8A | 6 | 4 inches | 168 | 5.0 | |||||||
AC-500KG | 500KG | 370W | 3.2A | 7 | 5 inch | 370 | 4.8 | |||||||
AC-600KG | 600KG | 370W | 3.3A | 6 | 5 inch | 412 | 4.8 | |||||||
AC-800KG | 800KG | 400W | 4.7A | 7 | 6 inches | 647 | 4.0 | |||||||
AC-1000KG | 1000KG | 400W | 4.9A | 6 | 6 inches | 809 | 3.5 | |||||||
380V 50-60HZ | ||||||||||||||
AC-1000KG | 1000 | 370 | 2.8A | 6 | 6 inches | 809 | 3.5 | |||||||
AC-1300KG | 1300 | 850 | 3.2A | 7 | 6 inches | 1401 | 4.4 | |||||||
AC-1500KG | 1500 | 1000 | 3.8A | 8 | 6 inches | 1617 | 5.2 | |||||||
AC-2000KG | 2000 | 1000 | 4.1A | 12 | 8 inches | 2450 | 3.6 | |||||||
Accessories

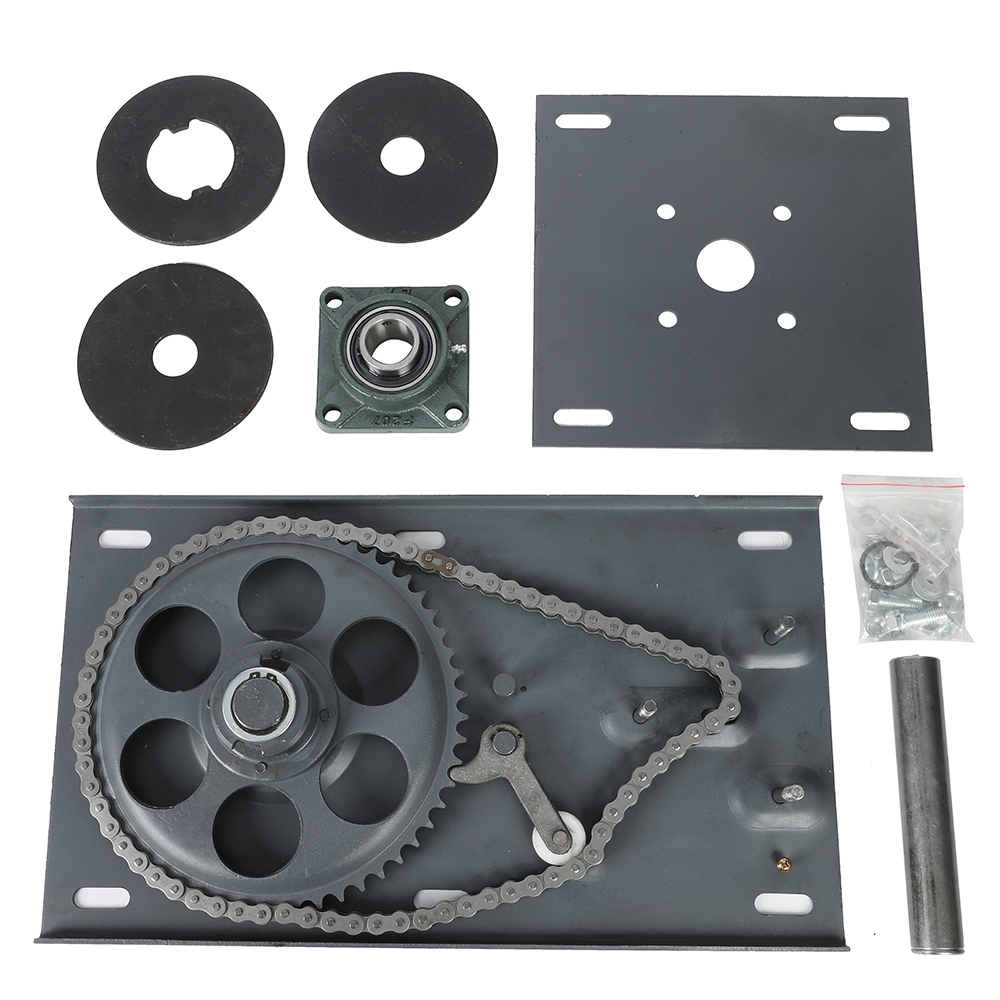

1. Brackets and accessories
All parts are produced under strict control according to standard specifications.

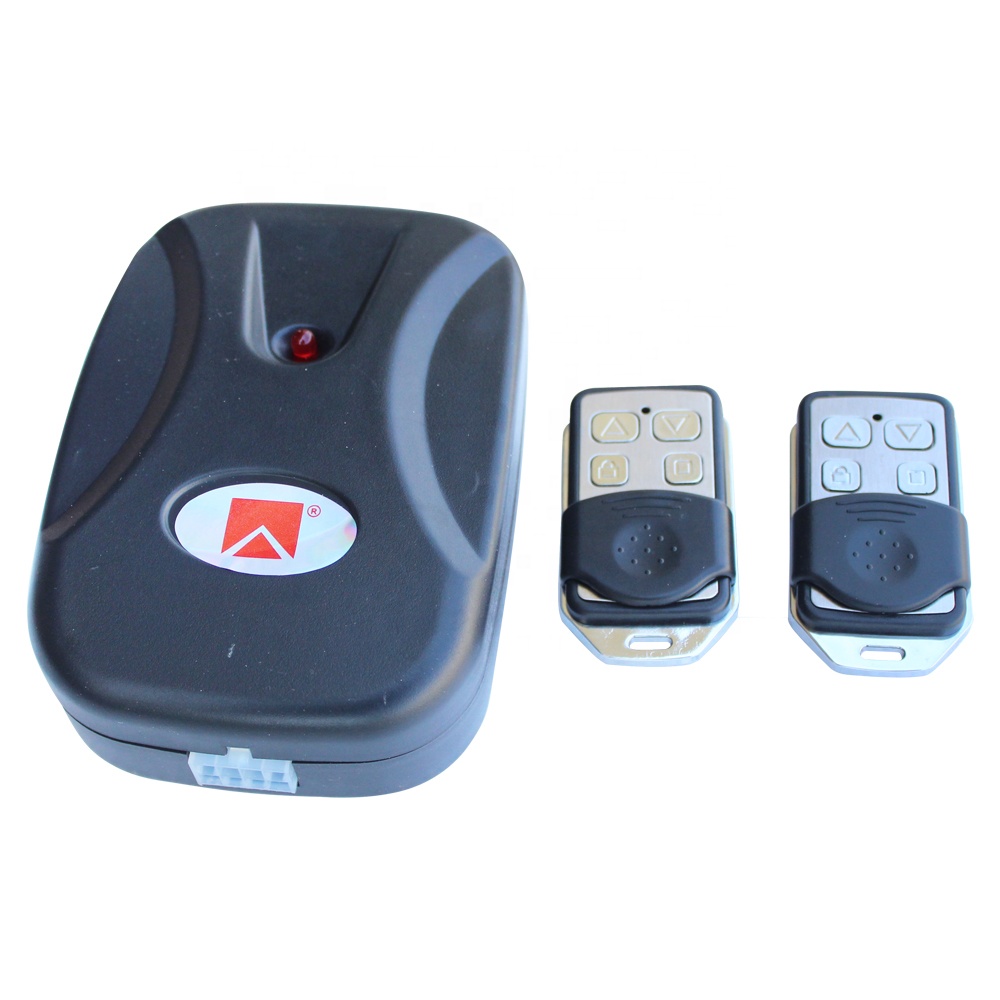

2. Remote control
Low voltage control, stable performance, safe and reliable.
exhibition
