120W 32x24Inch Desktop LED UV Vacuum Screen Printing Exposure Machine
- $458.00 / 1 - 19 units
$428.00 / 20 - 49 units
$389.00 / 50 - 99 units
$358.00 / >=100 units - 1 unit
- Suzhou Tianjiu Printing Machine Co., Ltd.
- Jiangsu, China
- Mr jinling Huang
PRODUCT DETAIL
weight: | 50 kg | Showroom location: | Canada, UK, US, Italy, France, Germany, Philippines, Mexico, Spain, Thailand, Korea, UAE, Japan, Malaysia, Australia |
power supply: | 120W / 110V-240V | Warranty: | 1 year |
Main selling points: | Sustainable | Mechanical test report: | if |
Maximum frame size: | 63x83cm | Automatic level: | semi-automatic |
Types of: | Plate Exposure | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Maximum exposure area: | 65x85cm | Key words: | Exposure machine |
place of origin; place of origin: | Jiangsu, China | Supply capacity: | 500 units per month |

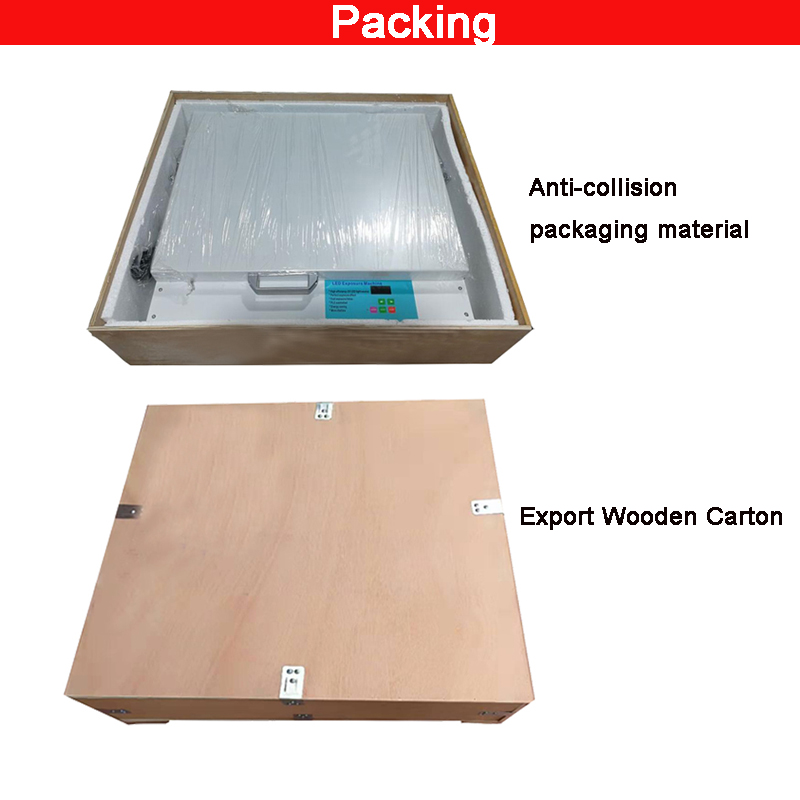

Packaging Details: | Packaging size of LED exposure machine: 1050*920*200mm, a wooden box weighs 50kg | Core components: | motor, water pump |
Core component warranty: | 1 year | Marketing Type: | New Products 2020 |
Applicable plates: | Frame net | Video shipment inspection: | if |
application: | silk screen box | port: | Shanghai, Qingdao, Guangzhou |
Package preview: | Voltage: | 120W | |
State of health: | new | light source: | LED UV light source |
Applicable industries: | Clothing stores, building supplies stores, manufacturing plants, machinery repair shops, restaurants, retail stores, print shops, construction, energy and mining, advertising agencies | Dimensions (L*W*H): | 1050*920*200mm |
product name: | Exposure device | brand: | Tianjie |

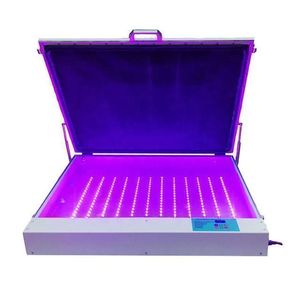

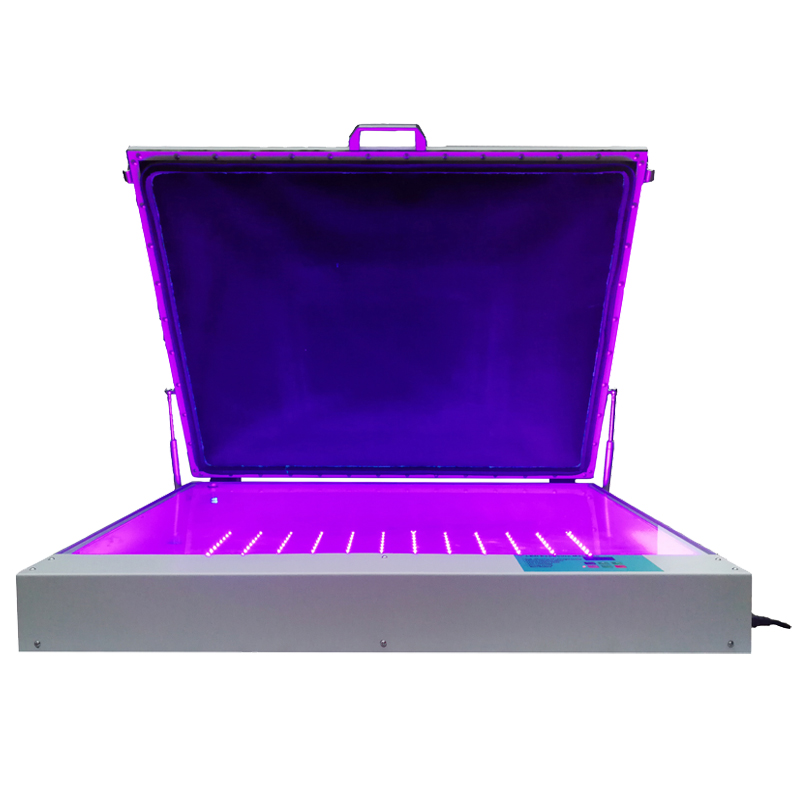

120W 32x24Inch Desktop LED UV Vacuum Screen Printing Exposure Machine
Product Description
LED exposure machine is used in the field of plate making, such as pad printing plate, silk screen printing plate, bronzing plate, resin plate. When you put the film attached to the plate into the UV LED exposure machine and start the exposure machine, an invisible image will appear on the emulsion on the plate, which is an important process in all plate-making processes.
Features
1 | Using high-efficiency UV LED light source, it saves 50% power than ordinary models. |

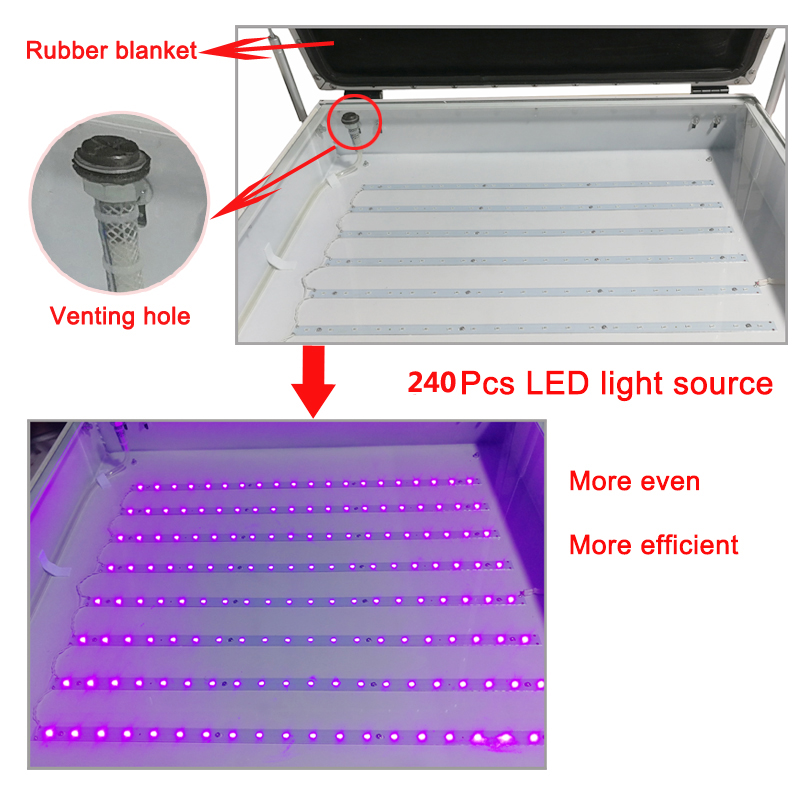

2 | Vacuum model, using high-quality rubber cloth, has a longer service life. |
3 | Built-in vacuum pump, fast vacuuming |

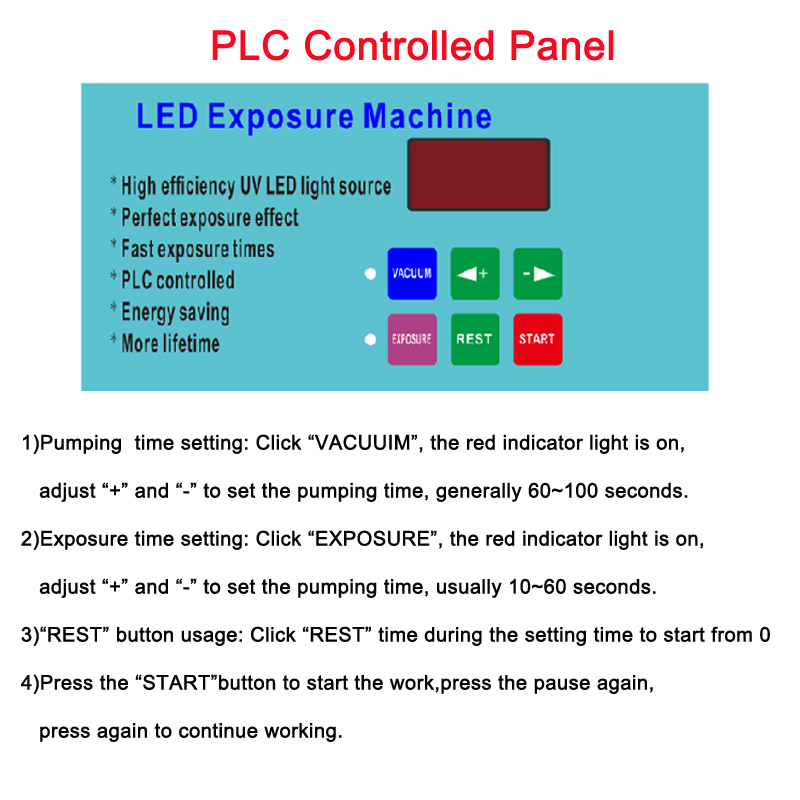

4 | PLC control panel, the operation is very simple. |
5 | Automatic memory function, use the original setting next time |
6 | Perfect exposure thanks to LED light. |
7 | The exposure time is fast, about 40-70 seconds. |
8 | Energy saving and environmental protection. |
9 | Stable exposure quality and longer lifespan |
10 | The steel jacket is durable and beautiful. |

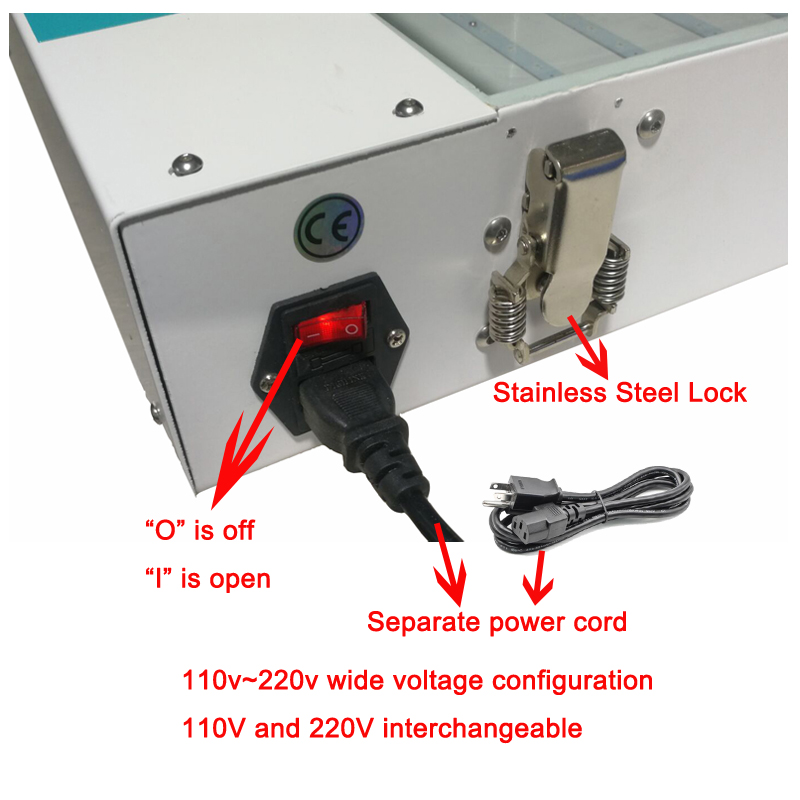

11 | External power plug, safe and convenient. |
12 | Easy to transport, the LED light is not fragile during transportation. |

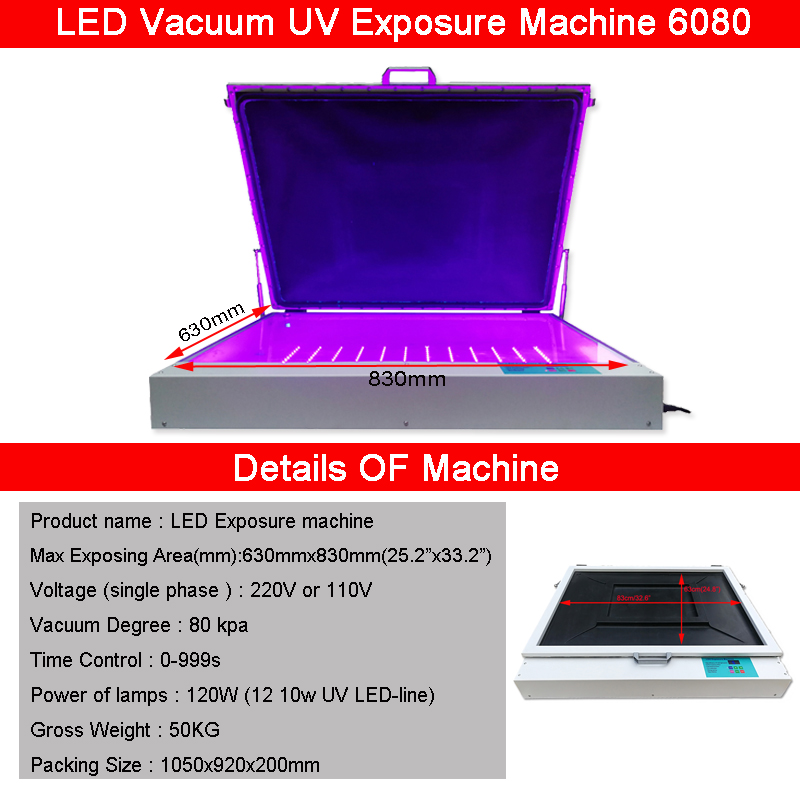

Product parameters
1 | Maximum exposure area (mm): 630mmx830mm |
2 | Voltage (single phase): 220V or 110V |
3 | Vacuum degree: 80kpa |
4 | Time control: 0-999s |
5 | Lamp power: 120W (12pcs 10w UV LED-line) |
6 | Packing size: one box (1050*920*200mm) |
7 | Weight: 52KG |

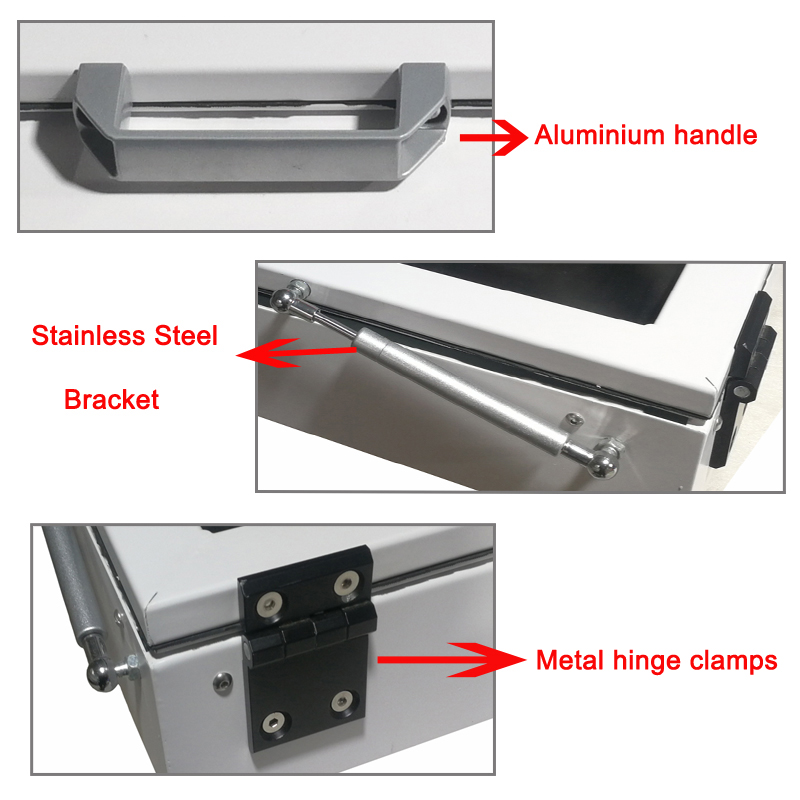

picture details
