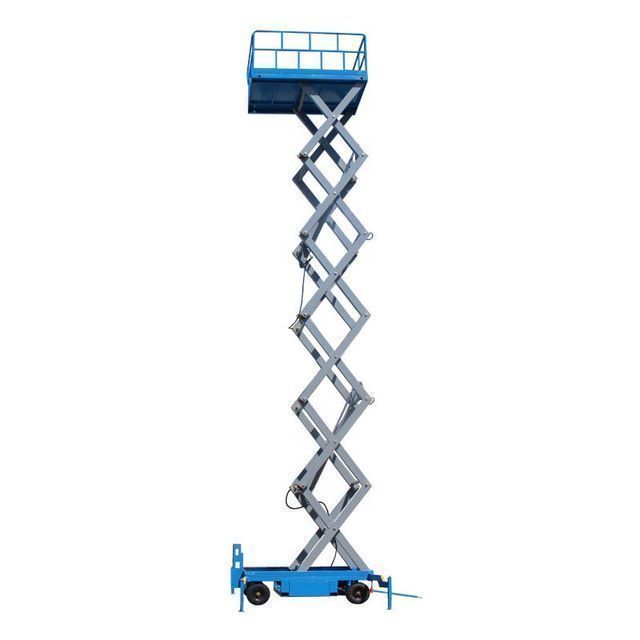

12m scissor lift platform 500kg building elevator construction hoist platform lifting table

PRODUCT DETAIL
Lifting speed:4-6m/minAfter-sales service provided:Video technical support, online support, free spare parts
Supply capacity:Monthly production of 500 platform liftsUnique selling point:long lasting
platform:Anti-skid checkered plateMaterial:high strength steel structure
feature:Simple, safe and convenient operationMaximum lifting height:14m
Dimensions (L*W*H):2796*1670*1750Voltage:110v 220v 240v 380v optional
State of health:newapplication:maintain
brand:sharp markPackaging Details:Plywood - 12m scissor lift platform 500kg building lift construction hoist platform lift table
Name:Scissor lift platform construction hoist platform lift tableLifting time:80S
Rated load capacity(kg):500kg-2000kgplace of origin; place of origin:China
Loader weight:2260 kgApplicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramFence height:1000mm
color:Requireusage:higher level
Warranty:1 yearport:Shanghai

12m scissor lift platform 500kg building elevator construction hoist platform lifting table

Product Description



Lifting tables are mainly used to lift workers to high places for repair, maintenance, cleaning or installation. You can easily move it to the correct working area. Mobile scissor lifts can also be equipped with batteries. With batteries, you don't need to connect to AC power, and you can make the mobile scissors lift and lower in some work areas without power. In addition, this mobile scissor lift can be installed with driven wheels and moved by hand without any hardness.



 A.1000kg-2000kg electric scissor lift platform lift
Model

capacity

(Kilogram)

Lifting height

(mm)

minimum height

(mm)

platform size

(mm)

weight

(Kilogram)

RBSJY1.0-41000400011802100*12001250
RBSJY1.0-61000600013002100*12001400
RBSJY1.0-81000800014202100*12001585
RBSJY1.0-1010001000015302100*12001700
RBSJY1.0-1210001200017502550*15302560
RBSJY1.0-1410001400019002812*16003230
RBSJY1.5-61500600015302100*15301780
RBSJY1.5-81500800016902100*15302070
RBSJY1.5-1015001000018502100*15302250
RBSJY1.5-1215001200018502550*15302900
RBSJY1.5-1415001400019602816*16003400
RBSJY2.0-62000600015302100*15301780
RBSJY2.0-82000800016902100*15302070
RBSJY2.0-1020001000018502100*15302250
RBSJY2.0-1220001200019542550*16003200
RBSJY2.0-1420001400022302816*16003900



B.300kg-500kg electric scissor lift platform lift
Model

capacity

(Kilogram)

Lifting height

(mm)

platform size

(mm)

minimum height

(mm)

weight

(Kilogram)

RBSJY0.5-650060002100*8301200880
RBSJY0.5-750070002100*83012801250
RBSJY0.5-850080002100*9301380
1050
RBSJY0.5-950090002100*93015001165
RBSJY0.5-10500100002100*123015301360
RBSJY0.5-11500110002100*123016501400
RBSJY0.5-12500120002550*153017502260
RBSJY0.5-14500140002812*153018102486
RBSJY0.3-16300160002812*160020803063
RBSJY0.3-18300180003070*160020803900

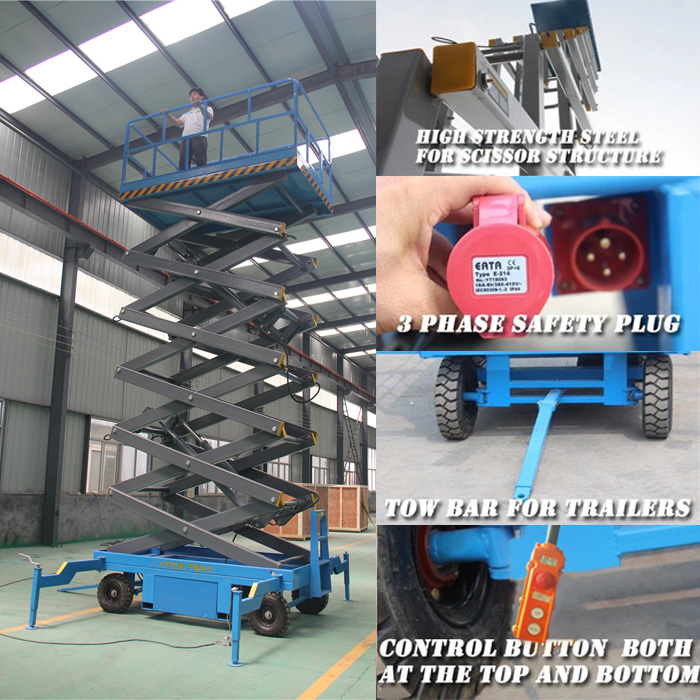

  C. Features
  • Aerial work electric scissor liftFeatures: High-strength lifting mechanism
  • Manganese steel square tube production. with safety device to prevent
  • The elevator is overloaded. Provides a safety device against hydraulic line rupture
  • protection valve. Emergency lowering device for power failure.
  D. Workshop



 D. International certification
