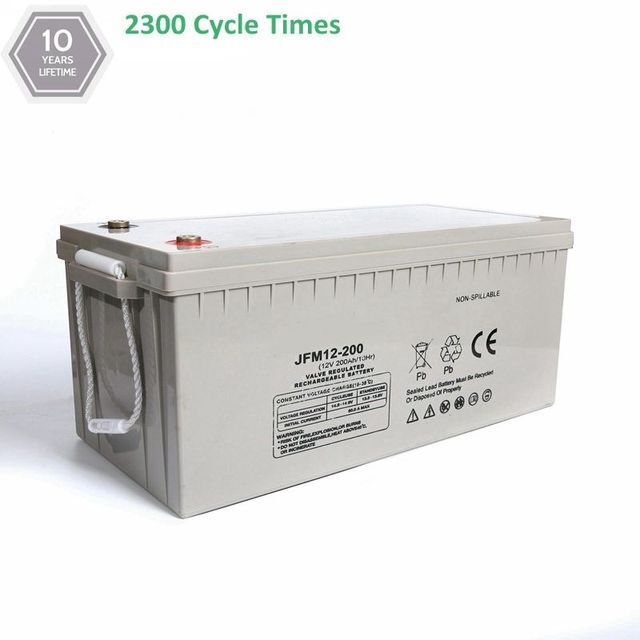

12v 400ah Lead Acid Battery 200ah Storage GEL Batteries for Crane

PRODUCT DETAIL
Size:522*240*218mm;Max . Discharge Current:2000A (5S);
Sealed Type:Sealed;Model Number:FM200-12;
Certificate:CE / ISO9001 / ISO14001 / Rohs;Port:Ningbo ,shanghai;
Terminal:T11;Brand Name:Greensun;
OEM Order:Acceptable;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal ,Trade Assurance;
Place of Origin:Jiangsu, China;Product name:Deep Cycle Battery 12v 200ah;
Container Material:ABS;Weight:51.0kg;
Supply Ability:5000 Pieces per Week;Warranty:3years;
Packaging Detail:carton box , wooden box and wooden pallet , 1unit per carton box;Maintenance Type:Free;
Usage:solar energy system;Package Preview:;
Certification:ce;Material:High Pure Lead;
Voltage:12v;
Product Description

Key Features :

♦Safety seal ,Deflating system ,Simple maintenance ,long lasting ,Stable quality and high reliability

♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically

Applications :
♦Hybrid and off grid solar power system
♦ UPS battery backup
♦Wind solar energy system

♦ Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power station and plant room

12V 200AH Lead Acid Battery Specification
Nominal Voltage
12V
Nominal Capacity (20HR)
200AH
Dimensions
L 522* W 240* H 218 mm
Approx Weight
Approx 56.0Kg
Terminal
T11


Related Capacity
208.0 AH/10.4A               (20hr ,1.80V/cell,25 C/77 ºF)
200.0 AH/20.0A               (10hr,1.80V/cell, 25 C/77 ºF)
172.0 AH/34.4A               (5hr,1.75V/cell, 25 C/77 ºF)
156.0AH/152.0A               (3hr,1.75V/cell, 25 C/77 ºF)
122.0AH/122.0A               (1hr,1.60V/cell, 25 C/77 ºF)

Operating Tem.Range
Discharge :  -15 ~50 ℃ (5 ~122 ºF)
Charge :        0 ~  40 ℃  (32 ~104 ºF)
Storage :       -15 ~40 ℃ (5 ~104 ºF)

Cycle Use
Initial Charging Current less than 60.0A. Voltage

14.4V~15.0V at 25℃ (77 ºF)Temp. Coefficient -30mV/ ℃

Capacity affected by Temperature
40  ℃      (104 ºF)                           103%
25  ℃      ( 77  ºF)                            100%
0    ℃       ( 32  ºF)                            86%
Container Material
ABS
Max Discharge Current
2000A (5S)
Certifications
We can provide valid security certificates ,including MSDS Report ,CE,UN38.3,,,etc to make sure all modes of transportation are safety for customers .
Production Process
Our factory produce 2v ,12v ,24v ,48v AGM,GEL ,OPZV ,Lithium batteries from 2ah to 3000ah .
Project
Application for different energy storage projects around the world .
Factory

♦ Founded in 2004 , 500MW solar panel production capacity , millions of battery, charge controller , inverter and pump production capacity
♦ Three factories , solar panel factory , battery factory , and pump factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , UL(America) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
♦ Professional after sale service .

Packing & Delivery
Battery packaged with carton box ,wooden box ,and pallet ,which can protect products safety during transportation .
