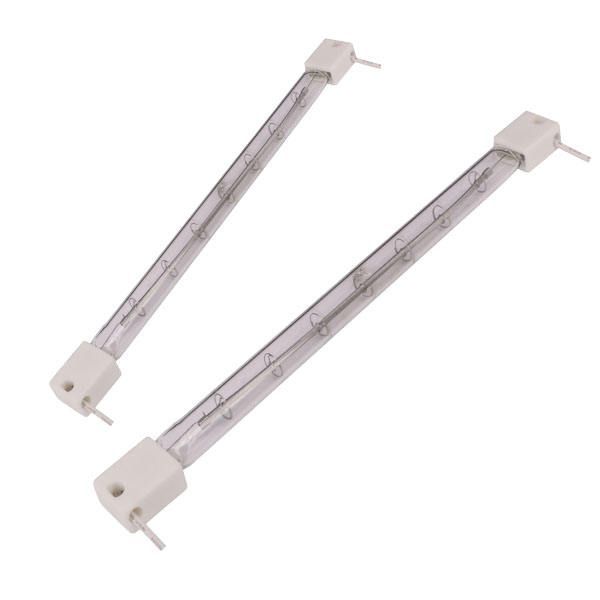

13213Z/98F 235V 2000W 355mm Industrial Quartz Halogen Infrared Heat Lamp
- $15.00 / 15 - 99 pieces
$11.00 / 100 - 499 pieces
$8.00 / >=500 pieces - 15 pieces
- Lianyungang O-Yate Lighting Electrical Co., Ltd.
- Jiangsu, China
- Mr Hongjun Liu
| Warranty (years): | 1 year | volt: | 12-600 volts |
| Brand Name: | Oyat | Business Type: | Manufacturer |
| Product weight (kg): | 0.25 | Working hours (hours): | 5000 |
| Input voltage (V): | 235 | wavelength: | 1.3-2.5 microns |
| watt: | 50-8000 watts | Origin: | Jiangsu, China |
| Supported dimmers: | Yes | Service life (hours): | 5000 |
| patent: | 16 national patents | Color Temperature (CCT): | 2450K |
| model: | OYT09-3057 | shape: | Tubular, special-shaped |
| application: | Drying, heating, printing | filament: | Tungsten, carbon fiber |
| Payment Terms: | wire transfer | Tube Color: | Transparent, white, gold, ruby red, frosted |
| Certification: | CE, ROHS, REACH |
Infrared heating lamp
| filament | Tungsten, carbon fiber |
| Tube Color | Clear,White, gold, ruby |
| wavelength | 1.3-1.6 microns, 2.5Micrometer |
| Voltage | 24-600 volts |
| strength | 50-4000 watts |
| Color Temperature | 2450K, 1800K, 1200K |
| Common diameter | 10mm, 12mm, 14mm, 18mm |
| life | 5000 hours |
feature
* High efficiency.
*Economical operation.
*With fast response opening and closing time.
*Efficiently transfers and focuses heat onto materials.
application
Infrared heating lamp
Especially suitable for courtyard, canopy, terrace, restaurant, bar, cafe, garden, outdoor sports, stadium, church, workshop, factory, home, farm, greenhouse.
Infrared heating lamps for PET manufacturing
Reflector lamps focus infrared heat in the direction where it is needed, reducing heat loss to the rear and increasing efficiency. The surface of the lamp is coated with a reflective coating, usually covering 180° of the quartz tube. The infrared heat is emitted forward through the quartz tube, or reflected from the rear of the tube and then out the front. Infrared heat lamps with reflective coatings or transparent heat lamps can be used in a variety of machines.
Infrared heating lamps for printing equipment
Infrared heating lamps for drying systems
Infrared heating lamps for industrial processing
1. Infrared heating plastic processing
| Infrared drying of plastic coatings | Infrared stretching or shrinking plastics |
| Infrared heating of plastic packaging | Infrared heating for PET bottle blow molding |
2. Infrared heating in the photovoltaic industry
| Infrared heating for string welding |
Infrared preheating for sputtering process |
3. Infrared heating in printing industry
| Infrared curing ink on fabric | Infrared drying of inkjet CTP plates |
| Infrared drying of printed products, e.g. for banner machines |
4. Infrared heating in food and chemical industries
| Infrared heating disinfection tableware | Infrared heating of chicken and vegetables |
| Infrared Heating of Natural Herbs | Infrared heating snow and ice removal |
5. Infrared heating for glass industry
| Infrared preheating of automotive glass | Infrared drying of glass coatings |
| Infrared heating for manufacturing and cutting of laminated glass |
6. Infrared heating in the textile industry
| Infrared Drying of Textile Coatings | Infrared heating for fabric lamination |
7. Infrared heating for the electronics industry
| Electronic component coating | Electronic component aging |
OYATE Infrared Heat Lamp
|
Short wave halogen lampInfrared lamp |
Medium Wave CarbonInfrared lamp |
Short -MediumWave infrared lamp |

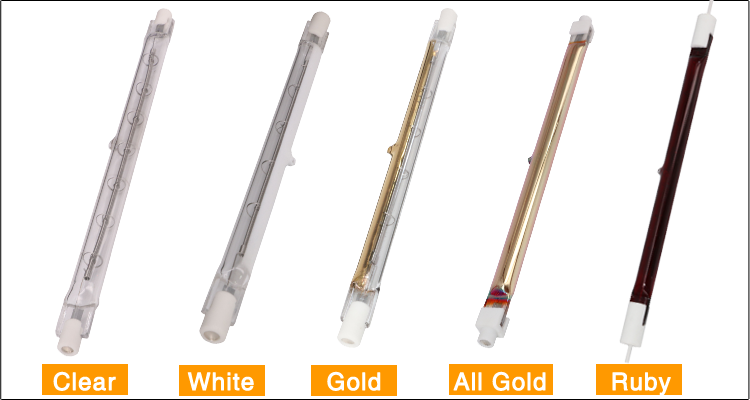

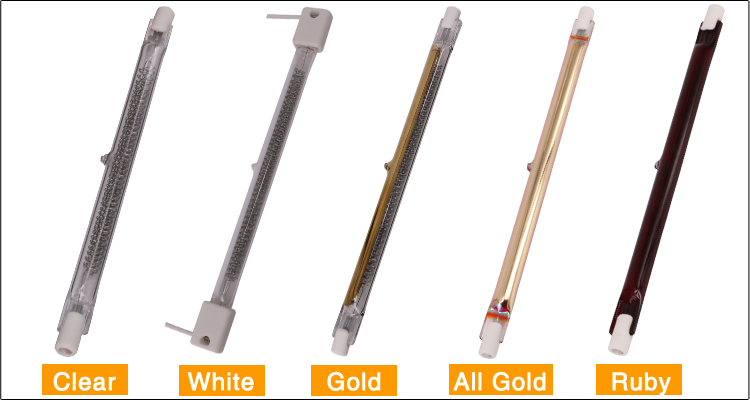

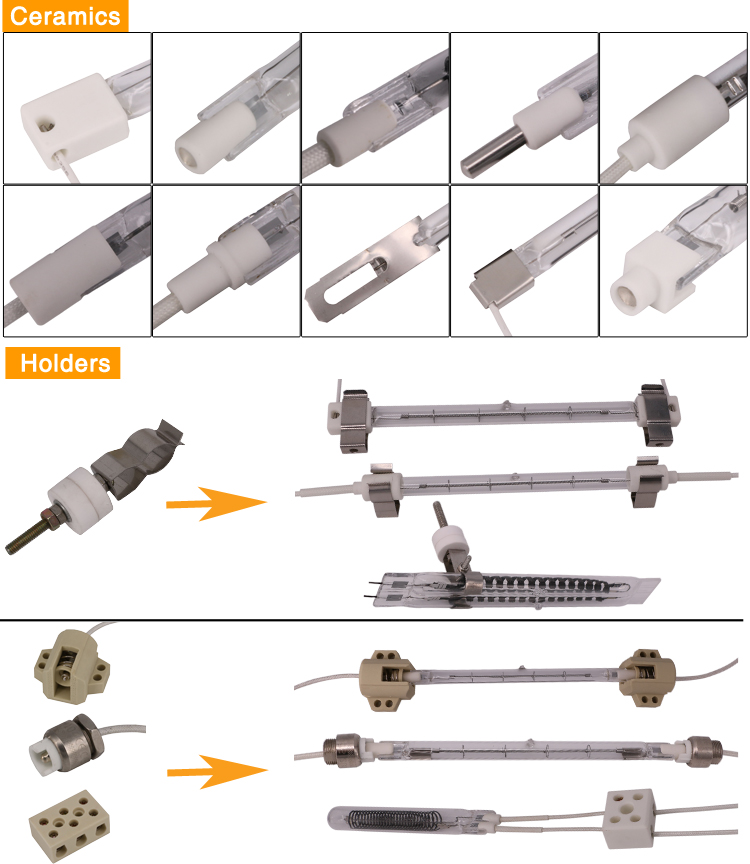

| Transparent infrared lamp | White infrared light | Gold infrared lamp | Ruby infrared lamp | Accessories |

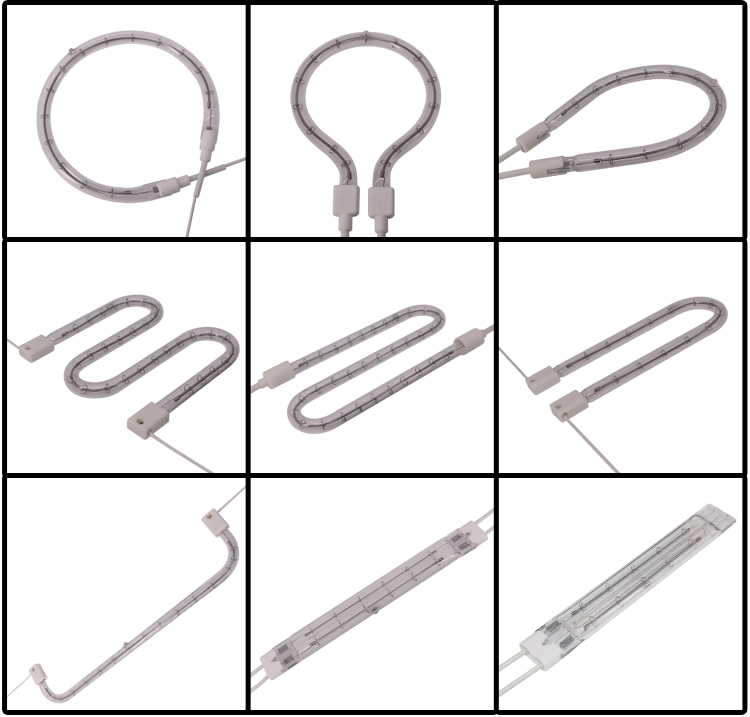

| Double tube infrared lamp | Wrapped infrared lamp | Special-shaped infrared light | application |
Infrared is divided into 3 parts according to wavelength measurement
* 1.3 μm short wave infrared
* 1.6 μm short-medium wave infrared
* 2.5 μm mid-wave infrared
Advantages of OYATE Heat Lamps
Carbon fiber heating lamp
*High-priced imported carbon fiber yarn.
*The finished silk is smooth and lint-free.
*Optimum power and maximum life.
Quartz glass tube
*High quality high temperature resistant quartz glass.
*Completely transparent to infrared radiation.
*Dual tubes – produces more heat under the same conditions.
Reflective heating lamp
*Transfer and focus heat onto materials more efficiently
*Depending on specific application and customer needs.
*We typically use gold, white, and ruby reflectors on our heat lamps.
Ruby and All Gold Heat Lamps
*Reduce the brightness of visible light.
*Reduce wavelength, increase heat.
White heat lamp
*Imported ceramic white electroplating material.
*The white reflective coating is stable and not easy to fall off.
Gold Heat Lamp
*Imported gold-plated material, gold water plating.
*Reflect heat for utilization, with higher reflection efficiency.
*The reflective effect is better than whiteboard.
