134tex glass fiber yarn direct sale factory price glass fiber yarn
- $1.30 / 500 - 999 rolls
$1.20 / 1000 - 2999 rolls
$1.10 / >=3000 rolls - 500 rolls
- Suqian Yaoxing Fiberglass Co., Ltd.
- Jiangsu, China
- Mr yi zhai
| Package preview: | technology: | winding filament roving | |
| model: | YX202101 | place of origin; place of origin: | Jiangsu, China |
| special number: | 2 | payment terms: | L/C, T/T |
| Yarn construction: | single yarn | type: | Alkali free glass |
| port: | Lianyungang | Supply capacity: | 5,000,000 rolls per month |
| Roll weight: | 4 kg | brand: | Pharmacy |
| application: | to weave | Packaging Details: | Plastic bag per roll, carton |
| diameter: | 5.5-16μm | Surface treatment: | vinyl coating |
| twist: | 90 +/- 9 turns/m |

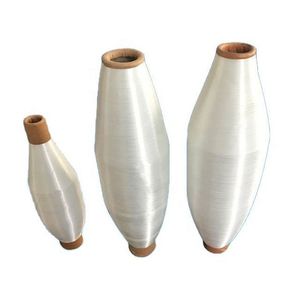

Fiberglass yarn
Glass fiber yarn is deformed under high pressure in special equipment. The fibers are then dispersed or looped and puffed into spiral or continuous. It is a new material that is harmless to the human body and has been widely used all over the world.
feature:
1. Glass fiber filaments are made of glass yarn balls
2. It has the properties of insulation, fire prevention and softness
3. It is an essential raw material for various fireproof and heat preservation products
4. Specifications: 33tex, 68tex, 150tex, 300tex
5. The twist and diameter of the wire depends on the customer's requirements
6. Special specifications depend on customer requirements
usage:
Glass fiber yarn is the raw material of industrial fabrics such as electrical insulation materials, electronic industrial fabrics, and pipes. Widely used in circuit boards, weaving various reinforcement, insulation, corrosion resistance, heat resistance and other fabrics.
| Product Category |
Nominal filament |
yarn strand |
Nominal yarn linear |
break in strength |
twist (rev/m) |
application |
| Diameter (μm) | Density (tex) |
not less than (N/Tex) |
||||
| EC8-24×1×2S90 | 8 | 2 | 48.0 ± 3.84 | 0.4 | 90±9 | PCB substrate |
| EC9-34×1×2S90 | 9 | 2 | 68.0 ± 5.44 | |||
| EC8-24×1×4S90 | 8 | 4 | 96.0 ± 7.68 | |||
| EC8-24×2×3S90 | 8 | 3 | 144.0 ± 11.52 | |||
| CC7.5-22×1×3S90 | 7.5 | 2 | 44.0 ± 3.52 | strengthen partners |
