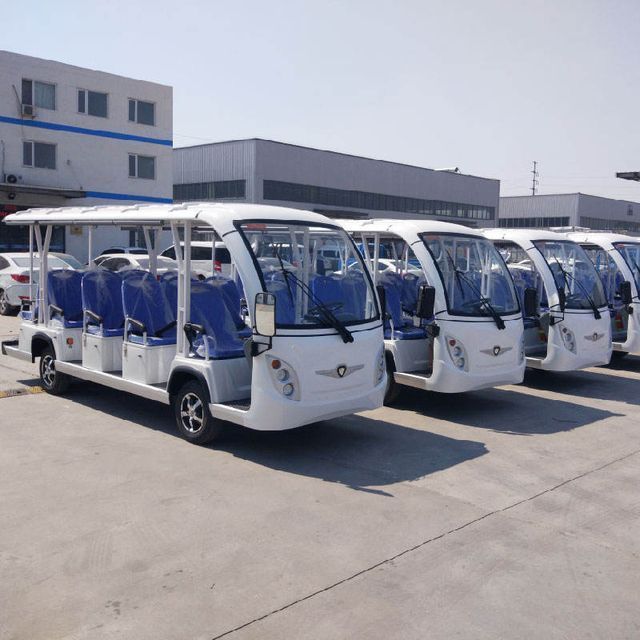

14-seat electric sightseeing car

PRODUCT DETAIL
seat:14Certification:CE and ISO 9001
Packaging Details:containercharger:Smart pulse charger
Climbing ability:20 degreesproduct name:14-seat electric sightseeing car
color:custom madeSupply capacity:3,000 pieces per year
brand:Bicycleport:Tianjin Port, China
strength:electricalTypes of:tour car
maximum. speed:30 km/hplace of origin; place of origin:Tianjin, China, Tianjin, China
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramsize:5220*1500*2070 mm
Product Description
Product Description

14-seat electric sightseeing car



which performed

Carrying capacity

14 seats

Maximum speed

28-30km/h (adjustable)

scope

70-80 kilometers

climbing ability

<20%

braking distance

<5m

mini turning radius

6.5m

Minimum ground clearance

130mm

charging time

8-10 hours

size

length*width*height

5220*1500*2080mm

front and rear tread

1240/1220mm

wheelbase

2835mm

net weight

1120 kg

Standard configuration

engine

48V/5KW AC motor

controller

American Crutis Controller

Battery

Large-capacity deep-cycle lead-acid battery 6V/section 8 sections 230Ah

body and roof

Injection molded PP shape design can be separated to replace the whole aluminum frame

windshield

laminated glass with wiper

seat

Sponge & artificial leather, adjustable main and co-pilot seats

rearview mirror

2

fetal

Aluminum alloy wheels, 155R12C

chassis

high strength structural steel

steering

Gear Steering & Automatic Backlash Compensation + Electronic Power Steering

Brake system

Dual-circuit hydraulic handbrake with front disc and rear drum

front axle

MacPherson Independent Suspension Coil Spring Cylinder Hydraulic Shock Absorption

rear axle

Integral rear axle, non-independent suspension, leaf spring + oil cylinder hydraulic shock absorption

Lighting system

Combination LED front light (turn signal, high beam, low beam) tail light (turn signal, brake light) drive and reverse buzzer.

charger

car charger

dash board

Plastic molded dashboard with voltmeter, ammeter, battery indicator, speedometer, key switch, radio, USB plug, storage box, cup holder

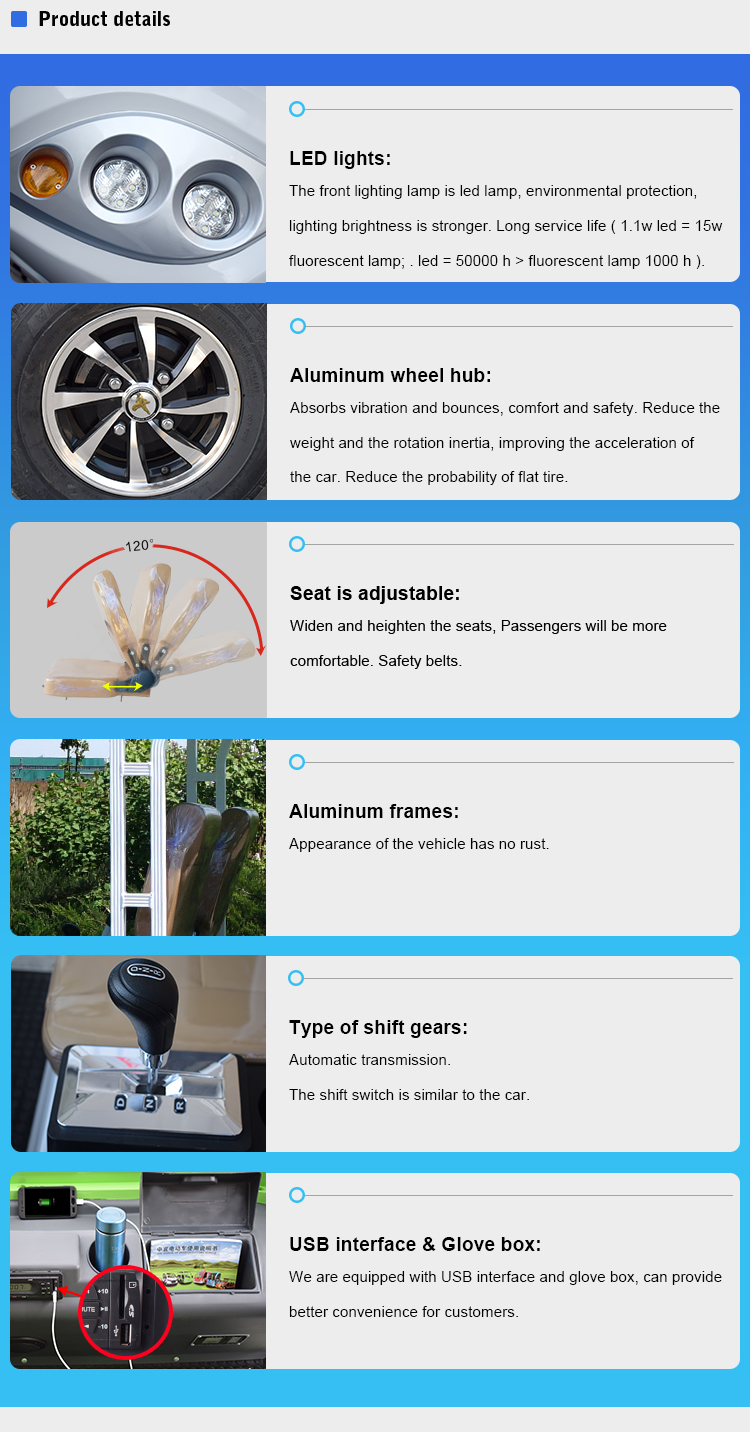

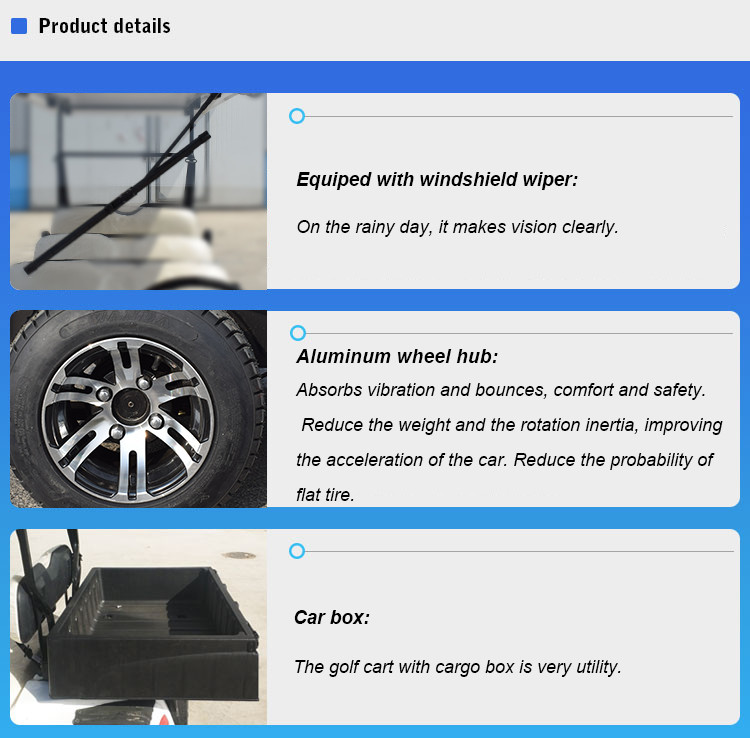

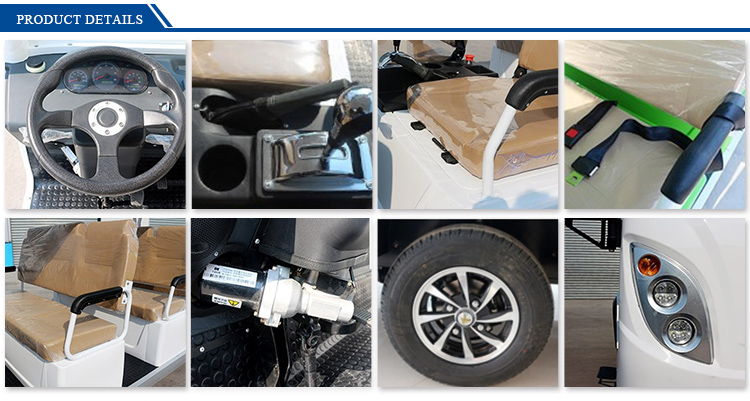

Product Details
