19" Monitor Open Frame 48,3cm 12801024 RGB SXGA VGA 12V-5A display for TV conversion good USED Tested
- $6.95 / >=184 pieces
- 184 pieces
- KroneX Distribution GmbH
- Bayern, Germany
- Mr
| Built-in Speaker: | No; | Use: | Industrial; |
| Place of Origin: | China; | Interface Type: | VGA; |
| Panel Type: | TFT; | Aspect Ratio: | 4:3; |
| Payment Terms: | T/T,Western Union; | Supply Ability: | 184 Pallets per Day; |
| Widescreen: | NO; | Series: | For Home & Student; |
| After-sales Service: | Free spare parts,Return and Replacement,Others; | Packaging Detail: | 120x80x165 Pallet; |
| Port: | Germany; | Color: | Silver; |
| Display Ratio: | 4:3; | Products Status: | Used,Refurbished,OPEN-BOX; |
| Warranty(Year): | 90 days; | Brand Name: | OEM; |
| Application: | Desktop; |

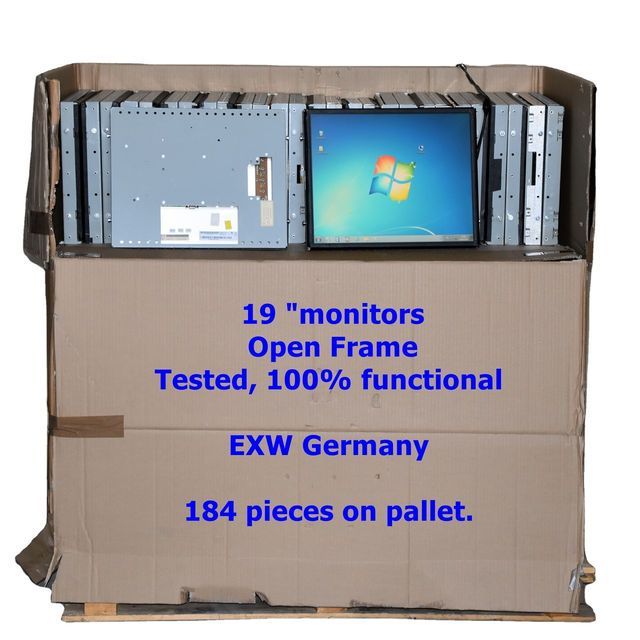

Here we offer used ones
Industrial 19 "monitors open frame
These are used, completely overhauled in working condition.
These monitors are designed for installation in entertainment devices, gaming machines, kiosks, POS systems, CNC Machnies and the display is suitable for television production.
The monitor can be supplied with power supply units and VGA cables, optional!
The operation is 12V-5A power supply, video signal with a VGA connection.
Technical data of the display:
Panel Brand: AUO
Panel Model: M190EG01 V0
Panel Size: 19.0"
Panel Type: a-Si TFT-LCD , LCM
Resolution: 1280(RGB)×1024, SXGA, 86PPI
Pixel Format: RGB Vertical Stripe
Display Area: 376.32(W)×301.056(H) mm
Bezel Opening: 380.32(W)×305.06(H) mm
Outline Size: 396(W)×324(H) ×17.5(D) mm
Surface: Antiglare, Hard coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1300:1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Best View on: Symmetry
Response Time: 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Display Colors: 16.7M 72% NTSC
Lamp Type: 4 pcs CCFL , 50K hours , Without Driver
Frequency: 60Hz
Panel Weight: 2.50/2.70Kgs (Typ./Max.)
Application: Desktop Monitor Industrial
Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage: 5.0V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
