2.5 lbs 3.4 lbs Expanded formwork retained drywall plaster stucco galvanized metal high ribs ribbed strips for formwork

PRODUCT DETAIL
application:structural, extensivegrade:Q235 Q345, hot-dip galvanized steel
type:light steel platePackaging Details:Building Materials 2.5lbs 3.4lbs Retaining Wall Stucco Metal Lath Packaging Details: By Bundle or Pallet
tolerant:±10%port:Xingang or any major port in China
thickness:0.12 ----1.50mm,0.1-0.35brand:cstar9671
product name:Rib ribswidth:600-1250mm, 450
Origin:Hebei chinaproduct name:Galvanized metal ribbed slats
standard:ASTMSurface treatment:galvanized
Alloy or not:UnalloyedSupply capacity:1500 tons per month
length:3000mm, 2000payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Processing services:bendingfeature:Anti-corrosion
shape:squaredelivery time:15-21 days

Building Materials 2.5lbs 3.4lbs Retaining Wall Stucco Metal Lath

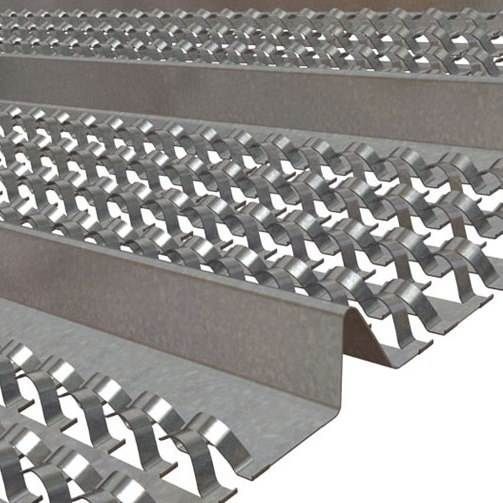

Steel netMade of expanded metal used in plaster works. usually

Galvanized steel or stainless steel expanded metal. It offers a solid structure and smooth

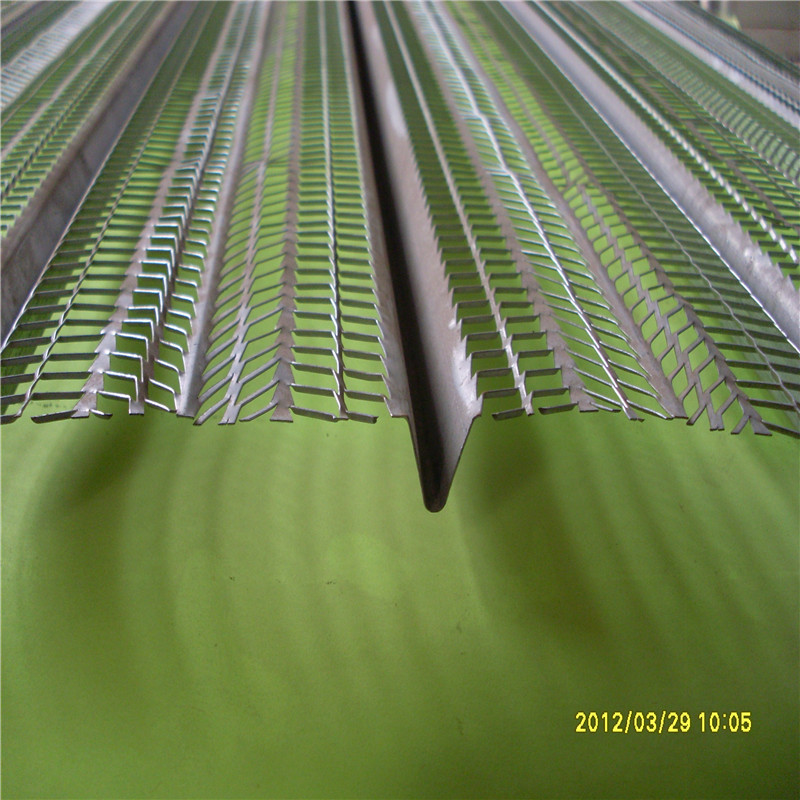

surface. Rib battens are expanded metal slats reinforced with longitudinal ribs.



Specification

Thickness (mm)

Mesh (mm)

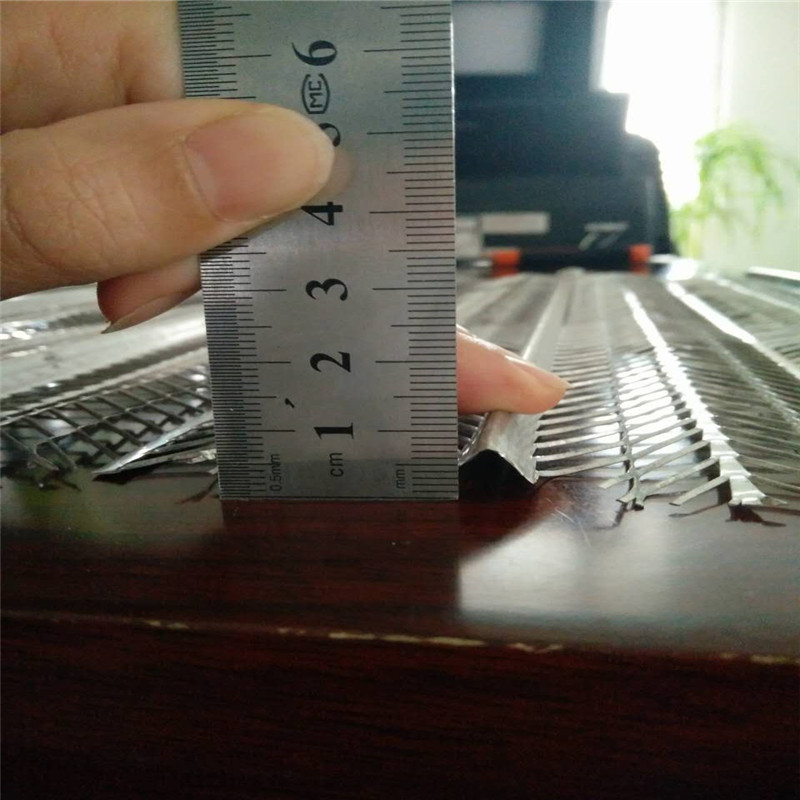

Rib height(mm)

Rib distance (mm)

kg/square meter

Panel Width(mm)

0.30

16X11

8

150

0.85

600

0.35

16X11

8

150

1.00

600

0.40

16X11

8

150

1.14

600



Panel Thickness(mm)



Mesh (mm)

Rib height(mm)

Rib distance (mm)



kg/square meter

Panel Width(mm)

0.30

7X11

8

100

1.165

600

0.35

7X11

8

100

1.36

600

0.4

7X11

8

100

1.55

600



product specification

1)Material: Hot dipped galvanized steel

2)Sheet thickness: 0.3mm-0.6mm,

3)length: 27"width: 96"Intercostal distance: 100 mm

4)Galvanized layer: 80G/square meter

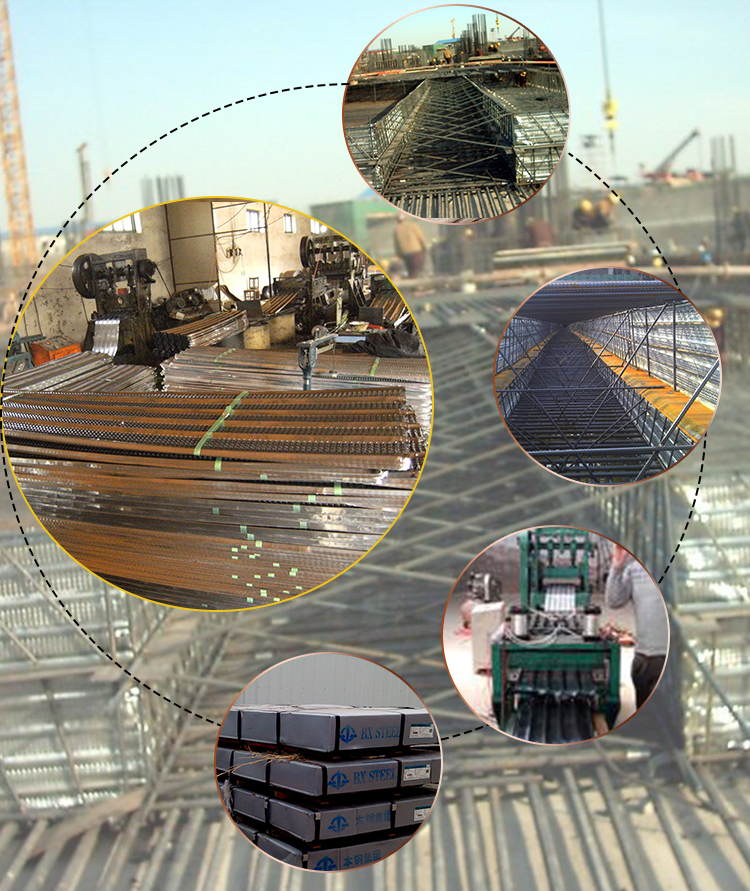

application

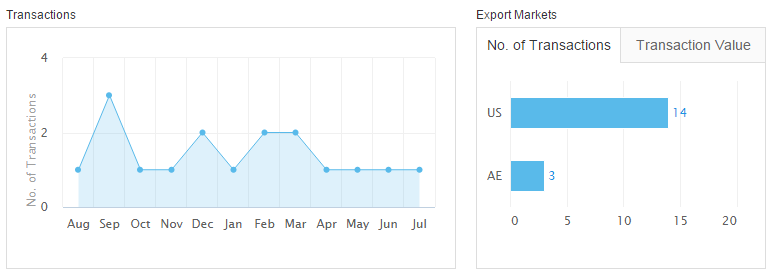

Transaction overview

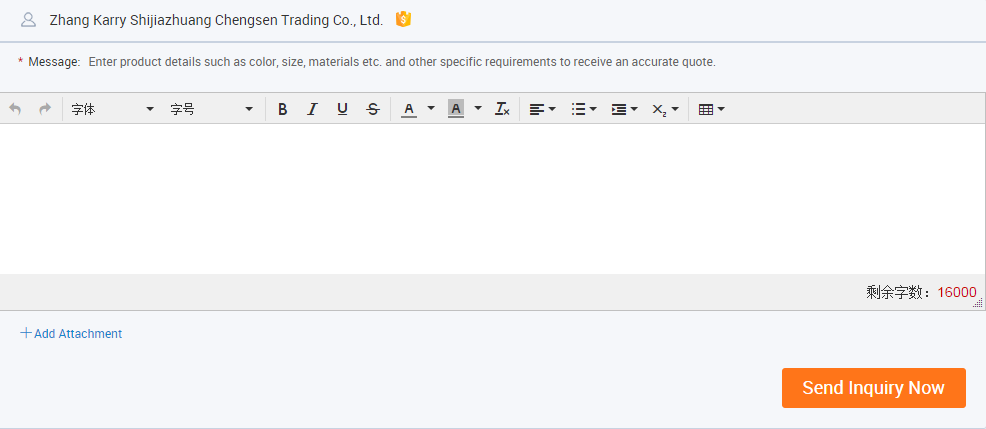

If you have any other questions, please feel free to contact us↓
