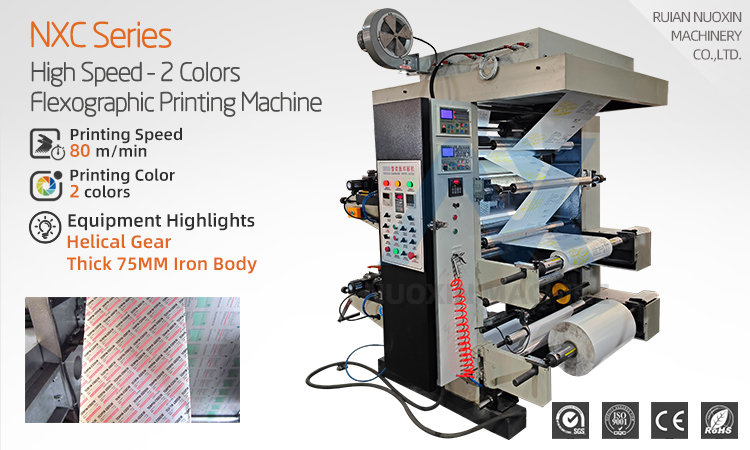

2 Colors Non Woven Film Bag Flexo Printing Machine Plastic Paper Flexo Sachet Printing Machine Machinery
- $5000.00 / 1 - 4 sets
$4000.00 / 5 - 9 sets
$3000.00 / >=10 sets - 1 set
- Ruian Nuoxin Machinery Co., Ltd.
- Zhejiang, China
- Ms Amanda Ye
PRODUCT DETAIL
| Registration: | manual | Automatic level: | automatic |
| Warranty: | 1 year | Print size: | 300mm |
| Package preview: | maximum. Unwinding diameter: | 600mm | |
| Printing speed: | 65m/min | style: | Two-color flexographic printing machine |
| Video shipment inspection: | if | Model: | LDB-2800 two-color flexographic printing machine |
| Main selling points: | high productivity | Printing color: | 2 colors |
| Mechanical test report: | if | Health status: | new |
| Core component warranty: | 1.5 years | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| weight: | 2400 kg | Dimensions (L*W*H): | 2700*2200*2300 |
| type: | Flexographic printing machine | Printing length: | 191-1200mm |
| Sheet thickness: | 2.38mm | Plate type: | Typography |
| port: | Ningbo | printing speed: | 80m/min |
| Origin: | Zhejiang, China | Applicable industries: | Hotels, Clothing Stores, Restaurants, Retail, Printing Shops, Construction Works |
| structure: | heap | Voltage: | 380V |
| usage: | Paper printers, label printers, card printers, tube printers, bill printers, fabric printers, plastic bags, non-woven bags, paper bags | Core components: | Bearings, motors, pumps, gears, PLCs, gearboxes, pressure vessels, engines |
| Print width: | 560mm, 760mm, 960mm, 1160mm, 1360mm, 1560mm | Supply capacity: | 30 sets per month |
| Colors and Pages: | Polychromatic | brand: | Nordson |
| After-sales service provided: | Engineers available to service machinery overseas | Packaging Details: | Film packing and standard export wooden case. |
Product overview
introduce
Introduce photosensitive resin as a flexographic printing plate. It is an ideal printing equipment for producing paper commodity packaging bags, supermarket handbags, vest bags, garment bags, etc.The printed materials are as follows:1. Polyethylene, polyethylene plastic film printing 2. Bags (food packaging bags, supermarket handbags, vest bags, clothes bags printing 3. Roll paper, kraft paper printing 4. pp woven bags, pvc film, bopp film printing 5. Composite bag roll printing 6. Non-woven fabric roll printing 7. Rice bag pp woven printing 8. Paper printing
Note: Different printing materials have different designs of machine parts. Please present printed materials when making an inquiry.
Key Features and Benefits
1. Machine form: Large gear transmission registration is adoptedColor colors are more accurate.
2. Compact structure. The parts of the machine are interchangeable and standardized for easy access. We choose low weardesign.
3. The printing cylinder is very simple. It can save more time and cost.
4. Less printing pressure, less waste and longer service life.
5. Print a variety of materials, including various film rolls.
6. High-quality ceramic anilox roller is used to improve the printing effect.
7. Imported electrical appliances are used to make the circuit control stable and safe.
8. Frame: 75MM thick cast iron, high speed without vibration, long service life.
2. Compact structure. The parts of the machine are interchangeable and standardized for easy access. We choose low weardesign.
3. The printing cylinder is very simple. It can save more time and cost.
4. Less printing pressure, less waste and longer service life.
5. Print a variety of materials, including various film rolls.
6. High-quality ceramic anilox roller is used to improve the printing effect.
7. Imported electrical appliances are used to make the circuit control stable and safe.
8. Frame: 75MM thick cast iron, high speed without vibration, long service life.
machine video

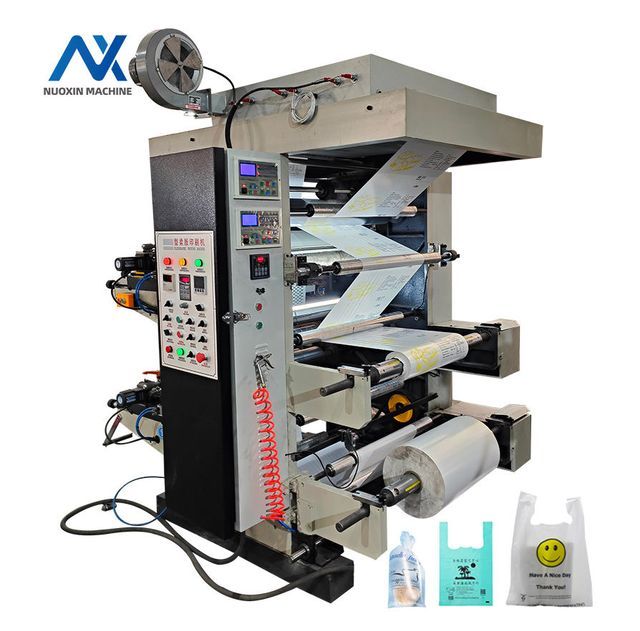

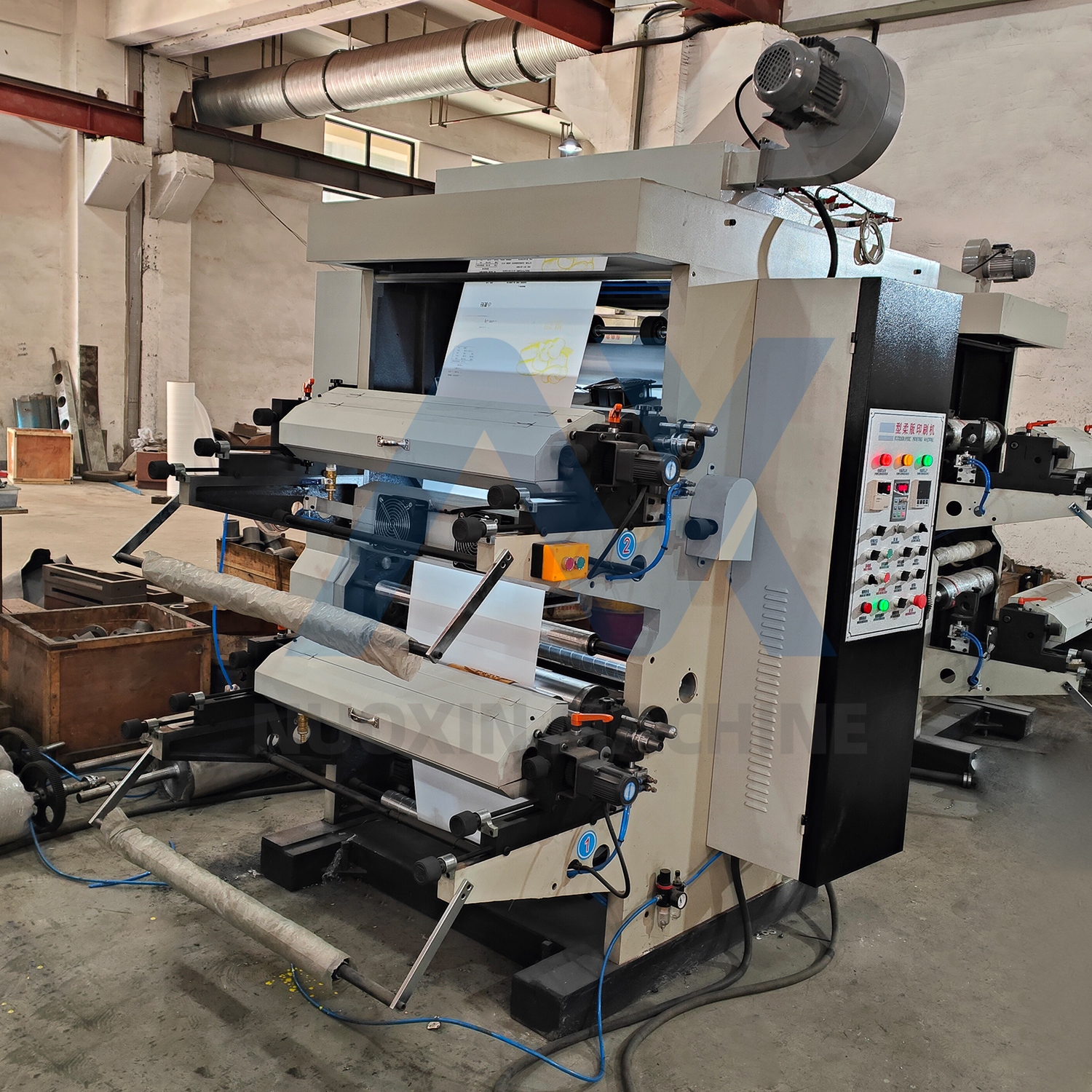

machine photo

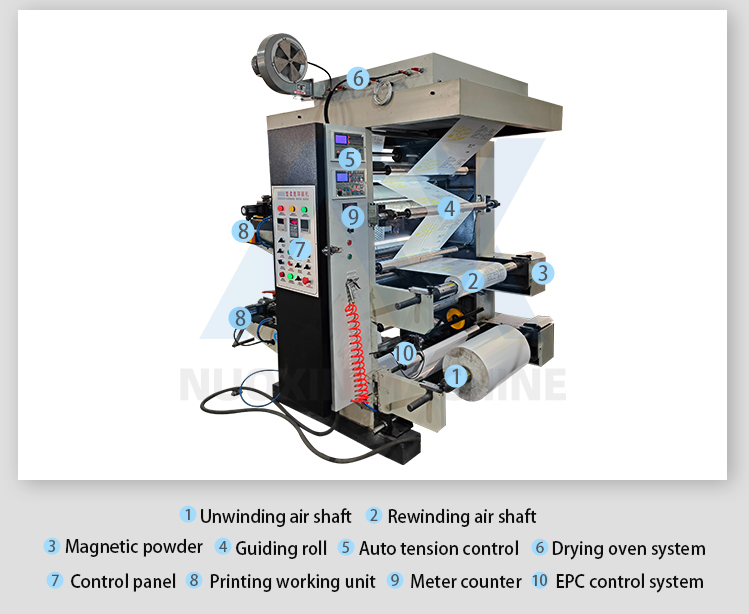

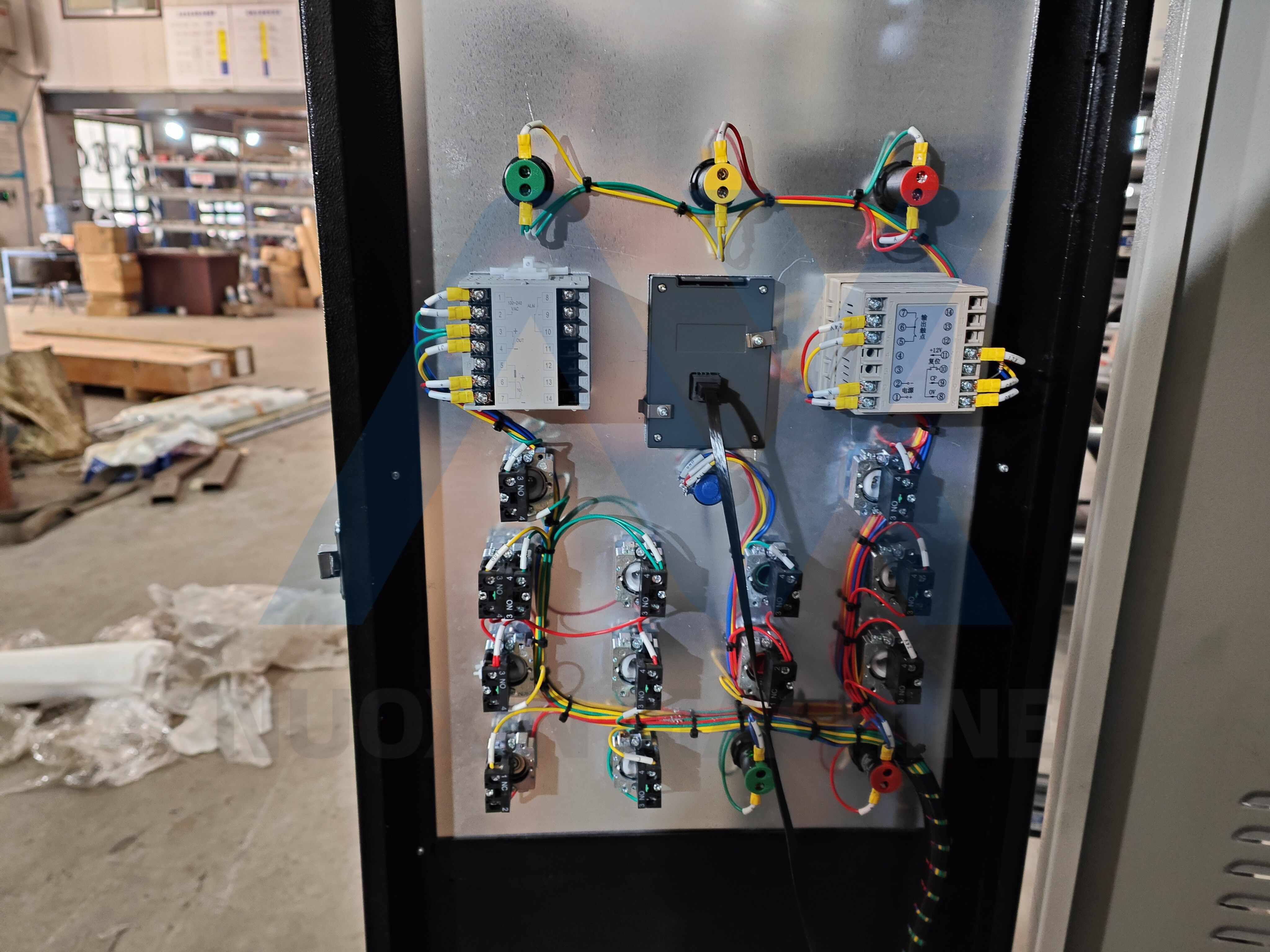

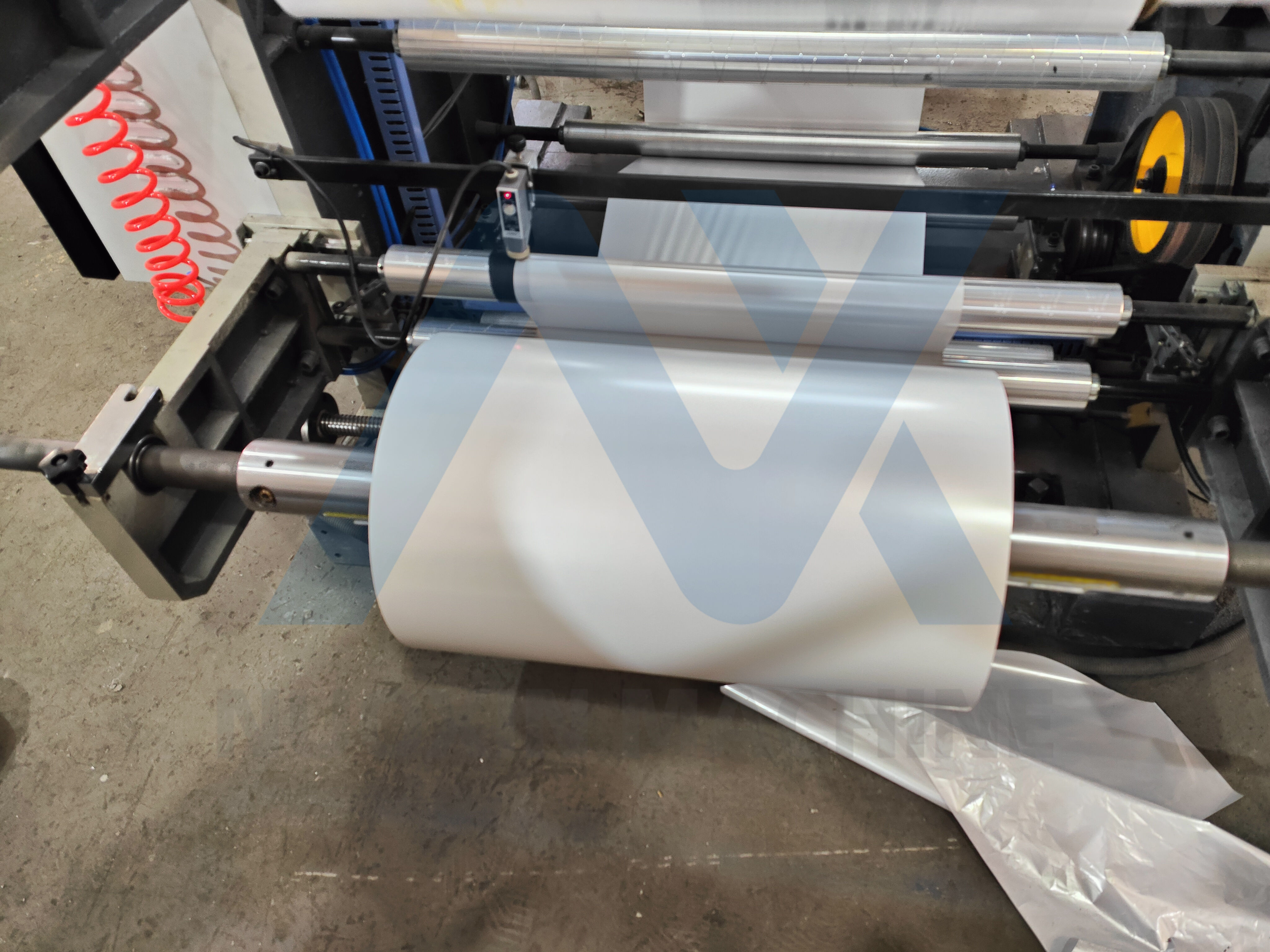

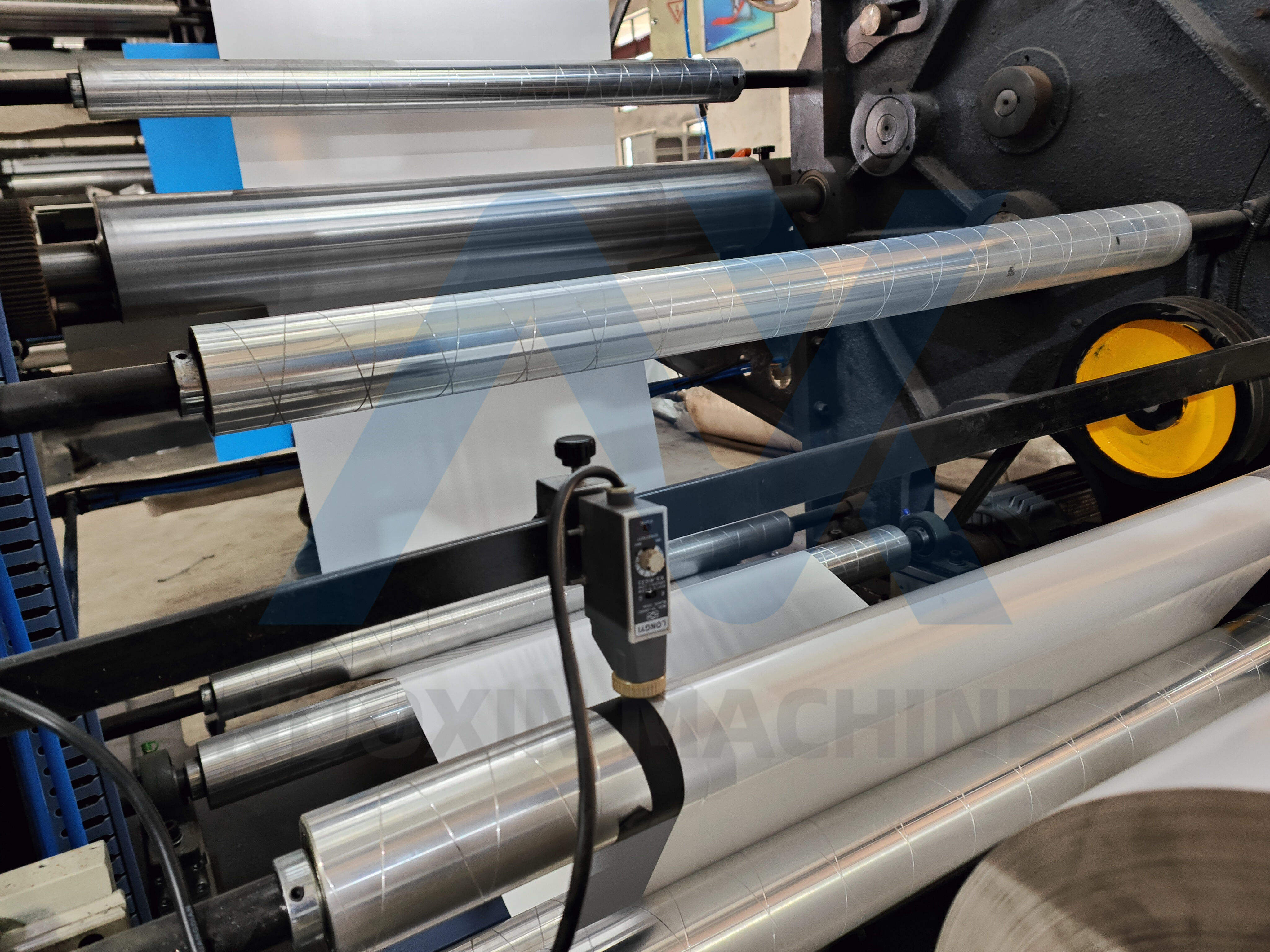

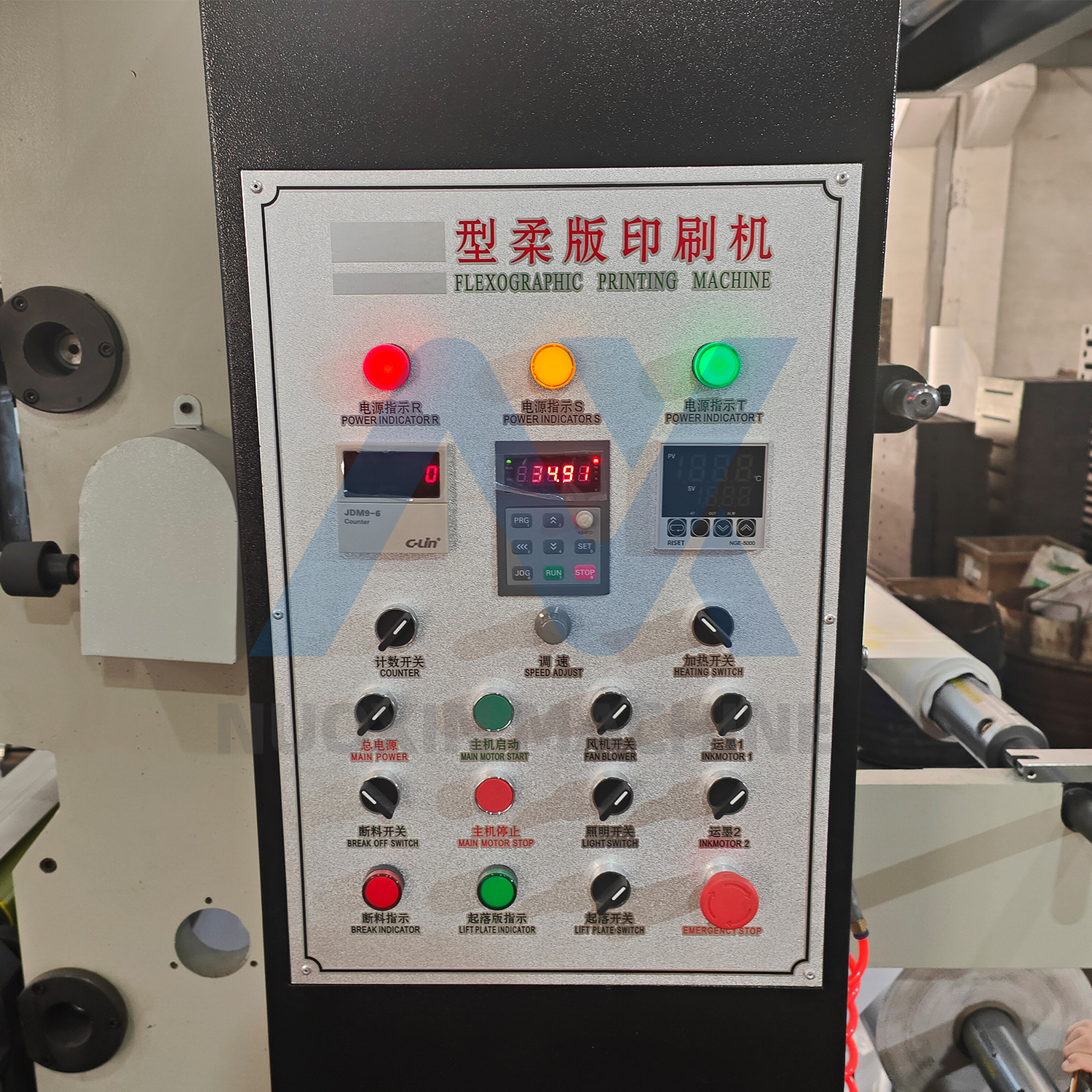

machine details
Product parameters
Technical Parameters
Model | NXC2-600 | NXC2-800 | NXC2-1000 | NXC2-1200 | NXC2-1400 | NXC2-1600 | ||||||
maximum. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | ||||||
maximum. print width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm | ||||||
printing color | 2 colors (PC: 2+0, 1+1) | |||||||||||
printing length | 191-1200mm | |||||||||||
Plate cylinder method | hydraulic control up and down | |||||||||||
mechanical speed | 100m/min | |||||||||||
printing speed | 80m/min | |||||||||||
Anilox roller | Metal: 100-300LPI / Ceramic: 200-800LPI | |||||||||||
Registration accuracy | Longitudinal: ±0.25mm; Horizontal: ±0.25mm | |||||||||||
Unwinding/rewinding diameter | Φ800mm | |||||||||||
drying system | electro-thermal | |||||||||||
machine weight | 1800 kg | 1900 kg | 2000 kg | 2100 kg | 2200 kg | 2300 kg | ||||||
machine power | 10 kW | 12kw | 14kw | 15 kW | 16 kW | 18 kW | ||||||
Machine size (length x width x height) | 2.7×2×2.3m | 2.7×2.2×2.3m | 2.7×2.4×2.3m | 2.7×2.6×2.3m | 2.7×2.8×2.3m | 2.7×3×2.3m | ||||||
Machines can also be made according to customer requirements. If you need other width sizes or high speed machines, please contact us directly. | ||||||||||||
optional parts
1. Printing cylinders of various sizes
2. Double unwinding/rewinding
3. Automatic pneumatic loading
4. Automatic pneumatic unloading
5. Crane: manual or electric
6. Ceramic anilox roller
2. Double unwinding/rewinding
3. Automatic pneumatic loading
4. Automatic pneumatic unloading
5. Crane: manual or electric
6. Ceramic anilox roller
Printing samples
