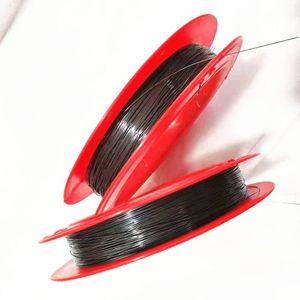

2020 Hot New Product 0.3mm NiTi Wire Shape Memory Alloy Nitinol Wire Price

PRODUCT DETAIL
grade:Nitinolport:Tianjin/Shanghai
payment terms:L/C,D/A,T/T,Western Union,MoneyGram,Paypalfeature:full superelasticity
tensile strength:980Mpamodel:Seabird-015
Maximum recovery stress:600MPaPackaging Details:1> Shape memory alloy nitinol wire with plastic spool/coil according to wire size + carton + pallet/wooden box according to customer's requirements
Yield Strength:220MpaSupply capacity:1 ton per month

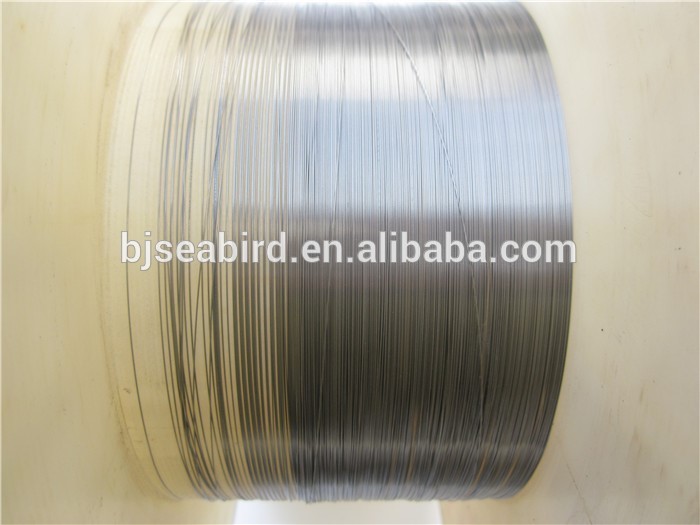

Wire gauge:0.3mmproduct name:Nitinol wire
Elastic Modulus:Austenitic 83 GpaAvailability:fully annealed
Titanium (min):45%place of origin; place of origin:China
brand:sea ​​birdapplication:engine
Certificate:ISO9001:2015Key words:Nitinol wire
strength:980MPa



Nitinol Specifications
Nitinol (also known as Nitinol or Nitinol) belongs to a unique category of shape memory alloys. The thermoelastic martensitic transformation in the material is responsible for its extraordinary properties.
Nitinol is usually made of 55%-56% nickel and 44%-45% titanium. Small changes in ingredients can be significant
affect the properties of the material. There are main categories of Nitinol.
The first, called "SuperElastic," is characterized by extraordinary recoverable strain and resistance.
The second category, "shape memory" alloys, is valued in the ability of nitinol to restore a preset shape when heated above its transition temperature. The first category is usually used for orthodontics (braces, wires, etc.) and glasses. SZNK produces shape memory alloys, mainly for actuators, used in many different mechanical devices.



ASTM F2063-05 Q/XB1516 Customer specified or industry standard

Name

grade

transition temperature AF

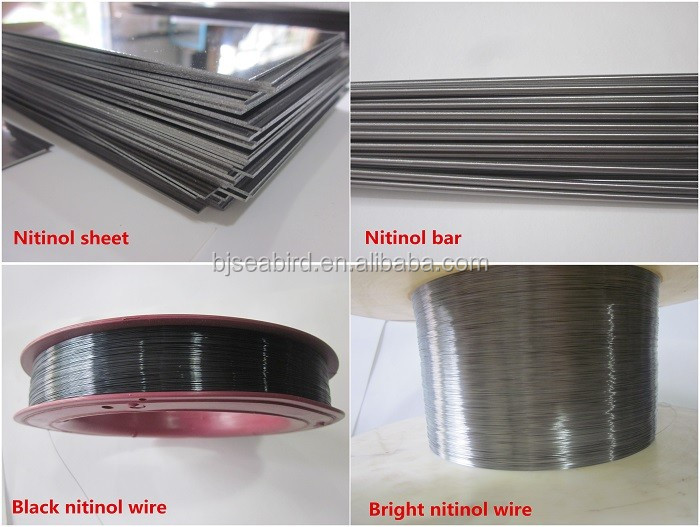

form

standard

Shape Memory Nitinol

Titanium Nickel 01

20°C~40°C

metallic line,

bar, plate









customer specified or

industry standard

Titanium Nickel 02

45°C~90°C

Superelastic Nitinol

Titanium Nickel Stainless Steel

-5°C~ 5°C

low temperatureSuperelastic Nitinol

TN3

-5°C~ -15°C

-20°C~ -30°C

multinational

Medical Nitinol

Titanium Nickel Stainless Steel

33±3℃



ASTM F2063

Narrow hysteresis Nitinol

Titanium Nickel Copper

As-Ms ≤ 5 °C



Wire, bar



Wide hysteresis Nitinol

TiNiFe

As-Ms ≤ 150 °C





application

shape memory effect
Super elastic effect
Pipe fittings (radioactive waste delivery pipes)
Wire (bras, corsets, baby drool bibs, hat frames)
Tooth root (inserted into bone and fixed)
Glasses frame
Electrical connectors (using poor quality contacts to heat up)
Orthodontics (crowns, arch wires)
automatic window closing mechanism
Catheter lead for introduction of X-ray contrast agent (follows flexibly in blood vessel)
Air Conditioning Sensor Flaps
Forming repair device
spring cellar

Antifreeze valve (open the faucet to cool down)
Fan clutch (low temperature shutdown)
Temperature alarm (replaces bimetal)
Medical implants (dilation of blood vessels)





Chemical composition and shape recovery temperature

thingyoutitaniumcompanycoppershape recovery temperature
Nitinol

54~56
residual balance
-
-
20~100℃
Nitinol

53~55
residual balance
1~3
-
-30~30℃
Nitinol

47~50
residual balance
-
5~9
40~70℃



Mechanical behavior

thingNitinolNitinolNitinol
martensite phaseTensile strength MPa
(kg force/mm2)
1175~1370
(120~140)
1370~1570
(140~160)
1175~1765
(120~180)
Yield strength MPa
(kg force/mm2)
~196
(~20)
~294
(~30)
68~98
(7~10)
Elongation~50~50~20
Horizontal elastic modulus MPa
(kg force/mm2)
7845~9800
(800~1000)
9800~13730
(1000~1400)
0~4900
(0~500)
martensite phaseTensile strength MPa
(kg force/mm2)
1075~1175
(110~120)
1275~1370
(130~140)
1175~1765
(120~180)
Yield strength MPa
(kg force/mm2)
390~785
(40~80)
490~980
(50~100)
390~785
(40~80)
Elongation~20~20~20
Horizontal elastic modulus MPa
(kg force/mm2)
17650~21575
(1800~2200)
25500~28440
(2600~2900)
19615~27460
(2000~2800

















quality assurance



1. Provide third-party inspection reports according to globally recognized standards, such as ASTMF.ASTM ASTMB, ISO quality management system.

2. Visual inspection to check the surface quality to ensure that there are no flaws, black spots and other defects.

3. Before delivery, our company is also equipped with mechanical property test, particle size test microscope, powder density tester, pressure tester, scanning electron microscope ultrasonic flaw detector.

4. Chemical composition to ensure that all chemical compositions can meet the needs of customers.

5. Mechanical performance testing to ensure that all Nitinol products have satisfactory performance before delivery.







Q: Are you a trading company or a manufacturer?
A: We are a factory.



Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, and the freight will be borne by the buyer.



Q: How do you ensure product quality?
A: All products are manufactured according to ASTM standard, we do 100% inspection before shipment, also can provide MTC test certification.



Q: Can you print our logo on the product?
A: Yes, we make by laser printing and engraving.



Q: How to quote for your company?
A: Please tell me Material.Size.Quantity.



Q: What are your payment terms?
A: T/T, L/C
For stocks, 100% prepaid;
Futures delivery, 30% prepayment, balance before delivery.



Q: How long is your delivery time?
A: If the goods are in stock, usually 5-10 days. Doing a new batch is 15-30 days.



Q: Can you guarantee timely delivery?
A: Yes, please don't worry. We have a professional production team working 24 hours a day.

If you want more information, please feel free to contact us. Thanks!
