2021 Quality Reliable Wood Log Debarker, Wood Debarker
- $7000.00 /set
- 1 set
- Henan Dafu Mechanical Import And Export Co., Ltd.
- Henan, China
- Ms Hedy Bi
type: | log peeler | Supply capacity: | More than 262 sets per year |
Mechanical test report: | if | Applicable industries: | factory, farm |
Comment: | Small orders or trial orders are welcome | Voltage: | 380 |
port: | Qingdao Dalian | After-sales service provided: | On-site installation, commissioning and training |
Showroom location: | not any | Warranty: | 1 year |
Core Components Warranty: | 1 year | Dimensions (L*W*H): | 8*1.4*1.7 or 12*1.5*1.7 or others |
brand: | Dafu wood peeling machine | Local service location: | Uzbekistan |
Main selling point: | high productivity | weight: | 3-4 tons |
Peel rate: | >90% | Core components: | motor |
Certification: | Chinese official | Packaging Details: | Standard wood packaging |
After Warranty Service: | Online support, spare parts, on-site maintenance and repair services | place of origin; place of origin: | Henan, China |
Health status: | new | Video external inspection: | if |
Factory Direct: | Reasonable price | strength: | 11kW |
Marketing Type: | New product | Timber loss rate: | <2% |
Timber length range: | 3-6M | payment terms: | Western Union, wire transfer |
Reliable quality log debarker, wood debarker
Instructions for use of wood peeling machine
High Efficiency Rotor Wood Debarker
Peeled logs, mainly logs, small-diameter logs, etc., peeled, cut film, and stripped more than 95%.
JX-8000, JX-10000 high-efficiency rotor wood peeling machine (groove wood peeling machine) is a new generation of peeling wood products, with
Innovative and efficient advantage, the wood debarker rotor (slotted wood debarker), works on the principle that the rotor with debarking teeth generates a unique force that circulates the logs not only in the silo tank board
In the state of circular motion, it can also make wood rotating motion segments and irregular beating around its own axis.
Wood peeling machine rotor (slotted wood peeling machine) to this model, in the process of continuous friction, collision, crushing
The tooth rotor is quickly separated from the bark of wood, wood section, wood storage tank section, and achieves high peeling effect.
application
Suitable for cutting new softwoods and hardwoods, doing some peeling, and also finishing partially frozen material,Debarked dry wood.
1. Adopt four-point tool, easy to use and low cost.
2. The cutter head is controlled by a hydraulic regulator, with advanced structure and reliable performance.
3. Continuously variable feeding section has good hard peeling effect on frozen wood, bent wood, eucalyptus, oak, elm and other trees.
4. High net peeling, high productivity and small wood loss
advantage:
1. The hopper is open, and materials are fed and discharged at the same time in different places, which overcomes the shortcomings of the existing drum peeling machine when the feeding and discharging of materials are cut off.
2. The impact of the rotor teeth on the wood not only makes the wood segment make a circular motion in the chassis, but also can rotate by itself, so it has a high peeling efficiency even for hard peeled wood such as eucalyptus and poplar,
3. It has good adaptability to wood. Due to the rotating motion and irregular beating, different tree species, diameters, lengths and shapes can be peeled off, and the concave surface of the curved wood can also have close contact. Therefore, the net bends the wood. The debarking rate is much higher than other drum-type wood debarkers.
4. Since the huge shell is fixed, it has the advantages of low energy consumption, low failure rate, small maintenance workload, much lower vibration and noise than the roller peeling machine, and the machine is easy to install, no need for base installation, and easy to use.
Peeler Specifications
Model |
JX-8000 |
JX-10000 |
strength |
11kw 380v 50Hz |
15kw 380v 50 Hz |
output |
6-8 tons/hour |
10-12 tons/hour |
peel rate |
>90% |
>95% |
length of wood |
3-4m |
5-6m |
dropout rate |
<2% |
<2% |
wood diameter |
no limit |
no limit |
volume |
8×1.4×1.7m |
12×1.5×1.7m |

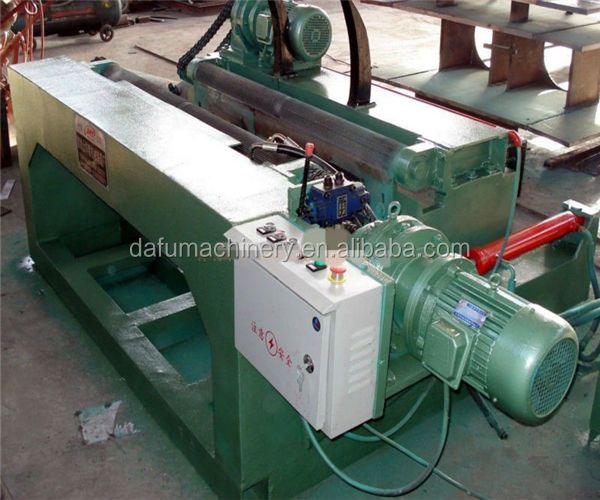

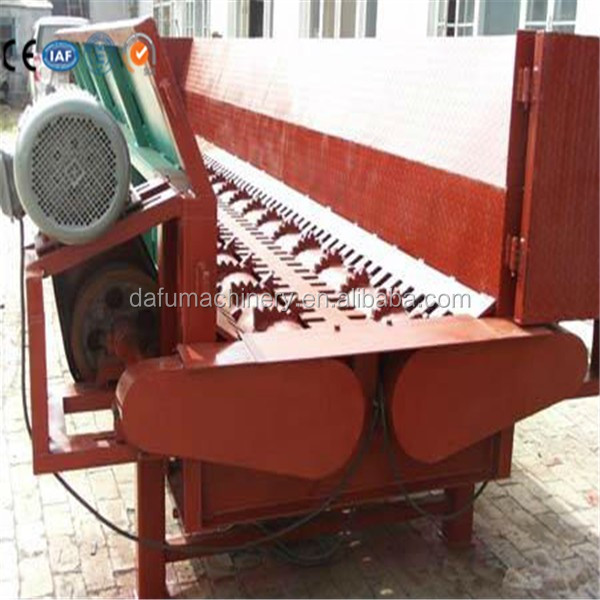

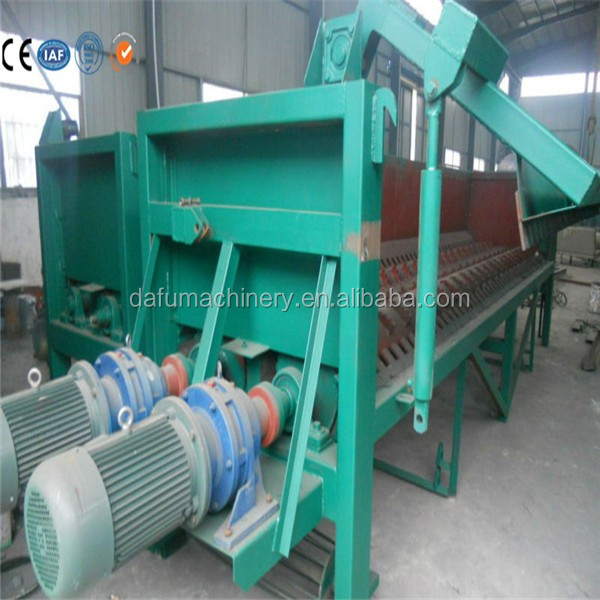

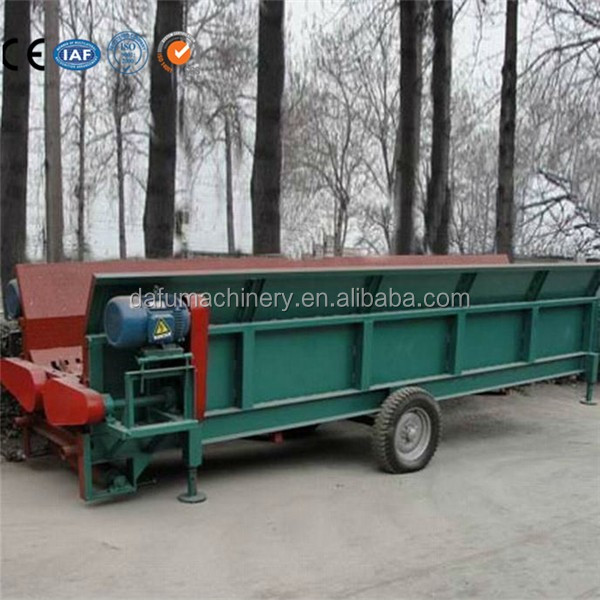

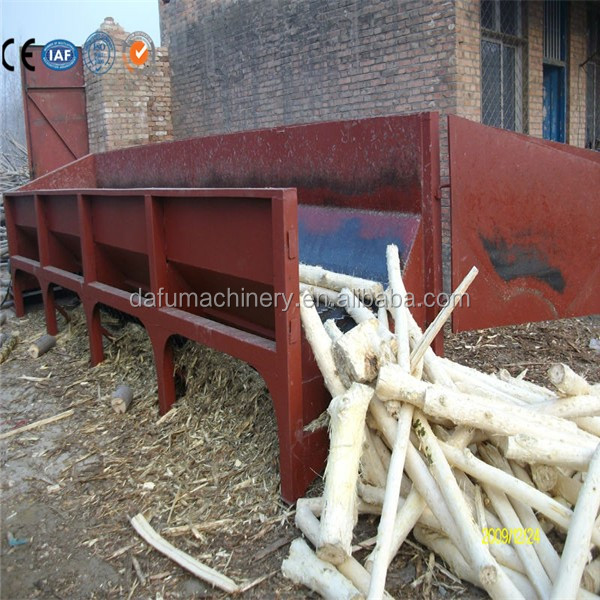

detailed picture

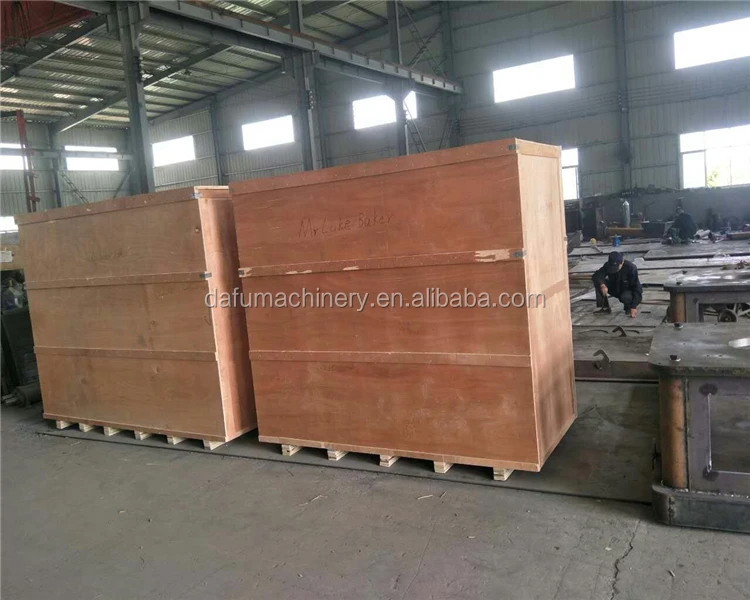

Package:
Packaging Details: |
Standard export packaging, 20ft, 40ft containers. Equipment accessories, electric motors The power cabinet is packed in a wooden case. piece
|
Delivery Details: |
30 working days after payment received
|
We send a picture of the machine you ordered. After confirming that the machine is normal, it is packed in a standard export wooden box.
Different machine packages will vary. We provide standard export wooden boxes. In the case of large machines and line machines, it will be loaded directly into the container.
Our machines and equipment types come in standard packaging suitable for long-distance road transport and shipping. We make sure that our customers receive machines in perfect condition.
If you are interested in our wood peeling machine, welcome to visit our website for more detailed information about the machine, or you can contact me anytime
