2021 sale hot milling machine accessories semi-universal indexing head BS2 for milling machine made in china

PRODUCT DETAIL
Local service location:not any;Supply capacity:100 sets per month;
type:split;brand:Dijin;
Applicable industries:Manufacturing plants, machinery repair shops, household, retail, construction works;Packaging Details:Paper or standard export wooden boxes;
Showroom location:not any;Health status:new;
After Warranty Service:Video technical support, online support;port:Shanghai or Shenzhen;
Model:BS-2;Material:cast iron;
Warranty:unavailable;Three-jaw chuck:200 mm;
Video external inspection:if;payment terms:L/C,Western Union,T/T;
Marketing Type:Hot selling products in 2019;Mechanical test report:Not available;
Core components:gear;

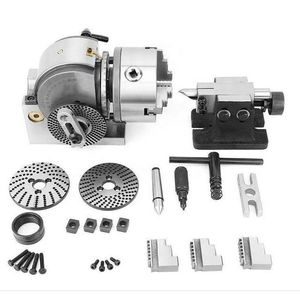

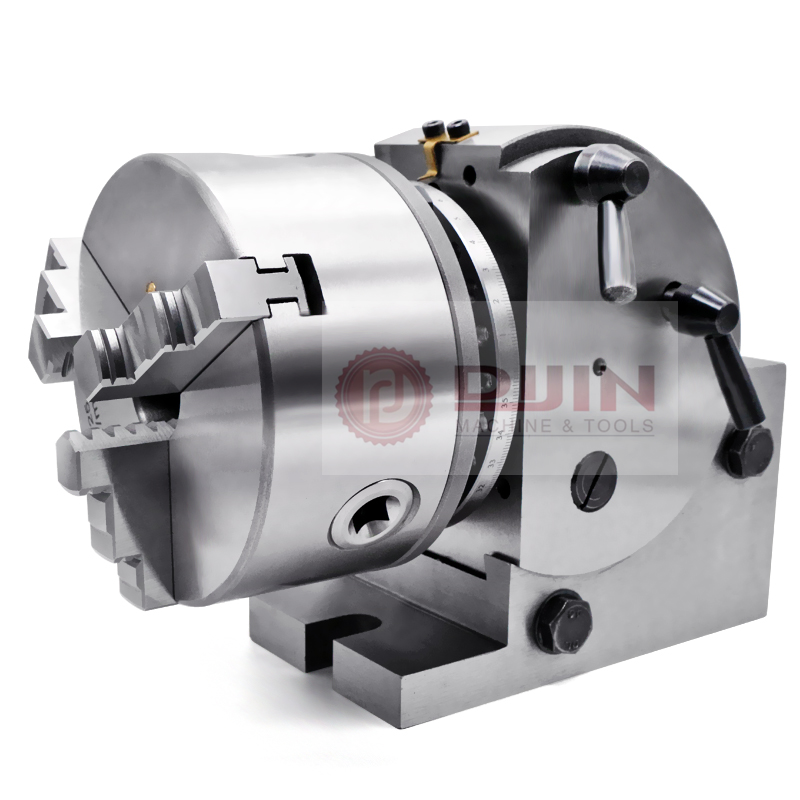

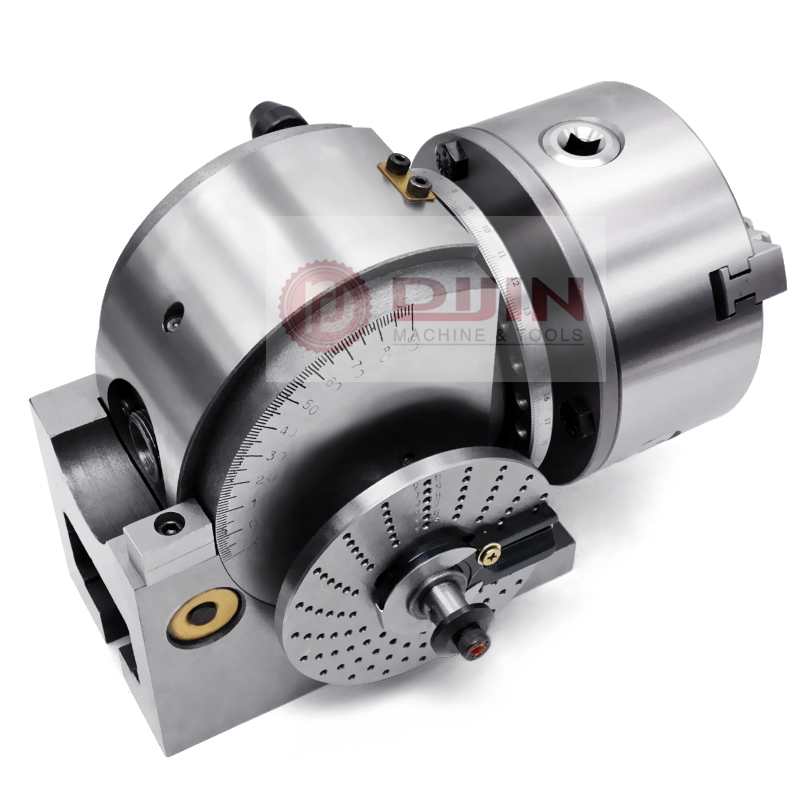

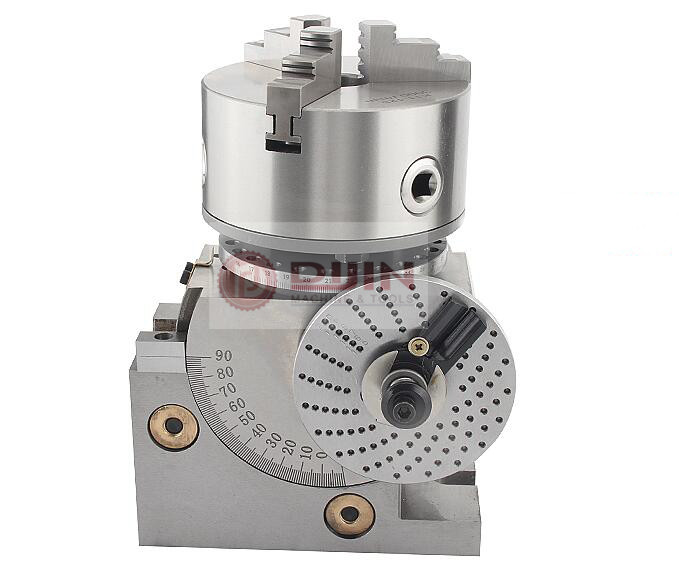

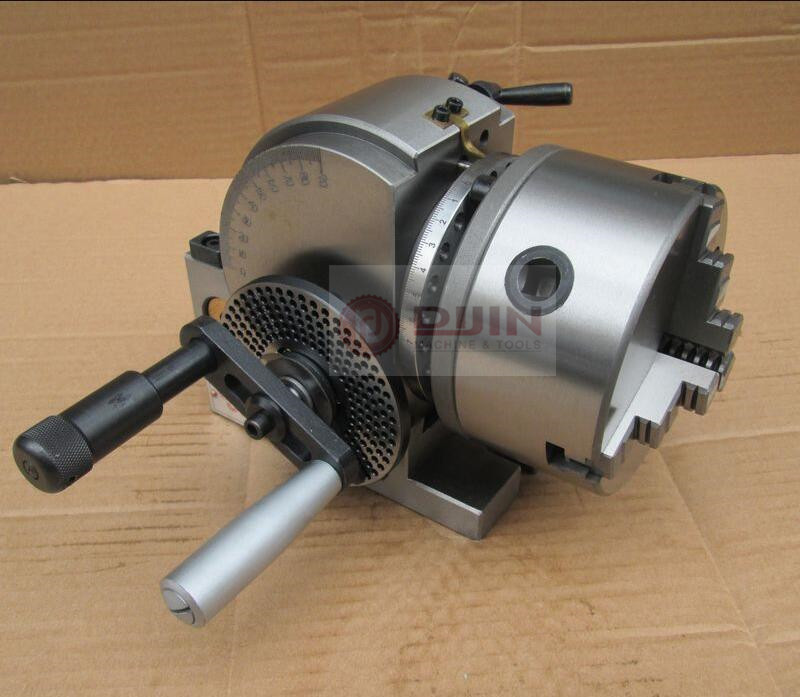

Semi-universal indexing head BS-2 with 200mm three-jaw chuck type

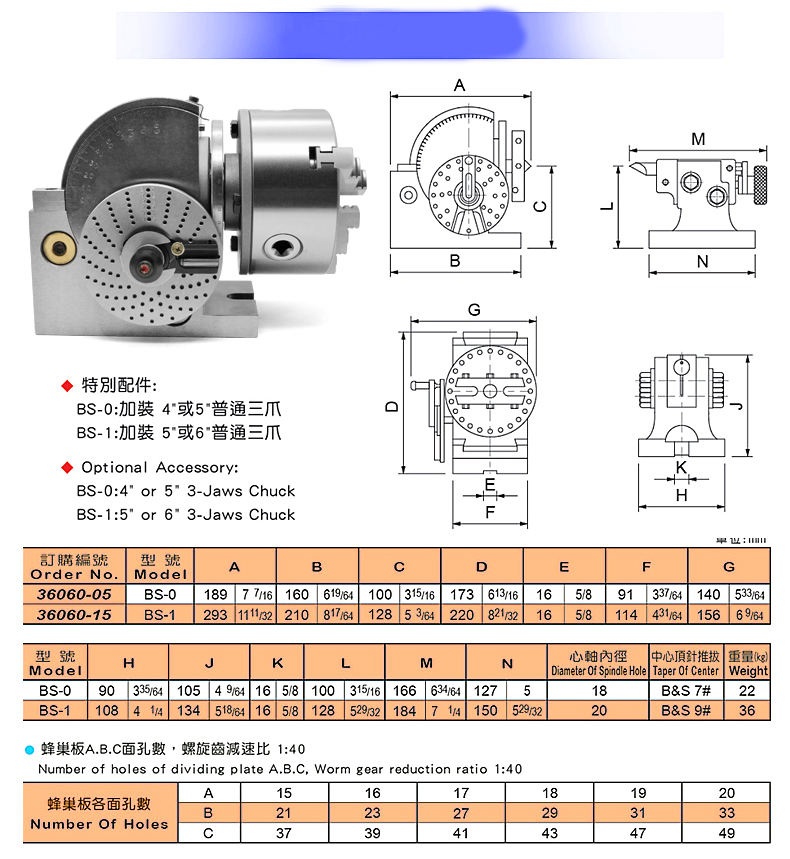

Model

One

Second

H

H

One

b

G

Center taper

Spindle hole diameter

Net weight (kg)

BS-0

193

140

173

100

166

90

16

MT2

18

23.8

7.59

5.51

6.81

3.93

6.53

3.54

0.63

B&S No.7

BS-1

242

168

220

128

206

113

16

MT3

20

35.8

9.52

6.61

8.66

5.04

8.11

4.45

0.63

B&S No.9



Semi-universal index center B&S TYPE NO.0,NO.1(TAIL-STOCK)

Unit: mm/inch



Model

A1

B1

H1

H

a1

b1

g1

measure m3

BS-0

175

87

107

100

130

92

16

Packaged with indexing head

6.89

3.42

4.21

3.93

5.12

3.62

0.63

BS-1

183

87

137

128

158

110

16

Packaged with indexing head

7.20

3.42

5.39

5.04

6.22

4.33

0.63

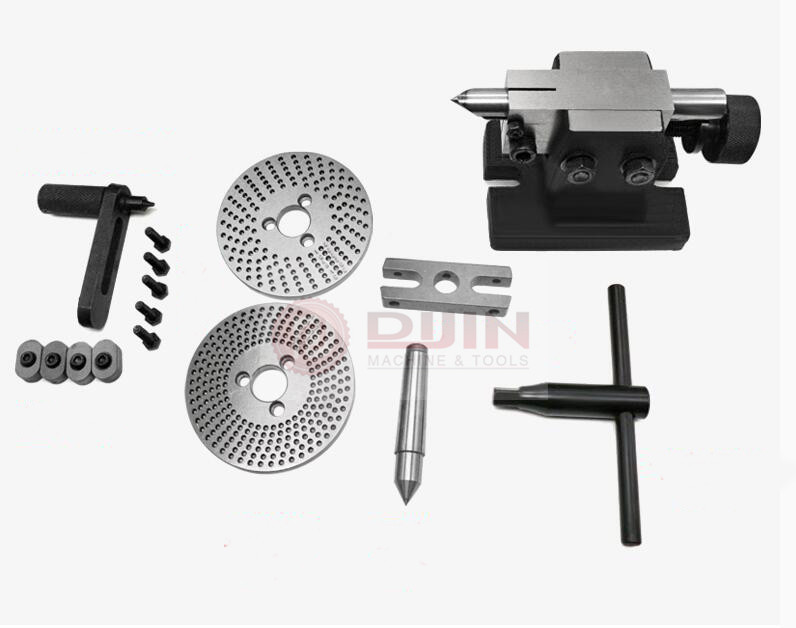

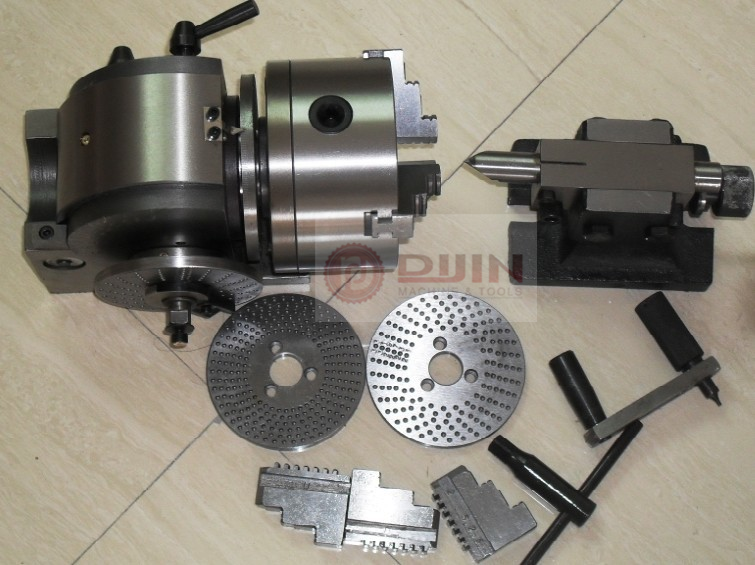

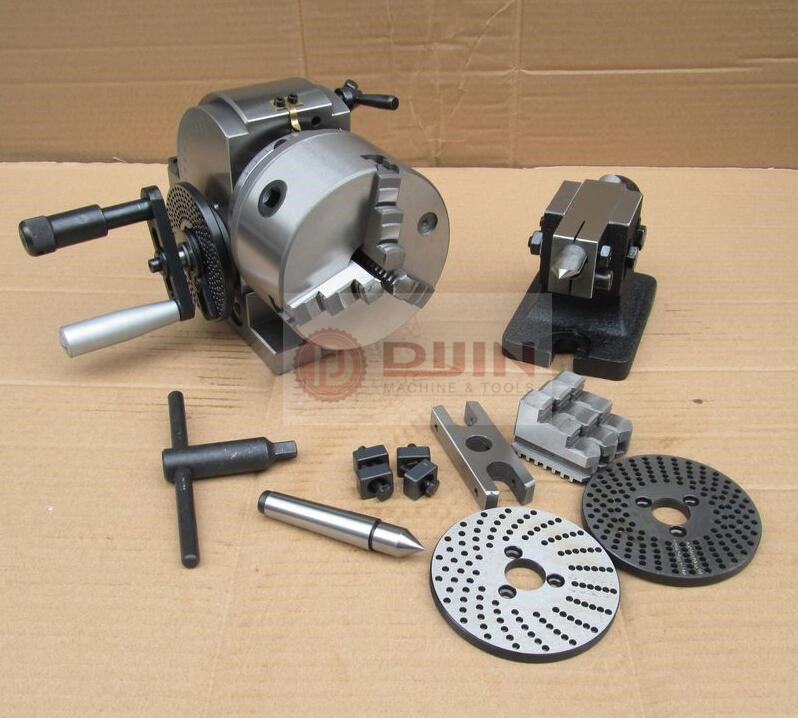

Standard accessories

Separator A,B,C

Number of baffle holes (worm gear reduction ratio 1:40)

Unit: mm/inch

Number of holes

Board A

15

16

17

18

19

20

Board B

twenty one

twenty three

27

29

31

33

board C

37

39

41

43

47

49
