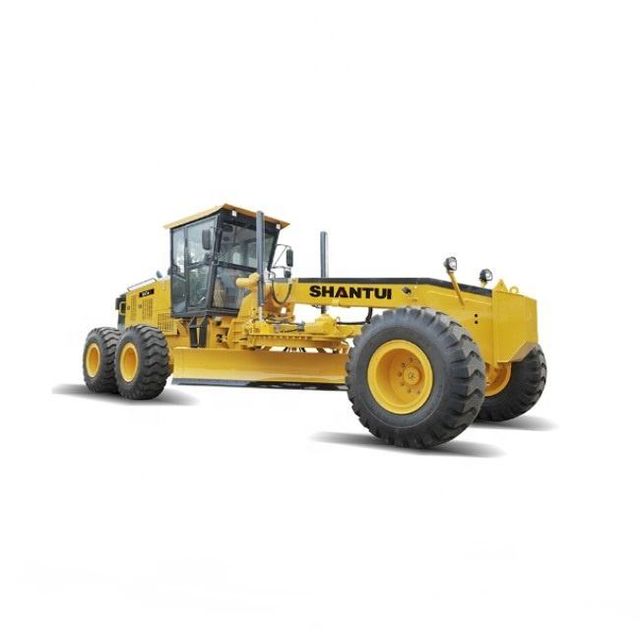

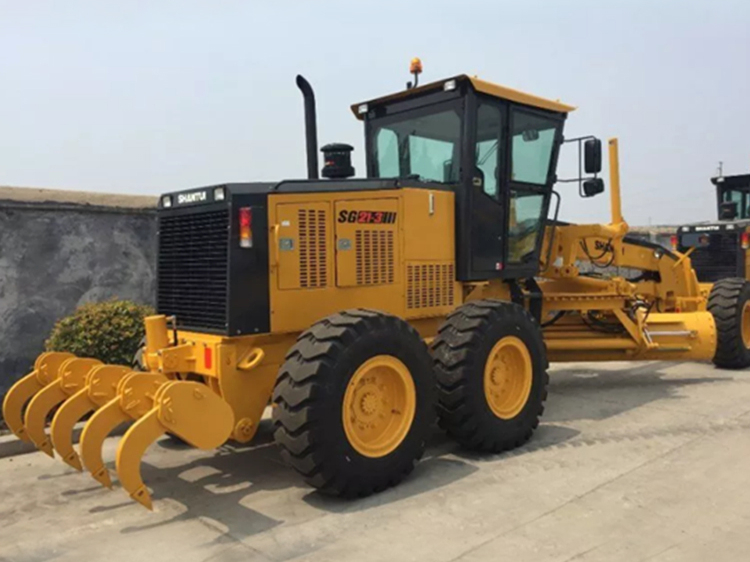

2022 Evangelical High Efficiency Shantui Small Grader 18500kg SG27

The new generation of heavy-duty hydraulic drive self-propelled motor grader developed by Shantui has reached the domestic advanced level.

This product inherits Shantui's years of experience in the production of motor graders, with excellent quality and stable and reliable performance.

It is mainly suitable for heavy-duty operations such as road leveling, slope scraping, and embankment filling in large mines, highways, railways, airports, etc.

It is an indispensable mechanical equipment for mine construction, national defense engineering, road construction and water conservancy construction.

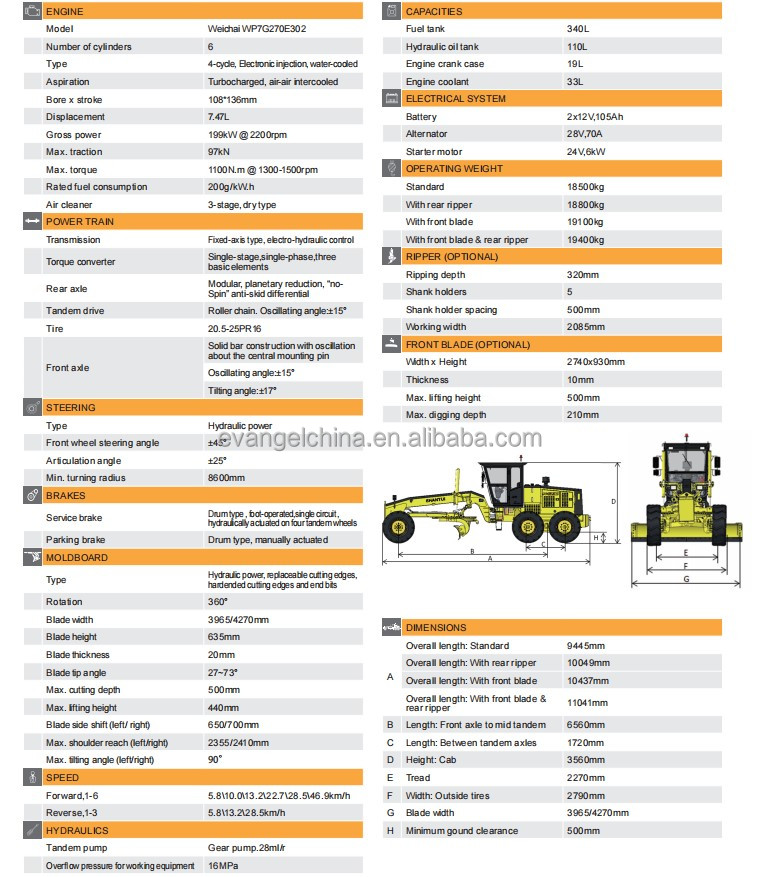

Weichai WP7 electronically controlled engine, the emission meets the national non-road machinery Euro III emission requirements, is intelligent and efficient, has strong component versatility and low maintenance cost;

The whole machine is developed and designed according to the working conditions of the mine to achieve a reasonable match of power, efficiency and energy consumption.
High-efficiency shock-absorbing seat maximizes operating comfort, and the operator will not feel tired when working for a long time;

The cab is equipped with air conditioning as standard, an overall sealing vibration reduction system, double-layer sealing, UV-proof glass and sound-absorbing sponge, with low vibration and noise, which can reduce the noise at the driver's ear to 85 decibels;

Adopt intelligent display control terminal integrated instrument, online fault detection and alarm, rich display information, real-time monitoring of vehicle operation, driving comfort and safety;

Humanized configuration is complete, coat hook, sunshade, radio, cigarette lighter, storage box, fire extinguisher, complete configuration, providing a richer humanized driving experience;
Adopt electro-hydraulic control power shift gearbox produced by Germany ZF (ZF), with 6 gears in the front and 3 gears in the rear. The best gear can be selected according to the working conditions to achieve the best combination of walking and operation;

Three-stage integrated drive axle, built-in imported non-rotation automatic anti-skid differential, stable and reliable transmission;

Balance box, 15° angle swing up and down, heavy-duty roller chain drive, the whole machine has good passability and terrain adaptability, can meet the normal construction work under special road conditions, stable power output, strong driving force.
The external gear working device with independent patent technology has large transmission torque and strong resistance to external force impact;

The blade with a wider angle adjustment range (44°-91°) improves material control and is especially useful when dealing with dry materials and clay, which can significantly improve the efficiency of the motor grader;

The link-type swing frame is used, which has strong resistance to external force and impact, and is suitable for working conditions with large workload and harsh working environment;

Equipped with overload turbine box, it can realize rotation overload protection and load rotation, and the whole vehicle can adapt to a wider range of working conditions.
The hydraulic pull-out cylinder only needs one person to complete the operation of the swing frame, there is no potential safety hazard, and it is convenient for users to use;

The electrical wiring harness adopts seamless corrugated tube and splitter, with high protection level;

Maintenance-free battery, placed on the back of the device, long battery life;

The core electrical and hydraulic components are imported, with stable and reliable quality and high reliability;

Double-sided double-door wide-opening mask, lubricating point lead design, daily maintenance at your fingertips.
