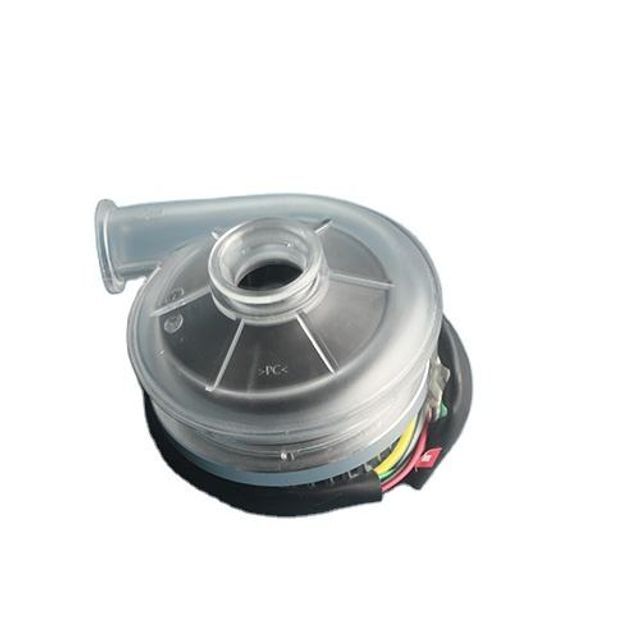

2022 High End Small High Static Pressure Blower Pneumatic Electric Centrifugal Fan
- $90.50 / 1 - 99 pieces
$86.50 / 100 - 999 pieces
$79.50 / >=1000 pieces - 1 piece
- Ningbo Anchor Drive Technology Co., Ltd.
- Jiangsu, China
- Mr Carl Ying
PRODUCT DETAIL
| Model Number: | C8012-1; | Type: | Radial Fan; |
| Voltage: | 24V/48V; | Warranty: | 1 Year; |
| Port: | Ningbo; | Brand Name: | ANCFLOW; |
| Electric Current Type: | DC; | Product name: | C8012-1 Brushless DC Blowers; |
| Place of Origin: | Zhejiang, China; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Home Use,Other,Automation Equipment,Hydrogen Fuel Cell,Environmental Protection and Mornitoring,Medical Equipment; |
| Customized support: | OEM,ODM; | Supply Ability: | 10000 Pieces per Week; |
| Blade Material: | Plastic; | Payment Terms: | L/C,Western Union,T/T,MoneyGram; |
| After-sales Service Provided: | Online support; |
Products Description
Product Model | AB C8012-1 | Brand | ANCFLOW | ||

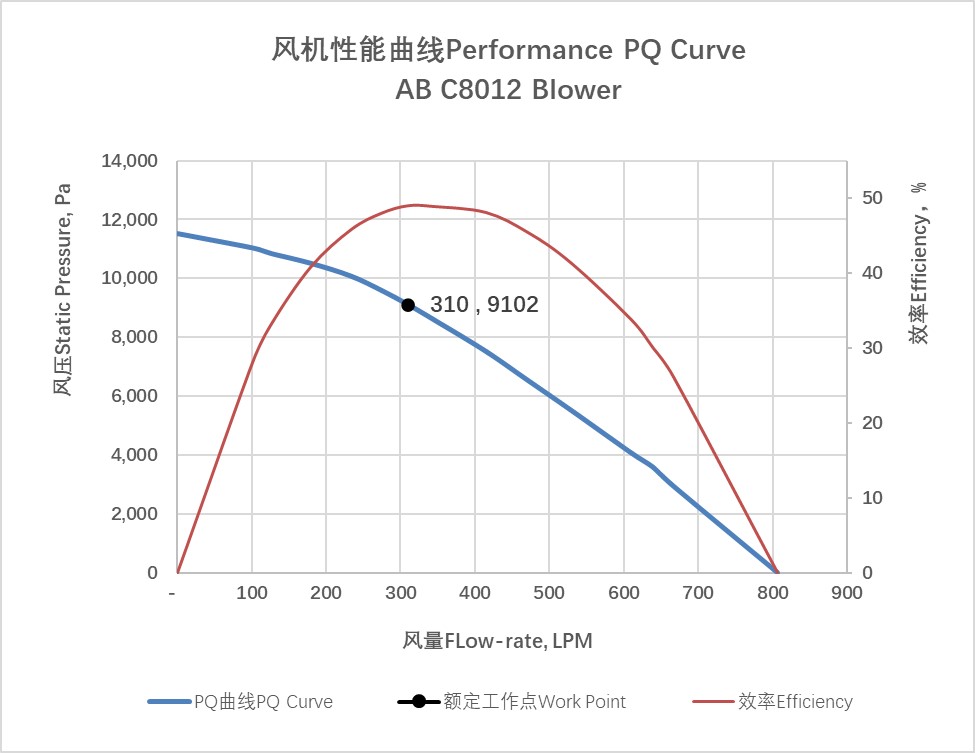

SPEC | AB C8012-12/24/48V-11.0kPa-807LPM | max.Speed | 43,300rpm | ||
Part Name | Brushless DC Blower | max.Airflow | 807LPM（48.4m³/h） | ||
Motor Driver | AC06 | max.Static Pressure | 11.0kPa | ||
Service Life | 20,000h | Rated Speed | 38,000rpm | ||
Rated Voltage | 12/24/48 VDC | Rated Airflow | 310LPM（18.6m³/h） | ||
Voltage Range | 12VDC：9-16V 24VDC：14-28V 48VDC：6-60V | Rated Static Pressure | 9.1kPa | ||
Peak Power | 130W | Environmental Temperature | -20℃~+50℃ | ||
Rated Power | 96W | Humidity | ≤85%RH | ||
Mass | 300g | Motor Driver | External | ||

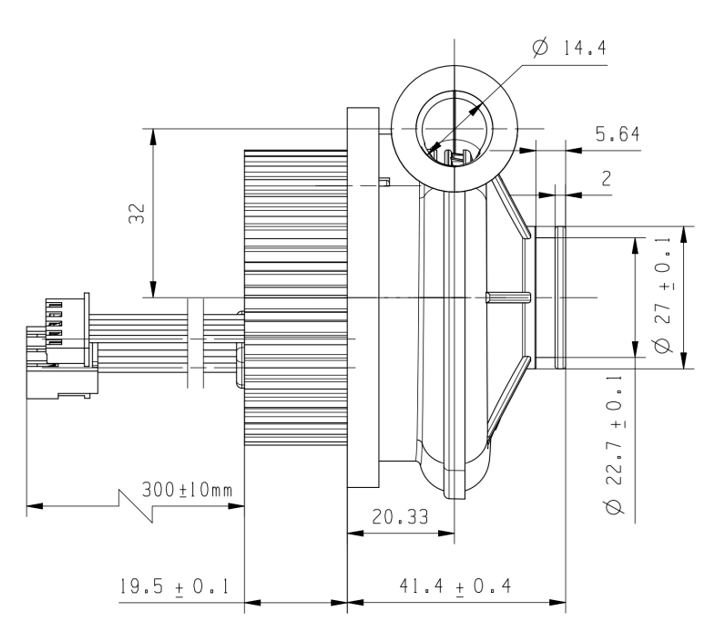

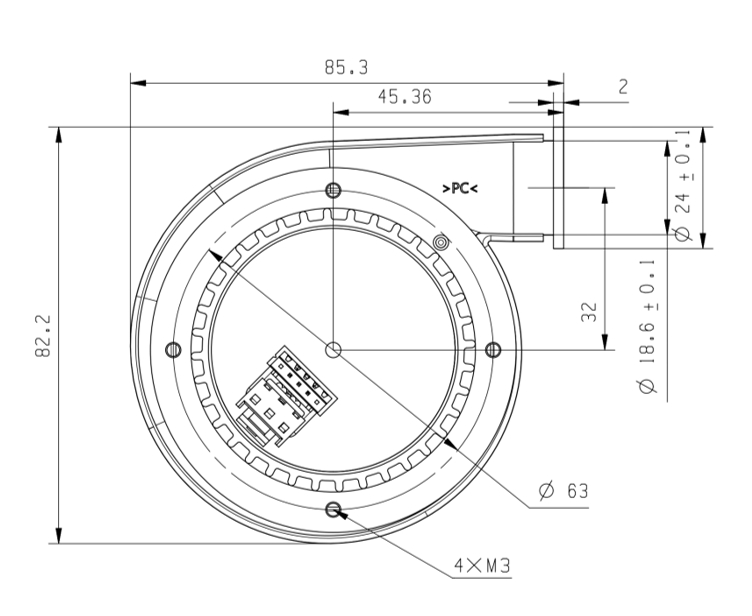

Size | 85.3(L)*82.2(W)*60.9(H)mm | Speed Control | PWM or 0-5V | ||
Volute Material | PC | Impeller Material | PA6 | ||
Application Scenarios | medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking,household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator and so on. | ||||
More Products
Company Profile
Exhibition
Certifications
Product packaging
Why Choose Us
FAQ
1: Are you factory or only company?
We have factory to produce burshless blowers, fans, motors and motor drivers.
2: Why we can choose you?
1) Professional- we always offer system solutions based on your specific application scenarions.
2) Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3: How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you cn choose whether use our forwarder or yours.
4: How about the price? Can you make it cheaper?
The price depends on item your demand(model, quantity).
Final quotation according to receiving full descripption of your SOR or SPEC.
5: How about the sample time? What is the payment?
According to customer's requirements, if choose a base model, then the sample time is 5-10 days after e-proof confirmed and your payment received.
