20T Mobile Joint Truck Mounted Crane China Factory
- $40000.00 /set
- 1 set
- Jiangsu OUCO Heavy Industry And Technology Co., Ltd.
- Jiangsu, China
- Ms Natalie Liu
PRODUCT DETAIL
| maximum. Lifting height: | 12.2 million | port: | Shanghai |
| Swing speed: | ~1r/min | Hydraulic pump brand: | ABB |
| Rotation angle: | 360° | Rated lifting torque: | 44 TM |
| product name: | 20T mobile knuckle-boom truck mounted crane with high lifting capacity | After Warranty Service: | Video technical support, online support |
| Local service location: | not any | Showroom location: | not any |
| Engine Brand: | ABB | brand: | Ouke |
| Mechanical test report: | if | Marketing Type: | New Products 2020 |
| Packaging Details: | nude | Warranty: | 1 year |
| Applicable industries: | lifting crane, truck mounted crane | Weight (kg): | 6000 kg |
| application: | lifting | Hydraulic cylinder brand: | Haight |
| Video external inspection: | if | Certification: | International Organization for Standardization |
| minute. Working radius: | 2.2m | Rated load capacity: | 20 tons |
| Hydraulic valve brand: | LEDUC | Core components: | motor, engine |
| place of origin; place of origin: | Jiangsu, China | payment terms: | letter of credit, wire transfer |
| Health status: | new, new | feature: | Crane |
| Supply capacity: | 20 sets per quarter | Core Components Warranty: | 1 year |
| Maximum working radius: | 12.2m | Unique Selling Points: | long lasting |
| SWL: | see load diagram | After-sales service provided: | Video technical support, online support, free spare parts |
| quality: | High |
Product Description

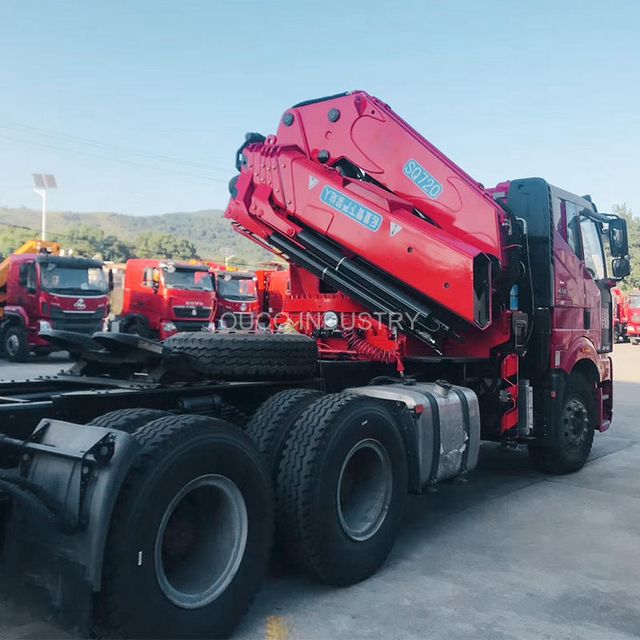

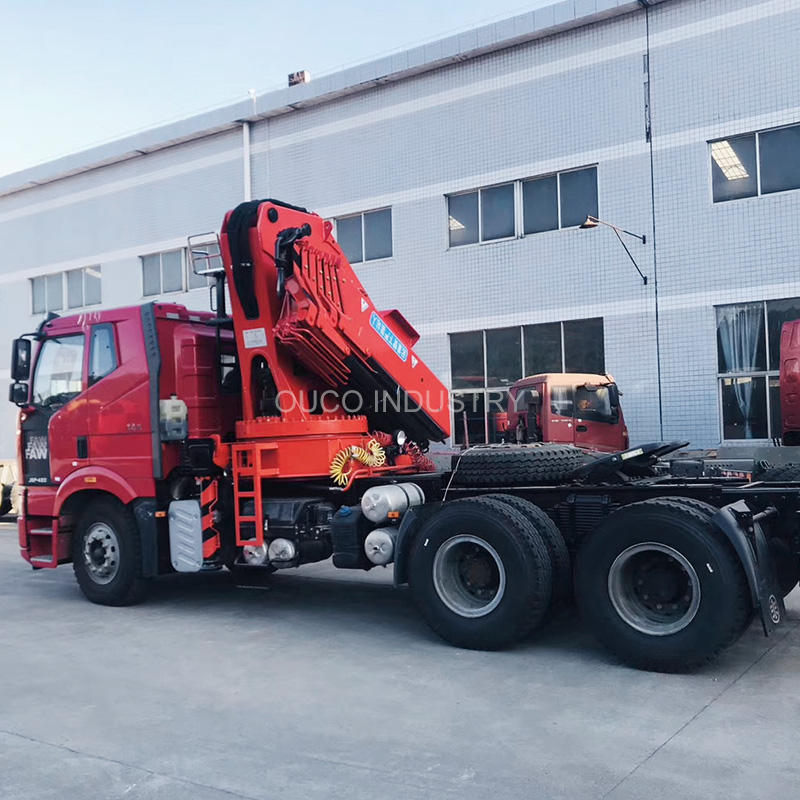

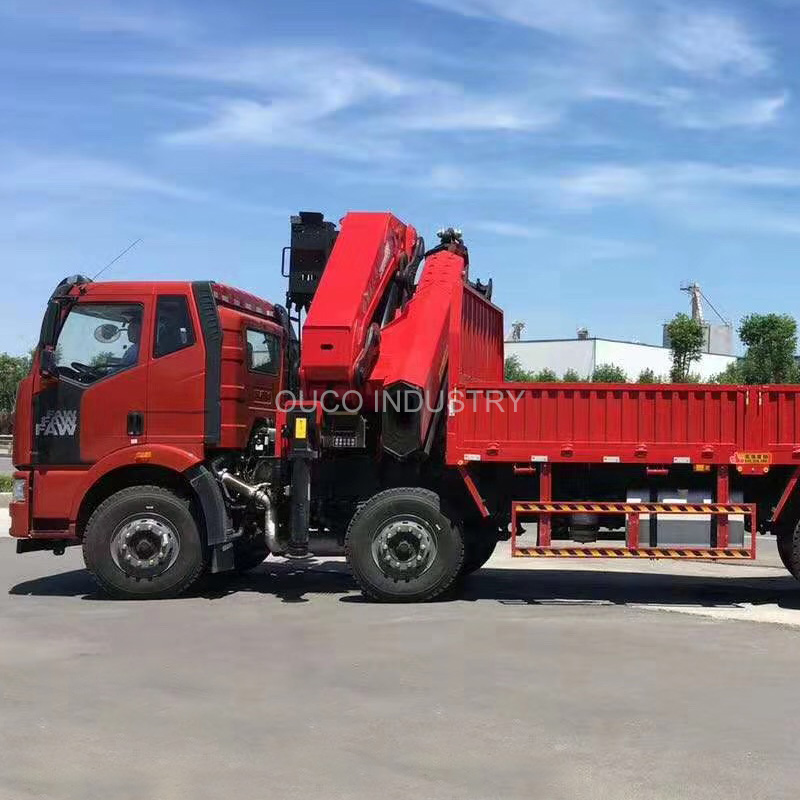

20T mobile knuckle-boom truck mounted crane with high lifting capacity
OUCO truck-mounted crane models have a heavy load capacity of up to 250 meters and can be used in a variety of service areas to meet customer requirements. Important industries covered by OUCO truck-mounted cranes include: construction, transport logistics, emergency services, local authorities, waste management, mining and structures, inspection/maintenance/cleaning of buildings and large machines, and rental and rental operations.
Key Features and Benefits
1. Full power boom: travel with load and telescopic;
2. The lifting capacity is from 15t to 250t;
3. Simple and sturdy design - long life;
4. Low transportation cost and shortest assembly time;
5. Suitable for very harsh ground conditions;
6. Compact design and size.
2. The lifting capacity is from 15t to 250t;
3. Simple and sturdy design - long life;
4. Low transportation cost and shortest assembly time;
5. Suitable for very harsh ground conditions;
6. Compact design and size.
GA drawing
product information
SWL | 20T |
Maximum working radius | 12.2M |
Minimum working radius | 2.2M |
Lifting height | 20M |
Swing speed | ~1r/min |
Slewing angle | 360° |
Amplitude time | ~55S |
Boom extension time | ~65 seconds |
Fuel tank capacity | 260L |
set tempreture | -10 ~ +45℃ |
hydraulic system flow | 63 L/min |
HPU | 37KW |
variable angle | 0-75° |
dead weight | 6300kg |
hydraulic system pressure | 30Mpa |
