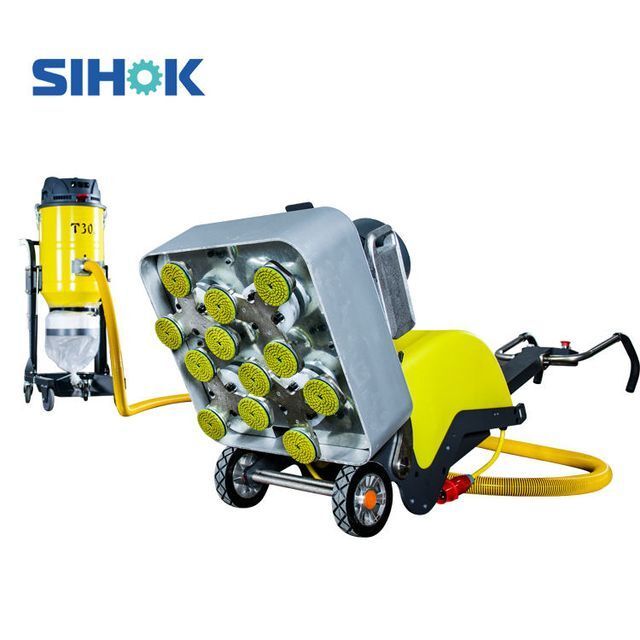

220V 380V 12 disc concrete grinder floor grinder concrete polishing machine
- $710.00 / 1 - 2 units
$680.00 / 3 - 4 units
$650.00 / >=5 units - 1 unit
- Jining Sihok Machinery Co., Ltd.
- Shandong, China
- Mr Tyler Li
PRODUCT DETAIL
| Power: | 7.5Kw; | UNIQUE SELLING POINT: | High operating efficiency; |
| Automatic Grade: | Automatic; | Frequency Converter: | 7.5Kw; |
| Application: | concrete surface grinder; | Dimension(L*W*H): | 1100*700*1500mm; |
| Voltage: | 220V/380V,220V/380V; | Showroom Location: | None; |
| Place of Origin: | Shandong, China; | Elector Motor: | 7.5Kw; |
| Working Efficiency: | 500sqm/8hr; | Weight: | 205 kg; |
| Video outgoing-inspection: | Provided; | Core Components: | Gearbox,Motor; |
| Disc Quantity: | 12; | Warranty: | 1 Year; |
| Package Preview: | ; | Machinery Test Report: | Provided; |
| Port: | Ningbo, Shanghai; | Condition: | New; |
| Usage: | concrete sanding machine; | Marketing Type: | Ordinary Product; |
| Payment Terms: | L/C,Western Union,T/T; | Packaging Detail: | floor grinder concrete in wooden case, safety for shipment; |
| Brand Name: | SIHOK; | Rorated Speed: | 0-1800rpm; |
| Working Diameter: | 580mm; | Applicable Industries: | Construction works ; |
| Supply Ability: | 100 Units per Week floor grinder concrete; | Water Tank Capacity: | 68L; |
| Warranty of core components: | 1 Year; |
220V 380V 12 disc epoxy terrazzo floor grinding machine concrete polisher floor grinder
Product Description
Our terrazzo grinding machine is mainly used for big or scope ground in grinding processing ,which can be effectively polished concrete surface layer of epoxy mortar and the old epoxy floor etc .
Features
1.with grinding /vacuuming integration , Operation dust-free.
2.Adjust the height of equipment,and always ensure that mechanical work under level state .
3.High efficiency and energy saving dynamic system,compact and sophisticated manufacturing technology .
4.Free to replace the chassis ,consumables free configuration (diamond grinding wheel).
5.Only with a reversing switch ,toggle switch can be changed motor direction of rotation .
6.The other is equipped with vacuum motor, not dust in the construction process, the operation is simple, portable,which is the best choice of the epoxy construction.
Features
1.with grinding /vacuuming integration , Operation dust-free.
2.Adjust the height of equipment,and always ensure that mechanical work under level state .
3.High efficiency and energy saving dynamic system,compact and sophisticated manufacturing technology .
4.Free to replace the chassis ,consumables free configuration (diamond grinding wheel).
5.Only with a reversing switch ,toggle switch can be changed motor direction of rotation .
6.The other is equipped with vacuum motor, not dust in the construction process, the operation is simple, portable,which is the best choice of the epoxy construction.
Technical Specification
Model | SHCG-500 | SHCG-600 | SHCG-640 | SHCG-700 |
Voltage | 220V/380V | 220V/380V | 220V/380V | 380V |
Frequency Converter | 7.5Kw | 7.5Kw | 7.5Kw/11Kw | 15Kw |
Electric Power | 7.5Kw | 7.5Kw | 7.5Kw | 15Kw |
Working Width | 490mm | 580mm | 630mm | 680mm |
Rorate Speed | 1000-1800rpm | 1000-1800rpm | 1000-1800rpm | 1200-2400rpm |
Disc Quantity | 12 | 12 | 12 | 12 |
Water Tank Capacity | 60L | 60L | 60L | 80L |
Weight | 215Kg | 235Kg | 260Kg | 340Kg |
Model | SHCG-520S | SHCG-620S | SHCG-650S | SHCG-680S | SHCG-720S |
Voltage | 220V/380V | 220V/380V | 380V | 380V | 380V |
Frequency Converter | 7.5KW/5.5KW | 7.5KW/11KW | 15kw | 15kw | 15Kw |
Electric Power | 7.5KW/5.5KW | 7.5KW | 11KW | 11KW | 18Kw |
Working Width | 520mm | 620mm | 650mm | 680mm | 720mm |
Rorate Speed | 300-1800rpm | 1000-1800rpm | 1000-1800rpm | 1400-1800rpm | 1400-1800rpm |
Disc Quantity | 12 | 12 | 12 | 12 | 12 |
Water Tank Capacity | 60L | 60L | 80L | 80L | 80L |
Weight | 210Kg | 280Kg | 340Kg | 370Kg | 395Kg |
Model | SHCG-180 | SHCG-250D | SHCG-280 | SHCG-450 |
Work Diameter | 180mm | 250mm | 280mm | 450mm |
Voltage | 110v/220v/380v | 110v/220v/380v | 220v/380v | 220v/380v |
Phase | 1phase/3 phase | 1phase/3 phase | 1phase/3 phase | 1phase/3 phase |
Power | 1.5KW (2.0hp) | 2.2KW (3.0hp) | 2.2KW (3.0hp) | 3KW (4hp) |
Disc Quantity | 1 | 3 | 3 | 6 |
Rotating Speed | 1410r/min | 1410r/min | 600r/min | 550r/min |
Weight | 40kg | 65kg | 80kg | 110kg |
Dimension | 680*220*600mm | 500*410*410mm | 900*520*900mm | 900*520*850mm |
Product Details
Product Application
More Product
Packing & Delivery
Package:
1.Standard seaworthy packing suitable for long-distance transportation
2. Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.
1.Standard seaworthy packing suitable for long-distance transportation
2. Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.
Delivery Time:
1.Conventional products: 5-7working days after payment received.
2.Customized products: 10-30 days according to detail request.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
Payment:
a various of payment terms are optional,guarantee 100% payment security.
1.Conventional products: 5-7working days after payment received.
2.Customized products: 10-30 days according to detail request.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
Payment:
a various of payment terms are optional,guarantee 100% payment security.
333
Company Profile
Jining Sihok Machinery Co., Ltd. founded in 2003, is a professional construction machines manufacturer and exporter concerned with the design, development and production kinds of machines. Our products cover vibratory roller, excavator, light tower, concrete power trowel and so on. We are located in Jining city of Shandong Province. We have 300 employees and an annual sales figure exceed US 7-15 million. Our well educated and professional team which have international vision have built long-term cooperation with customers all over the world, like Australia, USA, Spain, Thailand, Indonesia, Colombia,etc.
