220v single-phase 6KW UPS capacity load test data center load group pure resistance AC dummy load group

PRODUCT DETAIL
model:FST-AC400V-RLoad voltage 1:400V (three-phase four-wire) 50HZ
Certification:Chief ExecutivePower factor:PF=1
place of origin; place of origin:Shaanxi, ChinaMeasurable voltage range:220V/230V/380V/400V/415V
Packaging Details:cartonpower supply:220V(±10%) 50HZ, single phase
Load voltage 2:AC230V single phase, 50HzPackaging Preview:
payment terms:Western Union, T/T, PAYPALWarranty:3 years
port:Shenzhen PortAccuracy class:±5%
Resistive load, power factor:Special alloy resistors.Supply capacity:50 sets per month
brand:FSTLoading steps:1KW/2KW/2KW/5KW/10KW/20KW/20KW/40KW
Load Accuracy:±5%Load power (constantly adjustable):0-25KW
exhibit:Voltage, current, power, reactive power, energy, frequency,type:UPS/Generator Power Test
aspect:650*800*1600mmcustom made:Yes



Product Description



Why you need load group testing

Make sure your backup power systems like UPS (Uninterruptible Power Supply), battery packs, generators, transformers, inverters, etc. work well especially in harsh, dusty or corrosive environments, when you need them most It is very critical to switch the load if the main power supply is switched off during maintenance or abnormally.







FORESIGHT AC/DC LOAD GROUP APPLICATIONS

Ø Battery pack system

Ø Energy storage system

Ø Electric energy meter loop load test

Ø Data center rack thermal simulation

Ø PV system inverter anti-islanding test

Ø Voltage regulator, rectifier aging load test

Ø Commissioning and testing of generator sets and UPS load groups

Ø AC/DC power supply, power supply debugging acceptance test

FORESIGHT Series Load Bank Loading Elements (Load Bank Type)

FORESIGHT series AC/DC load boxes use alloy resistive, inductive and capacitive load components in combination, which can be used in different applications according to customers' needs:

Ø Pure resistive AC load group

Ø Pure resistive DC load group

Ø RCD nonlinear AC load group

Ø Resistive and inductive combined AC load group

Ø Resistive, inductive and capacitive combined AC load group



FORESIGHT Series Load Bank Protection

Standard Protection:

Ø Emergency pause operation: stop loading with one key

Ø Over temperature alarm/protection: alarm and unload

Ø Fan interlock protection: the fan can be loaded after starting

Ø Overvoltage protection: alarm and remove the load

optional protection

Ø Blower thermal overload protection: alarm and unload

Ø Fuse short circuit protection (overcurrent protection)

Ø Phase sequence protection (applicable to three-phase voltage fans)

Ø or other required functions





FORESIGHT series load group control mode

FORESIGHT series AC and DC load groups have two control modes: local panel control mode and PC software remote control mode.

The available local panel control modes are as follows:

Ø Through the contactor

o Via circuit breaker

Ø or other required switches

PC software remote control (optional)

FORESIGHT series AC and DC load box remote control communication protocol for customers to integrate load box into ATE system





Technical Specifications

Model

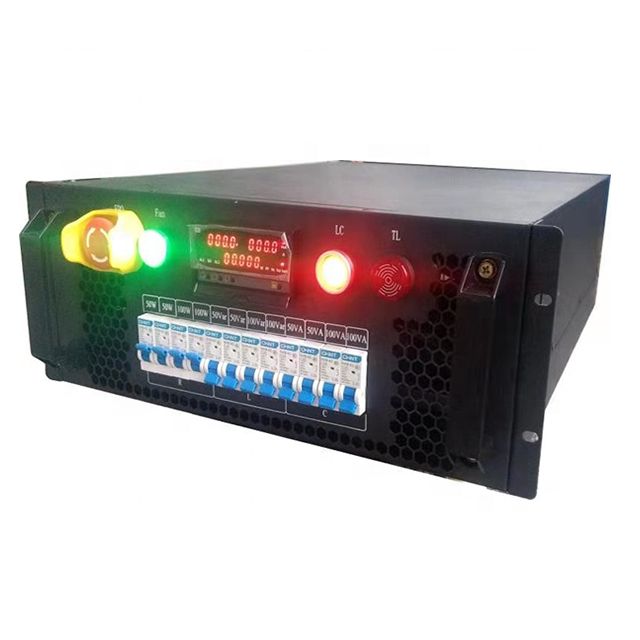

FST-AC220V-6KW-R Resistive AC load group

load element

Alloy resistor

load voltage

AC220V 1-phase 2-wire, 50Hz

load power

6KW

Load step

0.5KW*2, 1KW, 2KW*2 (0.5KW-6KW adjustable)

power factor

PF=1.0

Load accuracy

±5%

digital meter

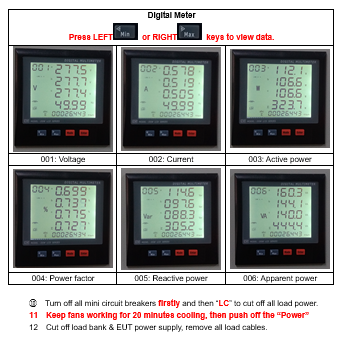

Voltage, current, power, frequency, power factor, etc.

power supply

220V 50Hz, single phase

control method

MCB manual control

wire connection

Terminals

Insulation level

F

Protection class

IP20 (indoor use)

fan noise

75 dB

cooling method

forced air cooling

Operating mode

continuously working

Protect

Overheating/buzzer alarm, overheating/overvoltage protection, emergency stop button

ambient temperature

-10℃~+50℃

aspect

4U

weight

19KG

fluidity

by handle

humidity

≤95%

high

≤2500m

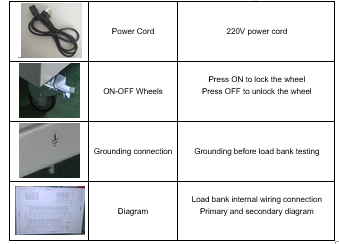

Each load box includes standard items:

Load box host -- 1 set

Host power cord--1 pcs (inside load bank)

Product primary and secondary diagram (product component wiring diagram)--1 sheet (electronic version)

User Manual--1 copy (electronic version)

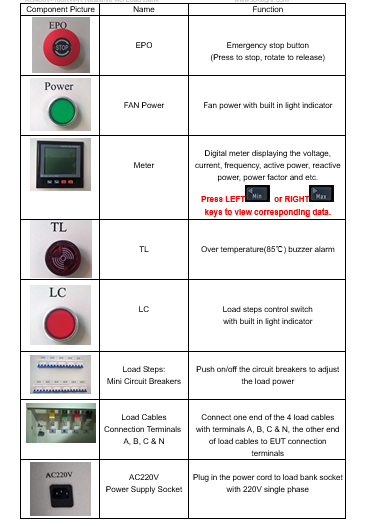

Load Bank Operation Guide

Ensure all load bank switches and EUT (equipment under test)strength

leavebefore connecting.

Plug the power cord into the load bank outlet

Make a load cable connection between the load bank connection terminals and the EUT

The terminals are in the order of A/B/C/N/PE phases accordingly. Make sure to go from one cable to the other.

Double check to make sure all load cables are securely connected.

The main power supply of the load group is powered on, press the green "strength"—fans of work.

Power on the EUT

Press the red load step control switch"Liquid Chromatography"—Ready to load test.

Turn on/off the mini circuit breaker to adjust the load power.

View data
