3/16 Thermoplastic Hose 3/8 washer hose can be customized size 1/4 high pressure hose cleaning spray equipment
- $0.40 / >=200 meters
- 200 meters
- Jingxian Dongxin Rubber And Plastic Products Co., Ltd.
- Hebei, China
- Mr guoqing
PRODUCT DETAIL
Supply capacity: | 5000 meters per week | Material: | Nylon/thermoplastic polyurethane |
feature: | High pressure resistance, acid and alkali resistance, oil resistance | product name: | High pressure hydraulic hose |
color: | custom color | port: | Tianjin |
payment terms: | L/C, T/T | type: | Oil Resistant Industrial Hose |
strengthen: | High-strength steel wire braiding, fiber braiding | size: | Inner diameter 3-60mm |
Package preview: | temperature range: | 60 degrees Celsius -120 degrees Celsius | |
Packaging Details: | According to customer requirements | Processing services: | Forming, cutting |
application: | Oil fields, steel mills, construction machinery, coal mines | MOQ: | 200 meters |
place of origin; place of origin: | Hebei china |
Product Description

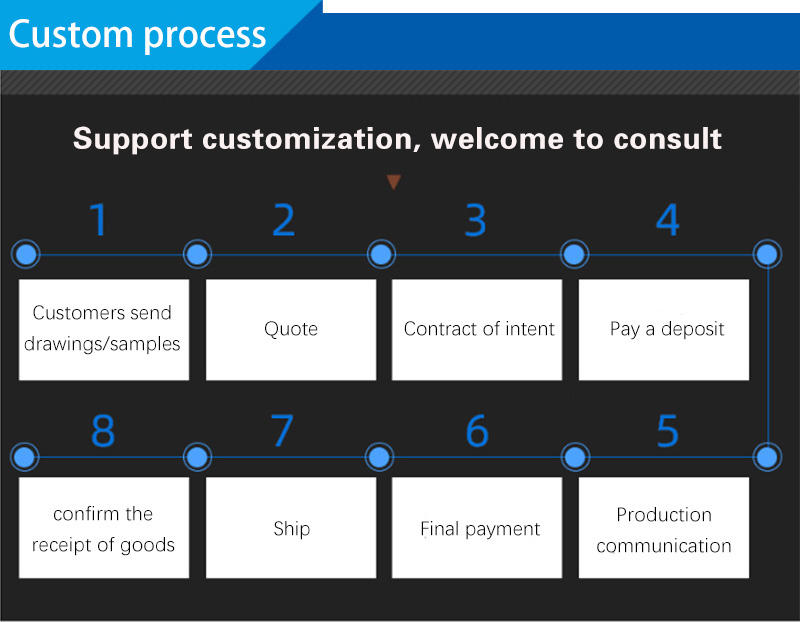

Custom process
Specification
Fiber Reinforced Elastic Nylon Tubing | Steel wire reinforced elastic nylon tube | ||||||||||||
inner diameter (mm) | Outer diameter (mm) | enhancement layer | Working pressure (MPa) | inner diameter (mm) | Outer diameter (mm) | enhancement layer | Working pressure (MPa) | ||||||
3 | 6 | 1 | 60 | 4 | 8.6 | 1 | 38 | ||||||
4 | 8.6 | 1 | 26 | 4 | 10.5 | 2 | 42 | ||||||
4 | 10 | 2 | 35 | 5 | 10.5 | 1 | 35 | ||||||
5 | 10 | 1 | twenty two | 6 | 12 | 1 | 31 | ||||||
5 | 11 | 2 | 32 | 6 | 13.5 | 2 | 45 | ||||||
6 | 11 | 1 | twenty four | 8 | 14 | 1 | 28 | ||||||
6 | 12.5 | 2 | 32 | 8 | 15.5 | 2 | 40 | ||||||
6 | 13.5 | 3 | 35 | 10 | 16 | 1 | twenty two | ||||||
8 | 13 | 1 | 20 | 10 | 17.5 | 2 | 35 | ||||||
8 | 15 | 2 | 30 | 13 | 19.5 | 1 | 18 | ||||||
8 | 16 | 3 | 35 | 13 | twenty one | 2 | 25 | ||||||
10 | 15.5 | 1 | 18 | 16 | twenty three | 1 | 17 | ||||||
10 | 17 | 2 | 25 | 16 | 25 | 2 | twenty two | ||||||
10 | 18.5 | 3 | 32 | 19 | 26.5 | 1 | 15 | ||||||
13 | 19.5 | 1 | 15 | 19 | 28 | 2 | 20 | ||||||
13 | twenty one | 2 | 20 | 25 | 33.5 | 1 | 13 | ||||||
13 | 22.5 | 3 | 32 | 25 | 35 | 2 | 20 | ||||||
16 | 22.5 | 1 | 12 | 32 | 41.5 | 1 | 10 | ||||||
16 | 24.5 | 2 | 15 | ||||||||||
16 | 26.5 | 3 | 28 | ||||||||||
19 | 26.5 | 1 | 10 | ||||||||||
19 | 28 | 2 | 13 | ||||||||||
19 | 29 | 3 | 28 | ||||||||||
25 | 33.5 | 1 | 8 | ||||||||||
25 | 35.5 | 2 | 10 | ||||||||||
25 | 37.5 | 3 | 20 | ||||||||||
32 | 44.5 | 2 | 8 |
