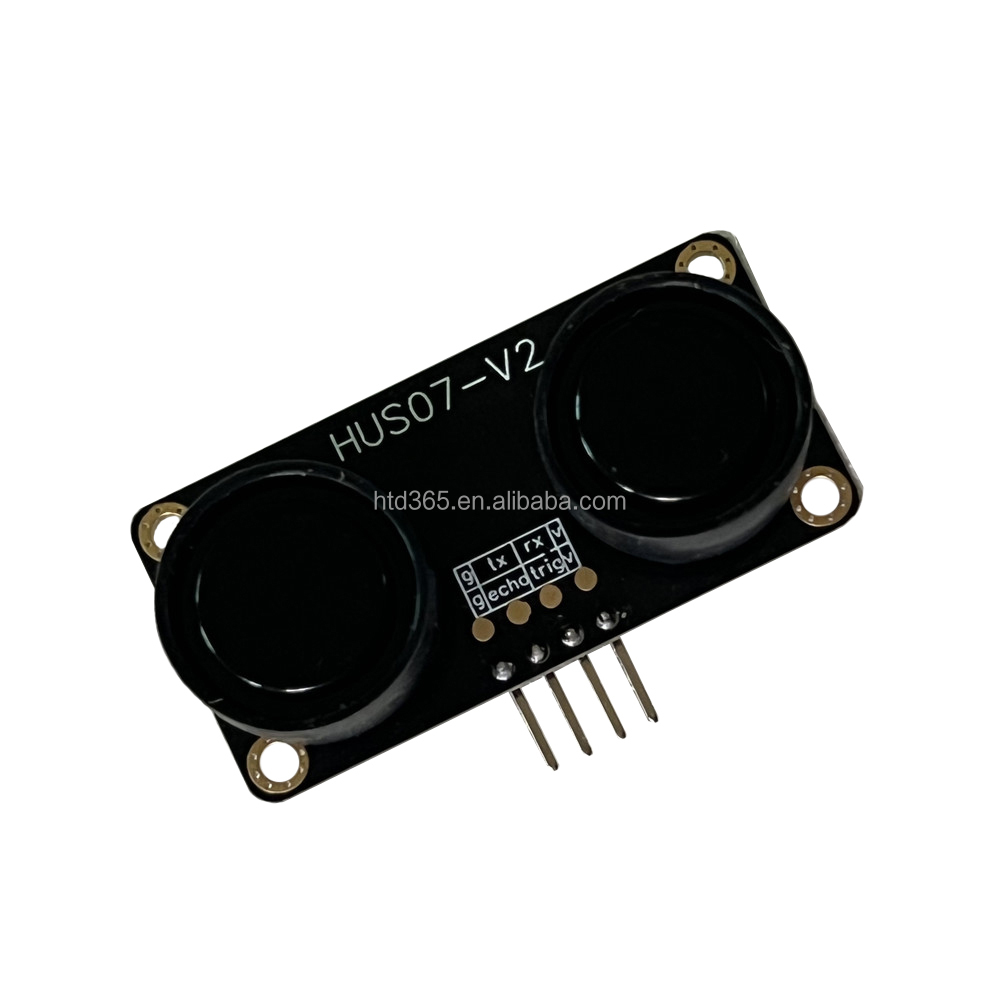

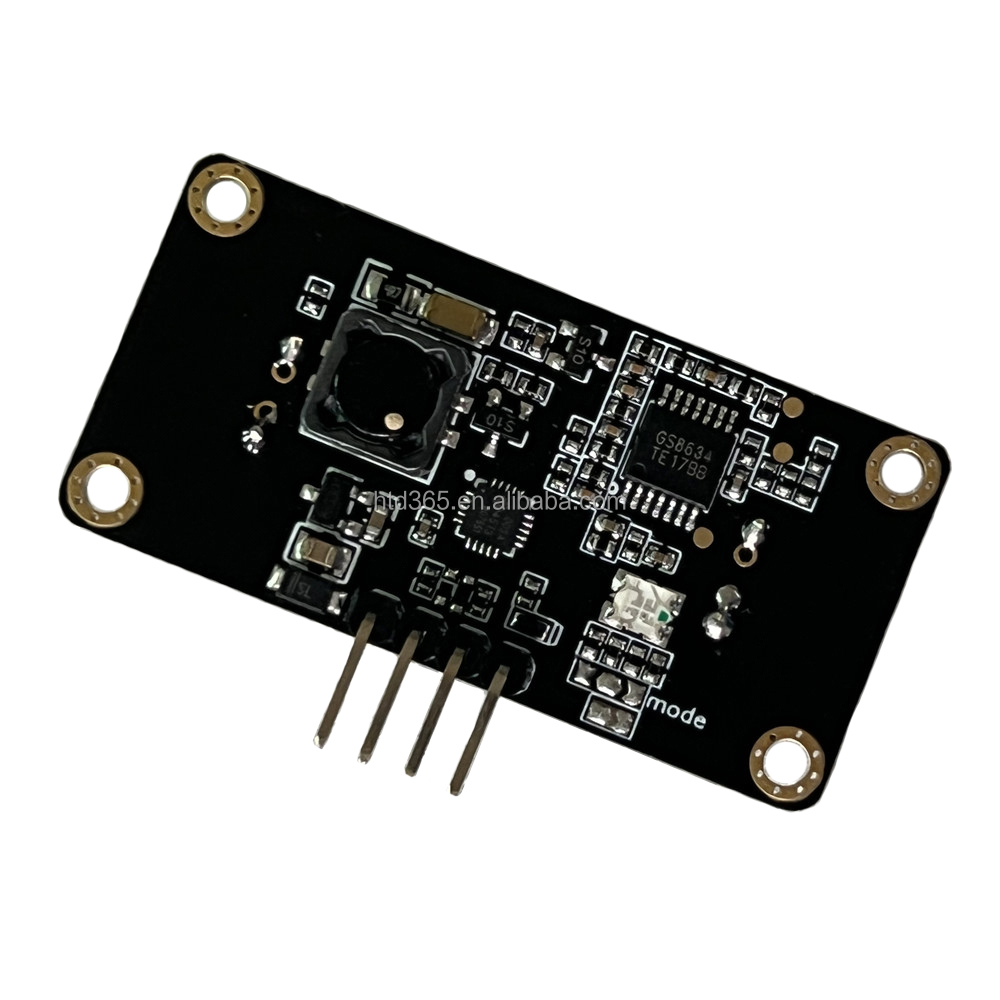

3.3V to 5.5V DC UART PWM output digital ultrasonic sensor waterproof module ultrasonic distance liquid level sensor
- $9.35 / 10 - 99 pieces
$8.48 / 100 - 999 pieces
$7.18 / 1000 - 4999 pieces
$6.68 / >=5000 pieces - 10 pieces
- Shenzhen Hantongda Technology Company Limited
- Guangdong, China
- Ms Franny Chung
Origin: | Guangdong, China | model: | HUS07 V2.0 |
describe: | Ultrasonic ranging module | type: | ultrasonic sensor |
theory: | ultrasonic sensor | payment terms: | Western Union, T/T, Paypal |
Supply capacity: | 5000 pieces per week | output method: | PWM, MODBUS UART and switch outputs |
Plane object range: | 3cm to 300cm | Temperature compensation: | have |
brand: | HTD | usage: | Distance and level measurement |
Packaging Details: | 300pcs/box | Operating Voltage: | DC3.3V to DC5.5V |
output: | PWM, MODBUS UART and switch outputs |
feature:
1) 3cm small blind distance;
2) Small angle of 25 degrees;
3) Adjustable angle;
4) 3m long measuring distance;
5) Power supply: DC 3.3V to DC5.5V;
6) With temperature compensation function;
7) UART serial port output (MODBUS protocol);
8) Set the switching value through the learning line;
9) Compatible with conventional PWM output with trigger;
10) Enclosed waterproof ultrasonic transducer;
11) Low power consumption design;
12) Electrostatic protection design, the connecting pins are equipped with electrostatic protection devices, which conform to the IEC61000-4-2 standard;
advantage:
1) Small blind distance;
2) The angle is small;
3) Strong anti-interference;
4) Wide range of working power supply;
5) Small size;
6) Ranging with temperature compensation;
7) Data output is stable and reliable;
8) Low power consumption;
9) Fast response time;
10) Strong antistatic property;
11) Wide working temperature;
12) Multiple output modes;
application:
1) Horizontal ranging and liquid level measurement;
2) Detecting the presence of approaching objects and external objects;
3) Security, industrial control;
4) Artificial intelligence, teaching and research;
5) Parking management system;
6) Robot obstacle avoidance, automatic control;
Basic parameters:
thing |
content |
unit |
Operating Voltage |
3.3~5.5 |
V |
Average working current |
≤6 |
Well |
peak-to-peak current |
≤40 |
Well |
blind spot |
3 |
centimeter |
Measuring range for flat objects |
3~300 |
centimeter |
Working period |
200 |
multiple sclerosis |
output method |
1) With trigger PWM 2) Serial port automatic 3) Serial port control 4) Switch output |
- |
Normal temperature measurement accuracy |
±(1+S*0.3%) |
centimeter |
Temperature compensation |
have |
- |
reference angle |
≈25° |
° |
