30kW Solar EV Electric Car Charging Station Home Personal Carport Solar Carport Charging System

  • $7000.00 / 1 - 4 sets
    $6500.00 / >=5 sets
  • 1 set
  • Shenzhen Setec Power Co., Ltd.
  • Guangdong, China
  • Ms Setec Manager
PRODUCT DETAIL
The output voltage:300-1000Vdctype:Charging pile, solar charging carport
Protection level:IP54port:Shenzhen Port
payment terms:L/C, Western Union, T/TOrigin:Guangdong, China
Solar panels:10-100KWFunction:EV charging
Model:otherCar equipment:other
Packaging Details:Wooden packingOutput frequency:45~63Hz
Dimensions (LxWxH):Charging station 55x110x160cmconnect:China Classification Society, CHADEMO
Cytochemistry:Lithium iron phosphate LiFeP04brand:Saitek Power
Supply capacity:150 pieces per monthInput voltage range:300-450 VAC
Warranty:2 yearspower input:Solar battery
Battery capacity (kWh):30(can be customized)Charging port:Chadmore, CCS
Year:other

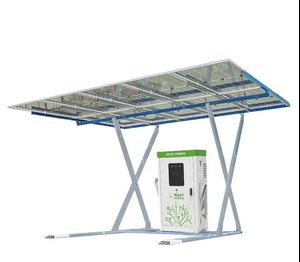

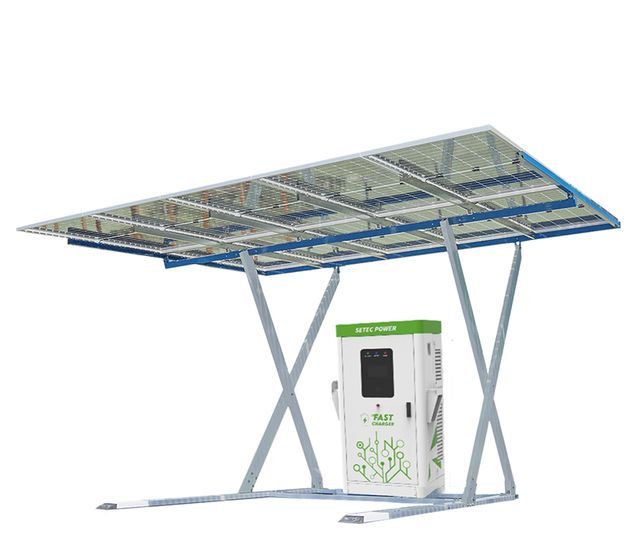

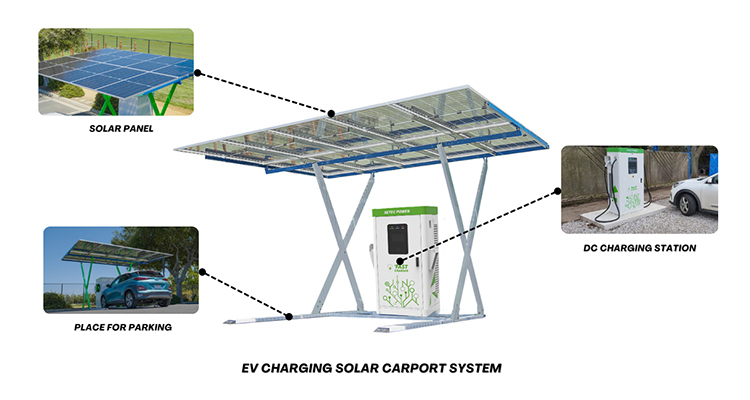

30kW Home Electric Car Charging Solar Carport System

The energy crisis in Europe has caused electricity prices to soar, making it difficult for drivers to travel in electric vehicles. Before this long and cold winter comes, SETEC POWER has launched a new solution for customers - home EV charging solar carport system. High-efficiency solar panels take full advantage of the sun's energy to charge your electric car, allowing you to reduce your carbon footprint while avoiding energy shortages.

feature


  • Cost Savings: Total upfront cost divided by the total amount of energy produced over its lifetime. Then for sure, the hourly cost of a Home EV Charging solar carport system is less than grid energy costs. This is especially true of Europe's current energy crisis, which is not going to end anytime soon.
  • Clean energy: While electric vehicles are not harmful to the environment, their electricity comes primarily from fossil fuels. Solar energy is 100% clean energy which minimizes carbon footprint.
  • Reliability: The combination of solar panels and battery storage system ensures that solar energy is not wasted and can charge your electric car in the event of a power outage or lack of sunlight.
  • EASY TO INSTALL: The Home EV Charging Solar Carport System is highly integrated and pre-installed, so all you need to do is stand up the stand and turn on a few screws, and you're ready to go.

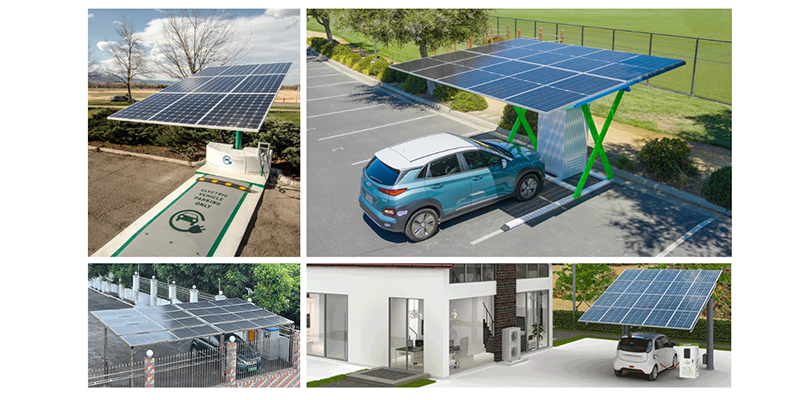

project

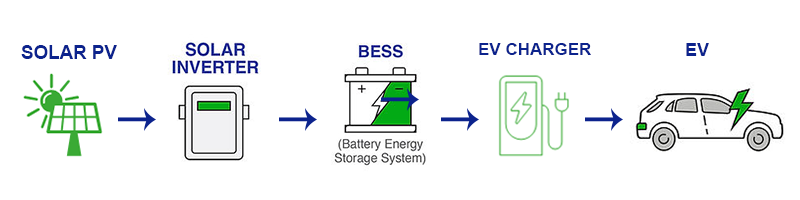

charging process

data sheet





Solar panels Material polysilicon
Rated power (Pmax) 10-100KW
conversion efficiency 20%
panel size customizable
battery system Battery capacity (kWh) 30(can be customized)
cytochemistry Lithium iron phosphate LiFeP04
DoD % (Depth of Discharge) 90%
Operating temperature Charging: -20~55℃/ Discharging: -20~65℃
Protocol RS485/CAN/LAN
Cycle Life (0.3C) 10000 cycles, 100%DOD @25°C
system Building Management Systems Newsletter CAN2.0【CHAdeMO】/PLC【2 in 1】, Tesla
charging plug CCS1, CCS2, Chademo, Tesla
cooling method forced ventilation
Operating temperature -25°C to +65°C
Storage temperature -40°C to +70°C
Relative humidity 20% to 95%
environment Indoor and outdoor
enter power input Solar battery
Input voltage range 300-450 VAC
frequency 40-65HZ
power factor 0.99
Total Harmonic Distortion of Current ≤5%
Input undervoltage protection Yes
output The output voltage 300-1000Vdc
maximum. Output current 100A
Output Power 30KW
Output overcurrent protection Yes
Output short circuit protection Yes
General protection level IP54
Dimensions (LxWxH) Charging station 55x110x160cm
(cabinet)

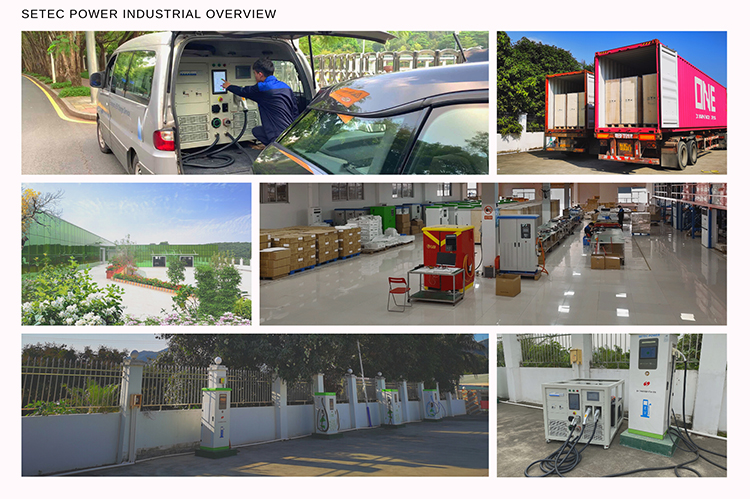

About SETEC Power

SETEC Power is one of the leading manufacturers in China specializing in the design, R&D, and production of EV chargers, CHAdeMO CCS chargers and DC power supplies, established in 2004. Our products meet the different needs of power systems and communication systems. On the one hand, our products can be applied to low-capacity occasions, such as small module offices, access networks, and transmission outage light stations; Require. Our goal is "customer first, good quality, good service". Our products have passed ISO9000:2000 quality system certification. With the rapid development of science and technology in the world, China's information industry and other industries driven by it are experiencing huge potential opportunities and economic benefits with each passing day. We are willing to cooperate with new and old customers for mutual benefit and contribute to the rapid development of the world's information industry!

More about SETEC Power
certified

exhibition

FAQ

Here are some frequently asked questions about our products:

Q1: Are you a trading company or a manufacturer?

A: We are professional design and manufacturer, our factory has been established for 18 years.


Q2: What is your main market?

A: Mainly America and Europe, then Asia.


Q3: How many payment methods are there?

A: We have T/T and L/C etc. (If you need detailed payment terms, please contact us.)


Q4: How long is the warranty time?

A: The warranty time is 2 years.


our service

1. We will reply your inquiry within 24 hours.

2. Payment terms such as T/T and L/C are all accepted.

3. Shipment: by air, by sea, by international express (DHL, Fedex, ).

4. Guarantee period: within 24 months after shipment.

5. Provide instruction.

6. Customized designs, samples and packaging according to customer requirements.
