30kg 50kg payload 6-8 hours flight time Inspection patrol gasoline powered drones and drones
- $135000.00 / 1 - 10 units
$108800.00 / >=11 units - 1 unit
- Honeycomb Aerospace Technologies (beijing) Co., Ltd.
- Beijing, China
- Mr Malick Wang
PRODUCT DETAIL
| endurance: | up to 6 hours | Maximum payload: | 50kg |
| Health status: | new | type: | Fixed-wing UAV |
| Airplane Mode: | Manual / Auto | port: | Beijing |
| Packaging Details: | We provide industrial grade special services for drone packaging. | model: | HC-140 |
| Wind resistance level: | Level 5 | brand: | cellular aerospace |
| place of origin; place of origin: | Beijing China | use: | airplane |
| Maximum altitude: | 5000m (above sea level) | Body length: | 3251mm |
| Cruising speed: | 100～130km/h | Supply capacity: | 5 units per month |
| Control radius: | ≥120km (without obstacles) | power plant: | gasoline engine |
| Packaging Preview: | Maximum takeoff weight: | 120kg | |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal |
Product Description

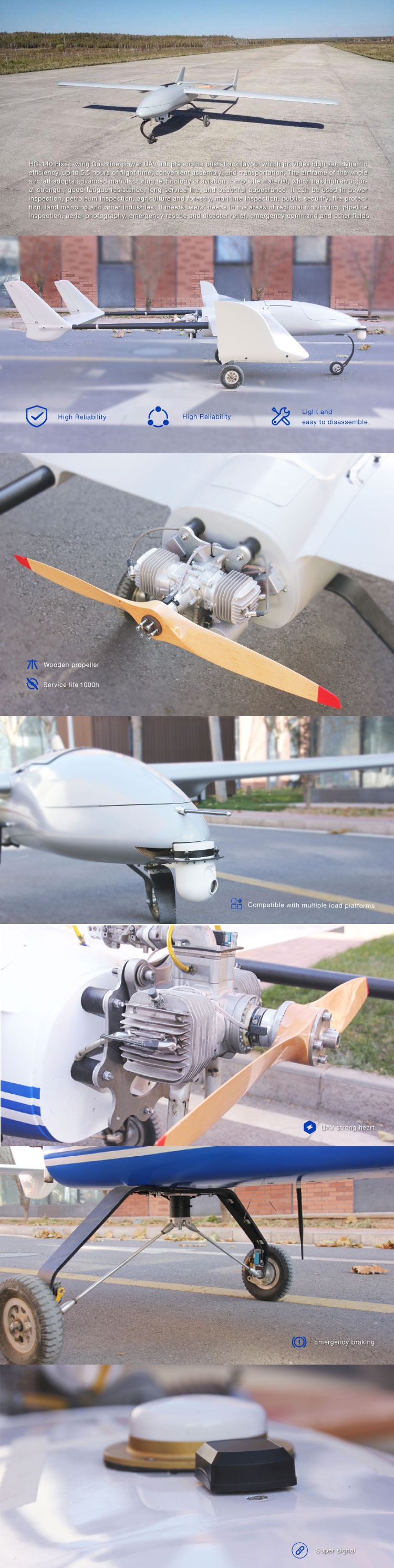

Product Image Details

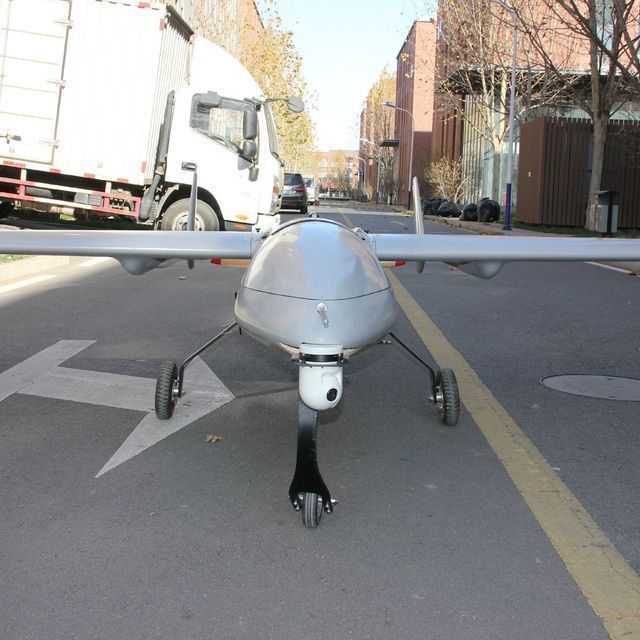

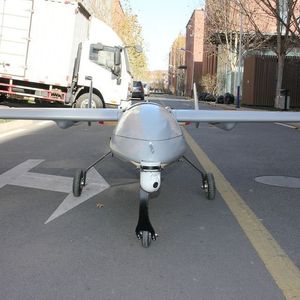

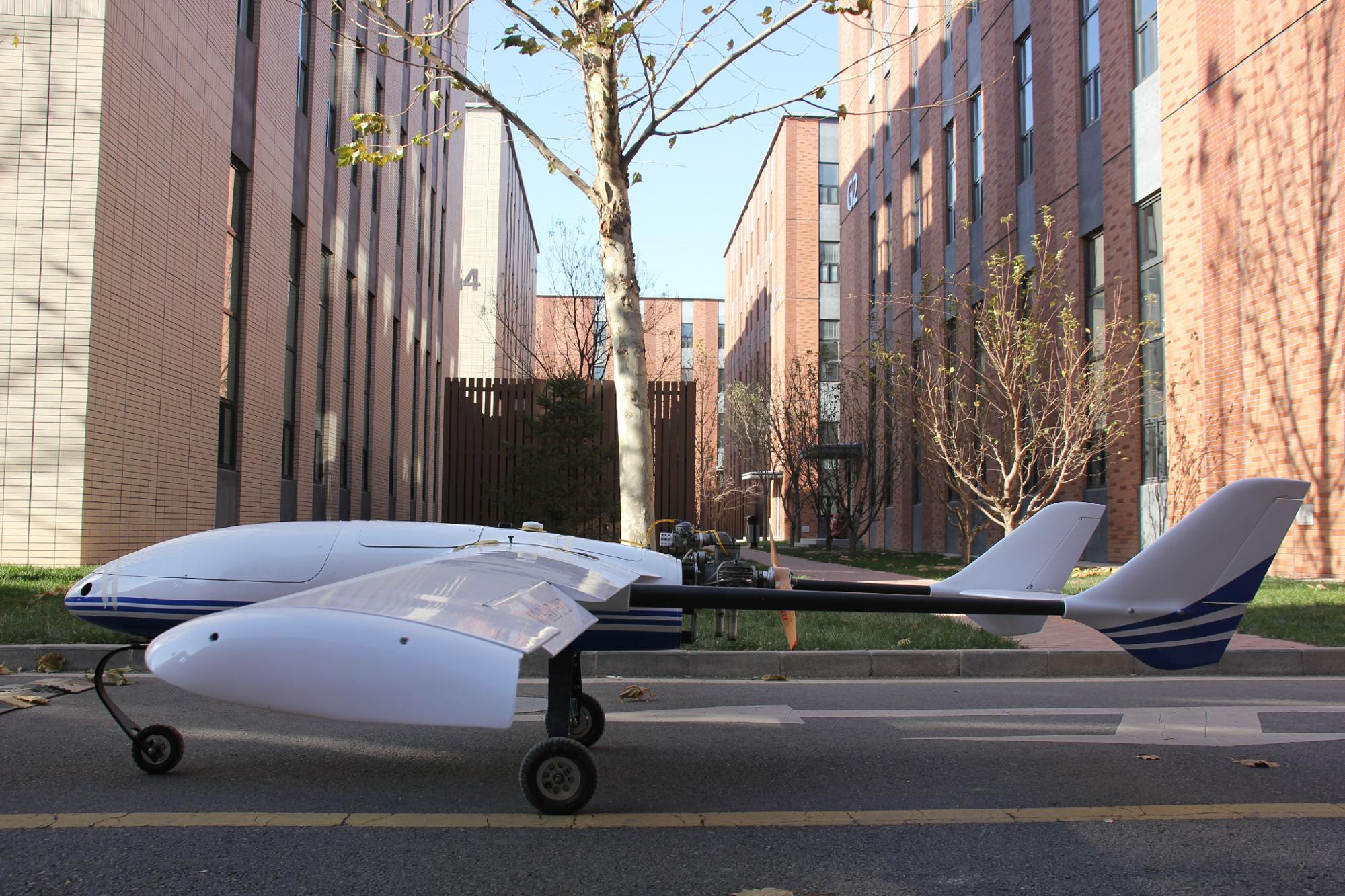

The HC-140 fixed-wing gasoline-powered UAV adopts an engine push-back layout, with high aerodynamic efficiency, a flight time of up to 8 hours, and easy assembly and transportation. The whole fuselage adopts advanced aviation composite material manufacturing technology, which has high structural strength, good fatigue resistance, long service life and beautiful appearance. It can be used for emergency disaster reduction, border defense surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights protection, etc.
Specification
category | Specification | scope |
flight system & power plant | body length | 3251mm |
span | 5270mm | |
Payload | custom made | |
manufacturing materials | carbon fiber | |
empty weight | 55kg | |
Maximum takeoff weight (sea level) | 120kg | |
standard payload | 40.0kg | |
maximum payload | 50.0kg | |
standard propeller | 36 x 12 inches | |
cruising speed | 100~130km/h | |
maximum flight speed | 160 km/h | |
maximum height | 5000m (above sea level) | |
endurance | up to 8 hours | |
maximum payload | ||
power plant | gasoline engine | |

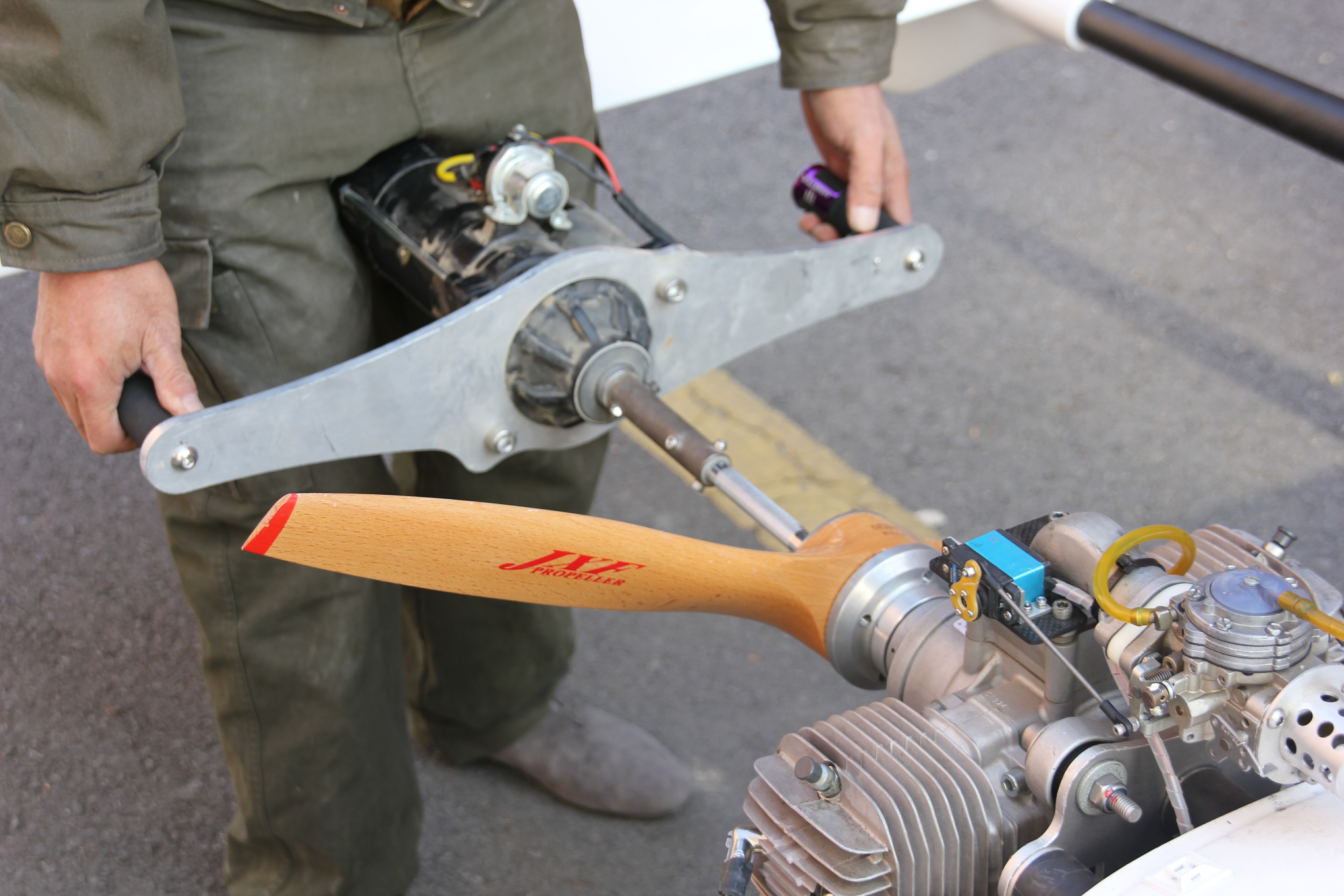

engine | 3W275 gasoline engine | |
electric motor | ||
Electric Speed Controller (ESC) | 60A brushless ESC | |
Fuel tank capacity | 50L | |
Fuel Consumption Rate (SFC) | 5~10L/h | |
Assembly method | Detachable | |
flight control system | Attitude angle navigation accuracy | Static 0.5˚ / Dynamic 1˚ |
Positioning and Navigation Accuracy | Horizontal 10cm / Vertical 50cm | |
positioning accuracy | Normal 10cm / Difference 1cm | |
Attitude control accuracy | ±1˚ | |
Direction control accuracy | ±2˚ | |
Position control accuracy | ±10cm | |
Location Algorithm | RTK GNSS/GNSS+INS | |
range of working temperature | -20°C ~ 40°C | |
airplane mode | Manual / Auto | |
Emergency measures | Runaway return, low voltage return, fault alarm | |
link system | control radius | ≥120km (without obstacles) |
Video output resolution | 1080P@60fps | |
Operating environment | Wind resistance rating | Level 5 |
Operating temperature | -20°C ~ 40°C | |
Rain resistance rating | IP54 | |
aircraft logistics | control radius | 5-10km (without obstacles) |
Video output resolution | 1080P@60fps | |
Operating environment | Wind resistance rating | Level 5 |
Operating temperature | -20°C ~ 40°C | |
remote control | Rain resistance rating | IP54 |
aircraft logistics | expand, collapse time | ≤10 minutes |
gasoline | 92 gasoline and motor oil 25:1 mixed fuel | |
remote control | Model | Futaba T8FG |
working frequency | 2.4GHz | |
Maximum signal effective distance (no interference, no blockage) | 2 km |
