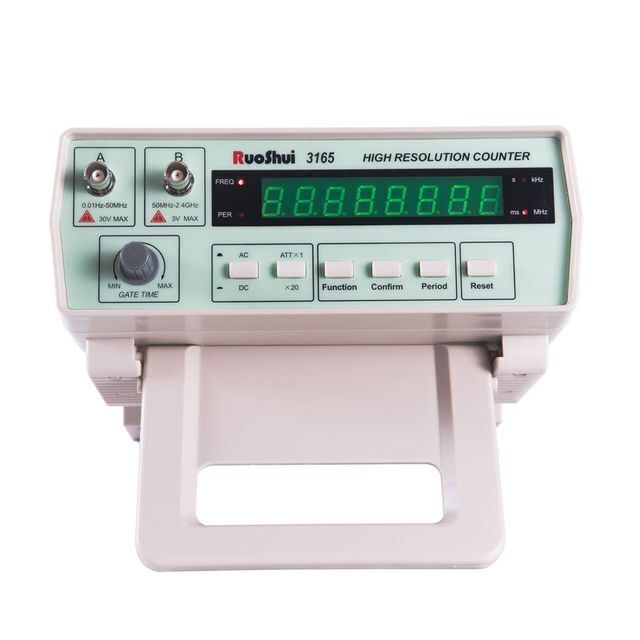

3165 RuoShui Frequency Meter High Resolution Counter Frequency Meter Benchtop 0.01Hz~50MHz 50MHz~2.4GHz Frequency Counter
- $45.99 /piece
- 1 piece
- Starmeter Instruments Co., Ltd.
- Guangdong, China
- Ms Caroline Tang
PRODUCT DETAIL
| Power supply: | AC 220V/110V 50Hz/60Hz; | Type: | Benchtop High Resolution Frequency Counter; |
| Brand: | Victor; | Function: | Frequency/Cyclic Measurement; |
| Color: | White; | Frequency range: | 0.01Hz~50MHz,/50MHz~2.4GHz,; |
| Voltage: | ---; | Brand Name: | RuoShui; |
| Payment Terms: | T/T; | Display Type: | Digital Only; |
| Accuracy Class: | ±(2x10-5+3); | Model Number: | 3165; |
| Dimensions: | 270 x215 x100mm; | Measuring Range: | 0.01Hz-2.4GHz; |
| 100ms~10s Continuous adjustable: | 100ms~10s Continuous adjustable; | Display: | 8 digits LED; |
| Feature: | 3-step function selection,; | Operating Temperature: | 0-40C; |
| Packaging Detail: | carton; | Place of Origin: | China; |
| Weight: | Approx:1.6kg; |
Product Description
3165 RuoShui Frequency Meter High Resolution Counter Frequency Meter Benchtop 0.01Hz~50MHz 50MHz~2.4GHz Frequency Counter
Features:
•It is a high-resolution multifunction intelligent frequency counter based on microprocessor.
•Frequency, period and equal-precision measurement.
•3-step function selection, work state, unit and 8-digit LED display.
•Continuous and adjustable gate time.
•Low frequency and other precision measurement.
•Input attenuation, AC/DC coupling select.
Specification :
| Model | 3165 | |||
| Specification | ||||
| Frequency Measurement | CH.A measuring range:0.01Hz~50MHz, Basic accuracy:±(2×10-5+3) | |||
| CH.B measuring range :50MHz~2.4GHz, Basic accuracy:±(2×10-5+3) | ||||
| Cyclic Measurement | CH.A measuring range:0.02us~10s, Sensitivity 80mVrms>1S | |||
| CH.B measuring range:0.5ns~0.02us, Sensitivity 500mVrms<1S | ||||
| Cyclic Measurement Range | 0.5ns~10s | |||
| Step | Coupling | Frequency Range | Resolution | |
| Gate time min. | Gate time max. | |||
| 1 | AC | 1GHz-2.4GHz | 1kHz | 100Hz |
| 50MHz-1GHz | 1kHz | 10Hz | ||
| (not including 1GHz) | ||||
| 2 | AC | 2MHz-50MHz | 1kHz | 10Hz |
| 3 | AC | 100Hz-2MHz | 10Hz | 0.1Hz |
| DC | 0.01Hz-100Hz | 0.001Hz | ||
| (not including 100Hz) | ||||
| Gate Adjust Range | 100ms~10s Continuous adjustable | |||
| Attenuation | 20dB | |||
| Display Units | steps, frequency, period, kHz and MHz, ms, s,etc. | |||
| Input impedance | 1MΩ | |||
| Display | 8 digits LED | |||
| Operation Environment | (-5~50)℃, 10 ~ 90% R.H. | |||
| Storage Environment | (-40~60)℃, 5 ~ 90% R.H. | |||
| General Information | ||||
| Dimension | 270 ×215 ×100mm | |||
| Weight | Approx:1.6kg | |||
| Power | AC 220V/110V 50Hz/60Hz | |||
| Standard Accessories |
Power cord, Manual, Test probe |
|||

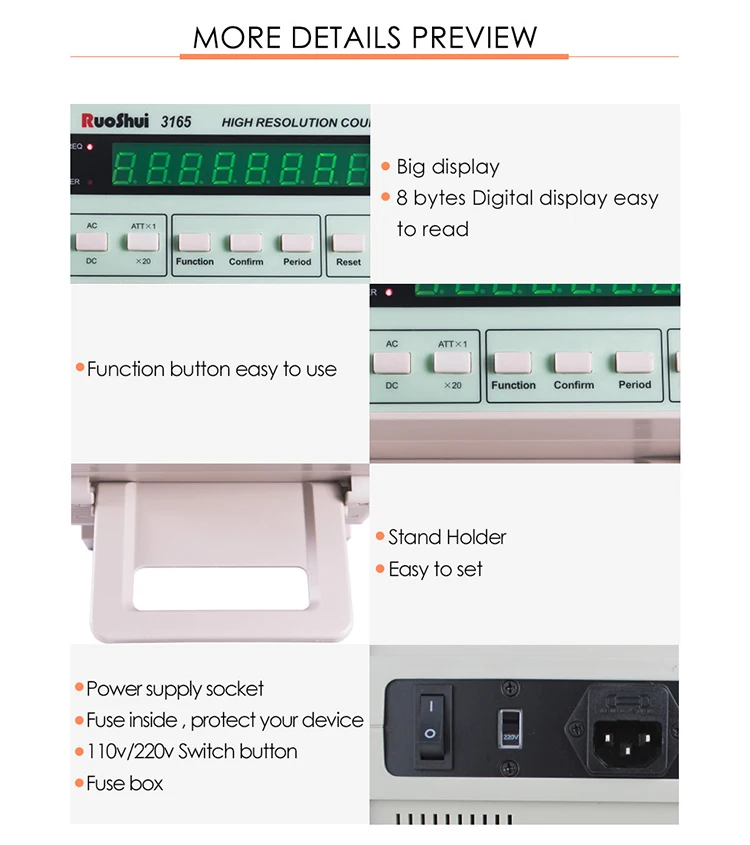

Detailed Images
