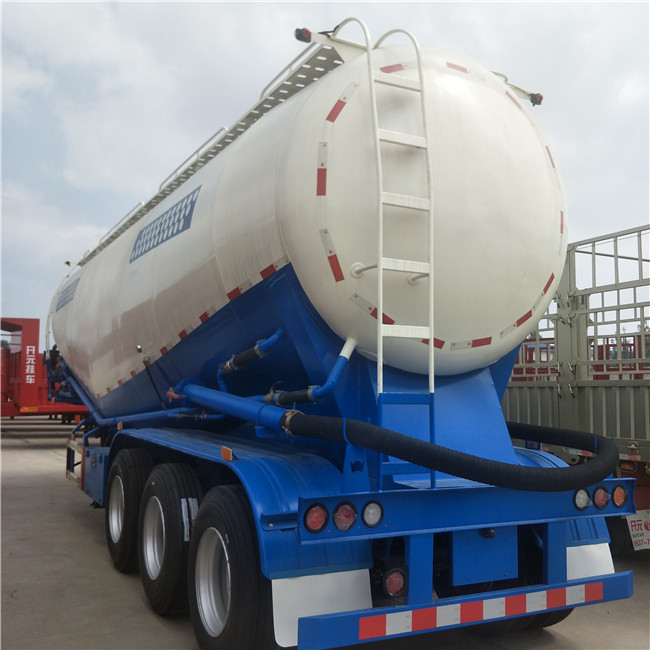

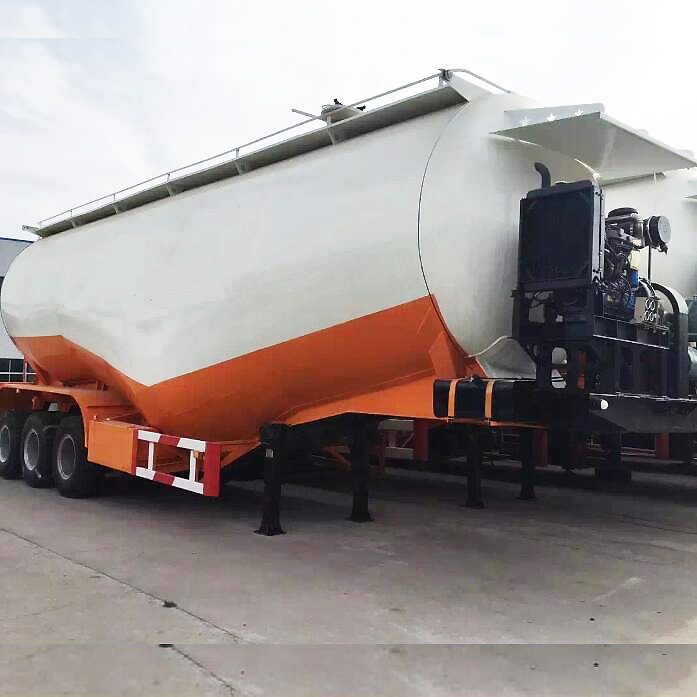

40 Ton V Type Bulk Cement Tank Trailer 3 Axle Fly Ash Cement Bulk Truck Silo Tanker Pneumatic Semi Truck Trailer For Sale
- $11000.00 /unit
- 1 unit
- Shandong Hongdong Truck Trade Co.,ltd.
- Shandong, China
- Ms Auto Jinxing
PRODUCT DETAIL
| Function: | Transport 20 feet 40 feet | Gross vehicle weight: | 25000 |
| place of origin; place of origin: | Shandong China | product name: | bulk cement trailer |
| capacity: | 40 tons bulk cement tanker trailer | port: | Qingdao, Lianyungang, Tianjin, Shanghai |
| color: | customer request | Maximum payload: | 20001-25000kg |
| Supply capacity: | 100 units per month | place of origin; place of origin: | Shandong China |
| type: | semi-trailer | size: | 9800x2500x3950mm |
| brand: | Sinotruk Howo | payment terms: | L/C,Western Union,T/T |
| axis: | 13/16 tons Fuwa/BPW | Brake system: | Two-line braking system |
Specification for bulk cement tanker trailers | ||
aspect | 12000mm*2490mm*3990mm (the specific size depends on the final design) | |
shape | V shape | |
volume | 35cbm-126cbm | |
Loading capacity (kg) | 30t-135t | |
aspect | 13500x2500x3800mm | |
Tanker Body Materials | 3mm/4mm/5mm T622JJ carbon steel | |
end plate | 4mm 5 or 6mm T622JJ Carbon Steel 5mm or 6mm 5XCT4 Aluminum 5454 | |
rim | 8.00-20/8.5-20/8.8-20/9.0-22.5 | |
compressor | Bohai brand (12m³-16m³ 37 KW, 0.2Mpa. 1000r/Min(12m3/min) | |
manhole cover | 500mm manhole cover. 1 set with 1 breathing valve | |
discharge valve | 4 inch disc valve | |
discharge pipe | 4” rubber hose, 2 pcs, 6m/each | |
Air compressor | 10 cubic meters, 12 cubic meters | |
Diesel engines | Weichai Huafeng, Tianhe 4102/4105 | |
Main beam | Q345 carbon steel material | |
axle | 2 - 3 pieces of 13 - 20 ton BPW or Fuwa axles | |
landing gear | JOST (D200T) or Chinese brand 28T (two-speed) | |
leaf spring | 90(W)mm x 13(Thickness)mm, 10/10/10pcs | |
Braking System | WABCO large cavity valve | |
In order to better protect the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
