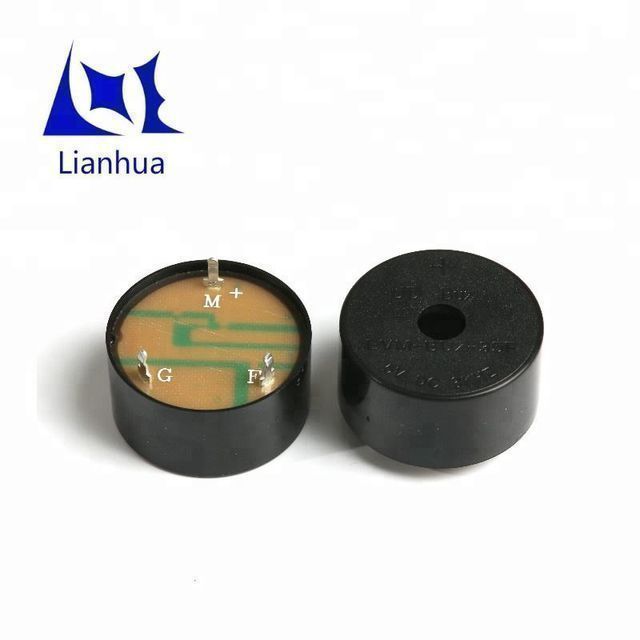

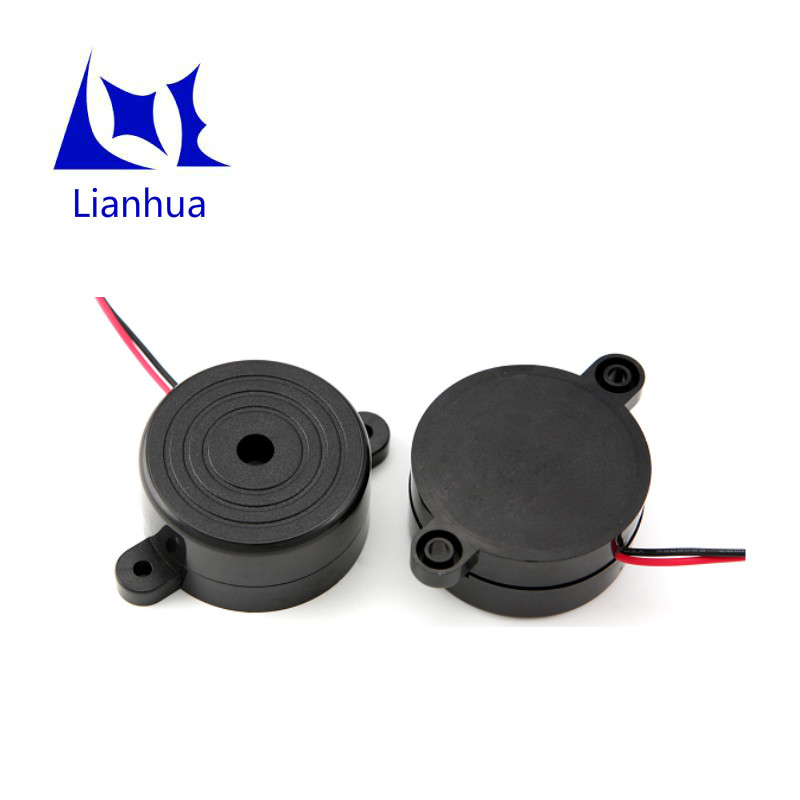

40mm piezo alarm with external movement 105dB smoke alarm alarm

PRODUCT DETAIL
Types of:buzzerplace of origin; place of origin:Jiangsu, China
high:20mmPackaging Details:1. 50 pcs per box 2. 10 pcs per box 3. 500 pcs per box 4. Volume: 59*32*32cm
Supply capacity:300000 pieces per monthpayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
frequency:3000 Hzdiameter:40mm
Material:ABS (777D)application:Smoke detector
weight / g):11.6brand:Lianhua buzzer
Sound output:105 decibelsport:Shanghai
color:Blackmodel:LPF4020A
Certification:TS16949, ISO9001, ISO14001Current consumption:≤30

1. Description of piezoelectric buzzer





Rated voltage

(VDC)

5

Operating Voltage

(VDC)

5~12

*Rated current

(Well)

≤30

*Sound output at 10 cm

(D b)

≥105

*Resonance frequency

(kilohertz)

3.2±0.25

Operating temperature

(℃)

-20~+70

Storage temperature

(℃)

-30~+80

weight

(G)

11.6

building materials



ABS (777D)

RoHS Directive



yes

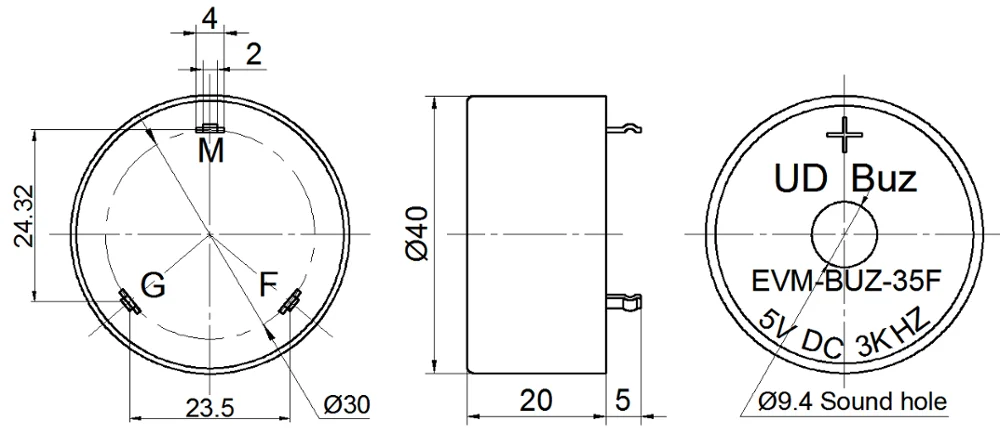

2. Dimensions of piezoelectric buzzer

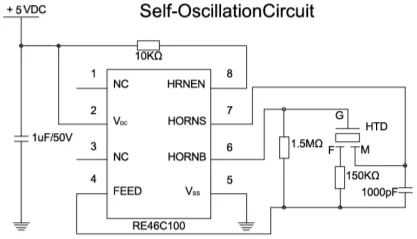

3. Piezoelectric buzzer test self-excited circuit

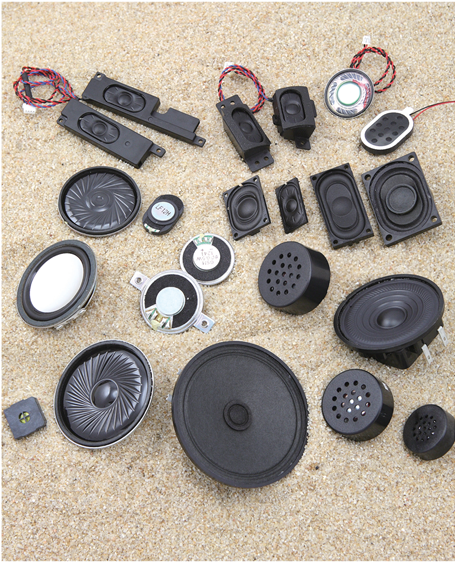

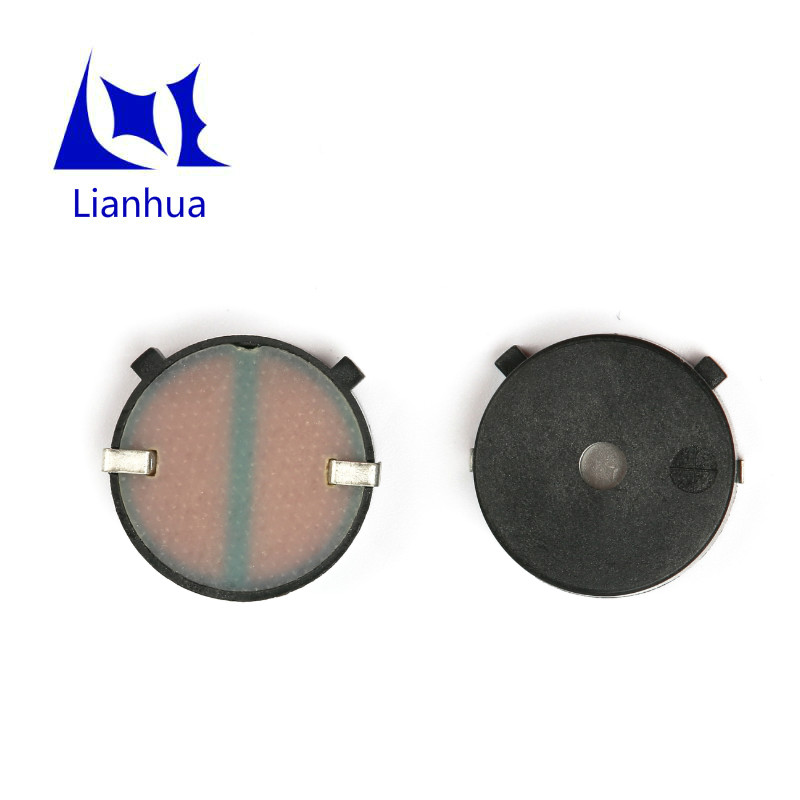

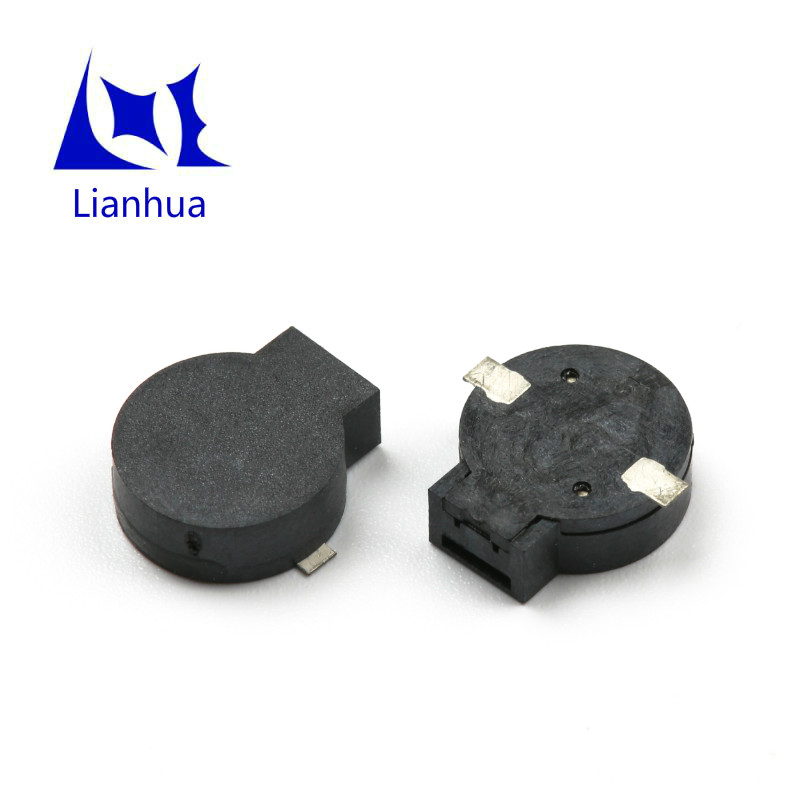

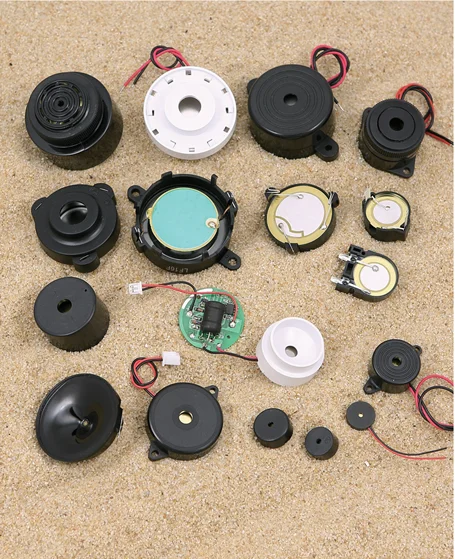

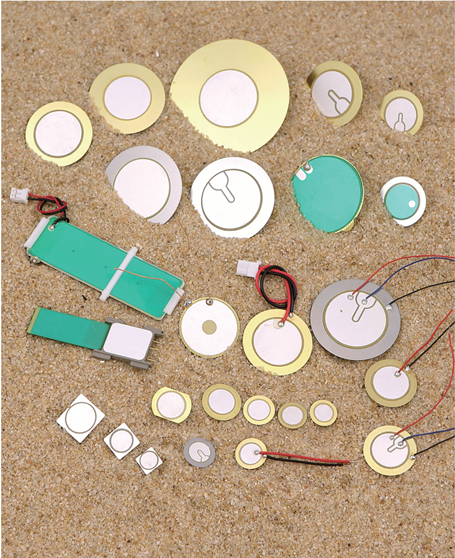

4. Piezoelectric buzzer series

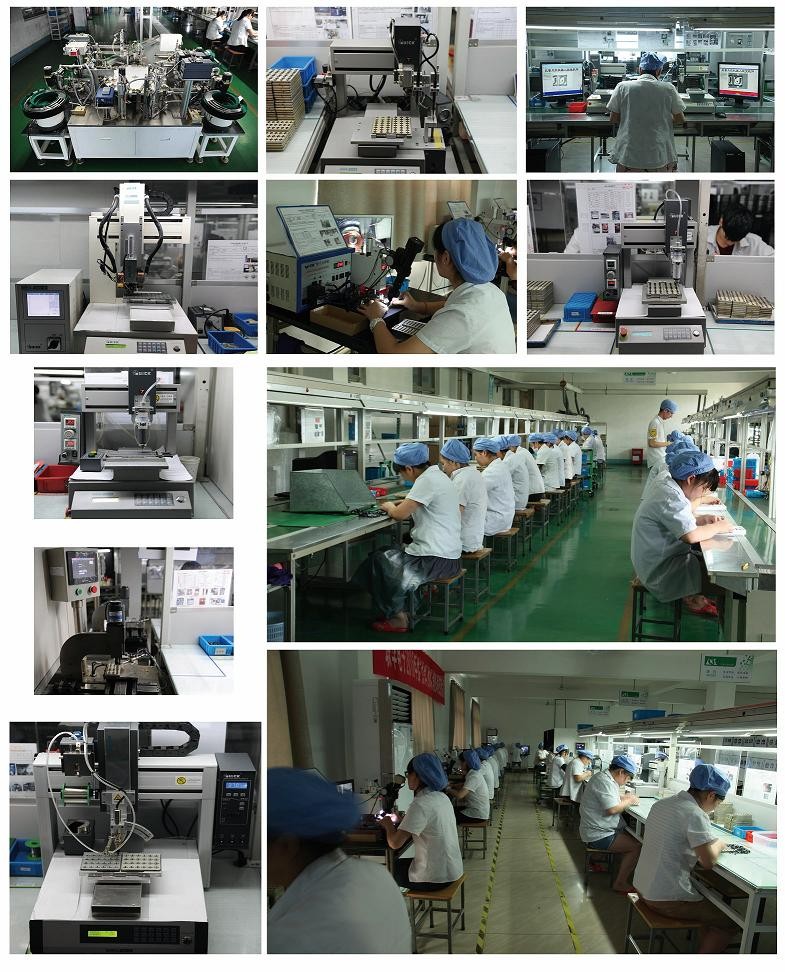

5. Piezoelectric buzzer workshop

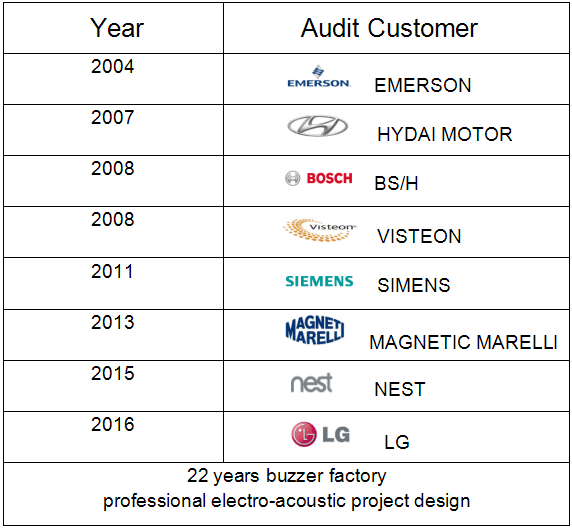

6. Piezo Buzzer Customer Review







7. Piezo Buzzer Certification







8. Our piezo buzzer exhibition





9. Frequently Asked Questions about Piezoelectric Buzzer





Q: Can I have samples?

A: Yes. Samples are sure to be ok. We can even send you free samples, you only need to pay

freight.

Q: What about the payment terms?

A: Payment terms: T/T, Western Union Paypal and L/C etc.

Q: How about the minimum order quantity?

A: We have no limit on MOQ, so you can even buy only 1 piece. welcome to buy samples

Test first.

Q: What about the delivery time?

A: We will send you samples within 3 days.

Mass production takes 7 to 15 days. It also depends on the product and quantity.

Q: Do you support OEM service?

A: Yes, of course support (print logo on carton for free)

Q: How will you send the goods to us?

A: We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR, etc.

Q: Are you trading company or manufacturer?

A: Yes, we are Changzhou buzzer manufactory

10. Transportation of piezoelectric buzzer



11. Contact us



12. Buzzer Catalog
