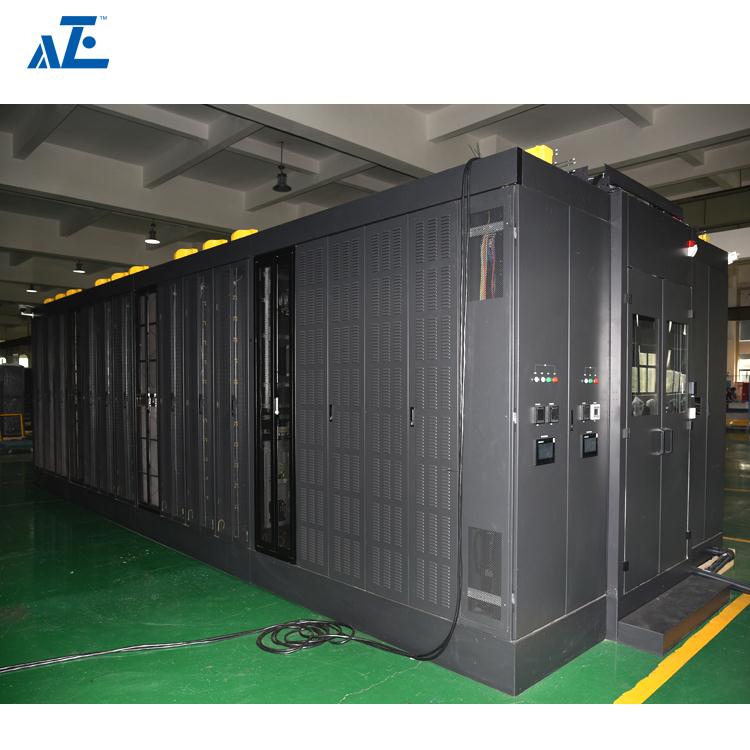

45u edge cloud integrated data center 52u data center channel closed
- $17814.13 / >=10 sets
- 10 sets
- Ningbo Aze Imp & Exp Co., Ltd.
- Zhejiang, China
- Mr Tony Tony
| Intellectual property level: | IP20 | place of origin; place of origin: | Zhejiang, China |
| brand: | AZE | product status: | in stock |
| Supply capacity: | 100 integrated data centers per month | Custom Design: | Yes |
| Cabinet Standard: | ANS/EIA RS-310-D | Certificate: | CE/RoHS |
| product name: | Cold aisle containment | application: | Data center, colocation server room, edge computing, 5G, smart city |
| Packaging Details: | Integrated data center packaging: carton or wooden case | Certification: | ce, RoHS |
| Material: | SPCC cold rolled steel | Warranty: | 1 year |
| type: | 19" Standard Server Rack | color: | RAL9005 black/RAL7035 grey |
| Sample delivery time: | 20-25 days | model: | MAC10-RS45812 |
| payment terms: | wire transfer | size: | 800mmx1200mmx45U |
| port: | Ningbo |
45u edge cloud integrated data center 52u data center channel closed

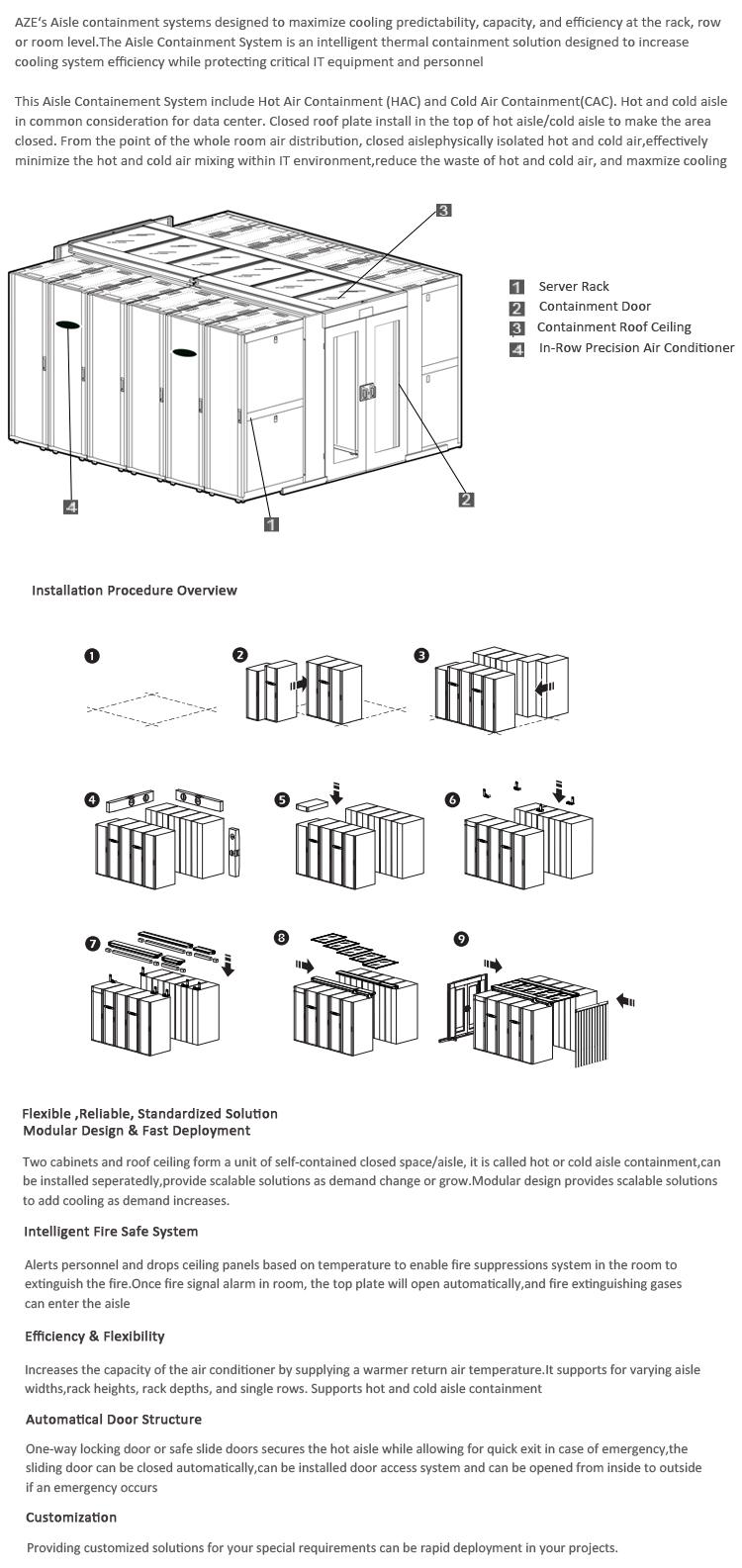

Aisle containment in a data center requires cabinets to be aligned in a hot aisle/cold aisle layout. The containment plate or strip forms a baffle to isolate the server air supply (cold aisle containment) or exhaust (hot aisle containment). Preventing mixing of supply and exhaust air can significantly increase the capacity and cooling efficiency of the cooling infrastructure. Every site will be different when considering conditions, cooling infrastructure, rack density and other factors.
As a result, standardization is becoming a popular trend in the modern data center world, but it is not ubiquitous or random. The first place you want to start data center standardization is with racking systems and containment solutions. Start with flexible, easy-to-install, adaptable, and pre-configured custom server racks and network cabinets that save you cost, space, and improve the performance, efficiency, and reliability of your critical infrastructure.
AZE's aisle containment systems are designed to maximize cooling predictability, capacity and efficiency at the rack, row or room level. Aisle Containment is an intelligent thermal containment solution designed to increase cooling system efficiency while protecting critical IT equipment and personnel. AZE minimizes hot and cold air mixing in IT environments
-Modular design and rapid deployment
The two cabinets and the roof ceiling form a self-contained enclosed space/access unit, called a hot aisle or cold aisle enclosure, which can be installed individually, providing a scalable solution as needs change or grow. The modular design provides a scalable solution, with cooling additions added as needed.
- custom made
Customized solutions for your special requirements can be quickly deployed in your projects.
| Model | MAC10-RS45812 |
| color | RAL9005 black/RAL7035 grey |
| IP level | IP20 |
| application | Data center, colocation server room, edge computing, 5G, smart city |
| type | 19" Standard Server Rack |
| feature | Modular design and rapid deployment; efficiency and flexibility; intelligent fire safety system |
| custom design | OEM, ODM |
| Sample lead time | 20-25 days |
| Certificate | CE/RoHS |
| payment method | 30% down payment, 70% bill of lading balance |
| market | North America, South America, Europe, Australia, New Zealand, Southeast, South Africa, India, Russia |
| Warranty | 1 year |
| Element | Model | Dimensions (WxDxH) | describe | Quantity/set |
| server rack | RS45812 | 800mmx1200mmx45U | 45U wide and deep server rack chassis cabinet with doors and side panels, 800mm wide x 1200mm deep | 10 |
| Smart PDU | PDUMI018H4243 | 1850mm x 56mm x 52mm | Metered Input PDU, 0U, IN: IEC 60309 16A (3P), OUT: 36 x C13, 6 x C19 | 10 |
| PDUMI018H4266 | 1850mm x 56mm x 52mm | Metered Input PDU, 0U, IN: IEC 60309 63A (1P), OUT: 21 x C13, 3 x C19 | 10 | |
| aisle door | MAC-MD1224 | 1200mm x 2400mm | Mechanical Aisle End Door, Tempered Glass, with TCP/IP Access Control System | 1 |
| MAC-SD1224 | 1200mm x 2400mm | Sliding passage end door, tempered glass, with TCP/IP access control system | 1 | |
| aisle roof ceiling | MAC-RC0812 | 800mmx1200mm | Modular Roof Ceiling Kit for 800mmWide Racks and 1200mmWide Aisles (Includes Top Roof, Top Roof Support Brackets, Exterior Trim Panels) | 5 |
| Top Routing Accessories | RACABLETRAYM32 | 800mm | Power Cordway for 32" Enclosures | 10 |
| RACABLETRAYN32 | 800mm | Data Cable Spacer for 32" Racks | 10 | |
| RACABLELADDER6IN3M | 6 inches x 3000 mm | 6" wide cable ladder, 1.5m per section, 2 sections per pair | 2 | |
| surveillance system | MAC-MONITORSYS | Not applicable | Channel closed monitoring system, including network EMS unit (which can provide data acquisition, fire protection system and sound and light alarm and monitor air conditioning, UPS, power system), software, 10-inch screen | 1 |
| Controllers and Sensors | RASENSOR-TH | Not applicable | Aisle temperature and humidity sensors | 1 |
| RASENSOR-SM | Not applicable | Aisle smoke sensor | 1 | |
| RASENSOR-W | Not applicable | water sensor in aisle | 1 |
Note: Customized solutions for your special requirements can be quickly deployed in your project.
