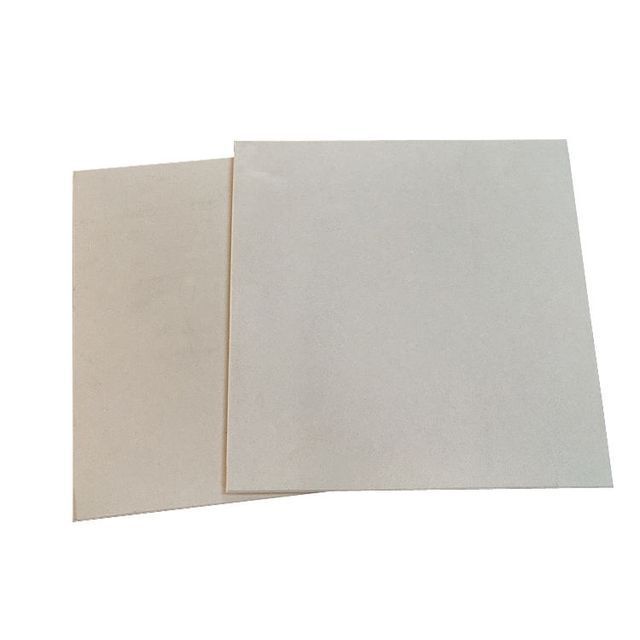

4mm 5mm thickness calcium silicate board acoustic panels for bathroom
- $6.20 / 100 - 999 pieces
$5.50 / 1000 - 3499 pieces
$4.85 / >=3500 pieces - 100 pieces
- Guangxi Peakon Technology Co., Ltd.
- Guangxi, China
- Ms Miya Huang
| Thickness: | 6mm; | After-sale Service: | Online technical support; |
| Color: | as pictures or customized; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Warranty: | More than 5 years; | Length: | 2440mm; |
| Model Number: | 6mm calcium silicate board; | Port: | Fangcheng Port; |
| Package Preview: | ; | Type: | fire rated calcium silicate board; |
| Brand Name: | Peakon; | Application: | passive fire protection systems partition,ceiling, interior wall,Hotel; |
| Project Solution Capability: | Others; | Bending Strength: | >10 Mpa; |
| Firepoof: | A1; | Place of Origin: | Guangxi, China; |
| Supply Ability: | 300000 Pieces per Month for calcium silicate board; | Design Style: | Modern; |
| Certification: | ISO/CE; | Raw Material: | Pulp fiber,Portland cement; |
| Density: | 0.95-1.3g/cm3; | Packaging Detail: | wooden pallet + PE covering + corner protector + strong tape; |
| Feature: | non-asbestos,fireproof,moisture proof,sound insulation; |
2.100% QC checked
3.Professional machine and workshop
4.Delivery on time
5.Can provide OEM service
6.Professional foreign trade team
We have our factory:
We have been engaged in the research and development and production of calcium silicate board for nearly 10 years. We have a perfect R&D team, perfect quality control ability.
We have strong technology and R & D strength with the certifications of ISO9001, ISO14001, OHSAS 18001, CE.
Products Features
(1)Incombustibility/Non-flammability: Calcium silicate board is non-flammable and conforms to the national grade A standard (GB8624 Grade A) with excellent fire resistance property. In case of fire, the board will not burn and not give off toxic smoke.
(2)Thermal/heat insulation: Owing to low heat conductivity, the product has good performances on keeping warm and heat insulation.
(3)Water-proofing and moistureproof: The product is allowed to long-term exposure to moist environment but still very stable. The board still keeps intact after being soaked in water for one month, the phenomenon of swelling and out of shape will not happen. It has good adjusting mechanics like woods. Even it is used on wash house.
(4)Endurance/durability: Calcium silicate board provides good insulation against bugs, fungus and corrosion. It can last for a long time and will not corrode.
(5)Noise-proofing: Calcium silicate board provides good insulation against noise.
(6)High-Strength and Light weight: The board is light weight, in this case, it can decrease weight of building greatly. At the same time, the material is high-stength and not easy to be damaged.
(7)Easiness to installation: The construction process does not require complicated tools but just the ones used in regular wood construction. Our board can be fixed on light steel frame with self-attachable screws or a glue gun to nail the bolts into the wooden frame.
(8)Environmental protection: Calcium silicate board is 100% free of asbestos fiber and will not cause any harm to human body or the environment.
Peakon 2 Hour Fire Rated Calcium Silicate Slabboard Price
Calcium Silicate Board is a composite material made of quartz sand, cement and pulp fibers. This product adopts imported pure paper pule from Canada, not included waste paper pulp. Calcium Silicate Board is manufactured in a sheet form and they are used for interior and exterior suspension, partition and flooring application.The normal size is 1220×2440mm,thickness from 3~30mm, and density is 0.95~1.30g/cm3. There are low-density, middle-density and high-density.
Technical Specification
Specification | 2440*1220mm Thickness:3-30mm |
Width | 1200-1220mm |
Length | 2400-2440mm |
Color | as pictures or customized |
Density | 0.95~1.3g/cm3 |
Raw Material | Pulp fiber,portland cement |
Water Content | ≤10 |
Fire Resistance | Incombustibility A Class |
Thermal Conductivity | <0.3W/m.k |
Bending Strength | Grade 4(>10 Mpa) |
Radioactivity | GB8624-2006 A Class |
Asbestos | 100% Non Asbestos |
Certification | ISO/CE/SGS |
Application:
*Passive Fire Protection Board System
*Fire Proofing
*For External Wall & Ceiling
*For Internal Wall, Partition & Ceiling
*The Decorative applications
*The Sub-roof board
*The Underlay board for Floor and Wall tile
*Heating Insulation for commercial and industrial
*Air Hose
*Wrapping Electric Wire
Difference between calcium silicate board & gypsum board
Calcium Silicate Board | Gypsum Board (Drywall) | |
Fireproof | A1 | B |
Evaluation | Excellent | Weak |
Waterproof | Soak in water 30 days, no change | Waterdamage, strength degradation |
Density | 0.95-1.3g/cm2 | <1 g/cm2 |
Impact Resistance | ≥3.5KJ | ≤1KJ |
Flexural Strength | >10MPa | ≤9MPa |
Plasticity | Decorative for tile, wall paper, paint, etc directly | Can't decorated with tile, wallpaper, paint directly |
Environmental | Asbestos free | Chalking |
Application places:subway station,workshop,petrol station,tunnel,airport,nuclear power plant,power station,supermarket,hotel,office building,etc.
Our project case:
Wooden pallet + PE cover + Tape
Container | Board Size (mm) | Gross Weight per piece (KG) | Qty per 20' GP (Pcs) |
20' GP | 2440*1220*6 | 26.4 | 900 |
2440*1220*8 | 35 | 675 | |
2440*1220*9 | 37.5 | 600 | |
2440*1220*10 | 45 | 540 | |
2440*1220*12 | 51.7 | 450 | |
2440*1220*15 | 65 | 360 | |
2440*1220*18 | 78 | 300 |

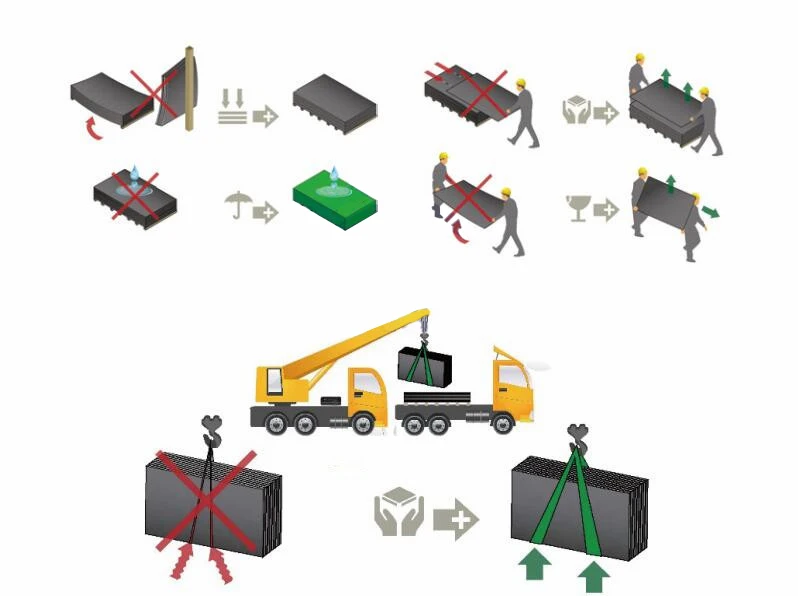

2. It is not allow to put the board materials at the place of fixed position.
3. Make a measure to prevent rain and snow weather if the board materials in outdoor circumstance.
4. Make sure to keep the board materials untouched the water or liquid substance directly at any time.
5. Lift up the two end of the board materials in carefully when carry them, keep the oblique angle of the board materials when move them.
6. Single people to carry and operate the board materials is prohibited, deformation handling of the board materials is not allowed too.
About us:
Peakon is a privately held Chinese company founded in 2011 in Dongxing, China. CEO purchased German advanced equipment & technology and quickly recognized Peakon to be an innovative material for passive fire protection in the Heating, Ventilation, Air Conditioning & Building industry and envisioned how this unique product could solve many fire protection issues in other industries in China. The main product is 100% non-asbestos fire prevention board, low density & medium density fiber cement board, calcium silicate board ,other high-tech energy-saving environmental protection board.
Peakon has since matured into a globally recognized ISO 9001, ISO 14001, CE & SGS certified provider of passive fire protection systems with tested and listed designs to solve most fire protection issues. Peakon has developed many fire protection solutions and now holds Chinese patents for a wide range of systems for use in the fire protection industry.
Peakon has developed many unique passive fire protection systems for some of the world's most valuable assets. Through our commitment to research and development and to continuous improvement, Peakon has gained the trust of our clients for protecting people and property worldwide. Peakon boards are widely exported to USA, Southeast Asia, UAE, Middle East and African.
Q1.What is your MOQ,Can we order mixing different sizes?
A: Sure, normally the MOQ of each size is 1×20ft container but for your testing quality we can accept small/sample order for different sizes
Q2.Which port can you support?
A: Fangcheng Port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.
Q3. What's your delivery time of your products?
A: Usually it takes about 10-15days after receiving the advance payment to send out the goods by sea or air.
Q4. Can we print logo or other mark on the product?
A: Yes,please send your design to us.
Q5. How can you guarantee our business in safe?
A: You can use the Alibaba Trade Assurance for your payment and we can sign business contract for your safety.
Q6. Do you have after sale service?
A: Yes,After sale service 24h×7.
Q7. What are the advantages of your board?
A: Outstanding light weight,heat insulation,waterproof,fireproof,sound insulation,fast construction.
Q8. Do you have any certificate to help us get government's approval?
A: CE certificate, SGS certificate and China testing report and our laboratory's testing data etc. by ourselves as your supporting document. Because building standards are different in different countries, most of our customers buy the boards for testing and get approval by themselves.
Q9. If we need samples for customer approval, will it be possible?
A: Of course we can.
Q10.How to guarantee the quality?
A: Laboratory,integral testing process from raw materials to finished product till loading containers will be done by our factory.
