5 10 25 30 40 50 60 70 80 90 100 150 200 250 300 400 500 600 700 800 micron nylon filter
- $2.20 / 1 - 99 meters
$1.12 / 100 - 999 meters
$0.85 / 1000 - 4999 meters
$0.65 / >=5000 meters - 1 meter
- Hebei Macrokun Trading Co., Ltd.
- Hebei, China
- Mr JOSEPH WANG
PRODUCT DETAIL
Packaging Details: | Strict production control, professional inspection before shipment, standard export packaging. | Warranty: | unavailable |
Filter class: | 27%-80% filter | thickness: | 53-1100um nylon filter |
width: | 0.6m-3.65m filter | Video shipment inspection: | not available |
Weight (kg): | 0.5 | brand: | Ma Kun |
Local service location: | not any | Showroom location: | not any |
Mechanical test report: | not available | Number of mesh: | 4T-150T |
length: | 30-70m/roll filter | usage: | Air, liquids, juices, flour, powders, chemicals, etc. |
After warranty service: | online support | port: | Tianjin |
Hole shape: | square | Applicable industries: | Hotels, clothing stores, food and beverage factories, home use, food stores, printing shops, construction works, food and beverage stores |
Package preview: | place of origin; place of origin: | Hebei, China (Mainland) | |
Core components: | not any | Material: | nylon |
Core component warranty: | not available | color: | white |
State of health: | new | Supply capacity: | 50000 meters per month |
Marketing Type: | New Products 2020 | payment terms: | L/C, Western Union, D/P, D/A, T/T |
Types of: | filter disc, filter cloth, filter element, filter disc |
Product Description

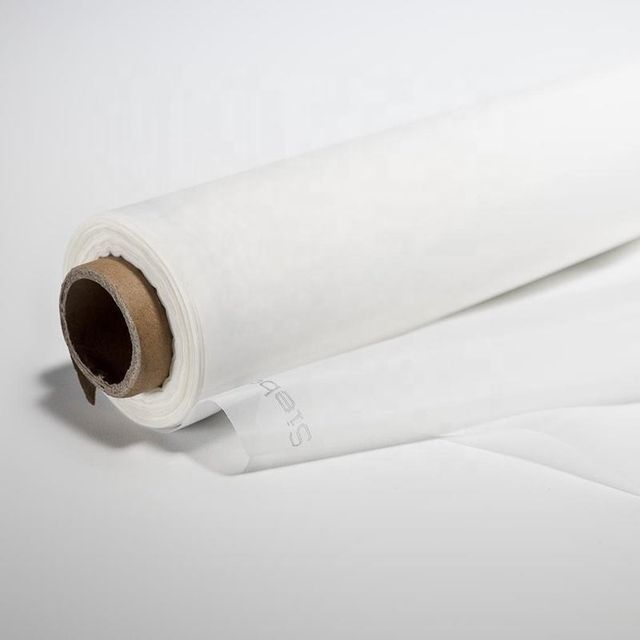

Product name: nylon filter
Width: 100cm, 127cm, 183cm, or customized
Weave type: plain weave, twill weave, Dutch weave.
Roll length: 30-100m/roll, fixed length or customized.
Model | Mesh (/cm) | Mesh (/inch) | thread diameter (Ok) | mesh opening (Ok) | thickness (Ok) | weight (grams/square meter) |
NL4/1950 | 4 | 10 | 550 | 1950 | 1100 | 307 |
NL5/1500 | 5 | 13 | 500 | 1500 | 1000 | 318 |
NL6/1267 | 6 | 15 | 400 | 1267 | 800 | 244 |
NL7/1079 | 7 | 18 | 350 | 1079 | 700 | 218 |
NL8/900 | 8 | 20 | 350 | 900 | 700 | 249 |
NL9/861 | 9 | twenty three | 250 | 861 | 500 | 143 |
NL9/811 | 9 | twenty three | 300 | 811 | 600 | 206 |
NL10/750 | 10 | 25 | 250 | 750 | 500 | 159 |
NL10/700 | 10 | 25 | 300 | 700 | 600 | 229 |
NL12/583 | 12 | 30 | 250 | 583 | 500 | 191 |
NL12/533 | 12 | 30 | 300 | 533 | 600 | 274 |
NL14/514 | 14 | 36 | 200 | 514 | 340 | 142 |
NL16/425 | 16 | 40 | 200 | 425 | 340 | 160 |
NL20/350 | 20 | 50 | 150 | 350 | 255 | 113 |
NL20/300 | 20 | 50 | 200 | 300 | 340 | 200 |
NL24/267 | twenty four | 60 | 150 | 267 | 255 | 135 |
NL28/237 | 28 | 70 | 120 | 237 | 204 | 101 |
NL30/213 | 30 | 76 | 120 | 213 | 204 | 110 |
NL32/213 | 32 | 80 | 100 | 213 | 170 | 80 |
NL36/178 | 36 | Post-90s | 100 | 178 | 170 | Post-90s |
NL40/150 | 40 | 100 | 100 | 150 | 170 | 100 |
NL43/153 | 43 | 110 | 80 | 153 | 136 | 70 |
NL48/128 | 48 | 120 | 80 | 128 | 136 | 77 |
NL56/119 | 56 | 140 | 60 | 119 | 102 | 50 |
NL64/96 | 64 | 160 | 60 | 96 | 102 | 58 |
NL72/89 | 72 | 180 | 50 | 89 | 85 | 45 |
NL80/75 | 80 | 200 | 50 | 75 | 85 | 50 |
NL100/57 | 100 | 250 | 43 | 57 | 73 | 46 |
NL110/48 | 110 | 280 | 43 | 48 | 73 | 52 |
NL120/48 | 120 | 300 | 35 | 48 | 60 | 37 |
NL120/40 | 120 | 300 | 43 | 40 | 73 | 55 |
NL130/42 | 130 | 330 | 35 | 42 | 60 | 40 |
NL130/34 | 130 | 330 | 43 | 34 | 73 | 61 |
NL140/36 | 140 | 350 | 35 | 36 | 60 | 43 |
NL157/25 | 157 | 400 | 43 | 25 | 73 | 74 |
NL180/20 | 180 | 450 | 39 | 20 | 66 | 68 |
NL200/15 | 200 | 500 | 39 | 15 | 66 | 76 |
NL220/10 | 220 | 550 | 39 | 10 | 66 | 84 |
NL240/5 | 240 | 600 | 39 | 5 | 66 | 91 |
Remarks: The above data are theoretical data, if there is any discrepancy, please refer to the actual data.
Monofilament Nylon 6 or Nylon 6.6 Filters:
Monofilament nylon is a versatile material due to its high strength, flexibility, long life and abrasion resistance. Nylon has excellent resistance to most common solvents and can operate continuously at temperatures up to 100°C over a chemical pH range of 7-14. The term "monofilament" means that each thread used in cloth construction is a single smooth solid thread, rather than many smaller diameter threads twisted together like spun or multifilament materials. These monofilament threads are perfectly circular in cross-section and are extruded to very precise and uniform diameters.

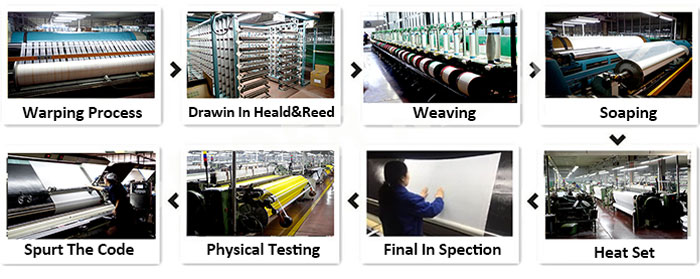

Advantages of nylon filter:1. High weaving precision, accurate and regular hole diameter, uniform mesh. 2. The surface is very smooth, and the filtered particles are easily separated from it. 3. They have great strength and elasticity, wear resistance and alkali resistance. 4. Easy to clean, light texture. Macrokun's Nylon Filter Mesh is made from monofilament PA6 or PA66 yarn/thread, ideal for filtering, sifting or straining most liquids, powders or sludges; after weaving, Macrokun's fabrics go through a finishing process to add application specific required characteristics. In the finishing process, the fabric is washed to remove any foreign matter, and the yarns are then stabilized in the weave to eliminate shrinkage through a process called "heat setting".

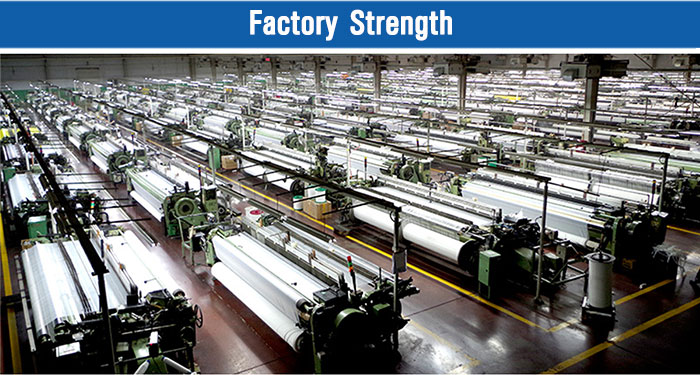

Our advantage1. 126 sets of Swiss P7100 and P7150 Sulzer looms, as well as intelligent electronic warping machines made in Germany, ensure our daily supply capacity of 5,000 meters. 2. For normal mesh and other products, usually we have stock, and the goods can be shipped within 15 days. 3. Our production process is completely based on high-tech computer technology, and it is accepted as the only company that can have TSE (China Standards Institution) and ISO 9001:2008. 90% of our screen printing meshes are exported to Southeast Asia, North America, Europe and other parts of the world. We have a good reputation in the world for high quality and competitive price.
Direct factory customization, reducing links, you can enjoy the ex-factory price; the factory purchases raw materials on a large scale, which can control the cost well.
[Packing] 1. Inner paper tube, outer plastic bag, carton packing. 2. Fold the mesh into a plastic bag and pack it in a carton.[Shipping] 1. Sample orders are usually shipped by express (DHL, TNT, FEDEX, UPS, EMS, etc.) within 3 days 2. Small batch orders are usually shipped by air or sea within 3-7 days. 3. Large quantity orders usually ship by sea within 7-15 days. 4. Main export ports: Xingang, Beijing, Shanghai, Qingdao, Ningbo, etc.
