5m3/h Best quality home cng compressor shorter filling time for car station
- $1000.00 /set
- 1 set
- Chengdu Gas Trading Co., Ltd.
- Sichuan, China
- Ms Jasmine Zhou
PRODUCT DETAIL
| Warranty of core components: | 6 months; | Gas Type: | Natural Gas; |
| Payment Terms: | L/C,Western Union,T/T; | Video outgoing-inspection: | Provided; |
| filling time: | 60L/(2.2-2.7)H; | Marketing Type: | New Product 2021; |
| Weight: | 150kg; | Applicable Industries: | Manufacturing Plant,Energy & Mining; |
| Core Components: | PLC,Motor; | Machinery Test Report: | Available; |
| Delivery rate: | 5m3/h; | Inlet Pressure: | <0.3bar; |
| Dimension(L*W*H): | 60*60*100; | Outlet Pressure: | 200bar/250bar; |
| Stage: | 3; | Product name: | Home Use CNG Compressor; |
| Place of Origin: | China; | Showroom Location: | None; |
| Warranty: | 1 Year; | Condition: | New; |
| Voltage: | 220V/380V/440; | Working Pressure: | Other; |
| noise(dB): | <72; |
Specification
Fueling your vehicle at home or work using CNG.
Able to operate at any home, office or factory.
Ideal for car or light van users.
High quality ,safe and have been extensively tried and tested.
Able to operate at any home, office or factory.
Ideal for car or light van users.
High quality ,safe and have been extensively tried and tested.
Delivery Rate: 3m3/h--/2000m3/h.
Freely choose according to your actual needs.
Freely choose according to your actual needs.
Product Name | Home Use CNG Compressor |
Delivery rate（m³/h） | 5 |
Overall Dimensions（cm）Length*Width*Height | 60*60*100 |
Gross Weight（kg） | 150 |
Inlet pressure | Less than 0.3bar 4.5psi |
Outlet pressure(Mpa/Bar/Psi) | 25/250/3600or20/200/3000 |
Power（kw） | 3 |
Drive | 380V/220V/440V |
Number of stages and cylinders | 3 |
Lubricating oil capacity | 1600cc(1.6L) |
Lubricant | GS special oil for high pressure machine |
Oil/moisture separator | After last stage |
Filtration | Filter cartridge activated carbon and Molecular Sieve |
Suction filter | 2micronpaper-25micron polyester |
Noise(dB) | ＜72 |
Filling speed | 20Mpa/200bar 60L/2.2H |
25Mpa/250bar 60L/2.7H | |
Configuration | Inflatable high-pressure hoses and Pneumatic joint |
5m3/h ,this type has the following characteristics:
1. German technology, long service life.
2. Stainless steel structure, sprayed with powder.
3. Three-cylinder three-stage compression, air-cooled piston type, high reliability.
4. The installation and operation are extremely convenient, low-pressure start-up, automatic shutdown when the pressure is reached, low operating cost, explosion-proof design, and safe operation.
5. Independent electrical control equipment, equipped with an inflatable port, which can charge 1 car (or directly inflate the high-pressure gas cylinder), which can be used indoors
Note：Please confirm the local electricity system and gas cylinder connection.
1. German technology, long service life.
2. Stainless steel structure, sprayed with powder.
3. Three-cylinder three-stage compression, air-cooled piston type, high reliability.
4. The installation and operation are extremely convenient, low-pressure start-up, automatic shutdown when the pressure is reached, low operating cost, explosion-proof design, and safe operation.
5. Independent electrical control equipment, equipped with an inflatable port, which can charge 1 car (or directly inflate the high-pressure gas cylinder), which can be used indoors
Note：Please confirm the local electricity system and gas cylinder connection.
Product Description

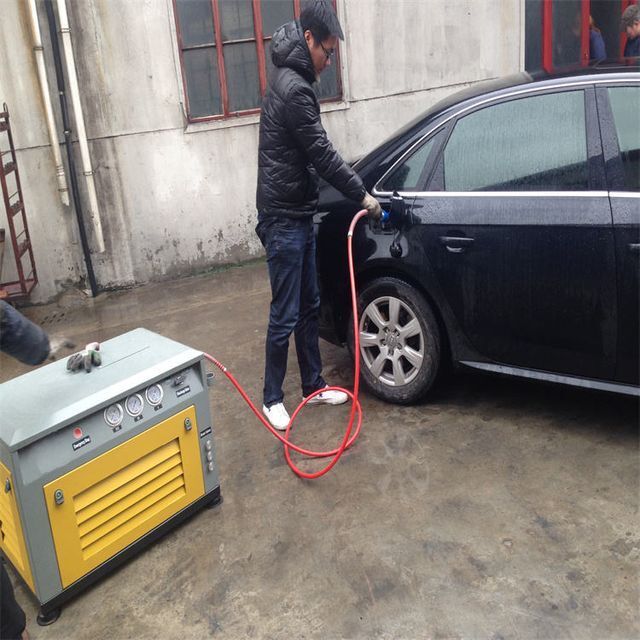

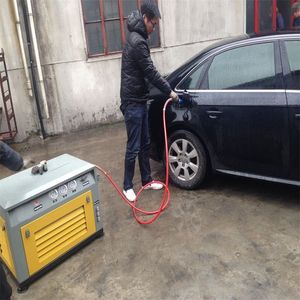

This small natural gas compressors are mainly used for filling CNG natural gas cylinders and natural gas filling of CNG gas vehicles, as a device for increasing gas pressure and delivering compressed gas.
Its working principle is to compress the natural gas with the inlet pressure less than 0.3Mpa to the compressed natural gas with the gauge pressure of 25Mpa. The minimum displacement is 3m3/h and the maximum displacement is 2000m3/h. Users can freely choose according to their actual needs.
It can run continuously, with stable and reliable performance. The whole components including the motor and circuit system are explosion-proof, the safety of the equipment is guaranteed to the greatest extent, and the safety rate reaches 100%. It is equipped with electric motors with voltages of 380V/220V, 440V, 110V, etc. for users to choose freely.
It has the advantages of balanced operation, moderate exhaust volume, low exhaust temperature, and wide application range. It can be applied to: internal inflatable stations of enterprises and institutions, factory workshops, taxis, forklifts or other industrial vehicles, public inflatable stations ( Parking lot, community), family-owned inflatable station, residual gas recovery of oil well gas, hotel catering gas cylinder filling.
Company Profile
Our Advantages:
1.Reliable quality
2.Competitive price
3.Professional team with more than twenty years of experience in this industry
Chengdu Gas Trading Co., Ltd. is located at Chengdu, China. We focus on the equipment supply of CNG Refueling Station ,LNG/LCNG Refueling Station, Hydrogen Refueling Station, LNG Regasification station and EV Charging Stations as well as other clean energy related equipment. Supported by a team with more than twenty years of experience in this industry, we have delivered products to Russia, South America, Central Asian and European countries with necessary certifications as required. Our products have been proven to be reliable and with consistent quality. We are committed to providing best products and best services and always exceeding your expectations.
Packing & Delivery
FAQ
A) What is the lead time?
After we receive your order,normally 1-4 months.
B) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
C) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
D) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
