6 FEET LENGTH CONTINUOUS PIANO HINGE

PRODUCT DETAIL
size:1800*38*1.5MM;Delivery Detail:goods finished within 15 days after having your dopist.;
Supply Ability:7000 Pieces per Week;finish treament:brushed, polished ...or as customers' requirement;
Place of Origin:Guangdong, China;Payment Terms:T/T,Western Union;
Type:Furniture Hinge;Port:guangzhou/shenzhe;
Model Number:CY21;material:brass plated;
Packaging Detail:20 piece /white plastic bag,3 plastic bag/knit bag ,special packing is acceptable.;Brand Name:CY;



Noted: The shipement and unit prices showed here are all for reference only. Mail us for the lowest and newest prices!

Product Description



With or Without Holes! We can make as customer requirments.

Item No.L*W*TMaterialFinish
CY21

1800*38*1.5MM

stainless steel 201/304/316 brushed/polished/non

 The most hot sale size!

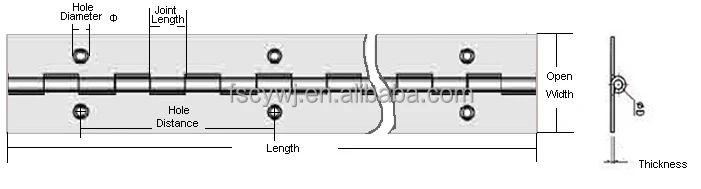

 More Standard Sizes of Piano Hinges

Following are some of our factory standard sizes!

The length can be changed shorter or longer!

+

Item No.

length*width*thcikness

Pin Diameter

Joint Length



Item No.

length*width*thcikness

Pin Diameter

Joint Length

CY01

1800*25*0.5MM

2.50

12.70



CY24

1800*76*1.5MM

4.00

25.4

CY02

1800*30*0.5MM

2.50

12.70



CY25

1800*38*1.5MM

5.00

25.4

CY05

1800*25*0.8MM

2.50

12.70



CY26

1800*50*1.5MM

5.00

25.4

CY06

1800*30*0.8MM

2.50

12.70



CY27

1800*63*1.5MM

5.00

25.4

CY07

1800*38*0.8MM

2.50

12.70



CY28

1800*76*1.5MM

5.00

25.4

CY08

1800*50*0.8MM

2.50

12.70



CY29

2000*50*2.0MM

6.00

25.40

CY09

1800*25*1.0MM

2.50

12.70



CY30

2000*60*2.0MM

6.00

25.40

CY10

1800*30*1.0MM

2.50

12.70



CY31

2000*76*2.0MM

6.00

25.40

CY11

1800*38*1.0MM

2.50

12.70



CY32

2000*100*2.0MM

6.00

25.40

CY12

1800*50*1.0MM

2.50

12.70



CY33

2000*50*2.0MM

9.00

25.40

CY13

1800*30*1.2MM

3.00

25.4



CY34

2000*60*2.0MM

9.00

25.40

CY14

1800*38*1.2MM

3.00

25.4



CY35

2000*76*2.0MM

9.00

25.40

CY15

1800*50*1.2MM

3.00

25.4



CY36

2000*100*2.0MM

9.00

25.40

CY16

1800*63*1.2MM

3.00

25.4



CY37

2438*60*3.0MM

6.00

38.00

CY17

1800*38*1.5MM

3.00

25.4



CY38

2438*76*3.0MM

6.00

38.00

CY18

1800*50*1.5MM

3.00

25.4



CY39

2438*100*3.0MM

6.00

38.00

CY19

1800*63*1.5MM

3.00

25.4



CY40

2438*150*3.0MM

6.00

38.00

CY20

1800*76*1.5MM

3.00

25.4



CY41

2438*200*3.0MM

6.00

38.00

CY21

1800*38*1.5MM

4.00

25.4



CY42

2438*60*3.0MM

9.00

38.00

CY22

1800*50*1.5MM

4.00

25.4



CY43

2438*76*3.0MM

9.00

38.00

CY23

1800*63*1.5MM

4.00

25.4



CY44

2438*100*3.0MM

9.00

38.00

 More Pictures



More Information

We supply not only standard but also the special  shorter or longer!

Please check more product details here:

1,Material

steel,stainless steel 201/304/316,iron,brass,aluminium …

2, Finish treatment

material nature color,brushed,polished,mirror,colored zinc/copper/blue zinc/nickel/gold/ brass/chrome/zinc plated, white /black/gold/baige/grey color spray painting

3,Overall length

from 20mm- 25000mm(0.7" to 984")

4, Overall open width

from 15mm-  200mm (0.5",1"',1.2",1.5",2",2.5",3",4",6,8"or 7.9")

5, Thickness of material

from 0.5mm-5.0mm (0.02",0.03",0.04",0.05",0.06",0.8",0.12",0.2")

6, Packing specification

For the long hinges:20 piece /white plastic bag,3 plastic bag/knit bag ,special packing is acceptable

7,Terms of Transaction:

Immediate delivery upone

Full advance payment before shipment.

Receipt of payment, please always check stock status or lead time prior ordering.

Over charged sample value can be deducted from bulk purchase.

Packaging:





Factory Informtion

Chengyi Hardware,  in this line more than 10 years, as a professional manufacturer and supplier, is specialized in developing, producing and marketing furniture fittings all over the world.

We are specialized in manufacturing piano hinges, heavy duty train hinges, stainless steel piano hinges, iron piano hinges,long hinges, cabinet/box furniture hinges, shelf brackets and upright post, pipes and tubes...
