600g/m2 glass fiber chopped strand mat

PRODUCT DETAIL
Packaging Details:Products are manufactured in roll packs on paper tubes, then packed in plastic bags and placed in cardboard boxes. Rolls can be loaded directly into containers or pallets.Bond Content:300g/m2, 600g/m2 (4%-6%)
Cushion Type:Continuous Filament Padport:Qingdao, China
brand:Feilongdamodel:chopped strand mat
Supply capacity:300 tons per weekFiberglass Type:E-glass
Bond Type:powder or lotiondensity:80g/m2-900g/m2
payment terms:letter of credit, wire transferRoll width:200mm-2600mm
technology:Chopped Strand Fiberglass Mat (CSM)aspect:According to customer requirements
place of origin; place of origin:Shandong ChinaSoftness:favorable
Roll weight:28kgs-55kgsDelivery Details:within 20 days

Specification:

Glass fiber chopped strand mat is a nonwoven E or C glass fiberglass fabric made by randomly and uniformly combining 50 mm long continuous filament rovings with polyester binder in powder form (or other binder in emulsion form ) are combined.



Features and Applications:

Chopped strand mat has the characteristics of good resin bonding, easy operation, good wet strength retention, good transparency of laminate and low cost. Suitable for hand lay-up FRP moldings, such as various sheets and panels, hulls, barrels, cooling towers, corrosion resistance, vehicles, etc.



Technical:

property

glass type

Weight (g/m2)

width

200~3300

roll weight

Moisture content %

% of combustibles

breaking strength N

testing method

GB/T 1549

ISO3374:2000

ISO3374

GB/T17470-1998

ISO3344:1997

ISO1887:1995

ISO3342

EMC 80

E/C-glass

80±16

±5

6~95

<0.2

13.6±0.35

≥200

EMC 100

E/C-glass

100±20

±5

6~95

<0.2

9.5±0.35

≥170

EMC 150

E/C-glass

150±30

±5

6~95

<0.2

8.0±0.35

≥40

Electromagnetic Compatibility 225

E/C-glass

225±45

±5

6~95

<0.2

5.0±0.35

≥60

EMC 300

E/C-glass

300±60

±5

6~95

<0.2

4.0±0.35

≥90

EMC 450

E/C-glass

450±90

±5

6~95

<0.2

3.8±0.35

≥120

EMC 600

E/C-glass

600±120

±5

6~95

<0.2

3.6±0.35

≥150

EMC 900

E/C-glass

900±180

±5

6~95

<0.2

3.4±0.35

≥180



pack:

Products are manufactured in roll form on paper tubes, then packaged in plastic bags and placed in cardboard boxes. Rolls can be loaded directly into containers or pallets.
Quantity (chopped strand mat):
20' GP container: about 10000kgs
40' HC container: about 23100kgs

deposit:

Chopped strand mat should be stored in a dry, cool, clean and rain-proof place. The recommended storage temperature range is between 15-30°C and the relative humidity is between 40%-70%.

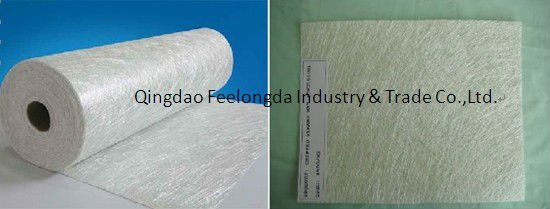

photo:

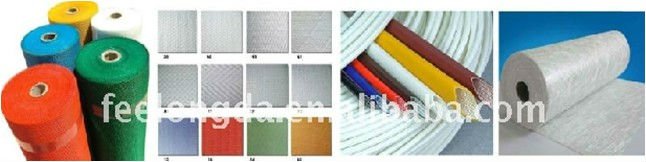

main products:
