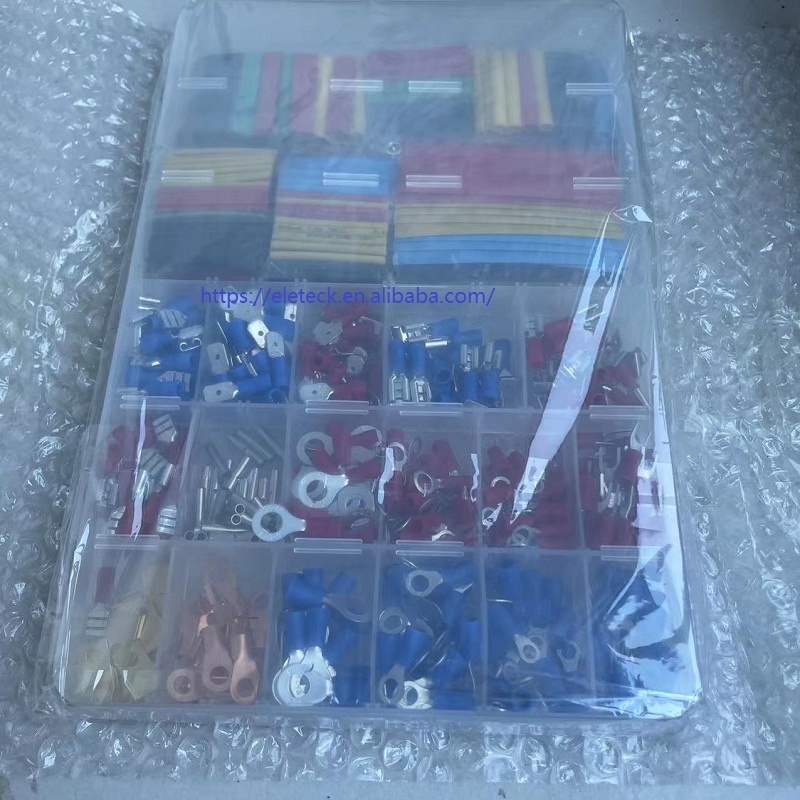

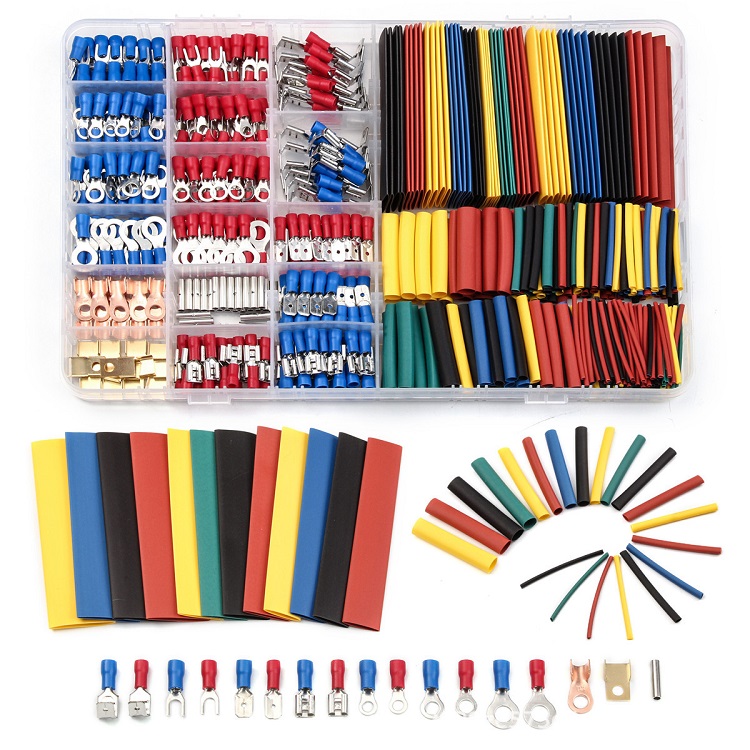

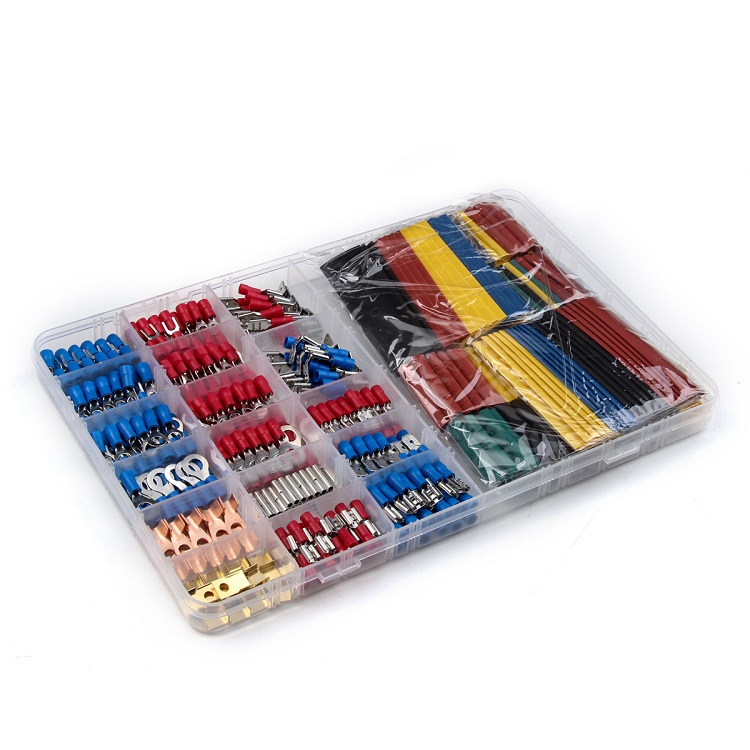

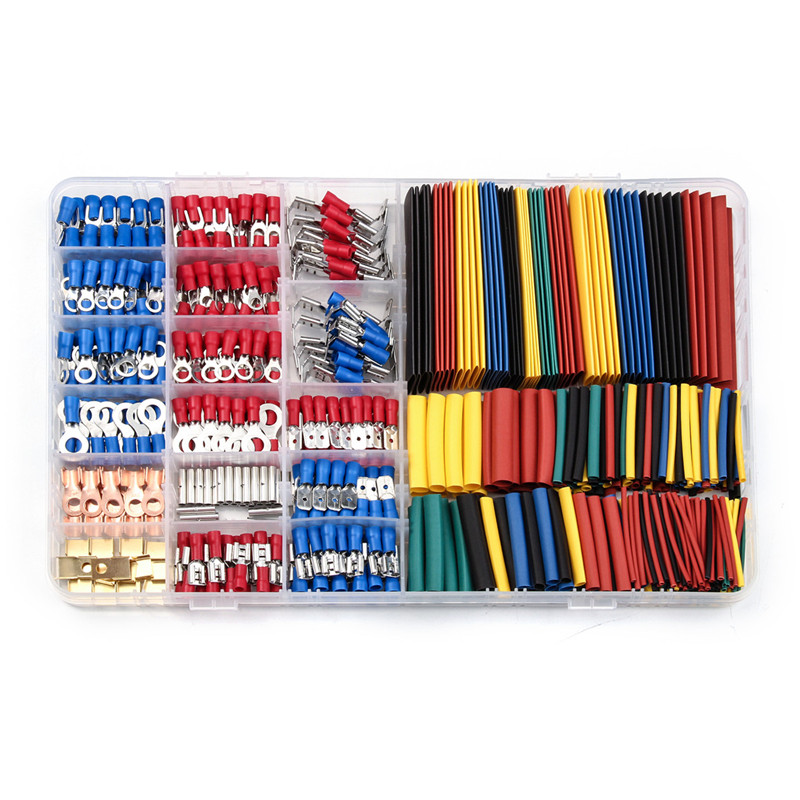

678 Pieces 2:1 Heat Shrink Tube Various Insulation Shrink Sleeve Kits Crimp Terminal Connector Assortment Kit

PRODUCT DETAIL
model:otherMaterial:PVC, tinned brass, polyolefin
port:ShenzhenPackage dimensions:27.5*18*2.5cm
Packaging Preview:Red crimp terminals:Size 22-16 AWG
Full shrinkage temperature:up to 110°CMinimum shrinkage temperature:70℃
Packaging Details:Personal bag. $15 free shipping for sample fee, please contact us as soon as possible >>The total number:678
Supply capacity:999 boxes per dayplace of origin; place of origin:Guangdong, China
Dielectric strength:15 kV/mmBlue crimp terminals:Size 16-14 AWG
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramtype:crimp terminal
Operating temperature:-55℃ to 125℃Shrinkage:2:1
brand:other

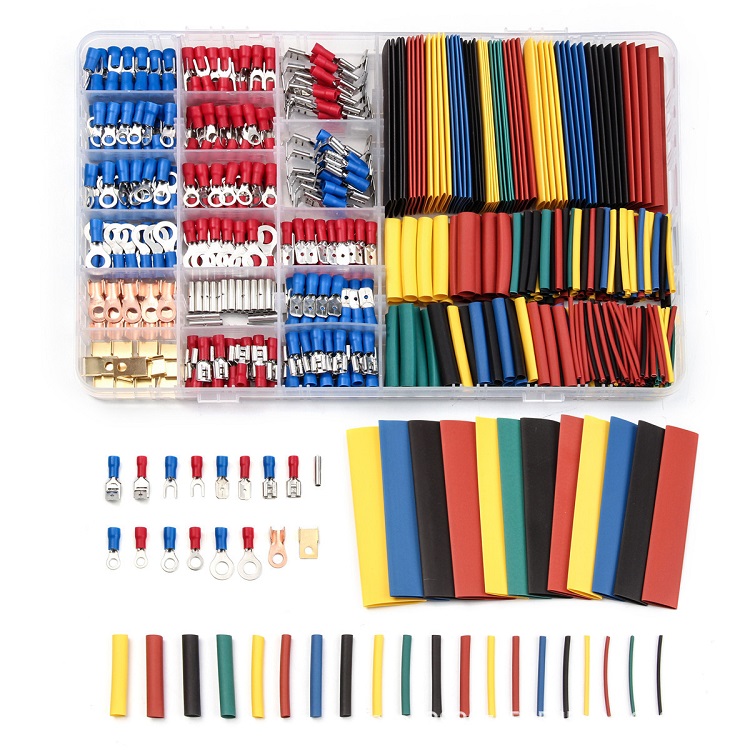

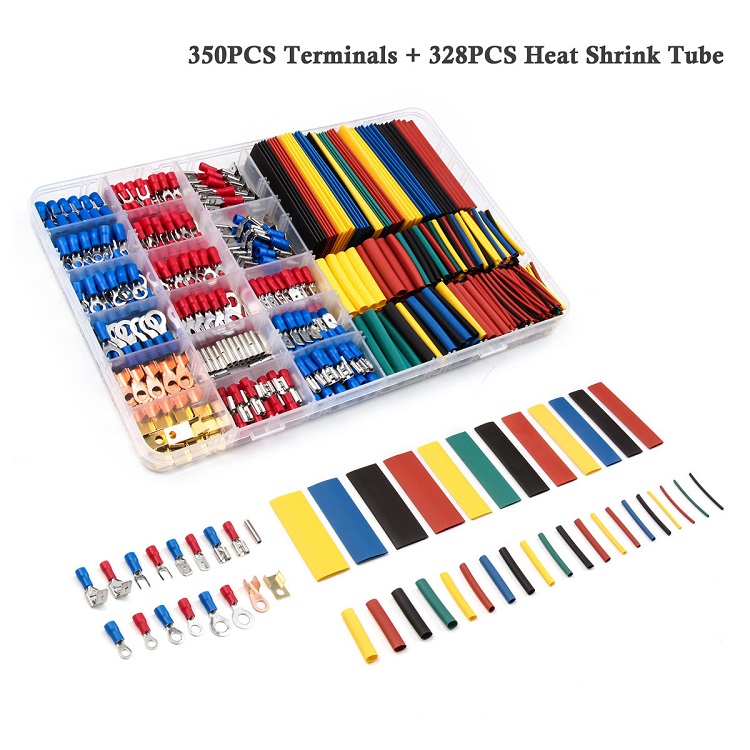

678 Pieces 2:1 Heat Shrink Tube Various Heat Shrink Tube SetsCrimp Terminal Connector Assortment Kit
Product Description



Specification:

Material PVC + Tin Plated Brass + Polyolefin
red crimp terminal Crimp 22-16 gauge AWG
blue crimp terminal Crimp size 16-14 AWG
box size PP plastic box 36 cells
27.5*19.8*2.5cm
Weight per set 0.5kg

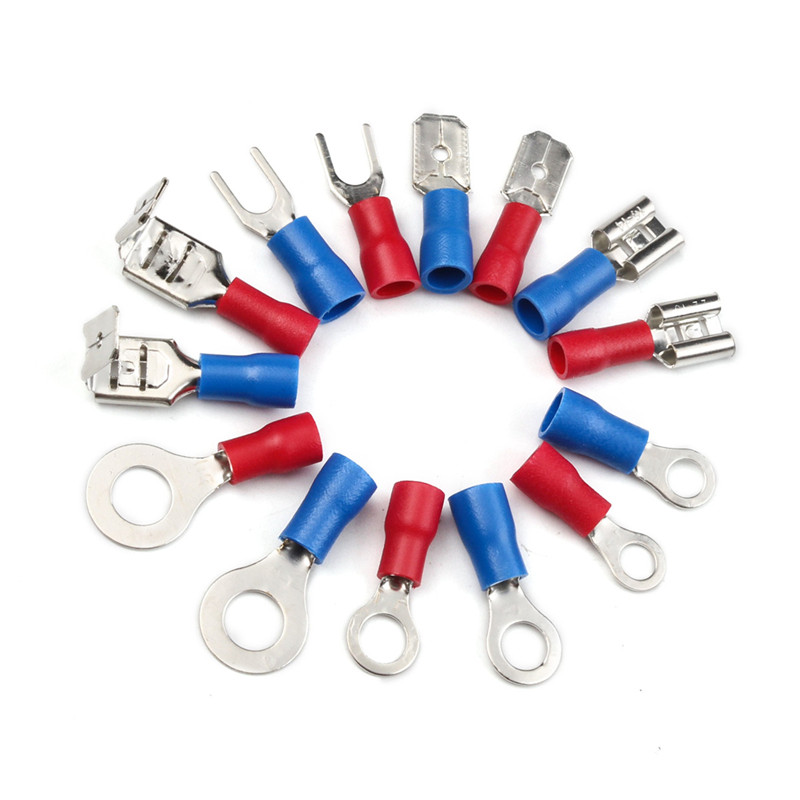

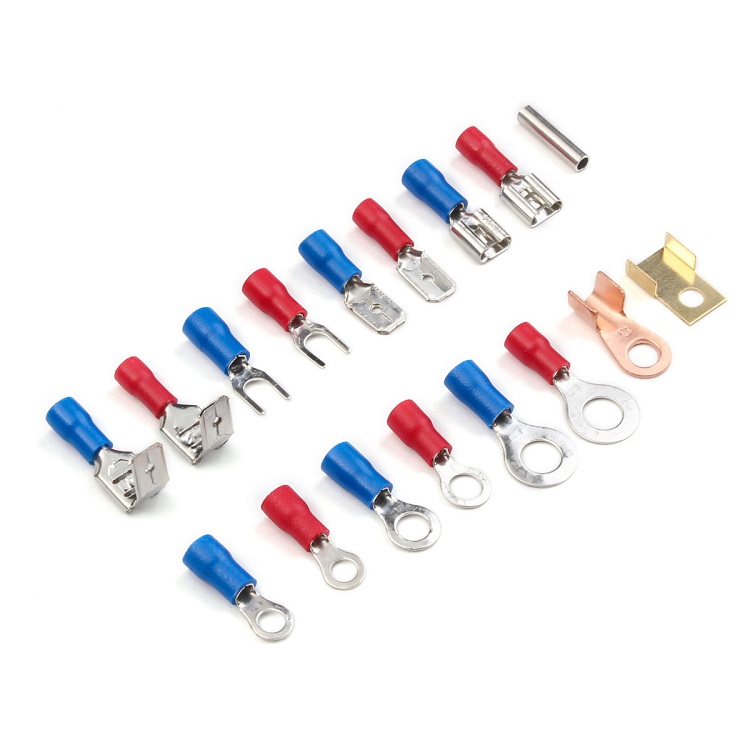

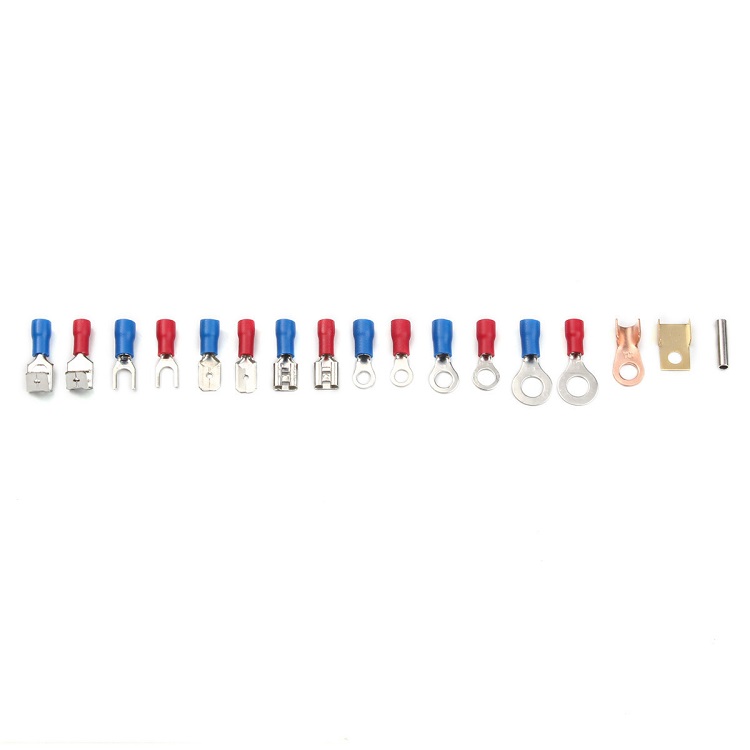

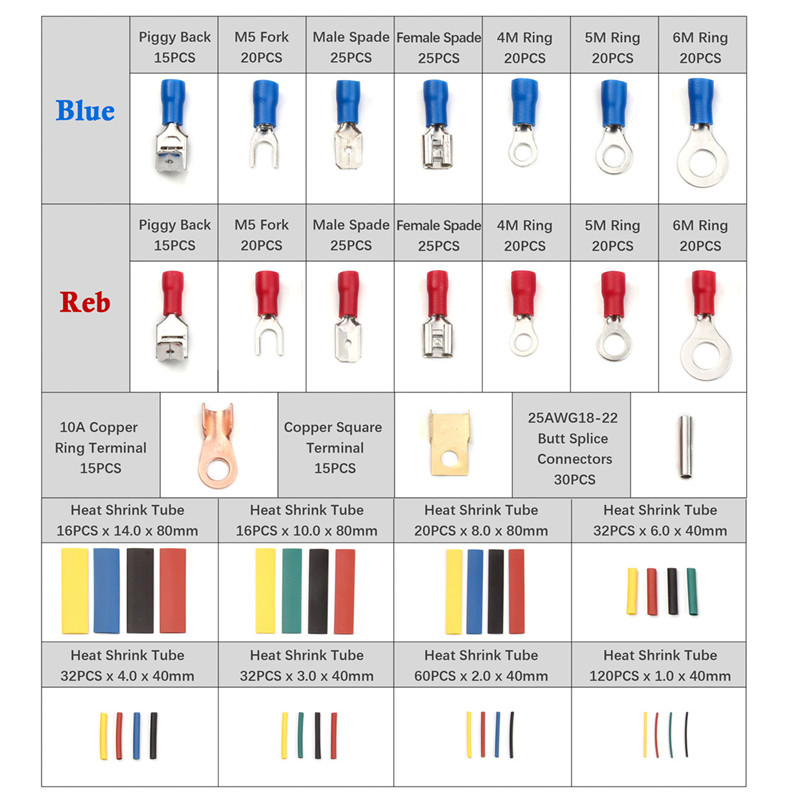

350pcs 17 kinds of various crimp terminals including:
20PCS RED * Ring Terminal 1/4"
25PCS RED* Spade Male 250 (Semi-insated)
20PCS RED * Ring Terminal #8
20PCS RED * Ring Terminal #10
25PCS RED * Fork Terminal #8
25PCS red * spades female 250 (half pack)
15PCS red * 250 (half pack)
20PCS Blue* Fork Terminal #8
20PCS Blue* Ring Terminal #8
20PCS Blue* Ring Terminal #10
25PCS BLUE * spades male 250 (half pack)
25PCS blue * spades female 250 (half pack)
15PCS Blue* Ring Terminal 1/4"
15PCS blue* piggyback 250 semi-unsaturated )
30PCS Silver* Butt Splice Connector (without insation)
15PCS Gold*Copper OT-10A
15PCS GOLD * DT8 copper square terminal



Supply inner diameter: φ1.0mm, φ2.0mm, φ3.0mm, φ4.0mm, φ6.0mm, φ8.0mm, φ10.0mm, φ14.0mm
Shrinkage inner diameter: φ0.05mm, φ1.0mm, φ1.5mm, φ2.0mm, φ3.0mm, φ4.0mm, φ5.0mm, φ7.0mm

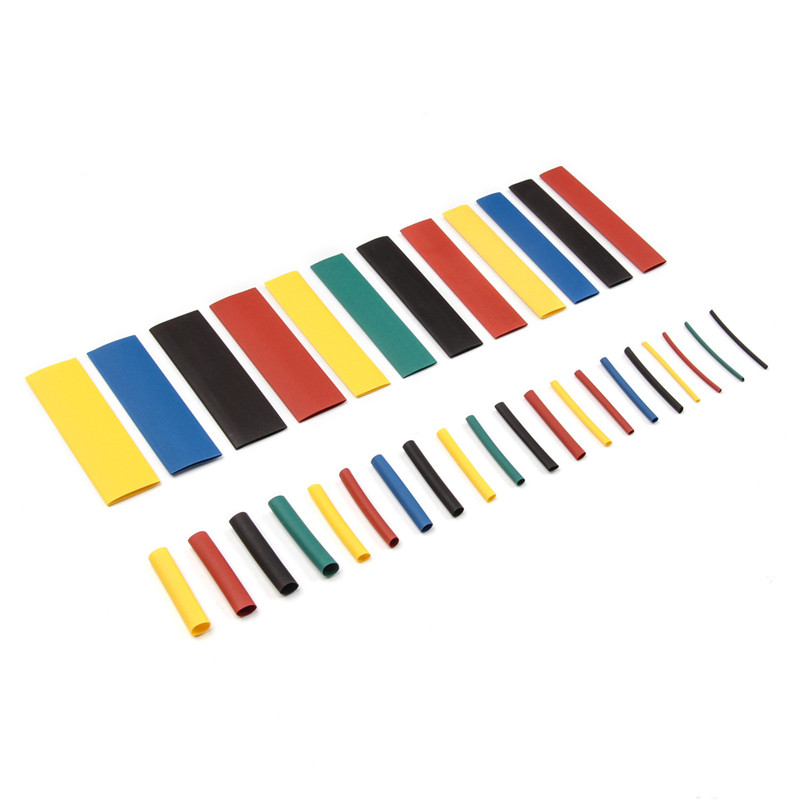

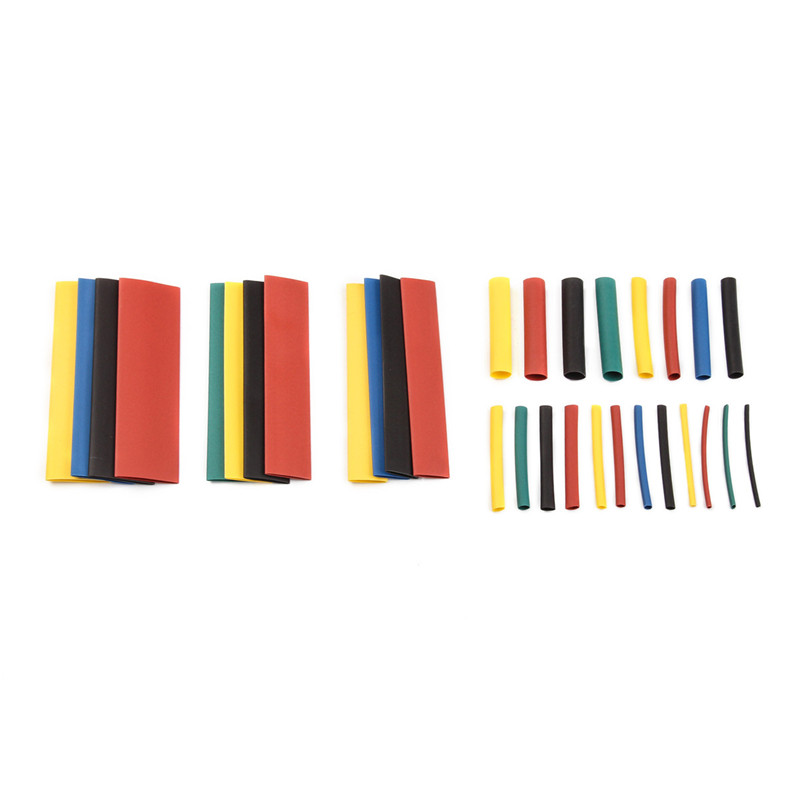

328PCS 8 kinds of heat shrink tubing include:
120PCS * φ1.0 x 40mm (yellow, black, red, green)
60PCS * φ2.0 x 40mm (yellow, black, red, blue)
32PCS * φ3.0 x 40mm (yellow, black, red, green)
32 * φ4.0 x 40mm (yellow, black, red, blue)
32 * φ6.0 x 40mm (yellow, black, red, green)
20 * φ8.0 x 80mm (yellow, black, red, blue)
16 * φ10.0 x 80mm (yellow, black, red, green)
16 * φ14.0 x 80mm (yellow, black, red, blue)


Shrinkage:2:1(max shrinks to 1/2 of its inner diameter)
Minimum shrinkage temperature: +70℃
Fl shrink temperature: up to +110°C
Operating temperature: -55℃ to +125℃
Dielectric strength: 15 kV/mm
Tensile strength: 10.4 Mpa
Flammability: flame retardant
Supply form: (φ1.0mm, φ2.0mm, φ3.0mm, φ4.0mm, φ6.0mm) round, (φ8.0mm, φ10.0mm, φ14mm) flat
Cutting method: scissors or knife
Manufacturing Specifications: ISO9001
Approval: Approved UL
Storage box size: 27 * 19 * 2.5cm / 10.63 * 7.48 * 0.98in



feature:
Various 350 wire terminals with transparent case for easy access.

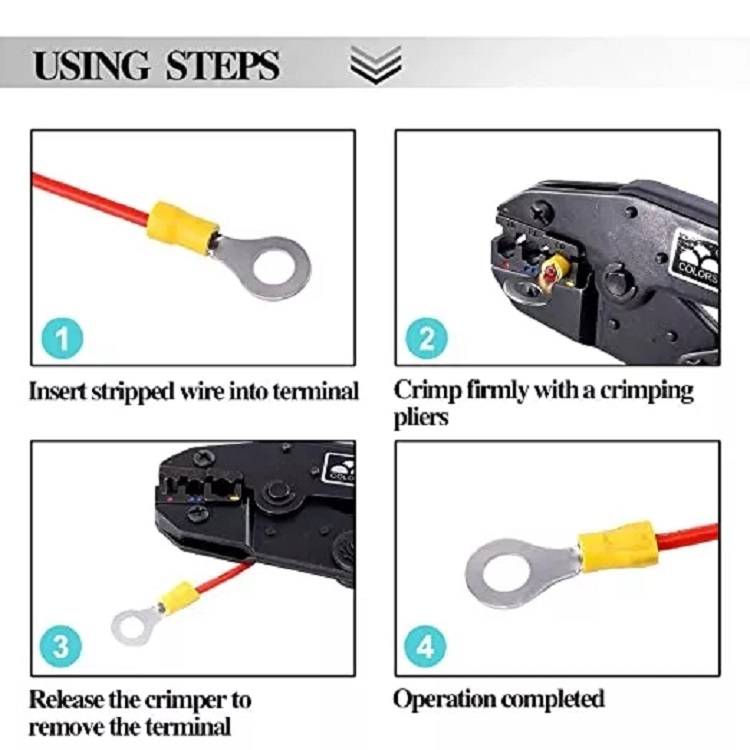

The wiring is simple and convenient to use.
Can be used for automotive wires and electrical cables.
This polyolefin material kit contains 328 pieces of shrink tubing in 5 colors.
2:1 shrink ratio. A high expansion ratio can repair most damaged cable jackets.
Widely used in electrical insulation, wire bundling, color coding, mechanical protection, wire/cable splices and repairs, etc.
