7 inch dashboard all in one windows CE 6.0 with RS232, Lan port RJ45, Wifi, USB

PRODUCT DETAIL
DC input:9V-24Vcombination:Bluetooth function, touch screen
Pixels:800*480 pixelsscreen size:5 - 7"
Origin:Fujian ChinaCPU:s3c 6410, s3c 6410
Packaging Details:Neutral packingapplication:POS, Home Automation, Truck, Industrial
brand:feel the worldport:Xiamen, China
payment terms:wire transfer, paypaldescribe:car computer window
Supply capacity:3000pcs car computer windows per monthmodel:W759
Support interface:Mini USB 2.0(OTG), USB Host 1.1, Ethernet port RJ45, RS232Warranty:12 months
Shipping Details:3-5 working dayscar brand:all
flash memory:2GBbrightness:400 cd/m²
size:7memory:256MB

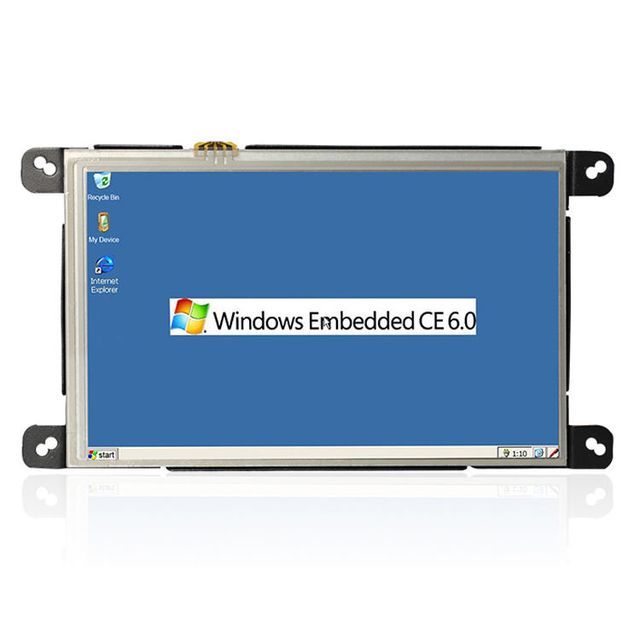

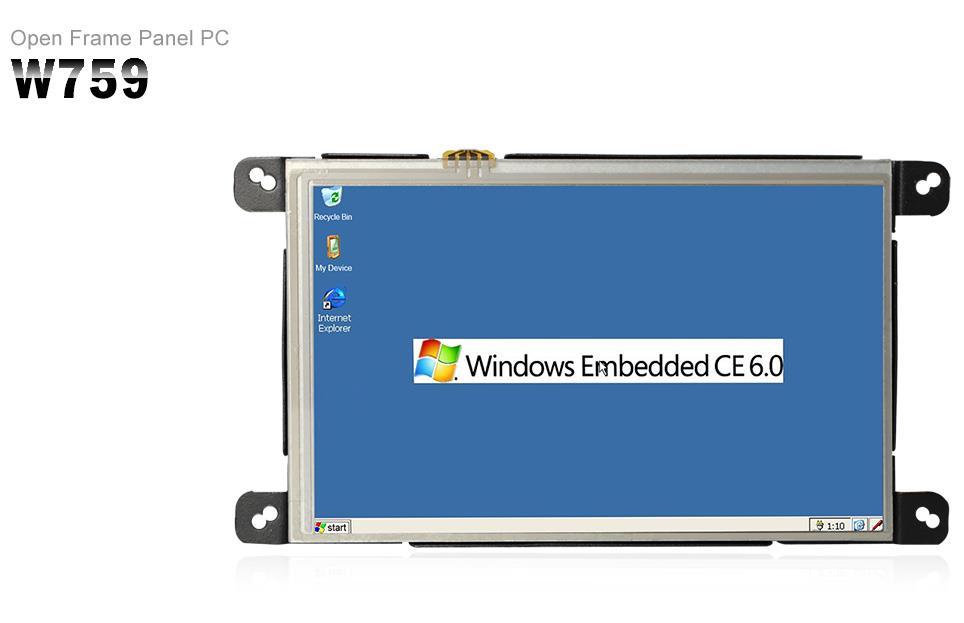

         7 inch dashboard all in one windows CE 6.0 with RS232, Lan port RJ45, Wifi, USB

product display



FEELWORLD's fanless open frame tablet with bezel-less display offers customers unlimited design flexibility. Various innovative mounting options are offered to customers, such as open frame mounting from the front and rear sides. Open frame panel PCs have a slim profile and can be easily integrated into custom enclosures. The Open Frame Panel PC is ideal for space-critical environments targeting vertical market segments including ATMs and vending machines at transit stations and entertainment venues.


Industrial computers are used by different types of industrial and commercial enterprises. It is an industrial application computing platform based on embedded PC. They are used for process control and data acquisition. They are often used as a front end to another controlling computer. An embedded computer is a computer that is part of a machine or device. They usually have a program stored in non-volatile memory. It is usually only used to operate a specific machine or equipment. Embedded computers often need to run continuously without being reset or rebooted.
Tablets are also recognized as control panels. They are ideal for industrial workspaces. Tablets are flat and usually vertical. They are used to control or monitor instruments or equipment. They are most commonly used in factories to control and monitor production lines. The military is known for using tablets to monitor ships, planes and even nuclear power plants. FEELWORLD offers products most commonly used in Military, Marine, Medical and Outdoor PC Solutions.
Product Description



describe7" Industrial Embedded Touch All-in-One PC
model.W759
CPUSamsung s3c 6410
667MHZ
memoryDDRII SDRAM 256MB (up to 512MB)
flash memory2GB (up to 4GB)
LCD screenResolution: 800x480
Dot pitch: 0.0642(W) × 0.1790(H) mm
Brightness: 400 cd/m²
Contrast: 500:1
Viewing angle: 70/70 (Left/Right) 50/70 (Up/Depth)
operating systemWindows CE 6.0
feature:Mini USB inputUSB Device 2.0 input for PC
memory card insertedSD card inserted, maximum 32G
WIFI (optional)Wi-Fi RT2870 wireless network card, support IEEE802.11b/g (standard) IEEE802.11g (6M/S)
Bluetooth (optional):Data transmission Bluetooth V2.0, 2.4GHz
Lithium battery (optional):7.4V 2500mAH; working time: 4 hours
interface:Mini USB 2.0(OTG)1
USB-Host 1.12
Network port RJ451
RS2322
Support Visual Basic, EVC, Visual Studio, net framework 3.5
Support keyboard, mouse and U disk
Support RS232, TTL (optional)
Input voltage:9V-24V
Maximum consumption:≤8 watts
Operating temperature:0℃~ 50℃ 0~85% RH
Storage temperature:-10℃~ 60℃ 0~75% RH

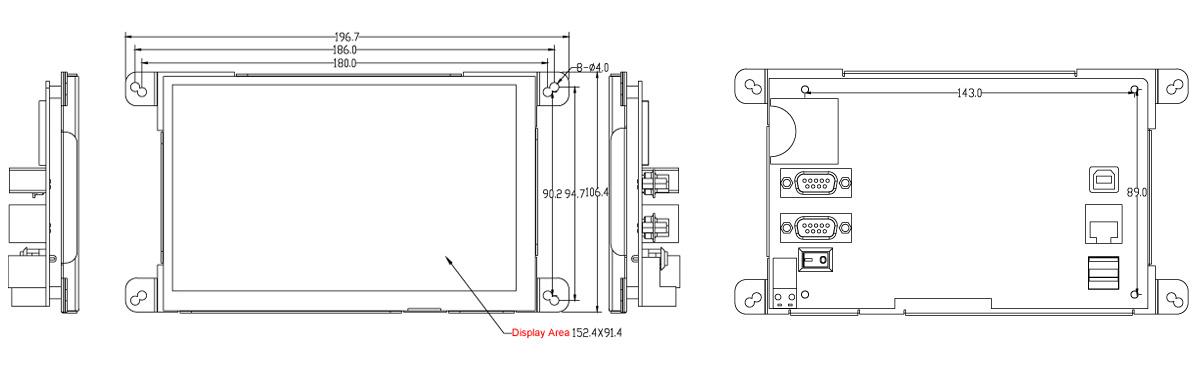

Unit size:170Lx107Wx34H(mm)
unit weight:400 grams



feature

feature
1. LCD Panel all in one PC for Industrial Application
2. All hardware and software customized according to your requirements
3. Powerful 667MHZ, Samsung s3c 6410 CPU, 256MB DDRII memory
4. 7-inch 400cd/m² brightness display, resistive touch
5. RS232, network port RJ45
6. Open frame installation is optional
7. Wide voltage 9V-24V optional
8. Optional: 3G/WIFI/Bluetooth/GPS



Advanced Features:

· Windows CE 6.0

· Support Visual Basic, EVC, Visual Studio, net framework 3.5

· USB HOST1.1 (active synchronization)

· Support keyboard and mouse

 application:

· Industrial control system

· Automotive media centers, telematics and navigation

· ultra mobile computer

· personal media player

· Home Automation and Media Centers

· Order Management System

· Electronic Educational Equipment

· Advertising digital signature



our service

1. Strong R&D experience

2.OEM&ODM capability

3. Strict QC test control

4. EASY & FAST communication

5. Responsible after-sales service

Packaging and Shipping

Gift & neutral box 10pcs/ctn

Delivery Information:
SEETEC strives to place all orders as soon as possible after full testing by the QC department!
Mailing method:
By express: Fedex, DHL, EMS, TNT, UPS,
Logistics method: air & sea
Shipping time:
Monday to Saturday 8:00 am to 17:30 pm
Recipient address:
If via PayPal, please note that items will only be shipped to verified users with a confirmed shipping address
If by T/T, the shipping address is Correspondence
