8mm Pneumatic Fitting Brass Atomizing Nozzle, Outdoor Low Pressure Misting Nozzle With Fitting
- $0.65 / >=30 pieces
- 30 pieces
- Dongguan Mebon Spraying & Purification Technology Ltd.
- Guangdong, China
- Mr Jackson Ng
| Showroom location: | Canada | Accessories: | 3/16" Pneumatic Fitting |
| Health status: | new | Video shipment inspection: | if |
| feature: | high life, good price | Work pressure: | 5bar - 20bar |
| Marketing Type: | normal product | Weight (kg): | 0.1 |
| brand: | Smith Barney | Material: | brass |
| Mechanical test report: | if | Spray Angle: | 60 degrees |
| Orifice size: | 0.15mm to 0.5mm | type: | nozzle |
| thread type: | 3/16" | Applicable industries: | manufacturing plant |
| place of origin; place of origin: | Guangdong, China | Packaging Details: | Standard carton packaging |
| port: | Shenzhen | payment terms: | Western Union, T/T |
| thing: | FDS low pressure atomizing nozzle | Supply capacity: | 1,000,000 pieces per month |
| application: | cooling, humidification | Tubing size: | 8mm |

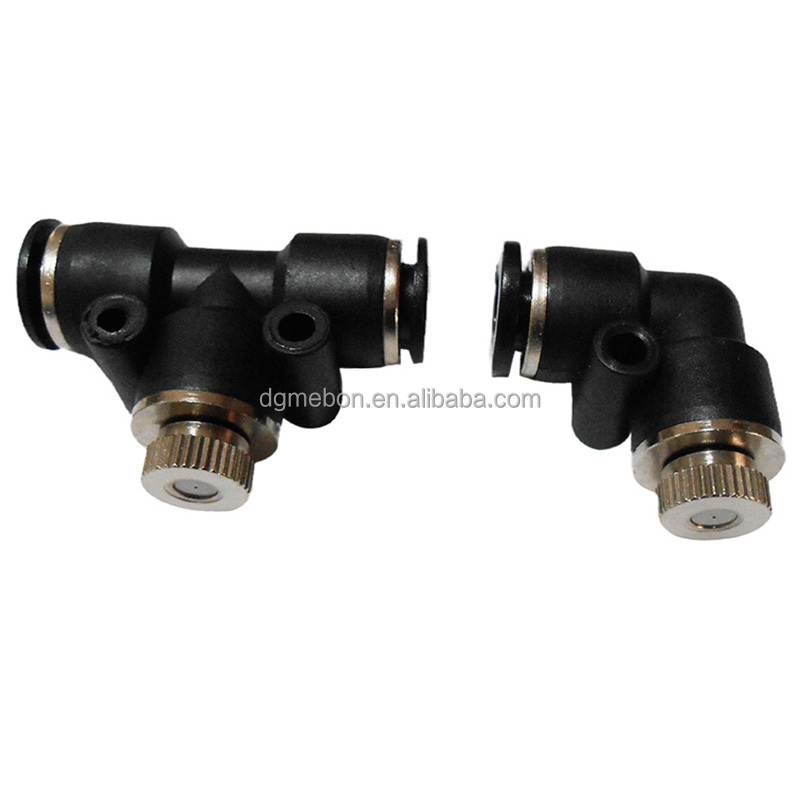

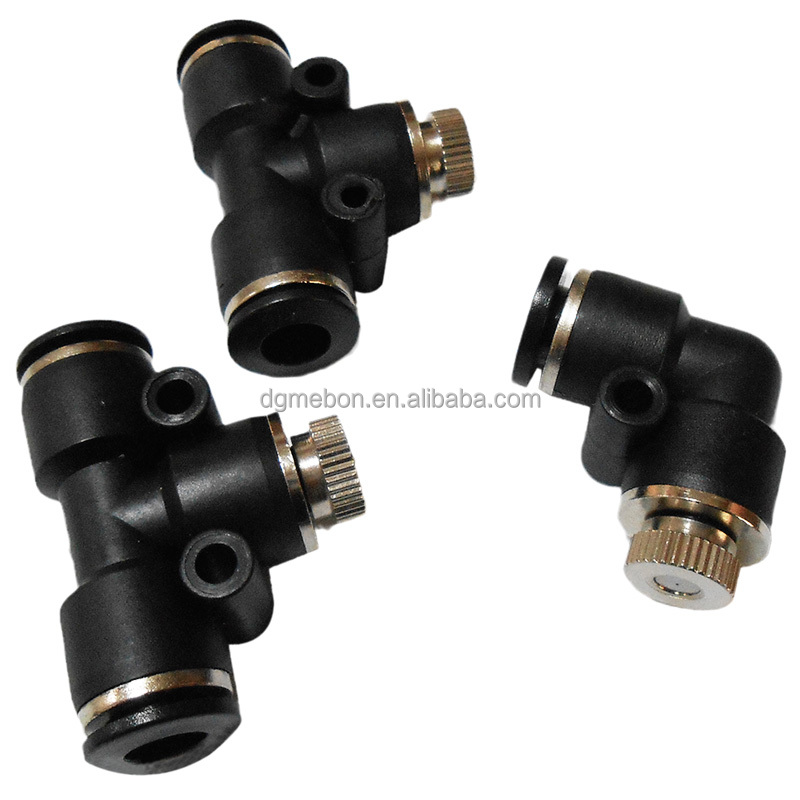

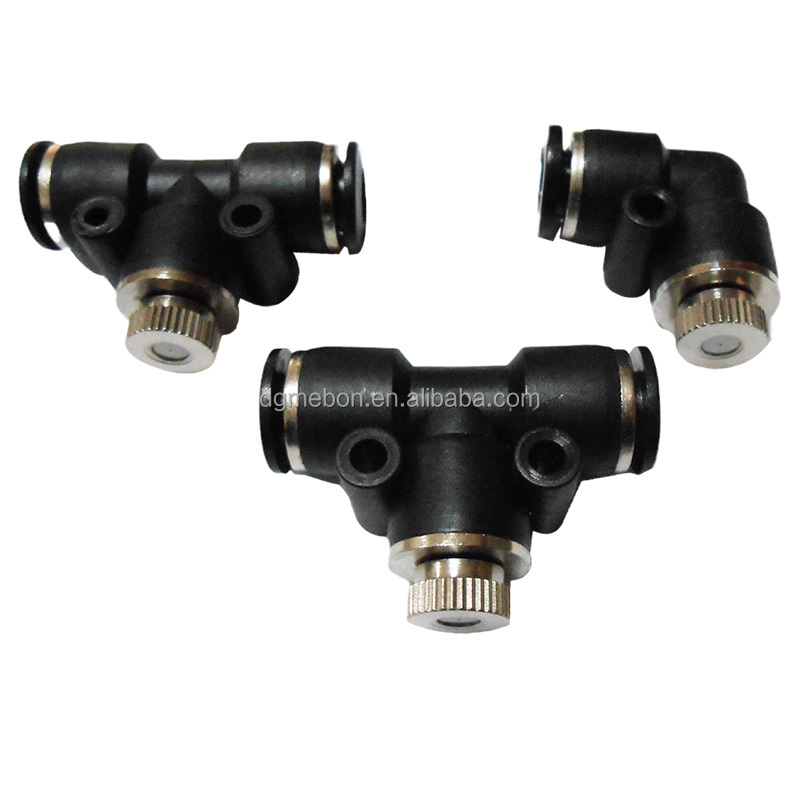

Brass mist head with 8mm pneumatic fitting, outdoor mist nozzle with fitting
Product Description
- Metal Mist Nozzles consist of a brass body with stainless steel holes.
- The liquid flows at high speed under a water pressure of 5 to 20 bar, producing extremely fine droplets.
- The droplet size is about 30um.
- Widely used in workshop humidification salt spray test, artificial atomization and other humidification places.
- The punching size of the punching machine imported from the United States is about 0.15-0.5mm.
- The nozzle saves more than 10 times the cost of air humidification.
- 3/16" pneumatic fitting to 8mm tubing
|
type |
hole |
Wire |
pressure |
flow rate |
|
FDS10 |
0.15mm |
3/16" |
7-20bar |
0.020-0.046L/min |
|
FDS20 |
0.20mm |
3/16" |
7-20bar |
0.049-0.089L/min |
|
FDS30 |
0.30mm |
3/16" |
5-20bar |
0.080-0.145L/min |
|
FDS40 |
0.40mm |
3/16" |
5-20bar |
0.095-0.178L/min |
|
FDS50 |
0.50mm |
3/16" |
5-20bar |
0.130-0.248L/min |
common application
1. Wetting and derusting
2. Space humidification
3. Chemical treatment
4. Chemical spraying
5. Liquid paint
6. Humidification of tobacco leaves
7. Pill coating
8. Flue gas evaporative cooling
9. Disinfection and sterilization
10. Part cooling
11. Fruit wax injection
12. Glazing tiles
13. Factory humidification
14. Salt spray test
15. Artificial fog

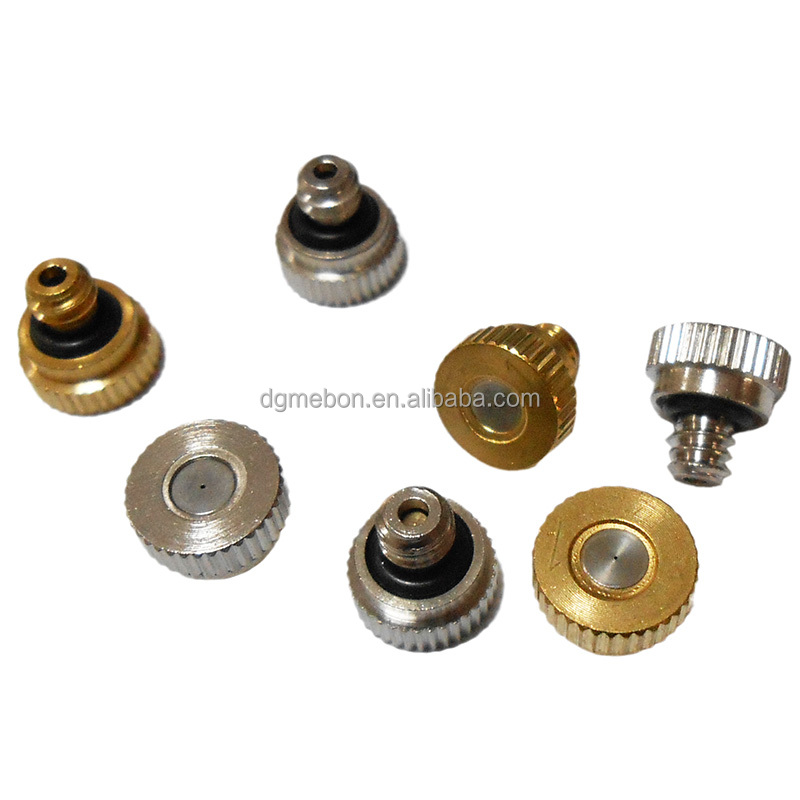

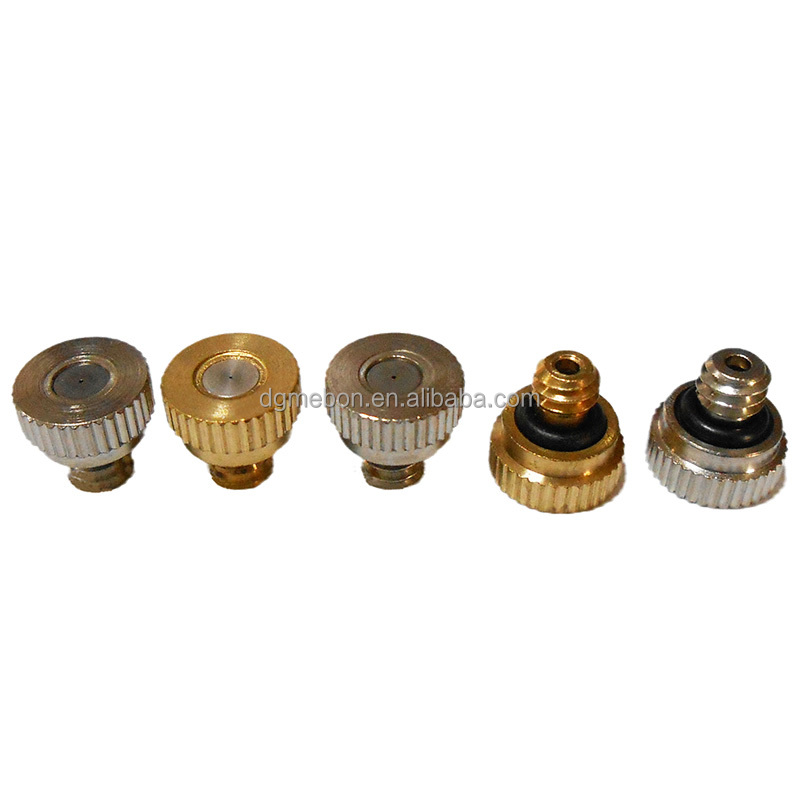

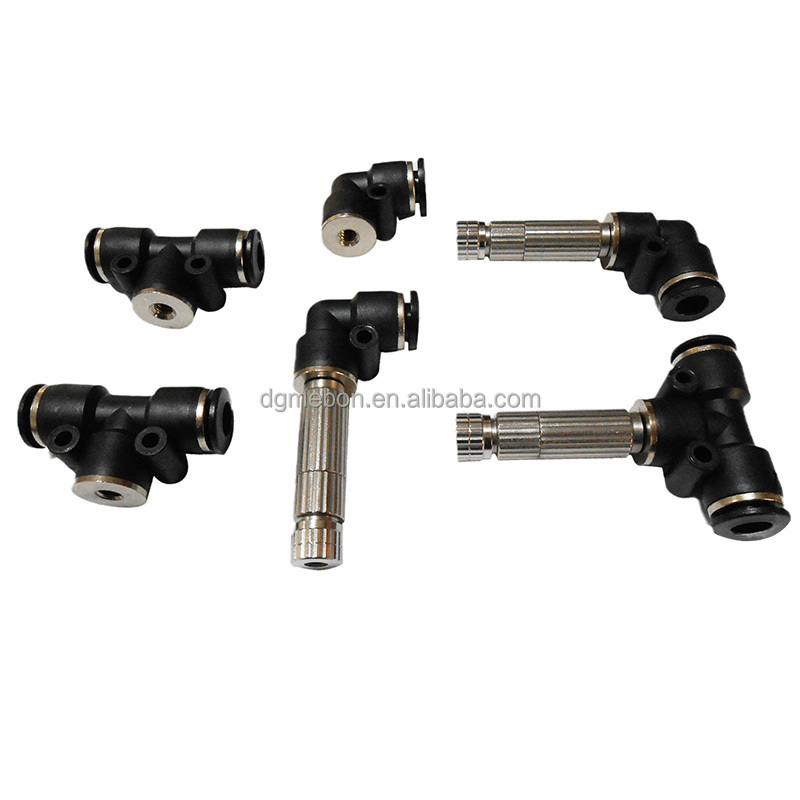

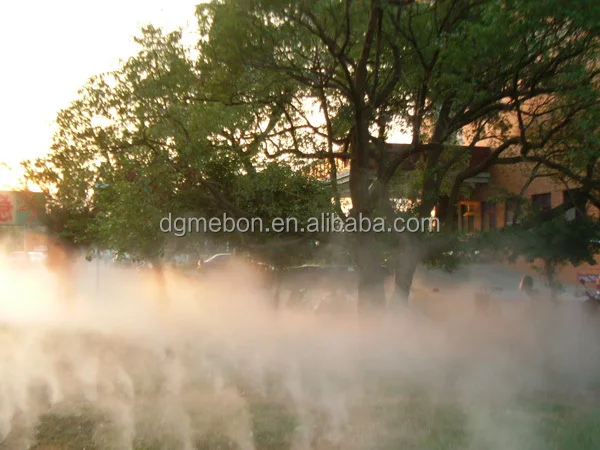

product display
Dongguan Meibang Spray Purification Technology Co., Ltd. was established in Dongguan in June 2002. Our company is a professional manufacturer engaged in the design, development and sales of various nozzles and filters.
Our company has professional technicians, perfect production equipment and high-quality talent team, including 15 engineers, 60 technicians and 2 management personnel. Some of them have 10 years industry knowledge and experience in nozzles and filters.

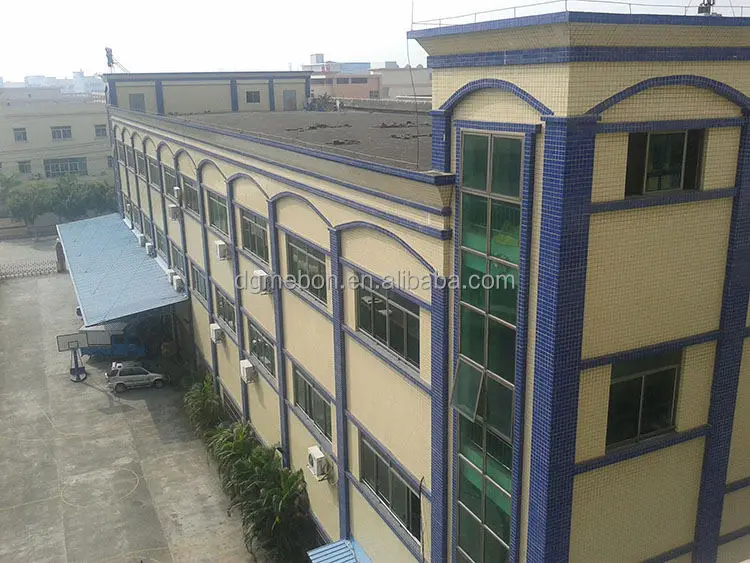

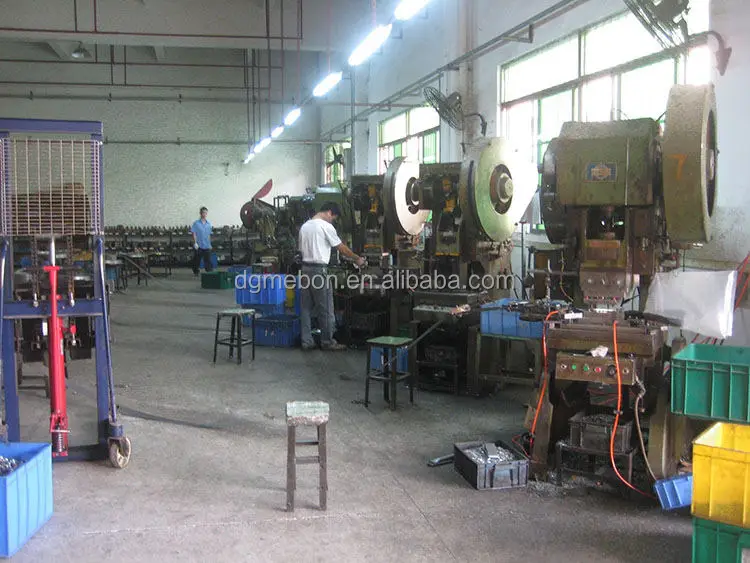

plant

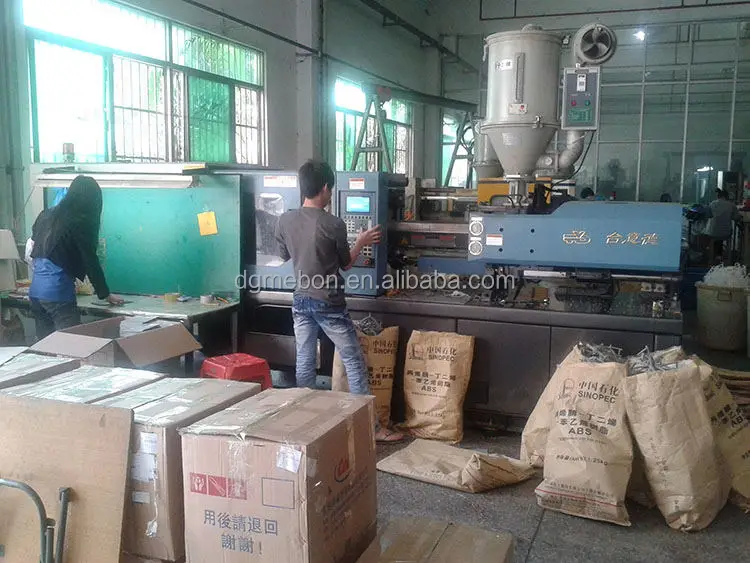

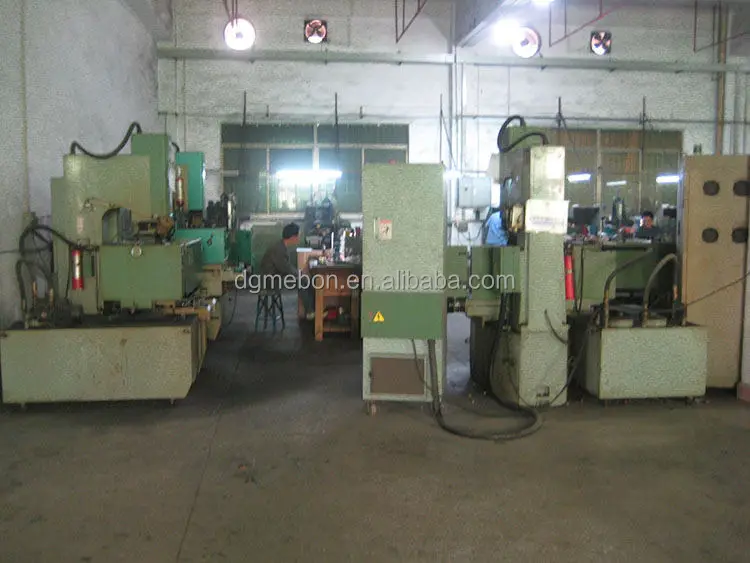

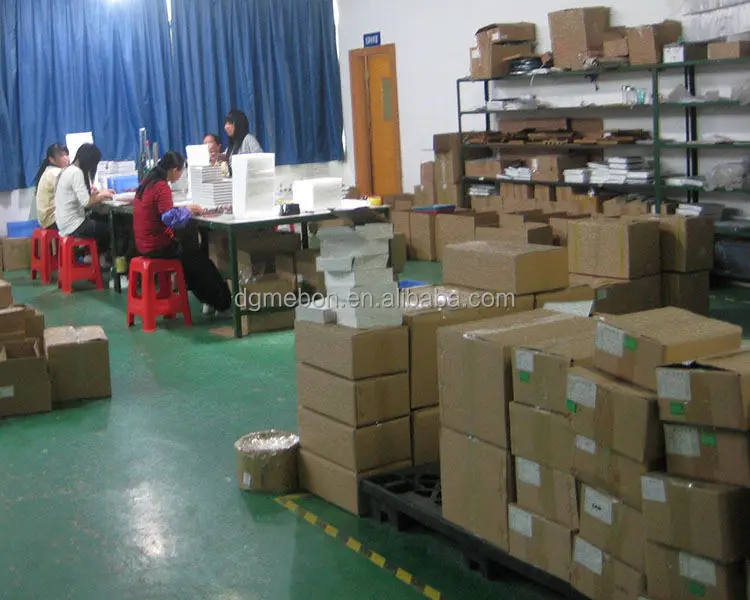

workshop
Bale
