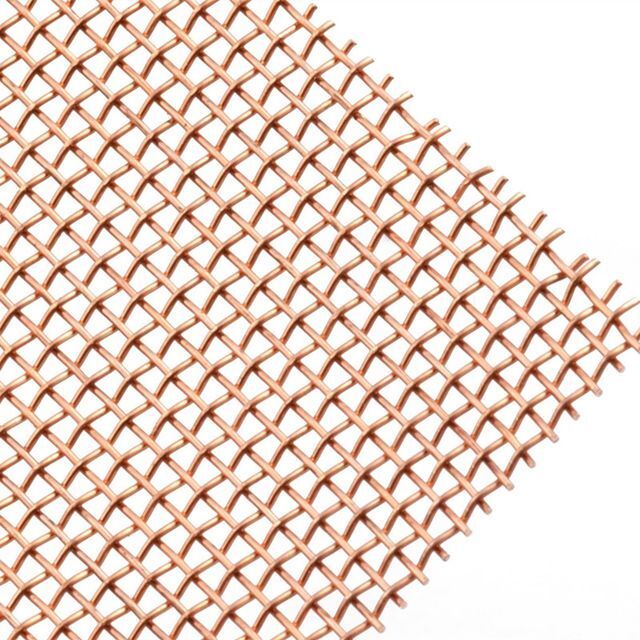

99.99% pure cooper woven wire mesh 0.12 mm wire 03 mm hole cooper mesh screen
- $11.95 / 50 - 499 square meters
$11.50 / 500 - 1999 square meters
$10.90 / >=2000 square meters - 50 square meters
- Hebei Zhaotong Wire Mesh Manufacturing Co., Ltd.
- Hebei, China
- Ms Kiki An
PRODUCT DETAIL
Weave Style: | weave; | Product: | copper screen; |
Supply Ability: | 5000 Square Meters per Month; | Packaging Detail: | Plastic woven bag insode and Carton box or pallet outside; |
Color: | Red Copper Color; | Processing Service: | Cutting; |
Type: | woven; | Place of Origin: | Hebei, China; |
Width: | 1.27m; | Package Preview: | ; |
Application: | Filter; | Model Number: | no; |
Advantages: | factory; | Sample: | Offered; |
Port: | tianjin; | Brand Name: | no; |
Payment Terms: | L/C,T/T; | Name: | copper mesh; |
Delivery Time: | 8-14 days; | Mesh counts: | 250mesh; |
Material: | copper wire; | Usage: | filter; |
MOQ: | 10m; |
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight | ||||
(kg /Square meter) | ||||||||
Inch | MM | Inch | MM | (%) | ||||
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 | ||
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 | ||
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 | ||
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 | ||
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 | ||
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 | ||
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 | ||
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 | ||
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 71.2 | 1.6 | ||
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 69.4 | 1.6 | ||
20X20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 | ||
20X20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 | ||
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 63.9 | 1.4 | ||
30X30 | 0.0094 | 0.24 | 0.0243 | 0.62 | 72.1 | 0.84 | ||
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 | ||
50X50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 | ||
60X60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 | ||
60X60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 | ||
80X80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 | ||
100X100 | 0.0039 | 0.1 | 0.006 | 0.154 | 36.76 | 0.5 | ||
120X120 | 0.003 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.384 | ||
150X150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 | ||
150X150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 | ||
165X165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 | ||
180X180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
Material: red copper/red copper phosphor bronze brass
Specification: 1-635 mesh/inch, width: 0.914m ,1.0m,1.5m
Weaving: plain weave
Uses: screening of mining, metallurgy, construction, medicinal materials and other industries
Specification: 1-635 mesh/inch, width: 0.914m ,1.0m,1.5m
Weaving: plain weave
Uses: screening of mining, metallurgy, construction, medicinal materials and other industries
Production Description:
As a supplier of copper and brass wire mesh for many different industries and applications, our produces a wide variety of woven wire meshes. Our copper/brass wire mesh of square mesh ranges in aperture sizes from 0.025 mm to 14 mm. And in addition to our standard program, which is always readily available in stock, we also run lots of special productions for customer-specific
As a supplier of copper and brass wire mesh for many different industries and applications, our produces a wide variety of woven wire meshes. Our copper/brass wire mesh of square mesh ranges in aperture sizes from 0.025 mm to 14 mm. And in addition to our standard program, which is always readily available in stock, we also run lots of special productions for customer-specific
Packing details:
PP bag inside,carton or wooden case or pallet packed outside
All products are inspected by QC before delivery.
Delivery Time:
1. For sample order: will be shipped out in 3-5 days.
2. For normal order,we usually have in stock,we usually ship out in several days,also depend on the order quantity.
MOQ order:
We also will sell even 1m2m
PP bag inside,carton or wooden case or pallet packed outside
All products are inspected by QC before delivery.
Delivery Time:
1. For sample order: will be shipped out in 3-5 days.
2. For normal order,we usually have in stock,we usually ship out in several days,also depend on the order quantity.
MOQ order:
We also will sell even 1m2m
