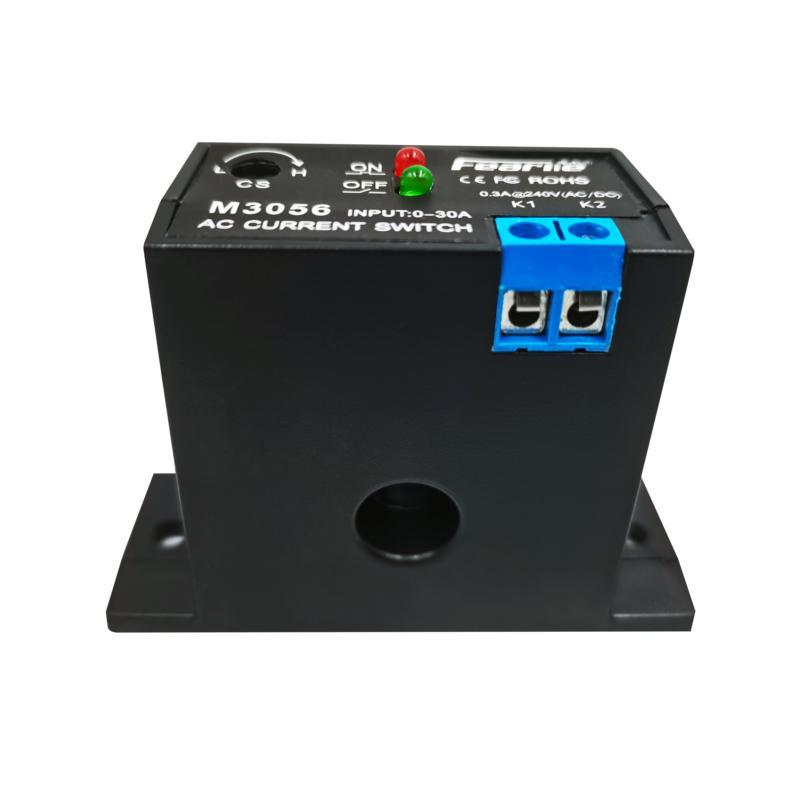

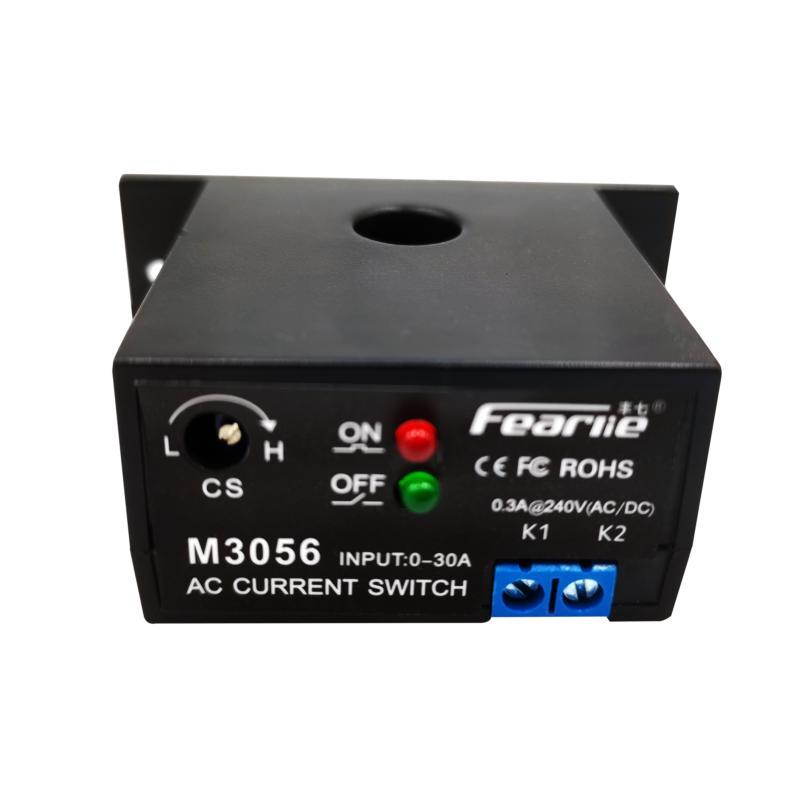

AC 0.2-30A Power sensor switch M3056 Power relay monitor, adjustable Power switch Normally closed plastic 240V Fearlie
- $9.50 /piece
- 1 piece
- Guangdong Fengli Electronics Co., Ltd.
- Guangdong, China
- Mr David Li
PRODUCT DETAIL
| place of origin; place of origin: | Guangdong, China | theory: | Electromagnetic induction |
| usage: | Industrial Automation Control | brand: | fear |
| payment terms: | L/C,Western Union,D/P,D/A,T/T | product name: | AC current switch |
| Material: | plastic | output: | Current and voltage |
| describe: | current switch | model: | M3056 |
| type: | M3056, Hall effect current sensor | Function: | Turning off or turning on control current |
| Voltage: | 240V |
feature:
1. Self-powered, no external power supply required. 2. Input current 0.2-30A AC, adjust with potentiometer. 3. The LED indicator light can easily and intuitively indicate the working status of the switch. 4. High-power MOS tube non-contact electronic switch. 5. The switch has no limit on the number of times of opening and closing, and the response speed reaches the millisecond level. 6. Straight-through structure design, isolation withstand voltage up to 2000V. 7. The hysteresis is less than 1%, and it can be used under strong magnetic conditions. 8. It is suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system, etc.
Advantage:
> Mutual inductance current monitoring, input and output safety isolation, self-power supply > The monitoring current range is within 30A, and the monitoring set point can be set at any point within this range. > Non-contact electronic switch, fast response, unlimited switching times. > The shell is made of fireproof material ABS.
Product Specifications
model. | M3050 | M3056 | M3080 | M3086 | |||
type | Normally open | Normally closed | Normally open | Normally closed | |||
Set value range | 0.2-30A | 1-200A | |||||
core type | solid core/split core | Normally open/normally closed | Normally open/normally closed | Normally open/normally closed | |||
power supply | None, self powered | None, self powered | None, self powered | None, self powered | |||
output rating | 0.3A/240V AC DC | 0.3A/240V AC DC | 0.3A/240V AC DC | 0.3A/240V AC DC | |||
non-state leak | <0.1MA | <0.1MA | <0.1MA | <0.1MA | |||
Response time | <200MS | <200MS | <200MS | <200MS | |||
lag | <1% | <1% | <1% | <1% | |||
overload | 200% | 200% | 200% | 200% | |||
environmental | -20 to 50°C 0–95% RH, non-condensing | ||||||
list | UL (only some models, need to confirm when ordering) CE | ||||||

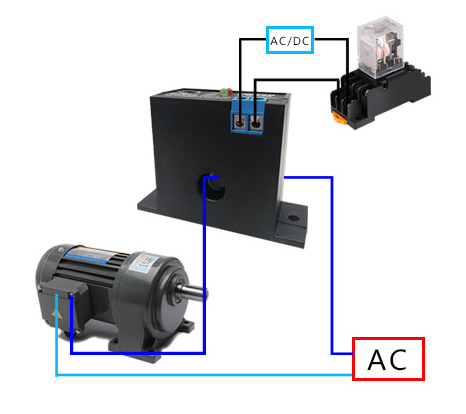

Wiring diagram
Wiring Instructions:
Input: 0.2-30A
Output rating: 0.3A@240V AC/DC
Normally open:
When the current through the perforated wire is greater than the set value, the output terminal is turned on; when the current through the perforated wire is less than the set value, the output terminal is turned off
Normally closed:
When the current through the perforated wire is greater than the set value, the output terminal is turned off; when the current through the perforated wire is less than the set value, the output terminal is turned on

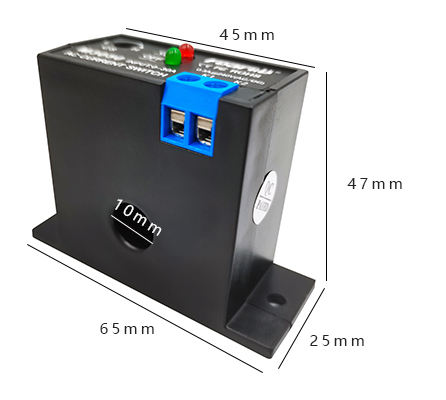

Size: 65*25*47MM
Application example: 1. Linkage switching between two devices
2. Whether the monitoring equipment is working normally
3. Send witch signal to PLC
4. Give a switch signal when the current is overloaded
2. Whether the monitoring equipment is working normally
3. Send witch signal to PLC
4. Give a switch signal when the current is overloaded
Product Features
feature:
> Mutual inductance current monitoring, input and output safety isolation,
Self-powered (passive) > The monitoring current range is within 30A,
and the monitoring set point can be set to
any point within this range.
> Hysteresis <1%, can be used for strong
Magnetic environment.
> Non-contact electronic switches,
quick response,
There is no limit to the number of switches.
> The shell is made of fireproof material ABS.
Self-powered (passive) > The monitoring current range is within 30A,
and the monitoring set point can be set to
any point within this range.
> Hysteresis <1%, can be used for strong
Magnetic environment.
> Non-contact electronic switches,
quick response,
There is no limit to the number of switches.
> The shell is made of fireproof material ABS.
