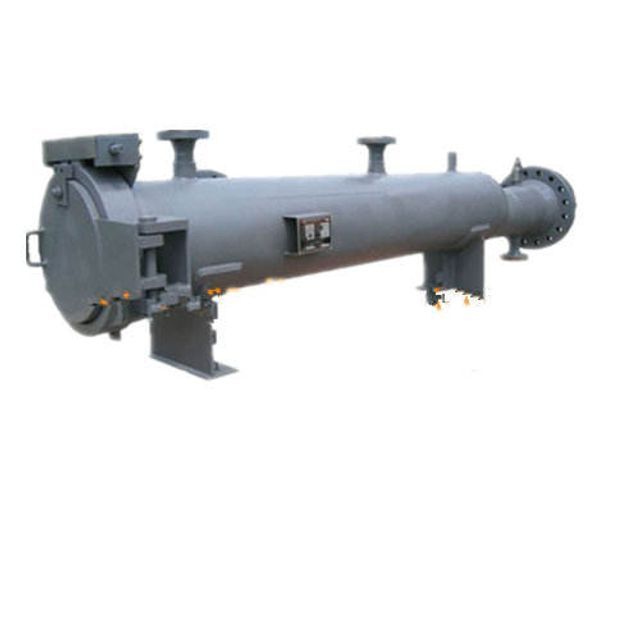

ASME B31.8 Pig Launcher and Pig Receiver --- Pipeline equipment
- $2000.00 /set
- 1 set
- Hunan Fushun Metal Co., Ltd.
- Hunan, China
- Ms Florence Tang
| Port: | Shanghai; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Packaging Detail: | Standard export packing or following customer's demand.; | Supply Ability: | 500 Sets per Month; |
| Shape: | Round; | Manufacture: | Yes; |
| Inspection: | The third party is acceptable.; | Alloy Or Not: | Non-Alloy; |
| Standard: | ASME,PED,EN13445,AD,N-505(PETROBRAS); | Trade term: | CIF CFR FOB; |
| Application: | Gas and Oil; |
Introduction:

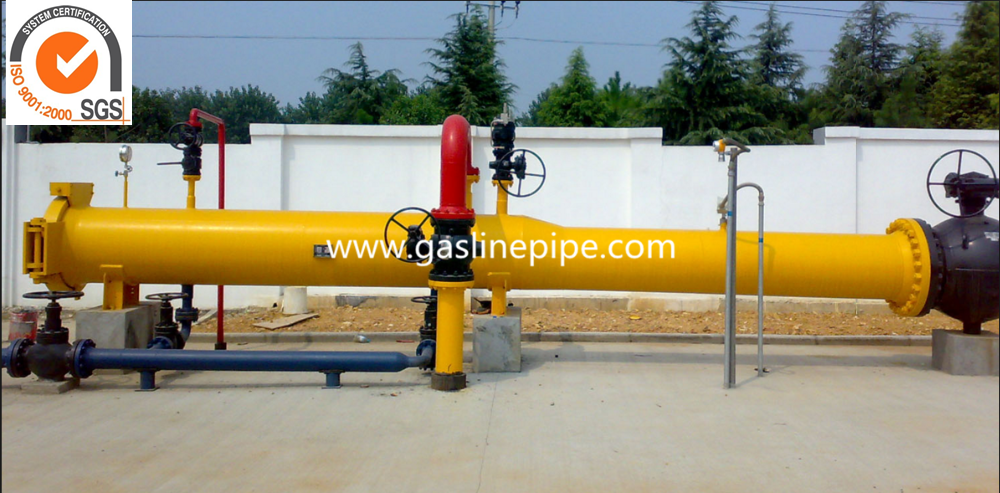

ASME B31.8 pig launcher and pig receiver are installed on pipelines to launch and receive pipeline pigs, pipeline spheres and pipeline inspection tools. Pig launcher & pig receiver offer a safe and effective means of inserting and removing pipeline pigs to and from pipelines.
Main parts of the pig-launcher:
chamber body with pipeline section
Quick Open Closure
pipeline
other nozzles
davit
crane
valves
safety valves
sensor, measuring instrument, pig signaler
control unit
Details of installation
pressure retaining chamber
Quick Open Closure
pipeline section
other technologic nozzles
valves
operating device
insulating flanges
safety valves
sensor
pressure gauge
inside perforated basket
The main parts of a pig chamber.
pressure parts
extension
reducer
shell
nozzle
quick open closure
inner basket or tray
The technician’s parameters and requirements are determined by customer instructions. If the customer does not have all the information, our specialists make recommendations.
