AUMA's versatile electric multi-turn actuators SA and SAR for automation of gate or globe valves in power plants

PRODUCT DETAIL
port:ShanghaiTorque range SA:15 Nm to 4,000 Nm
model:Multi-turn actuators SA and SARName:Multi-turn actuators SA and SAR
steering wheel:Manual operation of the handwheelAvailable SAs:3-phase AC, 1-phase AC and DC motors
Torque Range SAR:15 Nm to 4,000 Nmpayment terms:L/C,Western Union,T/T,MoneyGram
place of origin; place of origin:China ShanghaiSupply capacity:999 sets per month
brand:OmarOutput speed SA:4 to 180 rpm
Output Speed ​​SAR:4 to 90 rpmmaximum. Number of starts SAR:1,200 degrees Celsius/hour
Packaging Details:A set of multifunctional electric multi-turn actuator SA and SAR by AUMA Brown box for automatic packaging of gate valve or globe valve in power plant, WG: 4.5Kg Size: 30cm*30cm*30cmCertification:pcoc,Reach,IECEE,scoc,EPA,GS
Available SARs:Available for 3-ph AC, 1-ph AC motorsWarranty:3 years
Environmental conditions:High case protection / high quality corrosion protectionPackaging Preview:



AUMA's versatile electric multi-turn actuators SA and SAR for automation of gate or globe valves in power plants

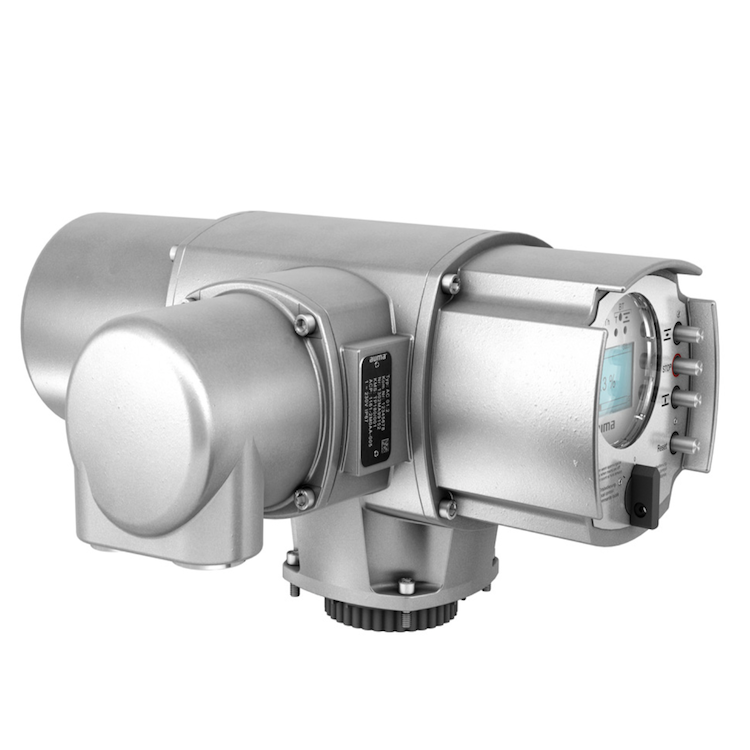

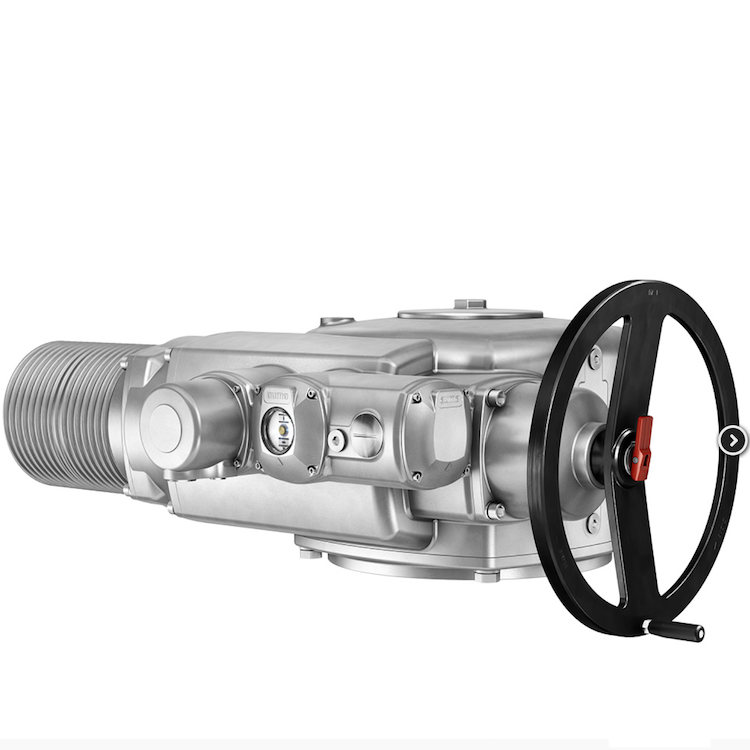

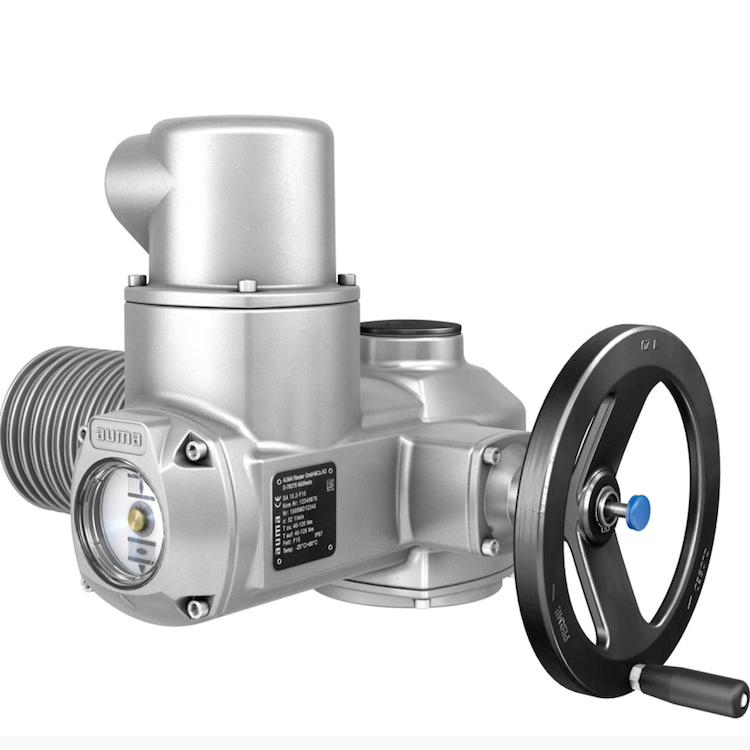

Actuators SA and SAR

The SA Type range of open-close and positioning actuators are rated for Class A and B or S2 - 15 minutes. For S2 - 30 minute loads, special versions for longer runs are available.



The regulating actuators of the SAR series are rated for Class C or S4 - 25 % duty type. Special versions S4 - 50 % and S5 - 25 % are also available.



Actuators of the SA/SAR type can be combined with various controls, from simple OPEN-CLOSE controls to microcontroller versions with recorded operating data or a fieldbus interface.



Design Features SA



l Torque range from 10 Nm to 32,000 Nm

l Output speed from​​​4 to 180 rpm

l Limit and torque sensing

l Can be used with 3-ph AC, 1-ph AC and DC motors

l Manual operation of the handwheel

Design Features SAR



l Torque range from 15 Nm to 4,000 Nm

l Adjustable torque range from 15 Nm to 1,600 Nm

l max. Number of starts 1,200 c/h

l Output speed from​​​4 to 90 rpm

l Limit and torque sensing

l Can be used with 3-ph AC, 1-ph AC motors

l Manual operation of the handwheel

environmental conditions

l High shell protection

l High quality corrosion protection

l Wide ambient temperature range

Options

l Intermediate position switch

l Series switch

l Remote position transmitter

l Magnetic limit and torque transmitter

l Mechanical position indicator

l Functional safety: up to SIL 2 in selected configurations

interface



Electrical connection via AUMA plug/socket connector (optional terminal)

Cable entries in different versions

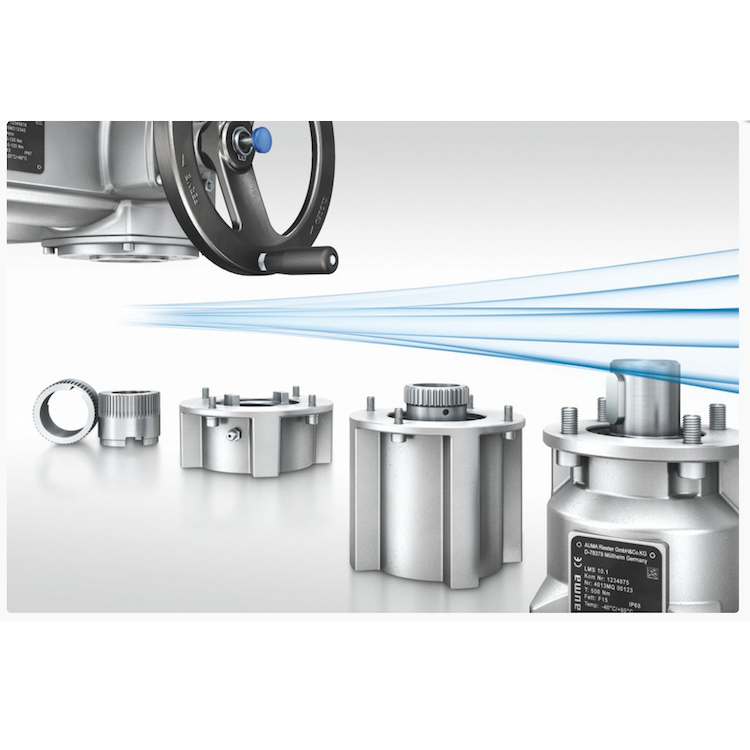

ISO and DIN Compliant Output Driver Types

Product Description





Application field: energy

Include:

Fossil power plants (coal, natural gas, oil)

Nuclear Power Plant

Combined heat and power plant

District Heating Power Plant

solar thermal power plant

Biogas power plant

Modular design for extreme requirements

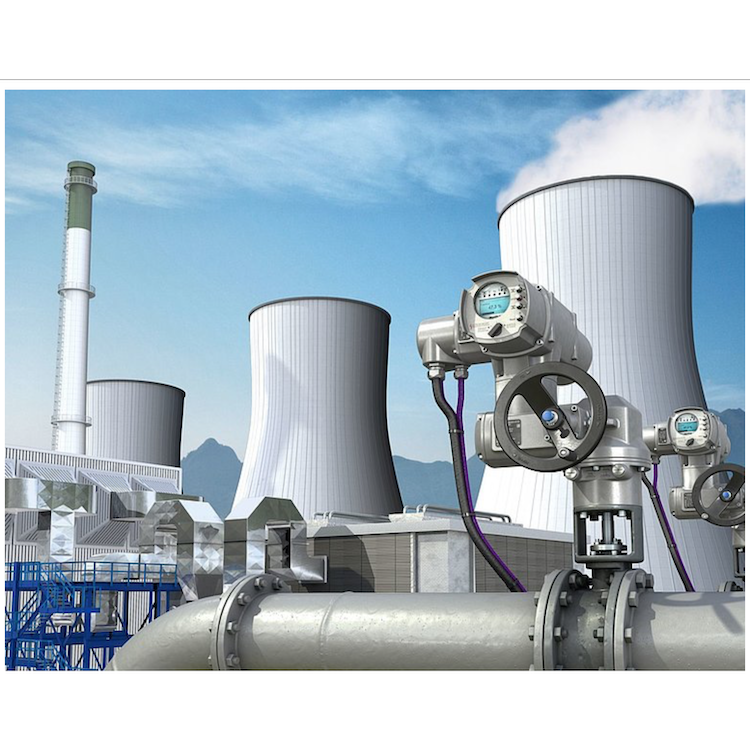

Power plants consist of systems such as water and steam circuits, flue gas cleaning, cooling towers, boiler systems and turbines. Control systems regulate processes within these systems for visualization within the control room. Electric actuators mounted on the valve control the flow of water and steam within the piping system.

AUMA actuators provide interfaces for all automated valves suitable for power plant control systems. When used in power plants, AUMA actuators are characterized by their outstanding resistance to voltage, vibration and temperature, and can be adapted to any desired installation position.
