AUTOOL CT200 Ultrasonic Injector Cleaning Kit Nozzle Washer Injector Tester Auto Injector

PRODUCT DETAIL
Voltage:12Vbrand:O'Toole
port:ShanghaiWarranty:12 months
model:CT200Origin:Philosophy
Injector cleaner power:70W, 110V/220VPackaging Details:wooden box
Package preview:Injection nozzle cleaning machine packaging:485*465*490mm
strength:24Wtype:Injector Tester
Supply capacity:500 acres per monthproduct name:Automotive Injector Cleaner Tester
Applicable models:all carsAuto Parts:Abate
Nozzle cleaning machine weight:17.8 kgYear:2016-
payment terms:Western Union, T/T, MoneyGramSpeed ​​range:0~7500 rpm
Model:124 Spider (348_)combination:software development kit
System pressure:0~0.6Mpa (adjustable)
Specification
Specification
Features:
1. LED display;
2. Built-in ultrasonic cleaning tank;
3. Tool trolley, more convenient to operate;
4. Equipped with high-quality Siemens water pump, which is durable;
5. The liquid discharge speed is faster, and the value of 2 is added before the machine.

AUTOOL CT200 Ultrasonic Injection Nozzle Cleaning Machine Features:
1. Ultrasonic cleaning, remove the injector carbide;
2. Fuel injector test, simulate engine operating conditions, test fuel injectors in different speed ranges, check and test the injection conditions of fuel injectors
Situation: atomization/spraying angle/spraying installation/spraying uniformity;
3. Leakage and blockage test;
4. Various compound bonding machines with unique design, suitable for all kinds of side-entry injectors;
5. It has the function of backwashing, cleaning from the inside out, improving the cleaning efficiency;
6. Equipped with a set of adapters, the injector can be cleaned without removing it from the engine;

Working conditions of AUTOOL CT200 ultrasonic nozzle cleaning machine:
Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity: <85%
Ambient temperature: 10℃~40℃
Magnetic field: <400A/m

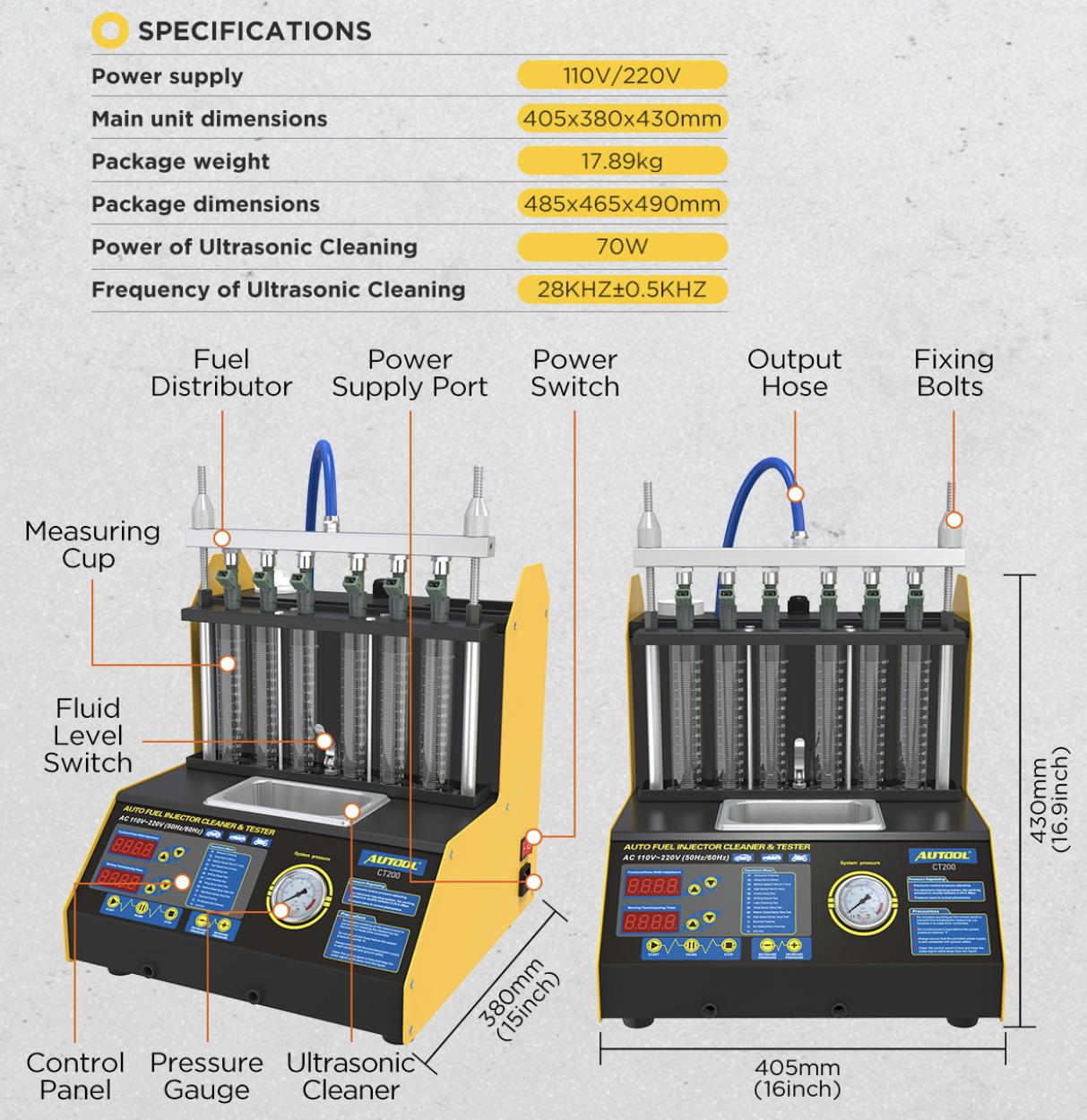

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner Specifications:
Fuel tank capacity: 2000ml
Measuring cylinder capacity: 125ml
Speed ​​range: 0~7500 rpm
Number of injections: 0~9900
Step size: 100ms
Pulse width modulation pulse: 0~20.0 ms
Step size: 0.1 milliseconds
System pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minutes (adjustable)
Ultrasonic cleaning power: 70W
Ultrasonic cleaning frequency: 28KHZ±0.5KHZ

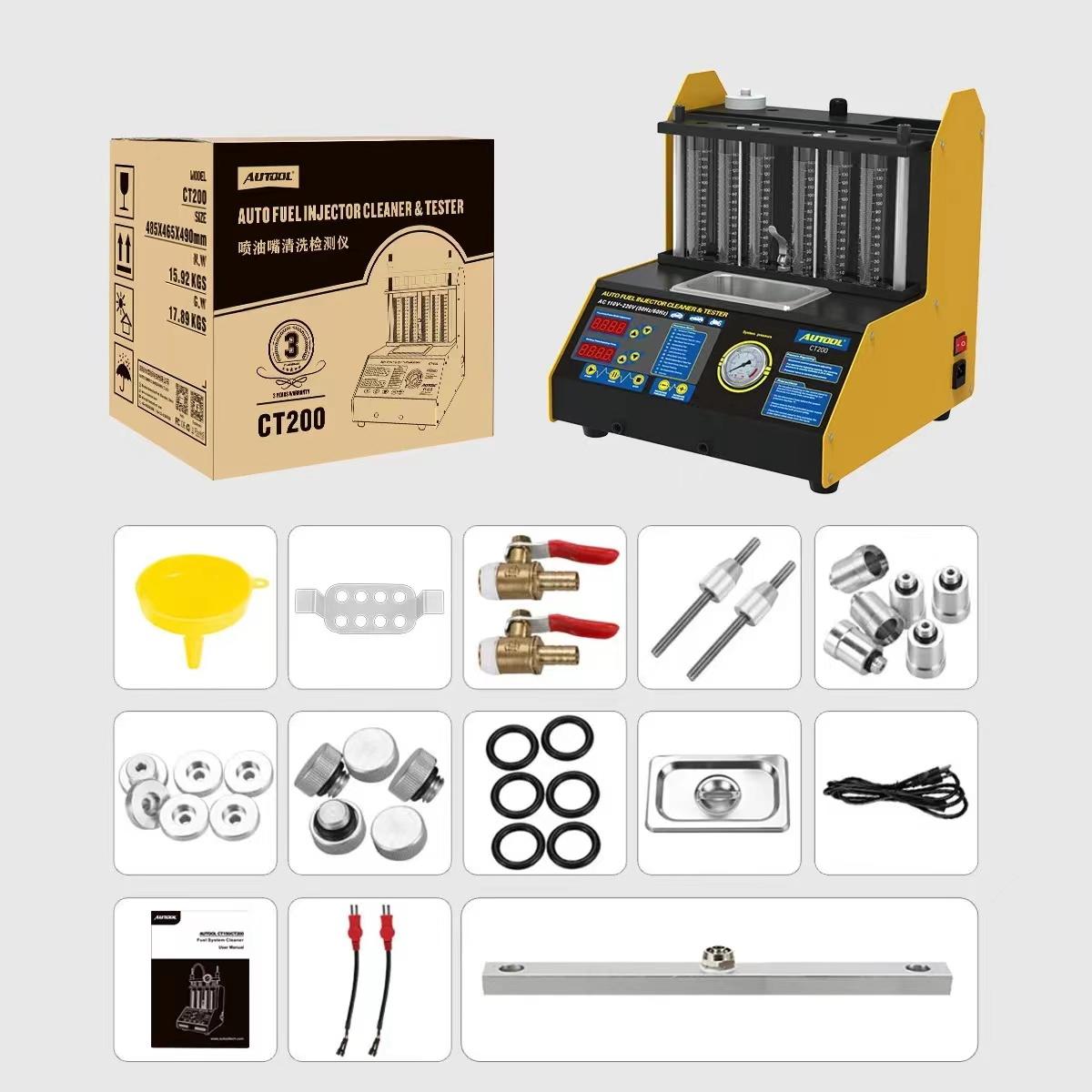

Package Included:
1 x CT200 unit
2 x valves (for draining liquid from machine tank)
6 x adapters for fixing the injectors on the machine
6 connecting rods
6 x block allocators for block allocators
1 x Dealer Kit
1 x Pulse cable to provide power to open injectors
1 x Manual (English)
